PCA9451A评估板

PCA9451A-EVK

滚动图片以放大

PCA9451A是一款通用型单芯片电源管理集成电路(PMIC)，可为消费电子和工业市场的不同应用支持不同的微控制器和微处理器。PCA9451A提供开箱即用的电源解决方案，支持i.MX 93系列处理器。

该器件提供6个高效降压稳压器、3个LDO、1个400mA负载开关，2通道电平转换器和32.768KHz晶振驱动器。

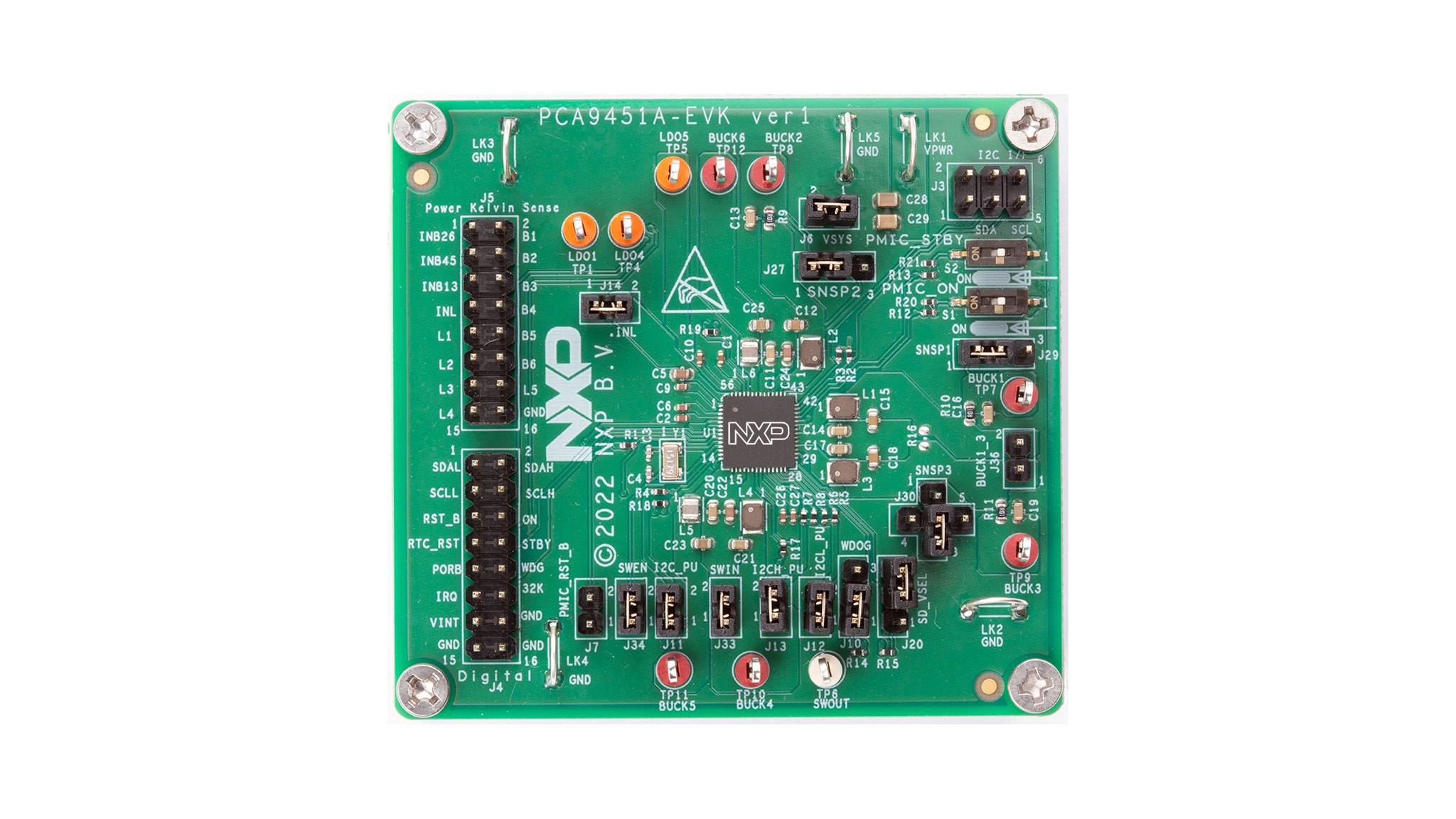

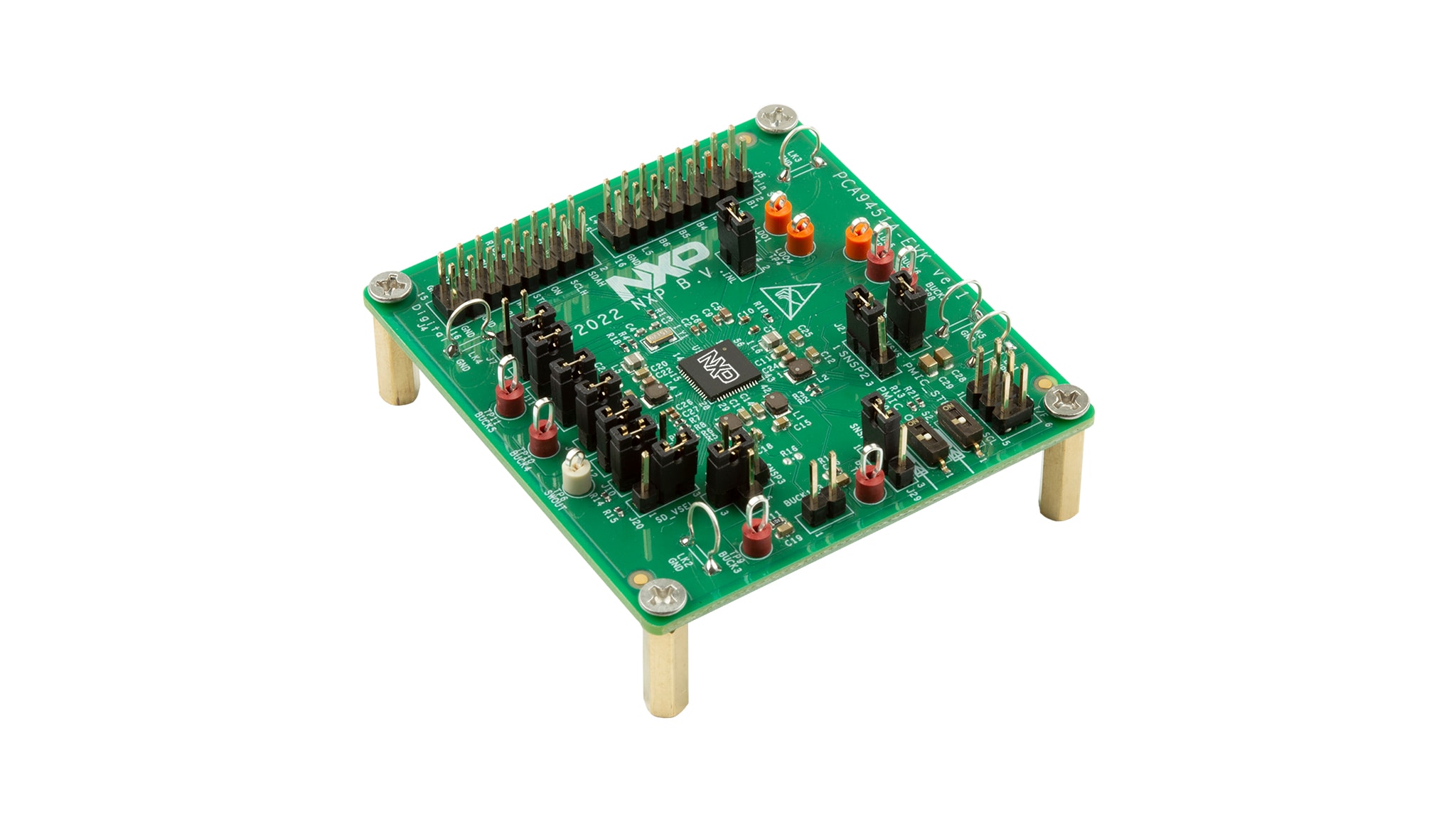

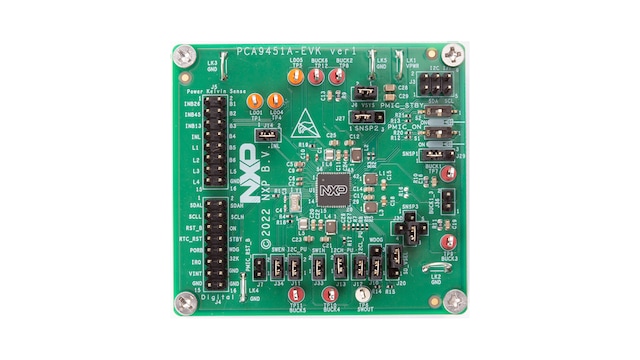

此PCA9451A-EVK评估板可完全访问PCA9451A器件中的所有功能。该评估套件附带一根FTDI电缆，用作I²C和USB之间的通信接口，以使用PCA9451A GUI软件控制PMIC的配置寄存器。

框图

面向i.MX 93x系列处理器的PCA9451A电源管理IC

PCA9451AFunctional Block Diagram
获取框图PDF

支持的器件

电源管理

PMIC

  • PCA9451A: 面向i.MX 93x应用处理器的PCA9451A电源管理IC

特性

主要特性

  • 具有内置有源放电电阻的400 mA负载开关
  • 32.768kHz晶体振荡器驱动和缓冲输出

6个高效降压稳压器

  • 1个4A双相降压稳压器，具有DVS功能和遥测功能
  • 1个2A降压稳压器，具有DVS功能和遥测功能
  • 1个3A降压稳压器
  • 1个2A降压稳压器
  • 1个1.5A降压稳压器

3个线性稳压器

  • 1个低IQ 10mA LDO
  • 1个150mA LDO
  • 1个200mA LDO

购买选项

PCA9451A-EVK-Image

点击展开

  • PCA9451A-EVK
    正常供应

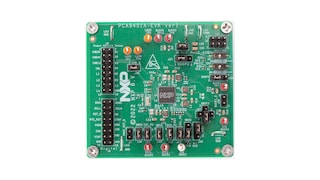

  • PCA9451A Evaluation Board .

    • 完成组装和测试的PCA9451A评估板，存放在防静电袋中
    • USB到FDTI串行电缆，适用于I²C通信
    • 空闲跳接线
  • $130.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 22
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
