MPC560xB_32位MCU_车身电子

点击播放视频

MPC560xB/C/D系列32位微控制器是面向汽车车身电子和工业控制应用的最新集成器件。

这些可扩展的Power Architecture®器件还有一个庞大的支持生态合作体系，其中包括软件驱动程序、操作系统和配置代码，以帮助快速实现您的设计。

数据手册

参考手册

产品详情

框图

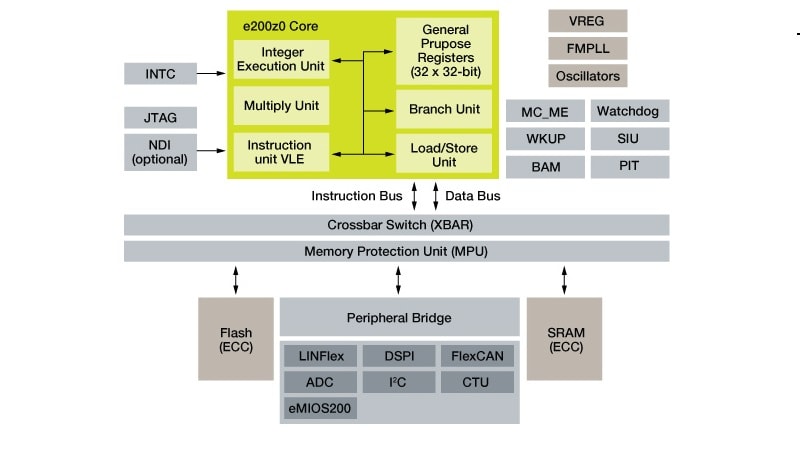

MPC560XB Microcontroller Block Diagram

获取框图PDF

特征

闪存：高达1.5 MB
EEPROM: 64 KB DataFlash^®
RAM：高达96 KB
定时器：16位，多达64个通道
ADC：
- 10位，多达36通道
- 12位，多达16通道
6个CAN
6个SPI
10个LINFlex
本产品包含在恩智浦产品长期供货计划中，自推出后至少保证15年供货

AUTOSAR软件（新）

在此免费或以折扣价下载AUTOSAR OS/MCAL。

设计资源

设计文件

5 设计文件

^模型
MPC5604BTQFP100 BSDL Files

ZIP版本 -Mar 1, 2008 00:00:008.9 KBMPC5604BTQFP100BSDL

下载
^模型
MPC5604BTQFP144 BSDL Files

ZIP版本 0May 18, 2012 00:00:009.4 KBMPC5604BTQFP144BSDL

下载
^模型
MPC5604B BSDL file for the 144QFP package

ZIP版本 1.2Sep 10, 2010 00:00:004.8 KBMPC5604BLQFP144BSDL

下载
^模型
MPC5604B BSDL file for the 100QFP package

ZIP版本 1.2Sep 10, 2010 00:00:004.2 KBMPC5604BLQFP100BSDL

下载
^计算器
MPC56xx EEPROM Emulation Endurance Calculator

ZIP版本 vBeta053Dec 17, 2012 00:00:009.1 MBMPC56XX_EEPROM_CALCULATOR

下载

硬件

1-5 / 9 硬件

^{评估/开发板与系统}
评估套件 - MC33903BD5，带CAN和LIN的第二代SBC亮点

KIT33903BD5EVBE
^{评估/开发板与系统}
MPC56xx Shield扩展板亮点

XPC56xxMB2
^{评估/开发板与系统}
评估套件 - MC33903BD3，带CAN和LIN的第二代SBC亮点

KIT33903BD3EVBE
其他可用硬件. 查看我们的精选合作伙伴解决方案.
^{评估/开发板与系统}

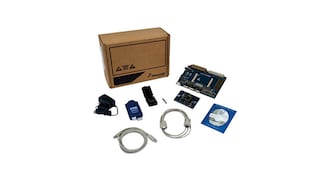

恩智浦MPC560xB的评估板亮点

MPC560xB_EVB
^{评估/开发板与系统}
MPC5606B StarterTRAK开发套件亮点

TRK-MPC5606B
^{仿真器、探测器和编程器}
Universal Multilink FX高速开发接口

U-MULTILINK-FX
^{评估/开发板与系统}
MPC5646C器件和目标适配器

MPC5646C-DB
^{评估/开发板与系统}
MPC5606B 3相BLDC开发套件

MTRCKTSBN5606B
^{评估/开发板与系统}

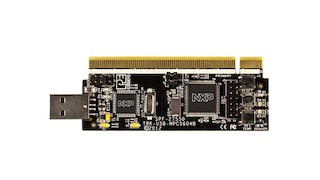

MPC5604B StarterTRAK USB 开发系统
