MPC56xx Shield扩展板

XPC56xxMB2 正常供应

滚动图片以放大

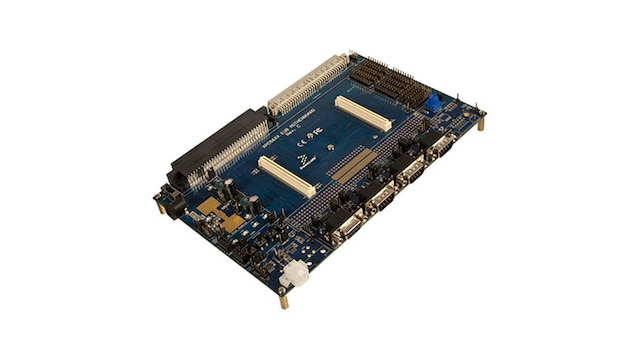

XPC56xxMB2主板是一个评估系统，支持恩智浦MPC56xx MPU。

  • 完整的系统除了一个XPC56xxMB2主板之外还有一个可以插在主板上的XPC56xxADPT微型模块(未随附)。
  • 另有多种微型模块可供选择，用于评估MPC56xx系列MCU的各种器件。
  • 评估系统(包括主板和微型模块)让用户能够实现对CPU的完整访问，包括CPU的所有I/O信号和主板外设(例如CAN、SCI、LIN)。

请在下方的“最新更新和版本”区域，选择您所需的评估系统。

产品详情

支持的器件

处理器和微控制器

超高可靠性的MPC56xx MCU

  • MPC560xB: 超可靠的MPC56xB MCU，适用于汽车和工业通用LIN应用
  • MPC560xP: 超可靠的MPC560xP MCU，适用于汽车和工业安全应用
  • MPC560xS: 超可靠的MPC560xS MCU，适用于汽车和工业仪表板
  • MPC563xM: 超可靠的MPC563xM，适用于汽车和工业发动机管理
  • MPC564xA: 超可靠的MPC564xA MCU，适用于汽车和工业发动机管理
  • MPC564xB-C: 超可靠的MPC564xB-C MCU，适用于汽车和工业控制应用
  • MPC564xL: 超可靠的双核32位MCU，适用于汽车和工业控制应用

功能

连接

  • 两个CAN通道，支持跳线
    • 一个CAN通道，带高速收发器
    • 一个CAN通道，带低速容错和高速收发器(可通过跳线进行选择)
  • 两个LIN通道，支持跳线
    • 一个通道为空通道
    • 一个通道带收发器
  • 一个SCI通道，支持跳线

电源管理

  • 12 V直流电源输入圆柱形接头

组件

  • 4个用户自定义按钮，支持跳线和极性选择
  • 4个用户自定义LED，支持跳线

购买选项

MPC56XXMB2-Image

点击展开

  • MPC56XXMB2
    正常供应

  • Mother board for evaluation of Qorivva MPC56xx devices, CAN, LIN, SCI, FlexRay, LEDs, push buttons.

    • 购买XPC56xxMB2，您将获得：
      • 一个XPC56xxMB2主板
      • 一个XPC56xx资源CD–ROM
      • 恩智浦保修卡
      • 电源
  • $375.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
