MPC5604B StarterTRAK USB 开发系统

TRK-USB-MPC5604B 正常供应

滚动图片以放大

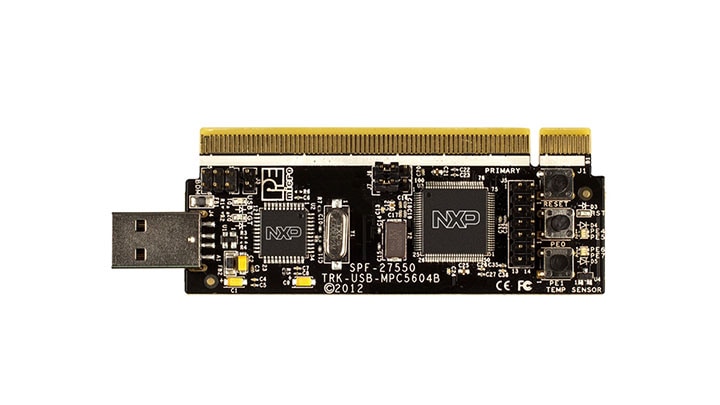

Our StarterTRAK USB kit (TRK-USB-MPC5604B) is designed to easily and inexpensively test drive the NXP® 32-bit MPC5xxx MCUs. Along with the MPC5604B MCU, it features a PCI card-edge for compatibility with the NXP Tower® System so you can create a custom development system based on your design needs.

For a full-featured NXP MPC560xB development kit, please refer to the TRK-MPC5606B StarterTRAK Development Kit.

The NXP MPC560xB family of 32-bit MCUs includes the latest in integrated devices for auto body electronics applications. These scalable Power Architecture® devices are supported by an enablement ecosystem that helps you quickly implement your designs.

产品详情

支持的器件

处理器和微控制器

超高可靠性的MPC56xx MCU

  • MPC560xB: 超可靠的MPC56xB MCU，适用于汽车和工业通用LIN应用

特征

微控制器

  • MPC5604B微控制器采用100引脚LQFP封装

数据连接

  • Primary Tower® System connector

调试

  • 通过USB连接的OSBDM调试器

传感器

  • 温度传感器

用户组件

  • Two bicolor LEDs
  • 两个按钮

支持

购买选项

TRK-USB-MPC5604B-Image

点击展开

  • TRK-USB-MPC5604B
    正常供应

  • StarterTRAK USB Dev Kit for Qorivva MPC5604B, Primary Tower connector, OSBDM debug through USB.

  • $49.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
