i.MX RT600是跨界MCU系列产品，适用于32位沉浸式音频播放和视频用户界面应用，将高性能Cadence^® Tensilica^® Hi-Fi 4音频DSP内核与新一代Cortex-M33内核相结合。i.MX RT600系列跨界MCU旨在通过安全、功率优化的嵌入式处理器充分挖掘语音辅助终端节点的潜力。

i.MX RT600系列提供高达4.5MB的片上SRAM和多个高带宽接口，可访问片外闪存，包括带OTF解密引擎的Octal/Quad SPI接口。此外，该系列提供丰富的外设、EdgeLock^® 400A安全*，功耗极低，支持低功耗模式和快速唤醒功能。

*结合了EdgeLock 400A安全的设备支持多个片上安全能力，并建立在安全引导、安全调试和安全生命周期管理的基础上，旨在抵御远程和本地软件攻击。

产品详情

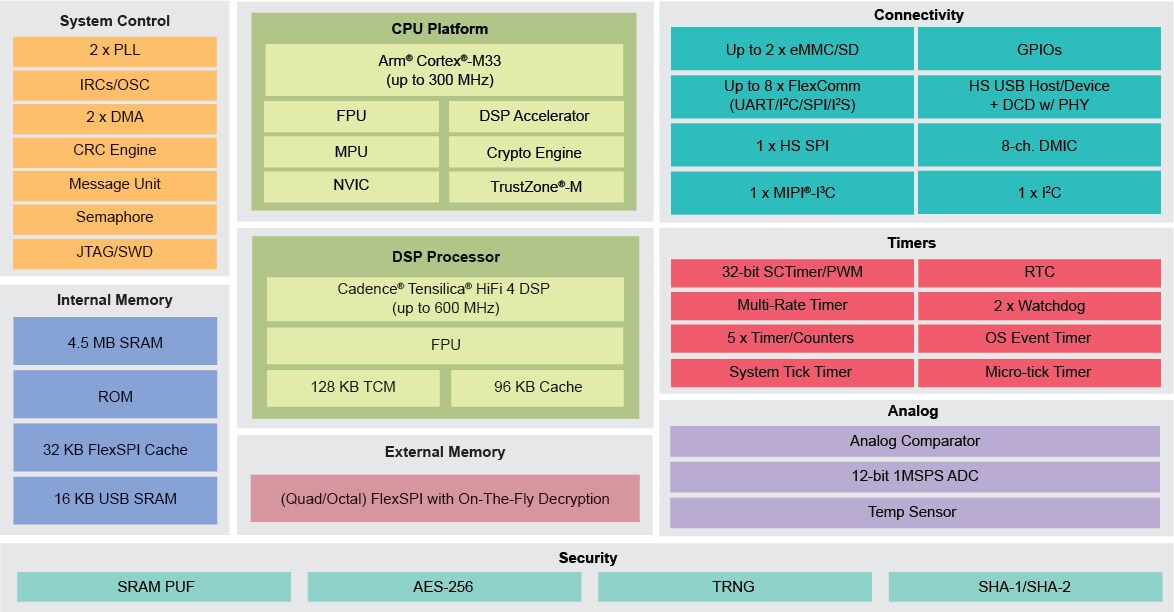

框图

i.MX-RT600 Block Diagram

i.MX-RT600 Block Diagram

获取框图PDF

特征

新一代Cortex-M33控制处理器内核，运行频率高达300MHz

Arm TrustZone用于保护资产
支持8个区域的Cortex-M33内置存储器保护单元(MPU)
Cortex-M33的两个协处理器
- PowerQuad硬件加速器用于(固定和浮点运算单元) DSP功能
- 提供CASPER Crypto协处理器，对某些不对称加密算法所需的各种函数进行硬件加速

高度优化的Cadence® Tensilica® HiFi 4 DSP处理内核,运行频率高达600 MHz

硬件浮点运算单元每周期多达4个单精度IEEE浮点运算MAC

片上存储器

高达4.5 MB系统SRAM，CPU和所有DMA引擎均可对其进行访问
128 KB本地紧耦合存储器，专用于DSP CPU
96 KB的I & D缓存器，支持DSP访问共享的系统SRAM

安全特性

安全隔离
- 通过ARMv8-M的Arm^{^®}TrustZone^®技术保护执行环境
- 通过硬件引擎实现对称密钥隔离
安全引导
- 在引导ROM中实现安全引导支持，提供不可变的信任根
安全存储
- 基于物理不可克隆功能(PUF)的密钥存储
- 用于代码存储的片外闪存的动态AES解密(OTFAD)
安全调试
- 基于证书的调试认证机制
安全更新
- 支持具有可靠性(RSA签名)和机密性(AES-CTR加密)保护的固件更新
硬件加密加速器
- 具有256位密钥强度的对称密码(AES)
- 非对称密码加速
- 具有256位熵的TRNG
- 具有SHA-256和SHA-1的哈希引擎
安全识别
- 128位通用唯一标识符(UUID)和256位复合设备标识符(CDI)

数字外设

两个DMA引擎，每个引擎有32个通道
Octal/Quad SPI闪存带有动态描述
两个SD/eMMC存储卡接口一个支持eMMC 5.0，HS400/DDR操作
USB高速主机/器件控制器，带片上PHY
高达8个可配置通用串行接口模块(Flexcomm接口)。可配置为SPI/I2C/I2S/UART
1个支持50 MHz运行频率的高速SPI接口
1个I3C总线接口
1个数字麦克风接口，支持多达8个通道
