作为i.MX RT跨界MCU系列的一个新的切入点，i.MX RT1010是成本最低的LQFP封装方式与i.MX RT系列产品一贯的高性能和易用性的结合产物。恩智浦的MCUXpresso软件和工具全面支持该设备。

产品详情

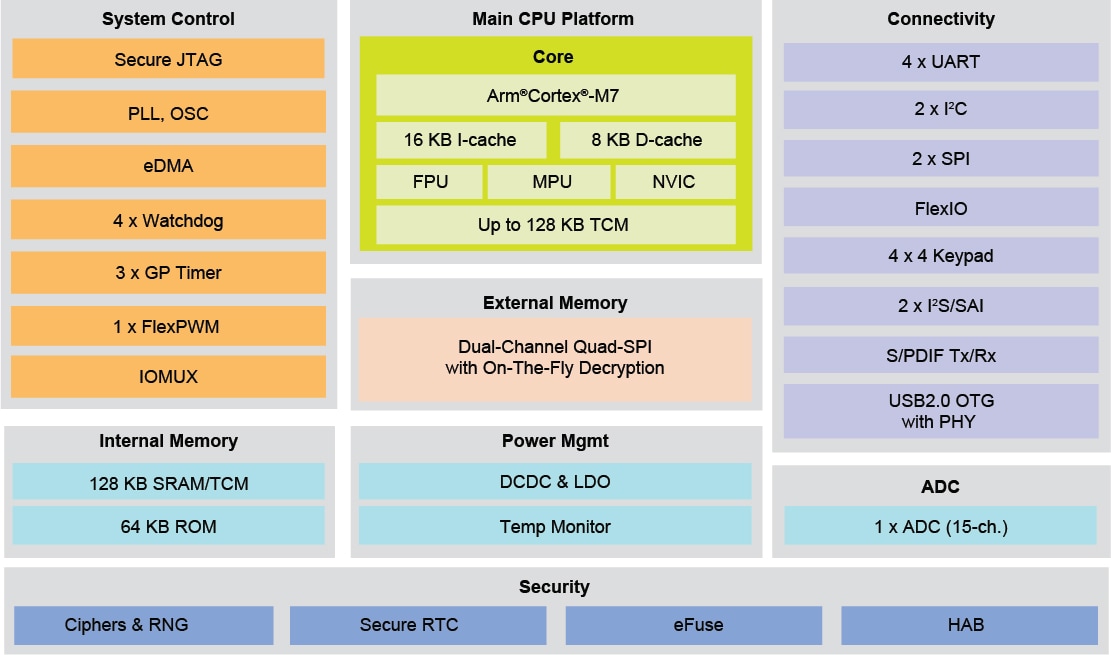

框图

Low cost i.MX RT1010 crossover MCU with Cortex-M7

Low cost i.MX RT1010 crossover MCU with Cortex-M7

获取框图PDF

特征

Arm^® Cortex^®-M7，高达500 MHz
实时低延迟响应，低至20 ns
外部存储接口选项
面向低成本PCB设计的80LQFP封装
100 Ku建议零售价为0.99美元

设计资源

设计文件

2 设计文件

^模型
BSDL file for i.MX RT1010全新

BSDL版本 0Jan 30, 202313.1 KB80LQFP

下载
^模型
IBIS Model file for i.MX RT1010全新

IBS版本 0Jan 30, 202320.5 MB80LQFP-IBIS
