用作高端和低端控制的双通道同步整流控制器

TEA1795T 正常供应

滚动图片以放大

TEA1795T是适用于开关电源的新一代同步整流器(SR)控制器IC系列中的一员。其高度集成性最大程度减少了外部器件数量，为实现经济高效的电源设计提供了可能。TEA1795T是一款专门用于谐振转换器次级侧同步整流的控制器IC。该器件拥有两个驱动器级，用于驱动SR MOSFET，SR MOSFET对采用中心抽头次级绕组的输出进行同步整流。两个栅极驱动器级拥有自己的感测输入，相互独立工作。TEA1795T采用硅绝缘(SOI)工艺制成。

产品详情

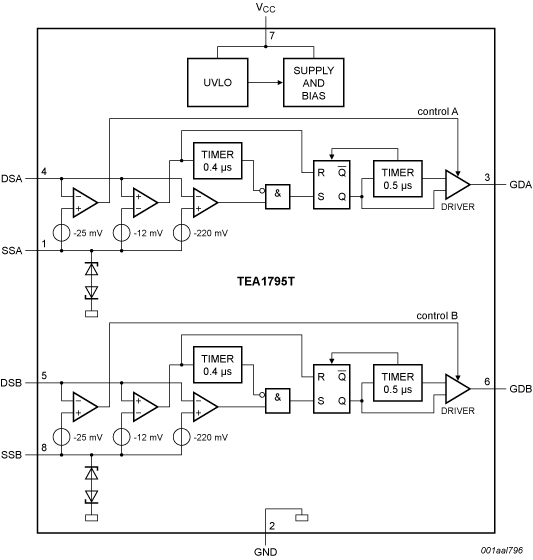

框图

Block Diagram TEA1795T

获取框图PDF

特征

  • 精确的同步整流功能
  • 供电电压范围宽（8.5 V～38 V）
  • 分开的感应信号输入用于采集每个同步整流MOSFET的漏极和源极之间的电压
  • 集成度高，外部元件数量少
  • 10V的高驱动输出电压，可驱动所有品牌的MOSFET到最低的RDS(on)
  • 低电流消耗
  • 从空载到满载均具有极高的系统效率
  • 欠压保护(UVP)

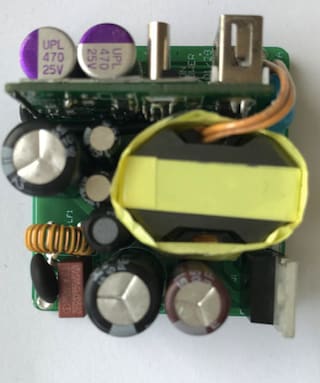

Target Applications

  • 用于适配器和其它非连续导通模式系统
