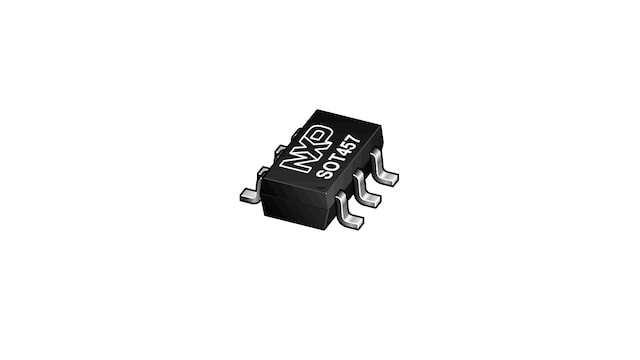

GreenChip Synchronous Rectifier Controller

TEA1892

滚动图片以放大

产品详情

选择区域:

框图

TEA1892 Block Diagram

TEA1892 Block Diagram

Features

  • Accurate synchronous rectification functionality
  • Wide supply voltage range (8.5 V to 38 V)
  • High level of integration, resulting in a very low external component count
  • High driver output voltage of 10 V to drive all MOSFET brands to the lowest RDSon
  • Selectable regulation level for driver stage
  • Low current consumption
  • High system efficiency from no-load to full load
  • UnderVoltage Protection (UVP)

Target Applications

  • The TEA1892ATS is intended for adapters. The device can also be used in all other discontinuous conduction mode systems and quasi-resonant flyback systems that demand a highly efficient and cost-effective solution.

文档

快速参考 文档类别.

1-5 / 9 文件

展开

设计资源

选择区域:

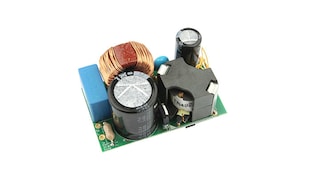

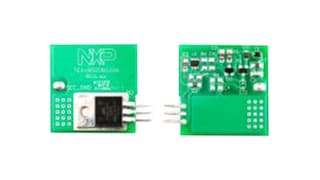

硬件
