用作高端或低端控制的同步整流控制器

TEA1791AT 正常供应

滚动图片以放大

TEA1791AT是适用于开关电源的新一代同步整流器(SR)控制器IC系列中的一员。其高度集成性最大程度减少了外部器件数量，为实现经济高效的电源设计提供了可能。TEA1791AT是一款专门用于非连续导通模式和准谐振反激转换器的次级侧同步整流的控制器IC。TEA1791AT采用硅绝缘(SOI)工艺制成。

产品详情

框图

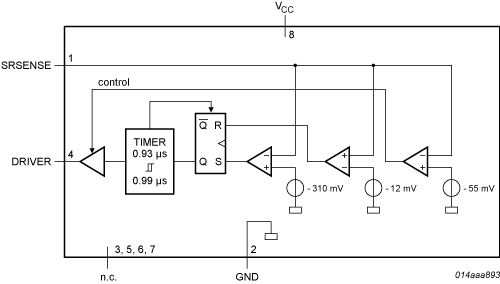

Block diagram TEA1791AT

获取框图PDF

特征

  • 精确的同步整流功能
  • 供电电压范围宽（8.5 V～38 V）
  • 集成度高，外围元件数少
  • 10V的高驱动输出电压，可驱动所有品牌的MOSFET到最低的RDS(on)
  • 低电流消耗
  • 从空载到满载均具有极高的系统效率
  • 欠压保护

Target Applications

  • 用于适配器和其它非连续导通模式的系统
