带有复位的8位I2C总线和SMBus I/O端口

PCA9557 正常供应

PCA9557是一款硅CMOS电路，为SMBus和I²C总线应用提供并行输入/输出扩展。PCA9557由8位输入端口寄存器、8位输出端口寄存器和I²C总线/SMBus接口组成。具有低电流消耗和高阻抗开漏输出引脚IO0。

通过写入I/O配置寄存器，系统主器件可将PCA9557的I/O用作输入或输出。通过写入高电平有效的极性反转寄存器，系统主器件还可反转PCA9557输入。最后，通过在复位输入中加入低电平，系统主器件可在超时时使PCA9557复位。

上电复位会将寄存器设为其默认状态并初始化I²C总线/SMBus状态机。1引脚可引发相同的复位/初始化而无需使部件断电。

查看产品图片

产品详情

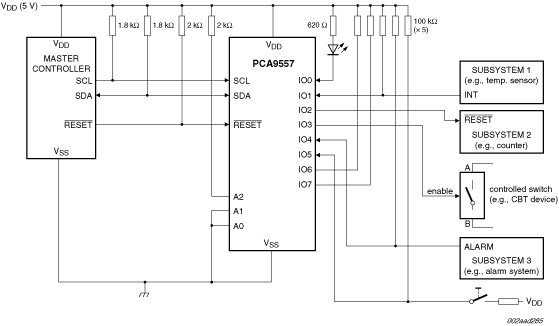

框图

Block diagram: PCA9557BS, PCA9557D, PCA9557PW

获取框图PDF

特征

  • PCA9556具有更低电压、更高性能迁移路径
  • 8通用输入/输出扩展器/收集器
  • 输入/输出配置寄存器
  • 高电平有效的极性反转寄存器
  • I²C总线和SMBus接口逻辑
  • 内部上电复位
  • SCL/SDA输入上有噪音滤波器
  • 低电平有效的复位输入
  • 3个地址引脚允许I²C总线/SMBus上最多有8个器件
  • IO0上的高阻抗开漏
  • 上电时没有脉冲干扰
  • 上电时使所有通道配置为输入
  • 低待机电流
  • 2.3 V至5.5 V的工作电源电压范围
  • 5 V耐受输入/输出
  • 0 kHz至400 kHz时钟频率
  • ESD保护：按JESD22-A114超过2000 V HBM，按JESD22-A115超过150 V MM，按JESD22-C101超过1000 V CDM
  • 已按照JEDEC标准JESD78完成闭锁测试，超过100 mA
  • 提供三种封装：SO16、TSSOP16、HVQFN16
