What is the ASA Alliance?

The Automotive SerDes Alliance (ASA) is a non-profit industry alliance of automotive technology providers collaborating to standardize asymmetric SerDes technology. The group currently has more than 160 active member companies that work together to industrialize and promote the “ASA Motion Link”. The member companies of ASA include representatives from the complete automotive ecosystem, including car manufacturers, tier-one suppliers, semiconductor vendors, cable and connector manufacturers, test tool vendors, and test houses. About ASA .

What downstream and upstream speeds are supported by ASA Motion Link?

Downstream rates: 16 G/12 G/8 G/4 G/2 G Upstream rates: 100 M/50 M

Which automotive cables are supported by ASA Motion Link?

50 Ω Coax up to 15 meters with Power Delivery 100 Ω STP cable up to 10 meters with Power Delivery

What is Time Division Duplexing (TDD) technology?

The ASA Motion Link defines an Asymmetric Physucal Layer based on TDD. The Downstream and Upstream traffic are seperated in time during the TDD burst, which means the traffic does not overlap on the wire. This results in significant benefits in terms of power, performance and implementation complexity.

What are the key advantages for Automotive applications?

Configurable Ports provide system design flexibility and fewer product variants Lower Power Consumption More efficient PoC with Smaller Solution Size

高速SerDes

恩智浦符合ASA Motion Link标准的SerDes系列器件，为安全关键型自动驾驶系统(ADAS)提供了优化的解决方案，能够安全地分发视频、传感器和车载信息服务数据。我们全面的非对称物理层(PHY)、SerDes和桥接芯片产品组合，可通过多千兆SerDes链路，传输来自CSI-2和I²C等接口的高速视频与控制数据。

产品
了解SerDes的详情

ASA Motion Link摄像头与传感器连接

产品	ASA ML端口支持	Auto FuSa	安全规格			AEC-Q100	精密时基(PTB)
			身份验证	加密	完整性检查
AVL140XX新样品阶段	每个16Gbps					2级(-40°C至105°C)

恩智浦拟收购汽车网络技术先驱Aviva Links

通过收购Aviva Links，恩智浦将进一步丰富汽车网络和连接产品组合。Aviva Links在基于ASA的非对称链路领域技术领先，专注于ADAS和IVI应用。

阅读新闻稿

ASA (汽车SerDes联盟) Motion Link

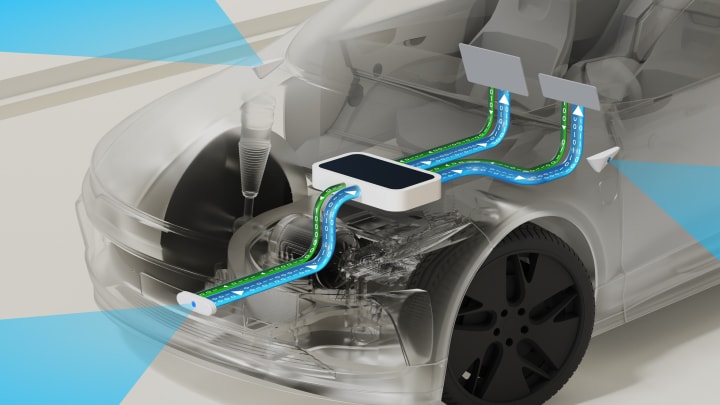

符合ASA Motion Link标准的解决方案，用于在汽车ADAS系统内安全地分发视频和传感器数据。

了解详情

了解有关高速SerDes系列的详情

什么是串行器/解串器(SerDes)？

汽车SerDes联盟(ASA)是一个由汽车技术供应商组成的非营利性行业联盟，其宗旨在于合作推动非对称SerDes技术的标准化。该组织目前拥有超过160家活跃成员公司，共同致力于“ASA Motion Link”技术的产业化与推广。ASA的成员公司涵盖了完整的汽车生态系统代表，包括汽车制造商、一级供应商、半导体厂商、线缆与连接器制造商、测试工具供应商及测试机构。

关于ASA
