4位I2C总线和SMBus I/O端口

PCA9536 正常供应

PCA9536是一款8引脚CMOS器件，为I2C总线/SMBus应用提供4位通用并行输入/输出(GPIO)扩展，是为增强NXP Semiconductors的I2C总线I/O扩展器系列而开发的。ACPI电源开关、传感器、按钮、LED、风扇等需要额外的I/O时，I/O扩展器提供简易的解决方案。

PCA9536由4位配置寄存器（输入或输出选择）、4位输入端口寄存器、4位输出端口寄存器和4位极性反转寄存器（高电平有效或低电平有效操作）组成。系统主器件可通过写入I/O配置位将I/O用作输入或输出。每个输入或输出的数据保留在对应的输入端口或输出端口寄存器中。通过极性反转寄存器可反转读取寄存器的极性。系统主器件可读取所有寄存器。

上电复位会将寄存器设为其默认值并初始化器件状态机。

I²C总线地址固定因而相同I²C总线/SMBus上只允许存在一个器件。

查看产品图片

产品详情

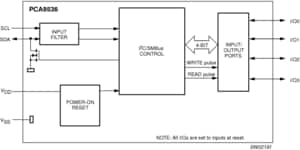

框图

Block diagram: PCA9536D, PCA9536DP, PCA9536TK

获取框图PDF

特征

  • 4位I²C总线GPIO
  • 电源电压工作范围：2.3 V至5.5 V
  • I/O可耐受5 V电压
  • 极性反转寄存器
  • 低待机电流
  • SCL/SDA输入上有噪音滤波器
  • 上电时没有脉冲干扰
  • 内部上电复位
  • 默认为4个输入的4个I/O引脚，带有100 kΩ内部上拉电阻
  • 时钟频率：0 Hz至400 kHz
  • ESD保护：按JESD22-A114超过2000 V HBM，按JESD22-A115超过200 V MM，按JESD22-C101超过1000 V CDM
  • 根据JEDEC标准JESD78完成超过100 mA的锁定测试
  • 封装方式：SO8、TSSOP8 (MSOP8)、HVSON8
