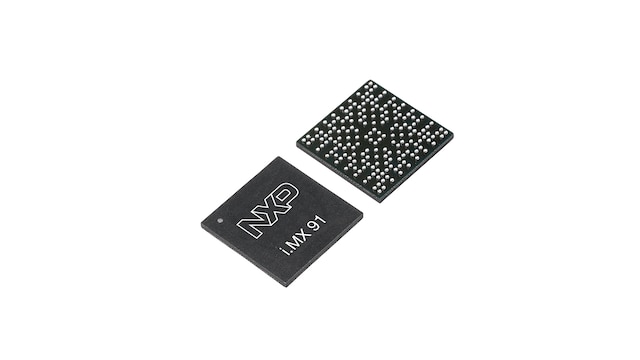

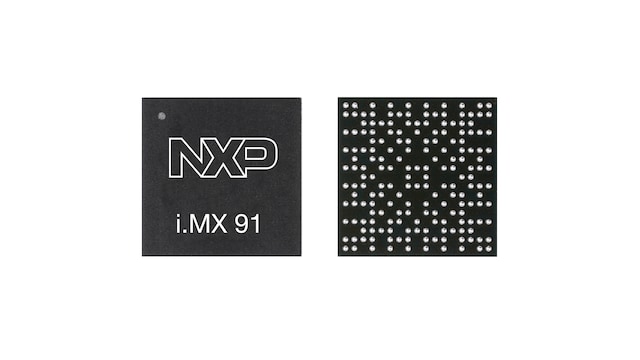

i.MX 91系列安全高效，为成千上万的边缘应用提供了Linux^®的基本功能。

本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系恩智浦支持服务或恩智浦当地销售人员。

滚动图片以放大

基于i.MX 91系列应用处理器，采用Linux^®的新型边缘设备能够快速被创建，如智能家居控制器、联网家电、家庭娱乐系统、工业和医疗平台。新发布的协议，如面向智能家居的Matter^™或面向电动汽车(EV)充电器的ISO 15118-20标准，改变了物联网和工业市场的新产品类别的方向。

搭载i.MX 91 SoC的新一代基于Linux的设备将是经济且安全的高性能解决方案，且能够根据出台的新协议或新标准进行调整适配。i.MX 91 SoC集成的EdgeLock^®安全区域提供的安全功能包括生命周期管理、防篡改检测、安全启动和简化的认证路径。

i.MX 91系列采用了可扩展的Arm^® Cortex^®-A55内核，其主频高达1.4GHz，支持新一代LPDDR4内存以延长平台寿命，支持双千兆以太网和双USB端口，以及面向医疗、工业和消费物联网市场细分领域的丰富外设。

i.MX 91系列作为EdgeVerse^™智能边缘解决方案组合的一部分，将会提供消费类和工业级产品选项，并得到恩智浦产品长期供货计划的支持。

产品详情

框图

i.MX 91应用处理器系列

i.MX 91

获取框图PDF

特性

连接

两个USB 2.0 Type C接口，带PHY
两个千兆以太网接口：AVB和IEEE 1588用于同步模式，EEE用于低功耗模式。1个支持TSN
两个CAN-FD
8个UART/USART/Profibus，8个I²C，8个SPI，两个I³C
1个8通道12位ADC
两个32引脚FlexIO接口（摄像头、总线或串行I/O）

外部存储器

高达2.4GT/s x16 LPDDR4（带内联ECC）
3个SD 3.0/ SDIO3.0/ eMMC5.1
1个8通道SPI，支持SPI NOR和SPI NAND存储器

显示接口

每像素24位的并行RGB

摄像头接口

8位并行YUV/RGB

音频

3个SAI（1个2通道，2个单通道）/4个I²S TDM
8通道PDM麦克风输入
MQS：中等质量声音输出（Σ-Δ调制器）

操作系统

Linux^®操作系统
Green Hills
QNX

工艺

16纳米FinFET

封装

11x11mm2、0.5mm间距，9x9mm2、0.5mm间距

温度范围

（结点温度）：-40C至105C

设计资源

设计文件

快速参考恩智浦设计文件类型.

2 设计文件

收到完整的详细信息。 请参阅产品足迹及更多信息电子CAD文件.

模型
BSDL File for i.MX 91

ZIP版本 1Nov 12, 2024 12:19:0020.35 KBIMX91-BSDL

请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
模型
i.MX 91 IBIS Model

ZIP版本 1Nov 12, 2024 12:23:003.97 MBI.MX-91-IBIS-MODEL

请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队

硬件

快速参考恩智浦板类型.

1-5 / 6 硬件

评估板和开发板
i.MX 91评估套件
正常供应

i.MX91EVK
评估板和开发板
FRDM i.MX 91开发板
正常供应

FRDM-IMX91
评估板和开发板
i.MX 91快速入门评估套件
正常供应

IMX91QSB
其他可用硬件. 查看我们的精选合作伙伴解决方案.
评估板和开发板
FRDM i.MX 91S开发板
正常供应

FRDM-IMX91S
评估板和开发板
M2 NAND FLASH Daughter Card
正常供应

M2-NAND-FLASH
评估板和开发板
并行LCD显示器

TM050RDH03-41

1-5 / 28 硬件

嵌入式板解决方案
TQMa91xxCA

Embedded Cortex®-A55 module based on i.MX 91xx with High-speed communication via 2x Gbit Ethernet, 2x USB 2.0 interface and 2x CAN FD

By TQ-Systems GmbH Platinum 合作伙伴
嵌入式板解决方案
i.MX 91 Pico ITX SBC

iW-RainboW-G50S®: Compact i.MX 91 Pico ITX SBC featuring Cortex-A55 core, 2GB LPDDR4, 16GB eMMC, Wi-Fi 6/BT 5.3, dual Gigabit Ethernet with TSN support, and 10+ year long...

By iWave Global Gold 合作伙伴
嵌入式板解决方案
System on module FET-MX91-C

FET-MX91xx-C SoM is based on i.MX91xx Cortex-A55 featuring single core processor running at speed up to 1.4GHz. 8x UART, 2x Ethernet, 2x USB2.0, 2x CAN-FD are all availab...

By Forlinx Embedded Technology Co., Ltd Gold 合作伙伴
嵌入式板解决方案
Nitrogen91 SMARC

Nitrogen91 SMARC SOM is powered by NXP’s next generation i.MX 91 processor, NXP PMIC PCA9451A, and our Sona Wi-Fi 6/6E + Bluetooth 5.4.

By Ezurio Gold 合作伙伴
嵌入式板解决方案
TQMa91xxLA

Embedded Cortex®-A55 module based on i.MX 91xx with High-speed communication via 2x Gbit Ethernet, 2x USB 2.0 interface and 2x CAN FD

By TQ-Systems GmbH Platinum 合作伙伴
嵌入式板解决方案
MSC SM2S-IMX91

The MSC SM2S-IMX91 SMARC 2.1.1 module family is highly efficient and equipped with i.MX 91 Applications Processors manufactured by NXP.

By Tria Technologies Platinum 合作伙伴
嵌入式板解决方案
FS 91 OSM-SF

Tiny LGA solder module (30x30mm) based on the OSM Standard S. Based on NXP i.MX 91; with LAN, SDIO, CAN, USB OTG, UART, I2C, Audio, RTC

By F&S Elektronik Systeme GmbH Gold 合作伙伴
嵌入式板解决方案
SECO SOM-SMARC-MX93

SMARC® Rel. 2.1.1 Computer on Module (CoM) with NXP i.MX 9 Applications Processors.

By SECO Gold 合作伙伴
嵌入式板解决方案
i.Core MX91

i.Core MX91 is equipped with Arm® Cortex®-A55 @ up to 1.4 GHz processor, includes industrial features and temperature grade, several peripherals, connectivity, and securi...

By Engicam Gold 合作伙伴
嵌入式板解决方案
AURA SOM - i.MX93x

AURA SOM is our solutions based on NXP i.MX93 and i.MX91. Our solutions is in particular focused on AMP approach with Linux and RTOS with indipendent power domains betwee...

By DAVE Embedded Systems Gold 合作伙伴
嵌入式板解决方案
i.MX 91 SODIMM SOM

i.MX 91 SODIMM SoM - iW-RainboW-G50M®: Powered by ARM v8.2-A, Wi-Fi 6, Bluetooth 5.3, and IEEE 802.15.4. Features 1 Cortex-A55 core, 1Gbps Ethernet, and 10+ years longevi...

By iWave Global Gold 合作伙伴
嵌入式板解决方案
Single board computer OK-MX91-C

The upcoming OK-MX91xx-C SBC/ development board is with FET-MX91xx-C SoM mounted on carrier board via ultra thin connector, and it will be pin compatible with OK-MX9352-C...

By Forlinx Embedded Technology Co., Ltd Gold 合作伙伴
嵌入式板解决方案
Atlas Scalable Edge Inference Platform

Atlas is a scalable edge inference platform that uses i.MX 8M Plus + optional GPU to support up to 23.3 TOPS of inference performance. ML/vision software, support/solutio...

By Arcturus Gold 合作伙伴
嵌入式板解决方案
MSC OSM-SF-IMX91

The MSC OSM-SF-IMX91 is based on the new OSM 1.1 standard (Size-S) “Small” and equipped with i.MX 91 Applications Processors manufactured by NXP.

By Tria Technologies Platinum 合作伙伴
嵌入式板解决方案
MBa93xxLA-MINI

Single Board Computer (SBC) based on TQMa93xxLA as a platform with TSN Gigabit Ethernet, ML Accelerator and Graphics support

By TQ-Systems GmbH Platinum 合作伙伴
嵌入式板解决方案
i.MX 91 OSM System on Module

The i.MX 91 SoC-based Size-S System on Module follows the OSM v1.2 spec, featuring a Cortex-A55 (1.4GHz), 1GB LPDDR4, 8GB eMMC, 32Kbit EEPROM, and 2 × 1GbE. It operates a...

By iWave Global Gold 合作伙伴
嵌入式板解决方案
phyCORE-i.MX 91/93

Pin compatible with phyCORE-i.MX 6UL to develop scalable applications; high computing performance with low power consumption for powerful, cost- and energy-efficient ML a...

By PHYTEC Platinum 合作伙伴
嵌入式板解决方案
i.MX 91 SMARC SOM

i.MX 91 SMARC SoM - iW-RainboW-G50M®: Powered by ARM v8.2-A, supports Cortex-A55 cores, Wi-Fi 6, Bluetooth 5.3. SMARC v2.1.1 compatible with 10+ years longevity, ideal fo...

By iWave Global Gold 合作伙伴
评估板和开发板
Starterkit FS 91 OSM-SF Linux

Extensive Starterkit with LGA solder module (30x30mm) based on NXP i.MX 91 incl. Linux, baseboard, cable kit, and other optional accessories.

By F&S Elektronik Systeme GmbH Gold 合作伙伴
评估板和开发板

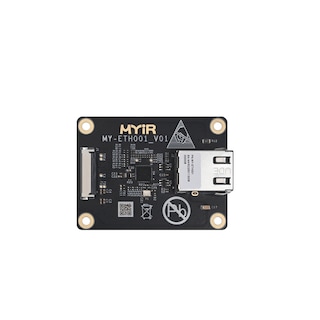

MY-ETH001 Gigabit Ethernet Module

High-performance Gigabit Ethernet module with 10/100/1000 Mbps adaptive rates, based on Motorcomm YT8521SC-CA chip. Compatible with NXP FRDM-IMX91S board, it ensures stab...

By MYIR Electronics Limited Gold 合作伙伴
评估板和开发板
i.MX 91 SBC

i.MX 91 SBC - iW-RainboW-G50S®: Features 1000/100/10 Mbps Ethernet, USB 2.0 OTG, USB 3.0, microSD, debug UART, RS232/RS485, CAN, RGB display, SPI flash. Compact 85 x 56mm...

By iWave Global Gold 合作伙伴
评估板和开发板
i.MX 91 SODIMM SOM Development Kit

i.MX 91 SODIMM Development Kit - iW-RainboW-G50D®: Includes Gigabit Ethernet, dual USB 2.0 Type-A, USB OTG, microSD, audio I/O via I2S codec, GPIO, JTAG headers, RTC with...

By iWave Global Gold 合作伙伴
评估板和开发板
i.MX 91 SMARC Development Kit

i.MX 91 SMARC Evaluation Kit - iW-RainboW-G50D®: Features dual Gig Ethernet, M.2 KEY B, USB 2.0, microAB, SD, MIPI DSI/CSI, audio, UART, RTC with backup, CAN headers, and...

By iWave Global Gold 合作伙伴
评估板和开发板
Starterkit PicoCore™MX91 Linux

Extensive Starterkit with versatile Computer On Module (35x40mm) based on NXP i.MX 91 incl. Linux, baseboard, cable kit and other optional accessories

By F&S Elektronik Systeme GmbH Gold 合作伙伴
评估板和开发板
MicroGEA MX91

MicroSOM based on the latest NXP® i.MX 91 processor, the module is equipped with Arm® Cortex®-A55 @ up to 1.4 GHz processor, which includes a wide set of peripherals, con...

By Engicam Gold 合作伙伴
评估板和开发板

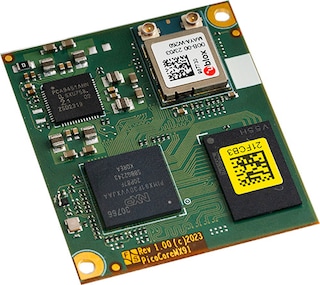

PicoCore™MX91
