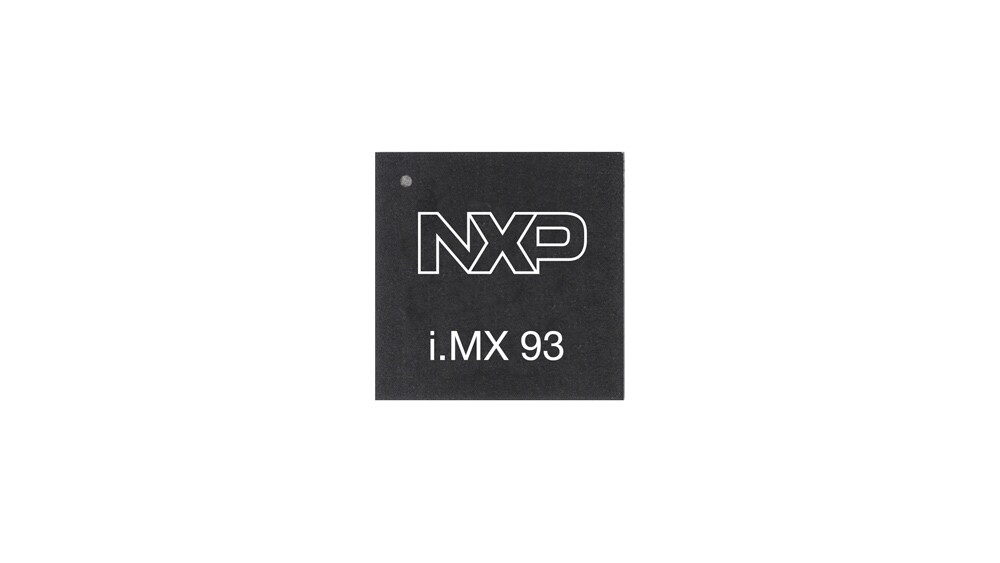

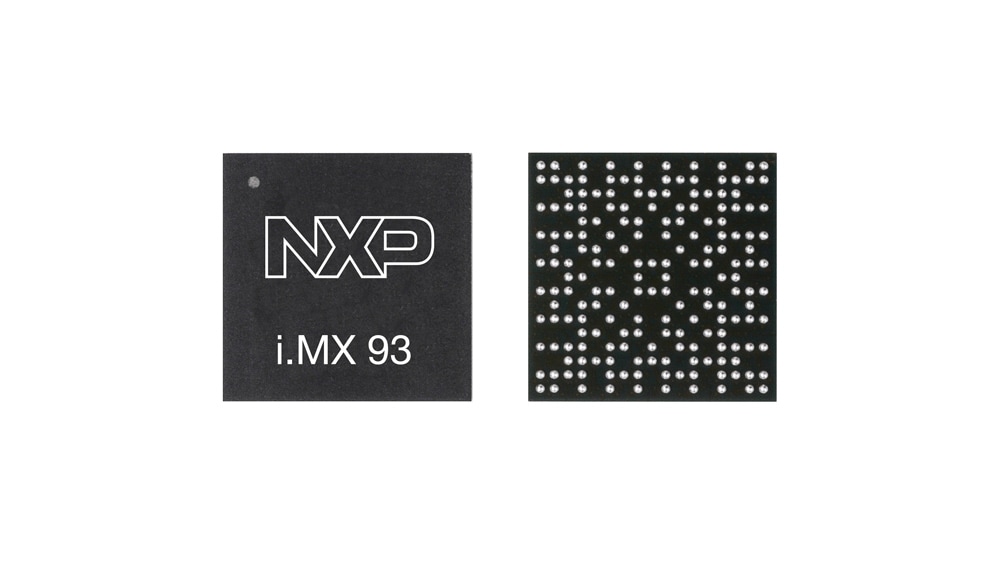

i.MX 93应用处理器系列 | NXP 半导体

滚动图片以放大

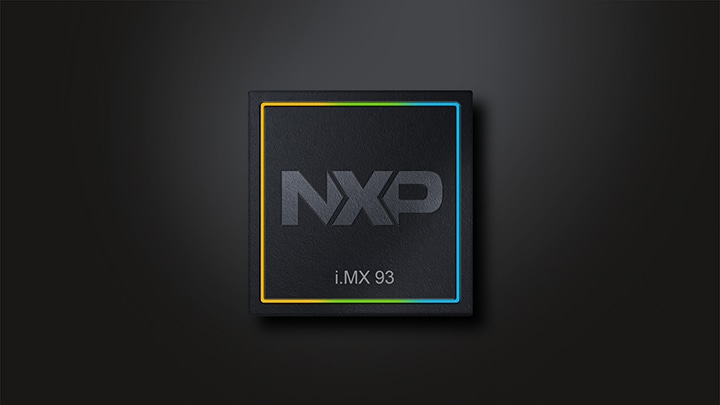

i.MX 93应用处理器通过集成的EdgeLock®安全区域提供高效的机器学习(ML)加速和高级信息安全，以支持高能效的边缘计算。

i.MX 93应用处理器是i.MX系列中首个集成了可扩展的Arm Cortex-A55内核的产品，有助于提高Linux®边缘应用及Arm Ethos™-U65 microNPU的性能与能效，助力开发人员打造功能更强大、更具成本效益、更节能的ML应用。

i.MX 93处理器采用恩智浦创新的Energy Flex架构，可优化工业、物联网和汽车设备的性能与能效。SoC针对汽车、工业和消费电子物联网细分市场提供丰富的外设。

作为EdgeVerse™ 智能边缘解决方案的一部分，i.MX 93系列提供消费电子、工业、扩展工业和车规级认证的产品，并由恩智浦产品长期供货计划提供支持。

产品详情

框图

i.MX 93处理器系列

i.MX 93 Processors Family Block Diagram

获取框图PDF

特性

多核处理

1-2个Arm® Cortex®-A55，主频为1.7GHz
Arm Cortex-M33 @ 250Mhz
Arm® Ethos™ U-65 microNPU
EdgeLock®安全区域

连接

两个USB 2.0 Type C接口，带PHY
两个千兆以太网接口：AVB & IEEE 1588用于同步模式，EEE用于低功耗模式。1个支持TSN
2个CAN FD
8个UART，8个I2C，8个SPI，两个I3C
1个4通道12位ADC
两个32引脚FlexIO接口(摄像头、总线或串行I/O)

外部存储器

高达3.7GT/s x16 LPDDR4/LPDDR4X(带内联ECC)
3个SD 3.0/SDIO3.0/eMMC5.1
1个8线SPI，支持SPI NOR和SPI NAND存储器

图形

用于混合/合成、调整大小、色彩空间转换的硬件组合器

显示屏接口

1个1080p60 MIPI-DSI(4通道，每通道1.5Gbps)，带PHY
1个720p60 LVDS(4通道)
24位并行RGB

摄像头接口

1个1080p60 MIPI-CSI(2通道，每通道1.5Gbps)，带PHY
8位并行YUV/RGB

音频

7个I2S TDM(32位@768KHz)，SPDIF Tx/Rx
8通道PDM麦克风输入
MQS：中等质量声音输出(Σ-Δ调制器)

操作系统

Linux®操作系统
FreeRTOS
Greenhills
QNX
Vxworks

封装

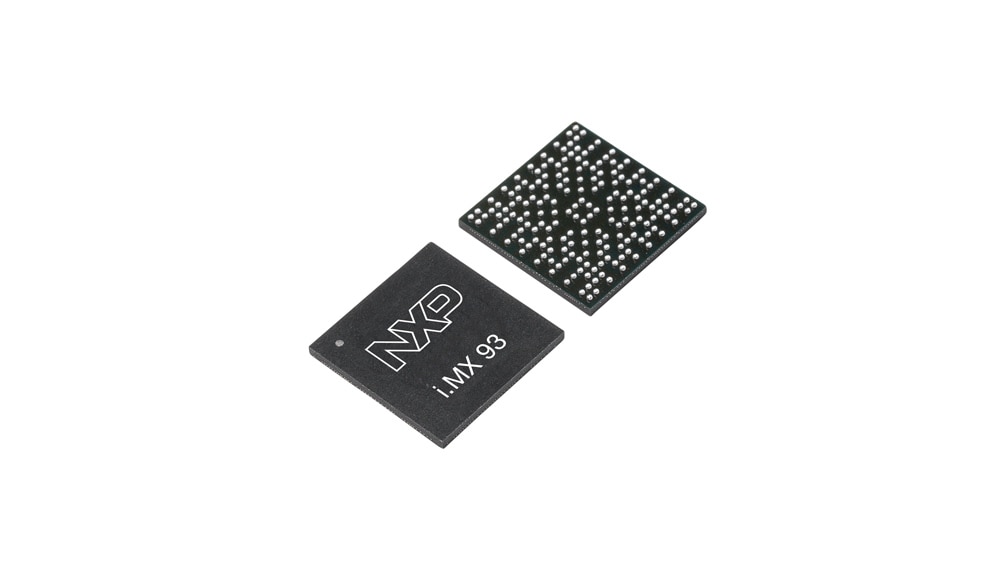

11mmx11mm，0.5mm间距FCCSP封装
9mmx9mm，0.5mm间距FCCSP封装
14mmx14mm，0.65mm间距FCCSP封装

温度范围

-40至125°C

购买/参数

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

设计资源

设计文件

快速参考恩智浦设计文件类型.

2 设计文件

收到完整的详细信息。 请参阅产品足迹及更多信息电子CAD文件.

模型
i.MX 93 IBIS Model

ZIP版本 0Apr 19, 2023 15:51:008.7 MBIMX93-IBIS

请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
模型
BSDL File for i.MX 93

ZIP版本 1Dec 12, 2023 15:26:0033.3 KBIMX93-BSDL

请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队

硬件

快速参考恩智浦板类型.

1-5 / 13 硬件

评估板和开发板
IMX-DSI-SDSB
正常供应

IMX-DSI-SDSB
评估板和开发板

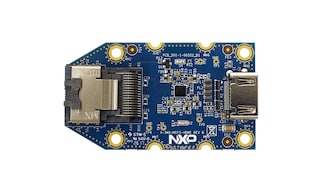

IMX-MIPI-HDMI Adaptor Card

IMX-MIPI-HDMI
评估板和开发板
i.MX 93快速入门评估套件

IMX93QSB
其他可用硬件. 查看我们的精选合作伙伴解决方案.
评估板和开发板
i.MX 93评估套件
正常供应

i.MX93EVK
评估板和开发板
M2 NAND FLASH Daughter Card
正常供应

M2-NAND-FLASH
评估板和开发板

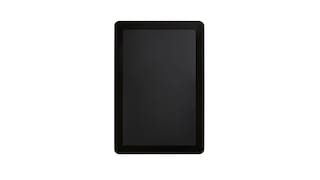

DY1212W-4856
正常供应

DY1212W-4856
评估板和开发板

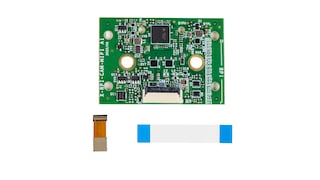

RPI-CAM-MIPI

RPI-CAM-MIPI
评估板和开发板
RPI-CAM-MINISAS
正常供应

RPI-CAM-MINISAS
评估板和开发板

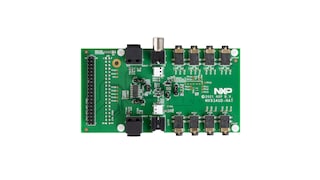

MX93AUD-HAT

MX93AUD-HAT
评估板和开发板
FRDM i.MX 93 Development Board
正常供应

FRDM-IMX93
评估板和开发板
MPU / Linux ® 托管Matter开发平台

MPU-LINUX-MATTER-DEV-PLATFORM
评估板和开发板
并行LCD显示器

TM050RDH03-41
评估板和开发板

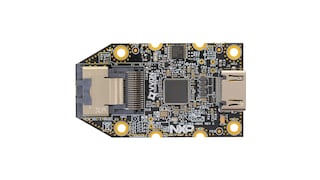

IMX-LVDS-HDMI Adaptor Card

IMX-LVDS-HDMI

1-5 / 57 硬件

嵌入式板解决方案

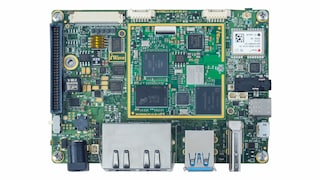

i.MX 93 Pico ITX SBC

iWave's i.MX 93 Single Board Computer offers efficient processing with dual Cortex-A55 cores and 0.5 TOPS NPU. Connect with Wi-Fi 6, BT 5.3, & IEEE802.15.4. Featu...

By iWave Global Gold 合作伙伴
嵌入式板解决方案
i.MX 93 SODIMM SOM

The i.MX 93 SODIMM SoM features Cortex-A55 cores, 0.5 TOPS NPU, Wi-Fi 6, Bluetooth 5.3, and Gigabit Ethernet in a compact 67.6mm x 37mm form factor, ideal for AI, IoT, an...

By iWave Global Gold 合作伙伴
嵌入式板解决方案
iMX93 Developer’s Kit

Embedded Artists' iMX93 uCOM Developer's Kit lets you get up-and-running quickly with our iMX93 uCOM Board. The kit comes with an M.2 connectivity interface (for Wi-Fi/BT...

By Embedded Artists AB Gold 合作伙伴
嵌入式板解决方案
Nitrogen93 SMARC

SMARC form factor SOM powered by i.MX 93, NXP PMIC PCA9451A, our Sona NX611 Wi-Fi 6/BT 5.3 using NXP’s IW611, LPDDR4 RAM, and eMMC. Software options: Yocto Linux/Buildroo...

By Ezurio Gold 合作伙伴
嵌入式板解决方案
SECO SOM-SMARC-MX93

SMARC® Rel. 2.1.1 Computer on Module (CoM) with NXP i.MX 9 Applications Processors.

By SECO Gold 合作伙伴
嵌入式板解决方案
TQMa93xxCA

Embedded Cortex®-A55 module based on i.MX 93xx with Machine Learning Accelerator

By TQ-Systems GmbH Platinum 合作伙伴
嵌入式板解决方案

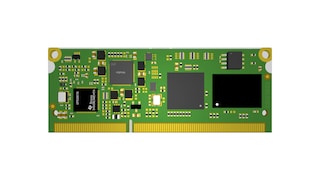

AURA SOM - i.MX93x

AURA SOM is our solutions based on NXP i.MX93 and i.MX91. Our solutions is in particular focused on AMP approach with Linux and RTOS with indipendent power domains betwee...

By DAVE Embedded Systems Gold 合作伙伴
嵌入式板解决方案

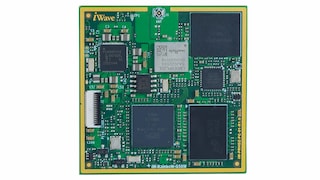

i.MX 93 OSM System on Module

i.MX 93 SoC-based OSM System on Module is equipped with dual Cortex-A55 @1.7GHz, 0.5 TOPS NPU, Wi-Fi 6, BT 5.3, IEEE802.15.4. This SoM is ideal for Machine Learning, visi...

By iWave Global Gold 合作伙伴
嵌入式板解决方案
EDM-IMX93

NXP i.MX93 system-on-module Cortex-A55 AXON SOM with Yocto, Linux source code

By TechNexion Ltd Gold 合作伙伴
嵌入式板解决方案
UCM-iMX93

UCM-iMX93 is an ultra miniature (28 x 38) i.MX93 System-on-Module designed for industrial applications.

By Compulab Gold 合作伙伴
嵌入式板解决方案

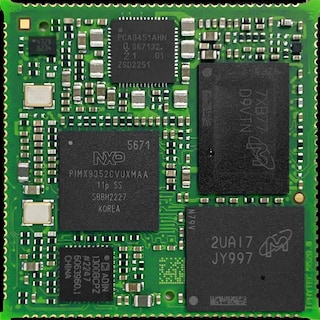

phyCORE-i.MX 91/93

Pin compatible with phyCORE-i.MX 6UL to develop scalable applications; high computing performance with low power consumption for powerful, cost- and energy-efficient ML a...

By PHYTEC Platinum 合作伙伴
嵌入式板解决方案
TQMa93xxLA

Embedded Cortex®-A55 module based on i.MX 93xx with Machine Learning Accelerator

By TQ-Systems GmbH Platinum 合作伙伴
嵌入式板解决方案

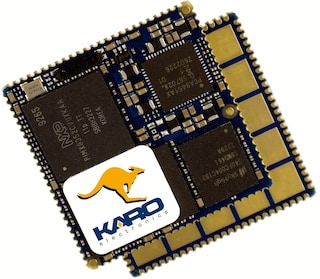

QS93 for i.MX 93

The QS93 is a Solder-Down System-on-Module at just 27mm square and 2.7mm hight. The module provides 2 ARM Cortex A55 cores, 1GB LPDDR4 RAM, 4GB eMMC Flash. It operates in...

By Ka-Ro electronics GmbH Gold 合作伙伴
嵌入式板解决方案
System on module FET-MX9352-C

FET-MX9352-C SoM is the world's first system on module designed by Forlinx as an alpha partner based on i.MX 93 family i.MX9352 SoC. It's equipped with 1GB RAM and 8GB eM...

By Forlinx Embedded Technology Co., Ltd Gold 合作伙伴
嵌入式板解决方案
MBa93xxLA

Single Board Computer (SBC) based on TQMa93xxLA as a platform with TSN Gigabit Ethernet, ML-Accelerator and Graphics support.

By TQ-Systems GmbH Platinum 合作伙伴
嵌入式板解决方案
i.Core MX93

i.Core MX93 is the energy-efficient SOM based on NXP i.MX93 and i.MX91 processor, equipped with Arm Cortex®-A55 @ up to 1.7 GHz processor with dedicated NPU. It is develo...

By Engicam Gold 合作伙伴
嵌入式板解决方案
AXON-IMX93

NXP i.MX93 system-on-module Cortex-A55 AXON SOM with Yocto, Linux source code

By TechNexion Ltd Gold 合作伙伴
嵌入式板解决方案
MYC-LMX9X SOM

The MYC-LMX9X is a compact SOM. It integrates the powerful i.MX9352 application processor. A range of peripheral and IO signals are available from the 218-pin expansion i...

By MYIR Electronics Limited Gold 合作伙伴
嵌入式板解决方案

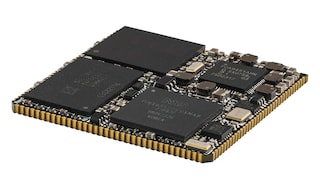

MCM-iMX93

MCM-iMX93 is a tiny, ultra low cost surface-mount System-on-Module, built around NXP i.MX 93 System-on-Chip family.

By Compulab Gold 合作伙伴
嵌入式板解决方案
iMX93 uCOM

The EA iMX93 uCOM Board provides a quick and easy solution for implementing a high-performance ARM dual-core Cortex-A55/M33 based design. The compact (42x45mm) board has ...

By Embedded Artists AB Gold 合作伙伴
嵌入式板解决方案

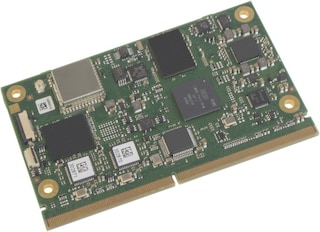

MSC SM2S-IMX93

The MSC SM2S-IMX93 SMARC 2.1.1 module family is highly scalable and equipped with i.MX 93 Applications Processors manufactured by NXP.

By Avnet Embedded Platinum 合作伙伴
嵌入式板解决方案

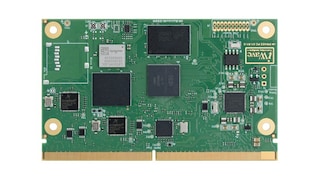

i.MX 93 SMARC SOM

iWave's iW-RainboW-G50M® SMARC SOM offers i.MX 93 SoC with 64-bit ARM v8.2-A & a 0.5 TOPS NPU. It supports Cortex-A55 cores & connects via Wi-Fi 6/BT 5.3. SMA...

By iWave Global Gold 合作伙伴
嵌入式板解决方案
Single board computer OK-MX9352-C

OK-MX9352-C single board computer consists of FET-MX9352-C SoM separated from carrier board, SoM could be connected to carrier board by high-speed connectors.

By Forlinx Embedded Technology Co., Ltd Gold 合作伙伴
嵌入式板解决方案
DART-MX93 System on Module

Runs on NXP’s i.MX93 with up to a 1.7GHz Dual Cortex-A55 processor, plus a 250MHz Cortex-M33 real-time co-processor, the DART-MX93 SoM integrates a AI/ML engine and an en...

By Variscite Platinum 合作伙伴
嵌入式板解决方案

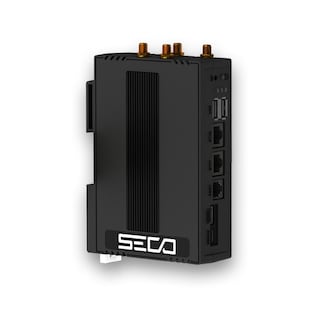

SECO Modular Link MX93

DIN Mount Industrial Gateway with the NXP i.MX 93 SoC

By SECO Gold 合作伙伴
嵌入式板解决方案

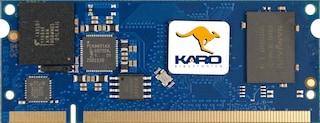

TX93 for i.MX 93

The TX93 is a 200-pin SODIMM Computer-on-Module. The COM includes 2 ARM Cortex A55 cores, 1GB LPDDR4 RAM, 4GB eMMC- and 2MB NOR Flash, and a standard -25 to 85C operating...

By Ka-Ro electronics GmbH Gold 合作伙伴
嵌入式板解决方案

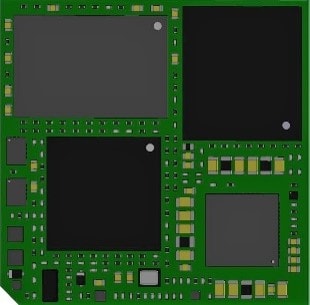

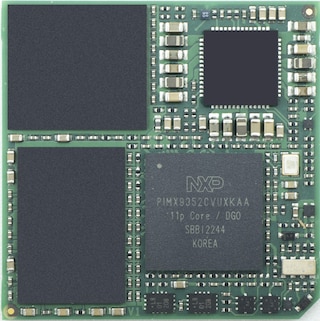

MSC OSM-SF-IMX93

The MSC OSM-SF-IMX93 is based on the new OSM 1.1 standard (Size-S) “Small” and equipped with i.MX 93 Applications Processors manufactured by NXP.

By Avnet Embedded Platinum 合作伙伴
嵌入式板解决方案
Atlas Scalable Edge Inference Platform

Atlas is a scalable edge inference platform that uses i.MX 8M Plus + optional GPU to support up to 23.3 TOPS of inference performance. ML/vision software, support/solutio...

By Arcturus Gold 合作伙伴
嵌入式板解决方案

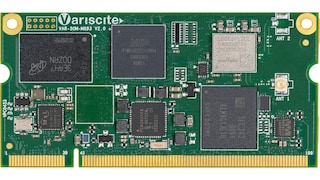

VAR-SOM-MX93 System on Module

Energy-efficient SoM with AI/ML NPU acceleration up to 0.5 TOPS. Powered by 1.7GHz Dual Cortex™-A55 NXP i.MX 93 with 250MHz Cortex-M33 Real-time co-processor, and deliver...

By Variscite Platinum 合作伙伴
嵌入式板解决方案

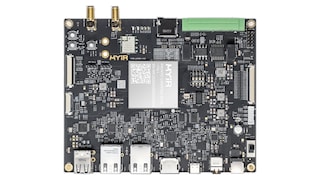

MYD-LMX9X Development Board

The MYD-LMX9X Development Board is built around the MYC-LMX9X System-On-Module (SOM) and has explored many features of the NXP i.MX 9352 SoC through the 218-pin LGA expan...

By MYIR Electronics Limited Gold 合作伙伴
评估板和开发板
STKa93xxCA

Evaluationkit based on TQMa93xxLA and TQMa93xxCA

By TQ-Systems GmbH Platinum 合作伙伴
评估板和开发板
JODY-W2 EVK

Evaluation Kit for JODY-W263

By u-blox AG Gold 合作伙伴
评估板和开发板

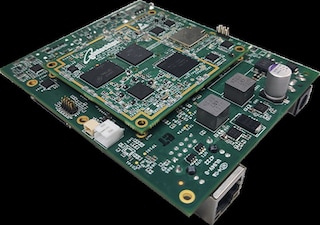

EIC-i.MX93-210: NXP i.MX93 Reference Development Platform

EIC-i.MX93-210 is a reference development platform (RDP) based on i.MX 93 application processors.RDP enables developers to kick-start development of high performance and ...

By eInfochips Gold 合作伙伴
评估板和开发板
STKa93xxLA

Evaluation kit based on TQMa93xxLA as a platform with TSN Gigabit Ethernet, ML-Accelerator and Graphics support.

By TQ-Systems GmbH Platinum 合作伙伴
评估板和开发板

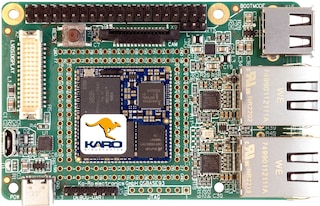

Ka-Ro QS93 QSBASE93 Evaluation Kit

Eval-kit for rapid evaluation and development of the QS93 Solder-Down SOM. All functions and peripherals of the QS93 are available. Schematics and bill of material of bas...

By Ka-Ro electronics GmbH Gold 合作伙伴
评估板和开发板

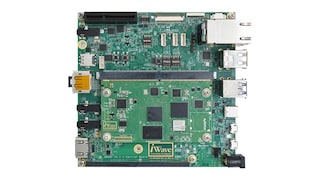

i.MX 93 SMARC Development Kit

The i.MX 93 SMARC Development Kit features dual Gigabit Ethernet, M.2 expansion, MIPI DSI/CSI, CAN, UART, audio I/O, and more, enabling fast prototyping for AI, industria...

By iWave Global Gold 合作伙伴
评估板和开发板

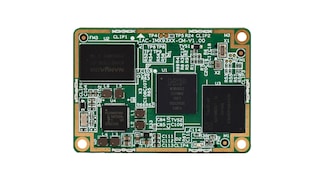

System on Module IAC-IMX93-CM

IAC-IMX93-CM System on Module is designed by using the NXP i.MX9352 processor, integrating with 2x Cortex-A55 Core + 1x Cortex-M33 real-time Core, up to 1.7GHz,and it is...

By Zhejiang Qiyang Intelligent Technology Co., Ltd. Gold 合作伙伴
评估板和开发板

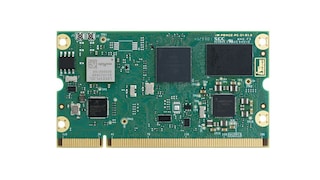

i.MX 93 SODIMM Development Kit

The i.MX 93 SODIMM development kit features a debug UART through a USB Micro AB connector and a DATA UART port accessible via a header. It supports 10/100/1000 Mbps Ether...

By iWave Global Gold 合作伙伴
硅设备/组件
Low Power DRAM

High quality, low power JEDEC standard low to mid density LPDDR2/3 & LPDDR4x memories with densities ranging from 256 Mb to 4 Gb KGD and PKG options.

By Micron Gold 合作伙伴
模块
TEVS-AR0234

2MP Global Shutter AR0234 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块
EIC-i.MX93-210 Multimedia Kit

eInfochips Multimedia Kit, an add-on to the EIC-i.MX93-210, offers Audio IN/OUT, FHD touch display, MIPI camera, and M.2 connector, enabling fast multimedia prototyping v...

By eInfochips Gold 合作伙伴
模块
ConnectCore 93

ConnectCore 93 is wireless system-on-module based on the NXP i.MX 93 processor, with Wi-Fi 6, Bluetooth 5.3 and an AI/ML NPU, designed for longevity and scalability in in...

By Digi International Gold 合作伙伴
模块
EcoG SEIC 3500

Charge Controller ideal for compact DC wallboxes, the first fully integrated i.MX93 design offers security, real-time processing, and bidirectional charging with EcoG OS.

By EcoG GmbH Gold 合作伙伴
模块
MAYA-W2

Compact Wi-Fi 6 + Bluetooth 5.4 + 802.15.4 host-based multiradio modules, secure tri-radio 1/2 antenna pins, U.FL connectors or embedded antenna MAYA-W260, MAYA-W261, MA...

By u-blox AG Gold 合作伙伴
模块
TEVS-AR0521

5MP rolling shutter AR0521 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块
TEVS-AR1335

13MP Rolling Shutter MIPI-CSI2 AR1335 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块
TEVS-AR0522

5MP rolling shutter with NIR (Near Infrared) enhancement AR0522 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块
OSM-IMX93

ADLINK OSM 1.1 OSM-IMX93 module, based on NXP i.MX93 with an integrated Arm Ethos-U65 microNPU, for compact edge solutions needing on-device AI processing at ultra-low po...

By ADLINK Technology, Inc. Gold 合作伙伴
模块
3SM1010 SOM NXP i.MX 93 - Arm® Cortex®CPU

3SM1010 is a NXP i.MX93 CPU based. It's a card edge 230 pin form factor. Small dimension (40mmx71mm) is ideal for Automotive, Industrial and consumer IOT application. Sup...

By Elettronica GF s.r.l. Gold 合作伙伴
模块

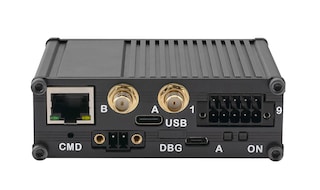

IOT-LINK新

IOT-LINK is a miniature and rugged industrial IoT gateway powered by the NXP i.MX 93 SoC.

By Compulab Gold 合作伙伴
模块
EIC-i.MX93-210 RGB Camera Module

eInfochips offers an RGB Camera Module with the KLT-M9K-MT9M114 V3.0 sensor, supporting 1280x720p stills and 30fps video. It connects to the EIC-i.MX93-210 kit via an 8-b...

By eInfochips Gold 合作伙伴
模块
TEVS-AR0145

1MP Global Shutter AR0145 1 MP Monochrome MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块
TEVS-AR0144

1MP Global Shutter AR0144 1 MP MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块

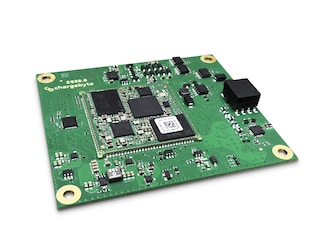

Charge SOM

Future-proof powerhouse based on iMX9x for AC and DC charging stations. With universal compatibility, advanced safety features and options for customization, it is the co...

By chargebyte GmbH Gold 合作伙伴
模块
TEVS-AR0821

8MP rolling shutter AR0821 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块
TEVS-AR0822

8MP rolling shutter with NIR (Near Infrared) enhancement AR0822 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
模块
PIXI-IW416

NXP IW416 Wi-Fi 4 and Bluetooth 5.2 M2. 1216 Module

By TechNexion Ltd Gold 合作伙伴

要查找支持该产品的其他合作伙伴产品，请访问我们的合作伙伴市场.
