S32M2 12V电机控制集成解决方案

S32M2 正常供应
  • 本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系恩智浦 支持服务或恩智浦当地销售人员。

滚动图片以放大

S32M2系列专为12V电机控制应用而设计，基于系统级封装(SiP)设计，集成了高压模拟功能(MOSFET栅极预驱动器、LIN/CAN FD物理通信接口和稳压器)和强大的嵌入式MCU内核（S32K Arm®Cortex®-M4/M7系列内核），确保高性能和符合ISO26262的功能安全，可达ASIL B。

主要特点包括采用基于平台的电机控制边缘节点设计来加速产品和服务上市、先进的数据分析能力、逆变器和电机诊断能力以及可减少车内噪音的高级算法。

由于兼容恩智浦S32汽车平台，S32M2系列可实现无缝的无线固件升级(FOTA)、软件复用和灵活性。

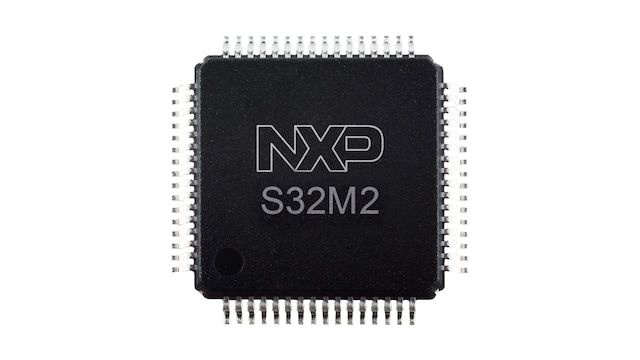

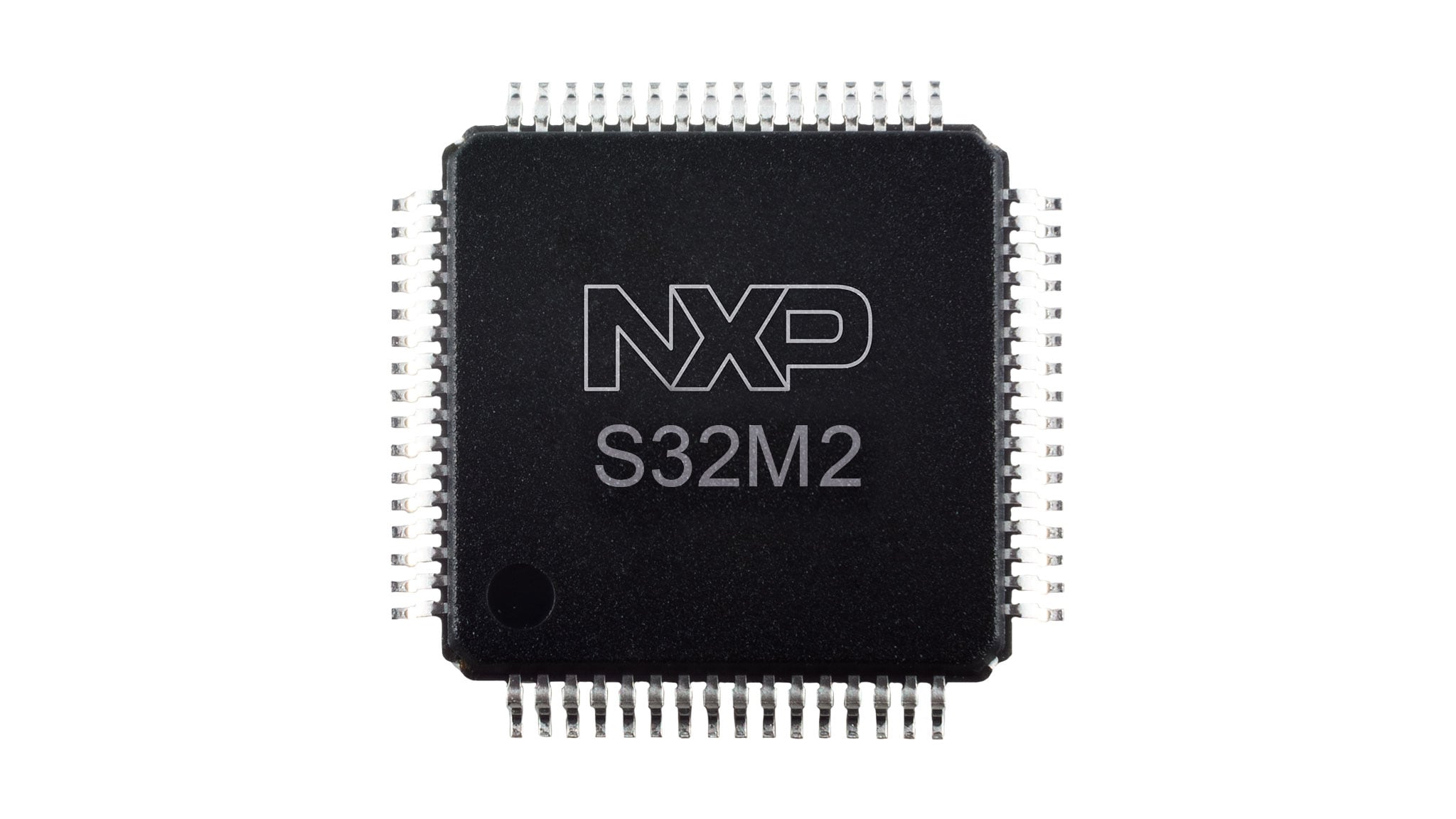

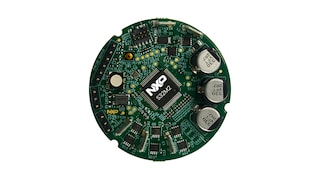

S32M2关注系统级成本，集成了稳压器、脉宽调制器、模数转换器、定时器和非易失性存储器，采用64引脚LQFP-EP封装减少总体组件数量和板空间。

产品详情

框图

选择框图:

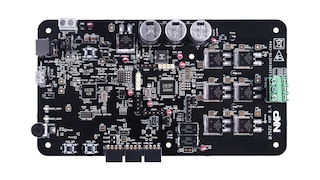

S32M24x系列规格

S32M24x family specs

S32M27x系列规格

S32M27x family specs

S32M2电机控制解决方案图

S32M2-MOTOR-CONTROL-SOLUTION-DIAGRAM-V2
获取框图PDF

特性

计算

  • 80MHz Cortex-M4内核或120MHz Cortex-M7内核，带单精度浮点单元。

通信

  • 集成CAN FD或LIN的物理接口
  • 集成适用于12V汽车电池的稳压器

电源

  • 集成适用于汽车电池的稳压器

功能安全和汽车信息安全

  • 针对符合ISO26262的应用，可达ASIL B
  • 符合硬件安全CSE或HSE的要求。
  • 功能安全文件和SafeAssure技术论坛支持

模拟扩展

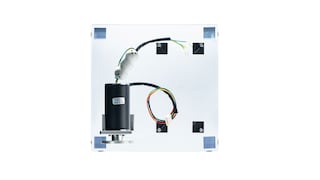

  • 集成3相MOSFET栅极驱动器，用于驱动BLDC或PMSM电机，具有可编程斜率控制功能。
  • 用于单分流解决方案的集成电流检测

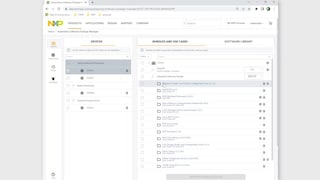

软件

  • 电机控制软件示例，包括模型化设计方法
  • 扩展闪存，用于AUTOSAR®、OS、诊断、启动加载程序、无线升级等。
  • 适用于AUTOSAR和非AUTOSAR操作系统的实时驱动程序(RTD)
