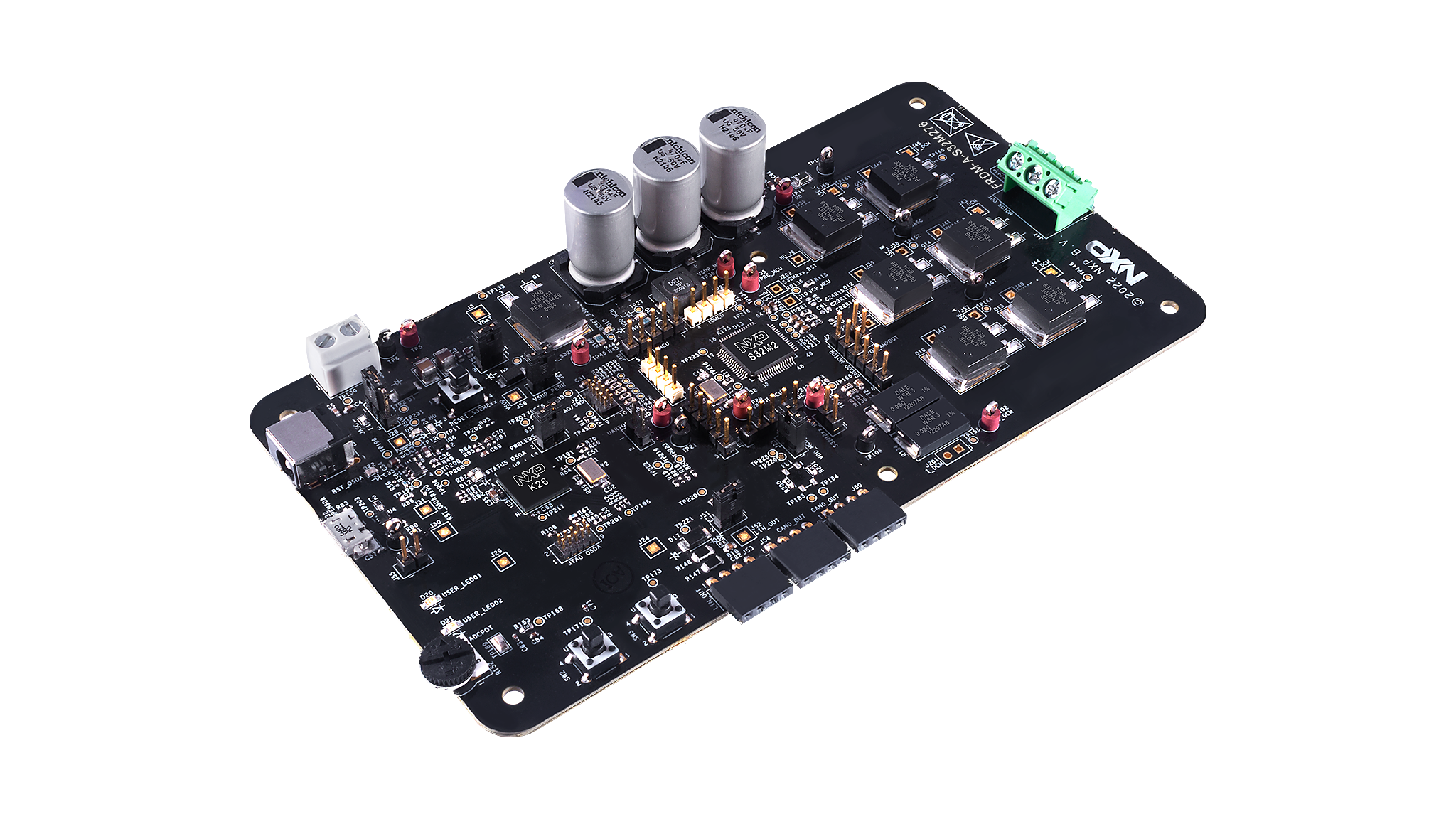

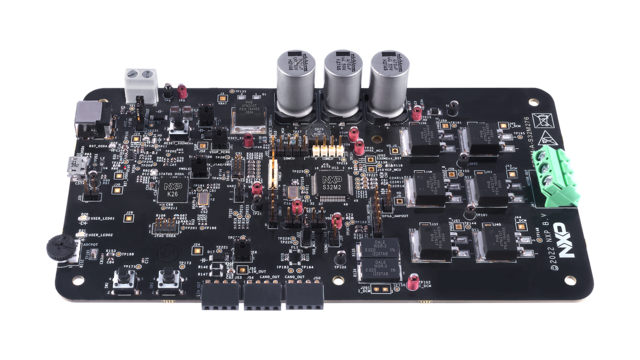

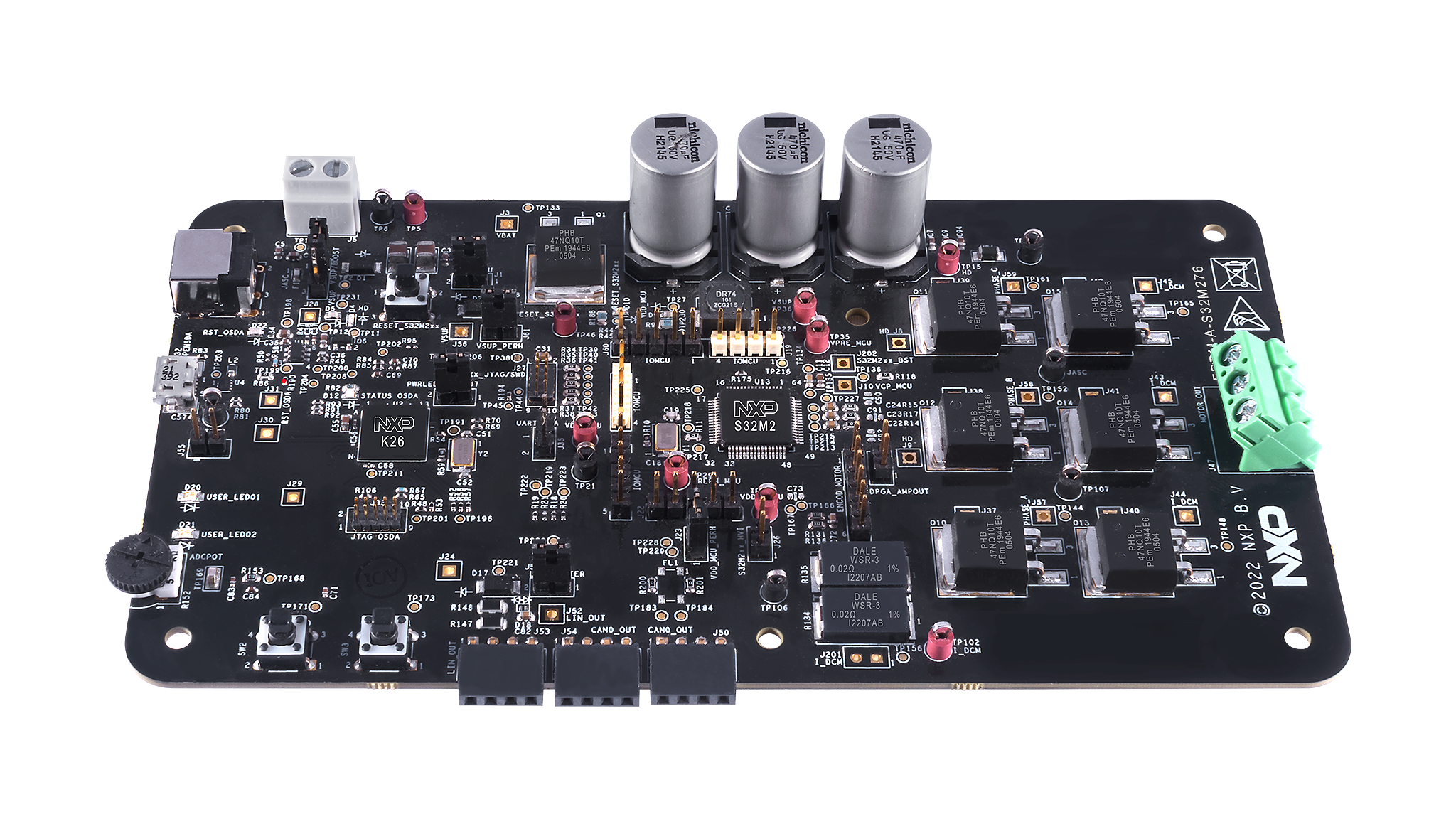

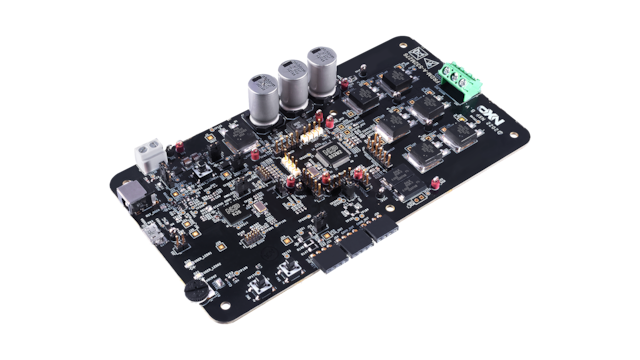

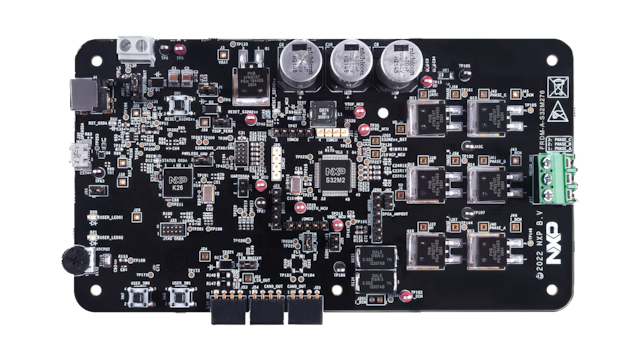

FRDM Automotive S32M276 PMSM/BLDC Motor Control Development Board

FRDM-A-S32M276
正常供应

滚动图片以放大

The FRDM-A-S32M276-C064 and FRDM-A-S32M276-L064 are development boards engineered for 3-Phase Brushless Direct Current (BLDC) and Permanent Magnet Synchronous Motor (PMSM) control applications like electric pumps, cooling systems and actuators like sunroof or seat position adjustment.

The FRDM-A-S32M276 is an integrated solution based on an internal 32-bit Arm® Cortex®-M7 S32K3 microcontroller and analog die with voltage regulator, gate driver, current sensing and LIN/CAN physical layer. Development board enables rapid prototyping and evaluation of BLDC and PMSM control applications without having to wait for the final hardware design.

The FRDM-A-S32M276 application software leverages the Automotive Math and Motor Control Library (AMMCLib) set plus Real-Time Drivers (RTD) software package to provide a complete reference implementation for both 3-phase BLDC and PMSM motor control.

框图

选择框图:

FRDM-A-S32M276 with CAN Interface

S32M27XEVB with CAN interface

FRDM-A-S32M276 with LIN Interface

S32M27XEVB with LIN interface

FRDM-A-S32M276 PMSM FOC Application

S32M276 PMSM FOC Application Block Diagram

FRDM-A-S32M276 BLDC 6-Step Application

S32M276 BLDC 6-Step Application Block Diagram

支持的器件

处理器和微控制器

K2x / KS2x USB

  • K26_180: Kinetis® K26-180 MHz，双高速和全速USB，2MB闪存微控制器(MCU)，基于ARM® Cortex®-M4内核

S32M电机控制集成解决方案

  • S32M2: S32M2 12V电机控制集成解决方案

接口

CAN信号提升

  • TJA1462: 具有待机模式的CAN信号质量提升(SIC)收发器

汽车LIN解决方案

  • TJA1027: LIN 2.2/SAE J2602收发器

Features

Hardware Features

  • FRDM-A-S32M276-C064 designed for 3-phase PMSM or BLDC motor, with internal CAN PHY and external LIN PHY
  • FRDM-A-S32M276-L064 designed for 3-phase PMSM or BLDC motor, with internal LIN PHY and external CAN PHY
  • Position/Speed Sensor options: encoder, HALL or sensorless techniques
  • Voltage/current Sensors: DC Bus voltage and current, phase voltages, BEMF voltages, over current/voltage/temperature protections

Software Compatibility

FRDM-A-S32M276-C064 Interfaces

  • CAN (FD) physical layer integrated in S32M2
  • TJA1027: LIN 2.2A/SAE J2602 Transceiver

FRDM-A-S32M276-L064 Interfaces

  • LIN physical layer integrated in S32M2
  • TJA1462: CAN Signal Improvement Capability Transceiver with Standby Mode

Debug Interfaces

  • On board PEmicro debugger (micro-USB connector) with virtual COM port for serial communication
  • 10pin JTAG/SWD connector

Enablement

  • ANSI-C based example SW created in S32 Design Studio for S32 Platform built on S32M27x RTD drivers
  • Model-Based Design Toolbox (MBDT) example SW built on S32M27x RTD drivers
  • FreeMASTER visualization/configuration support
  • MCAT tool - part of software package
  • MCU peripherals initialization generated by S32DS Configuration Tool (S32CT)

购买选项

S32M27XEVB-L064-Image

点击展开

S32M27XEVB-L064
正常供应

FRDM Automotive S32M276 PMSM/BLDC Motor Control Development Board.

  • 处理: Arm® Cortex®-M7
$149.00 USD
现货>100

正常情况下 1-2个工作日内发货

加入购物车
从分销商处购买
S32M27XEVB-C064-Image

点击展开

S32M27XEVB-C064
正常供应

FRDM Automotive S32M276 PMSM/BLDC Motor Control Development Board.

  • 处理: Arm® Cortex®-M7
$149.00 USD
现货>100

正常情况下 1-2个工作日内发货

加入购物车
从分销商处购买
