产品详情

支持的器件

处理器和微控制器

i.MX RT跨界MCU

i.MX-RT500: i.MX RT500 跨界MCU，配备Arm^® Cortex^®-M33内核

电源管理

PMIC

PCA9420: 面向低功耗应用的PMIC

负载开关

NX5P3090UK: USB PD和Type C限流电源开关

传感器

运动传感器

FXOS8700CQ: 数字运动传感器 – 3D加速度传感器(±2g/±4g/±8g) + 3D磁力计

功能

处理器

MIMXRT595

Cortex-M33 running up to 200 MHz
Cadence Tensilica Fusion F1 running up to 200 MHz
Internal SRAM (5 MB)

板载存储器

Macronix Octal SPI Flash (64 MB)
APM Memory PSRAM (8 MB)
SanDisk eMMC (16 GB)

调试功能

10-pin and 20-pin SWD connectors supporting external debug/trace probes
On-board debug probe with VCOM and CMSIS-DAP or J-link firmware options

扩展接头

Arduino扩展
PMOD扩展
8通道麦克风板的扩展接头
I³C接头
Flexcomm头
FlexIO display header, which enables you to connect an optional TFT Proto 5” CAPACITIVE from MikroElektronika (5” display board with capacitive touch)
MIPI display connector, which enables you to connect to optional MIPI displays available from NXP

用户接口

复位和用户按钮可轻松测试软件功能
用户LED

连接

高速/全速USB端口，具有主机或设备功能可用的微型A/B接头
SD卡插槽

传感器

恩智浦FXOS8700CQ加速度传感器

音频

Audio codec with stereo line in and line out/headphone jack
Dual Knowles DMICs
DMIC expansion connector supporting up to 8 DMICs

购买选项

点击展开

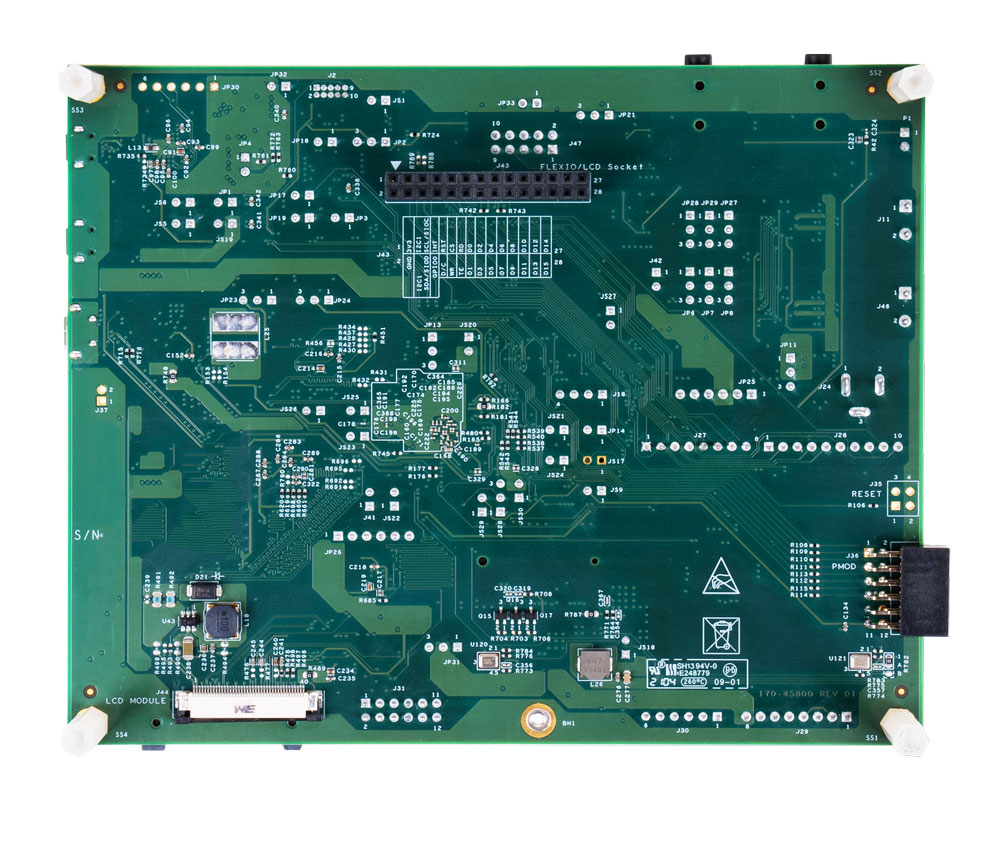

MIMXRT595-EVK
i.MX RT595 Evaluation Kit.

- 供货状态: 缺货

Buy from NXP从代理商处购买

Distributor Name	地区	库存	库存日期

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

RK055HDMIPI4MA0
5.5" LCD Panel.

CNY652.53
数量为 1
- 供货状态: 缺货

Buy from NXP从代理商处购买

Distributor Name	地区	库存	库存日期

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

G1120B0MIPI
1.2 inch wearable display, 390x390, 1-lane MIPI interface.
