X-IN-1 Modular Platform Design

X-IN-1-MODULAR-PLATFORM 全新

滚动图片以放大

The NXP X-in-1 modular platform redefines what's possible in electrification system integration. It delivers a scalable and evolutive hardware and software foundation that adapts to various electrification system configurations and seamlessly supports a broad range of NXP components. By enabling fast integration of multiple application software into a single NXP control chip, it simplifies X-in-1 design for automakers and Tier 1 suppliers.

This platform accelerates innovation, reduces complexity and cost and streamlines development cycles—empowering OEMs to bring advanced electrification solutions to market faster.

The first two use cases supported with dedicated hardware, software and comprehensive documentation are:

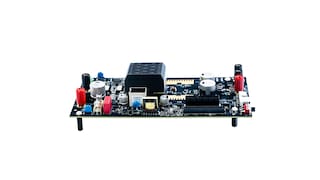

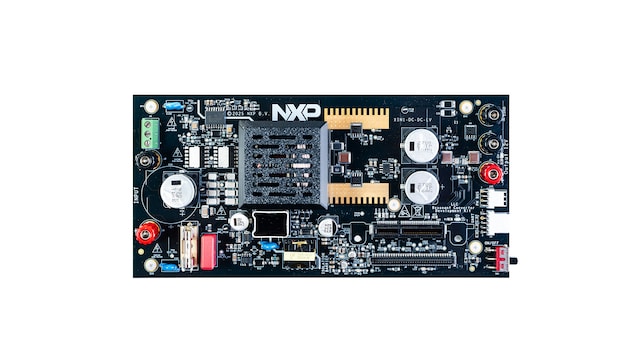

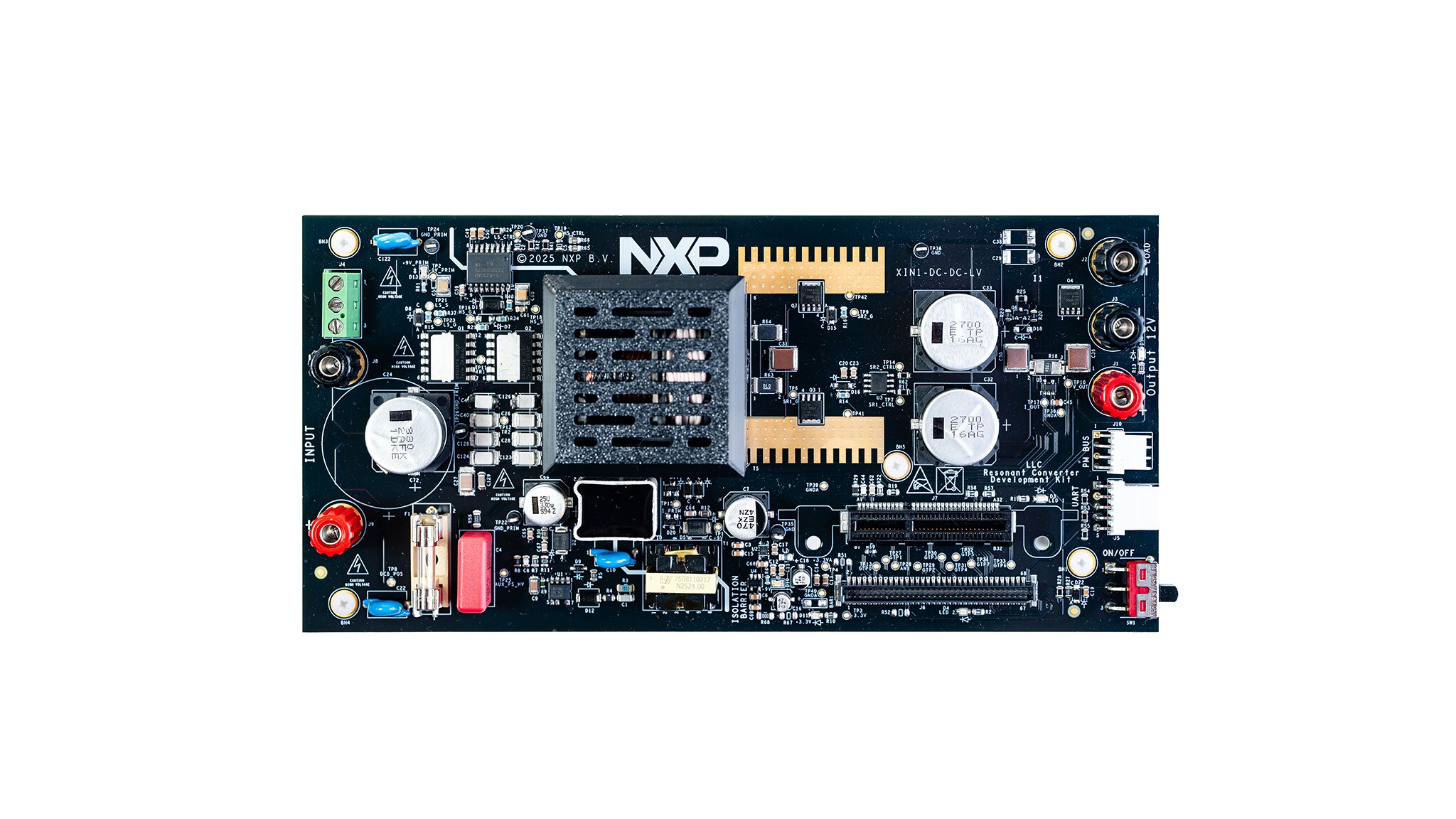

  • 2-in-1 DC-DC + Inverter Solution powered by the S32K39 MCU
  • 2-in-1 DC-DC + BMS Solution powered by the S32K39 MCU

支持的器件

处理器和微控制器

S32K汽车通用MCU

  • S32K39-37-36: 面向电气化应用的S32K39/37/36微控制器

电源管理

12V/24V/48V SBC解决方案

  • FS26: 功能安全系统基础芯片，低功耗，面向ASIL D系统

通用负载开关

BLDC，H桥，步进电机

  • HB2000: SPI可编程10A H桥有刷直流电机驱动器

动力和发动机控制

  • GD3160: 面向SiC MOSFET的具有段式驱动的先进高压隔离栅极驱动器

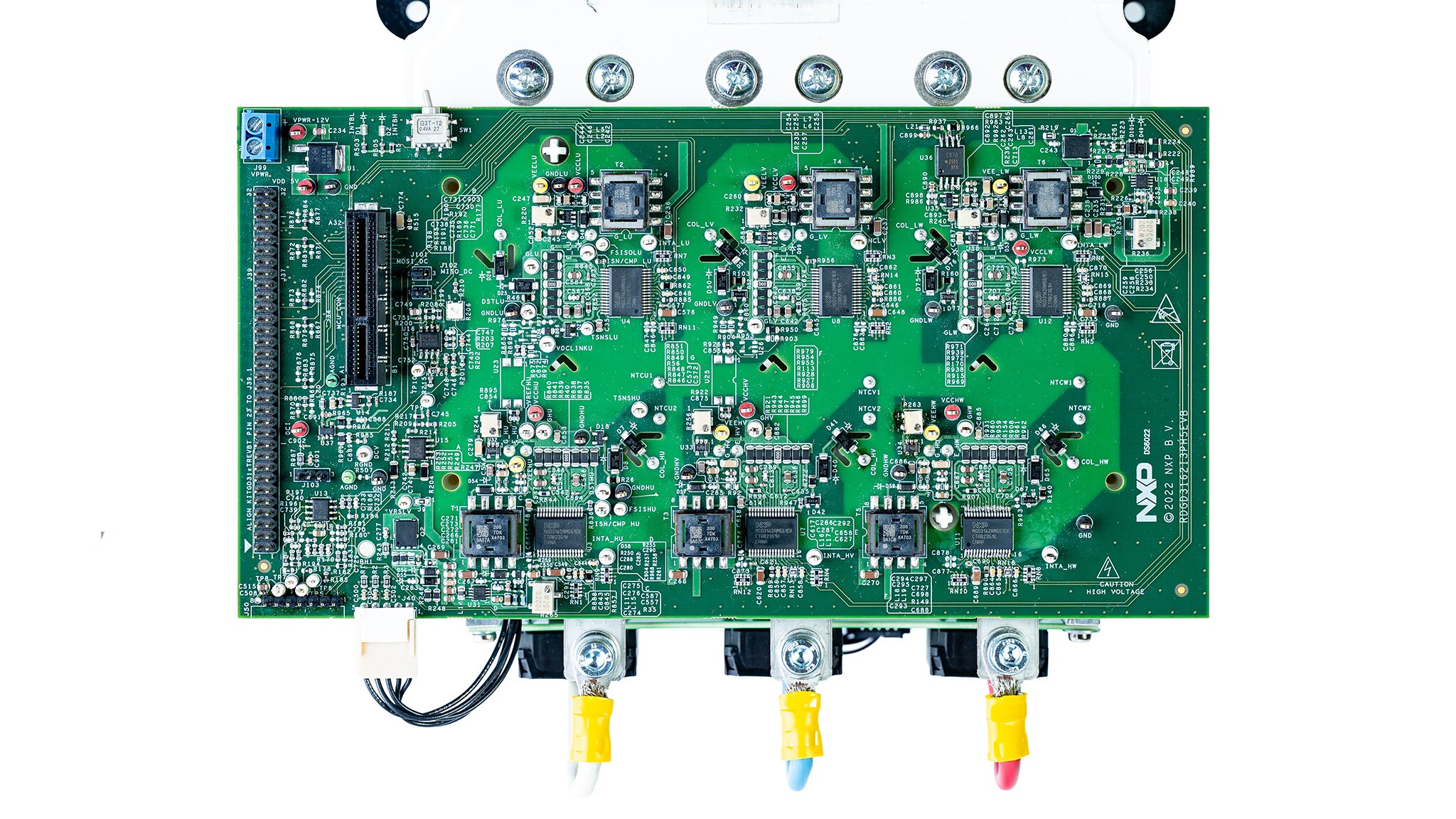

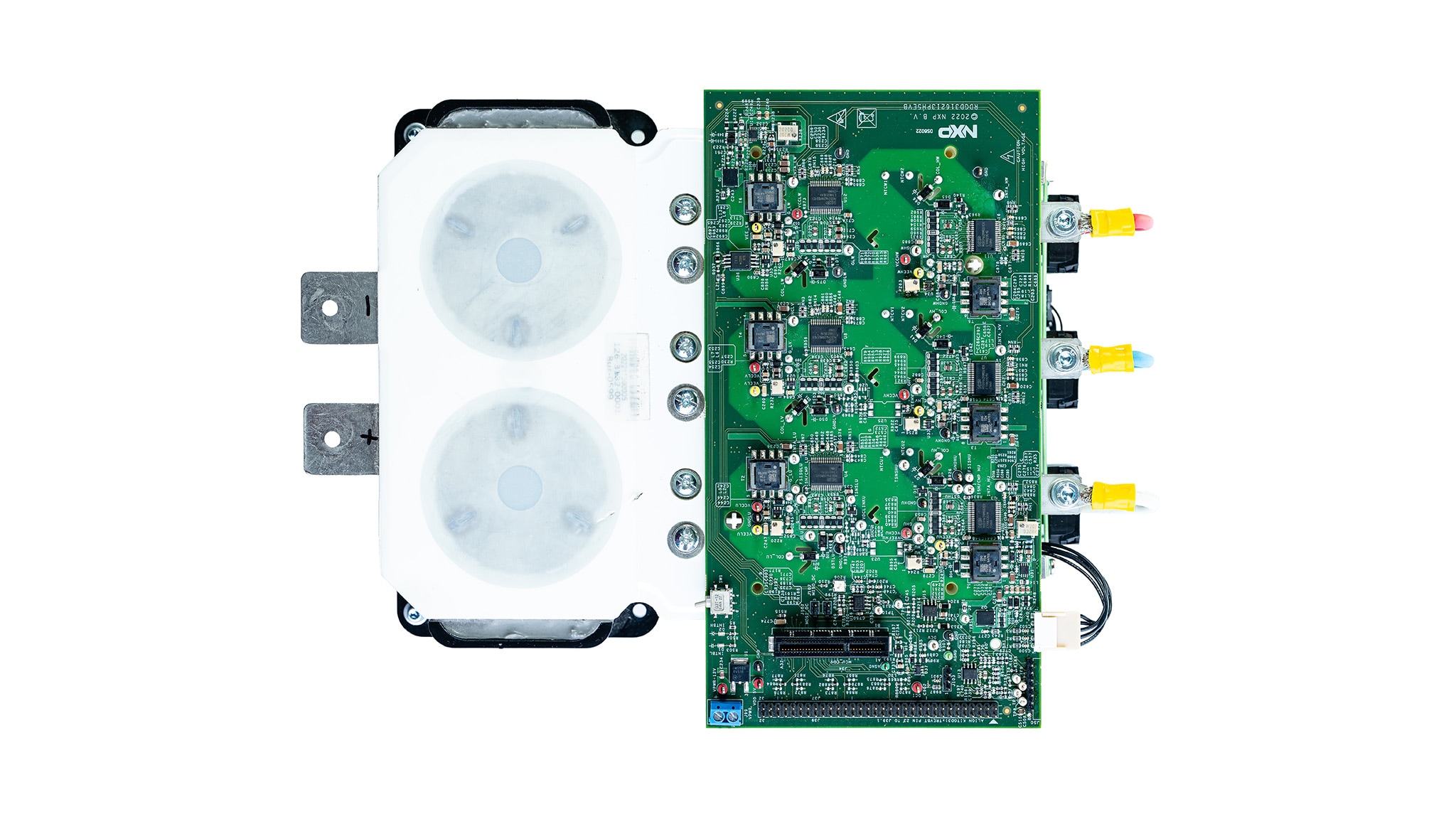

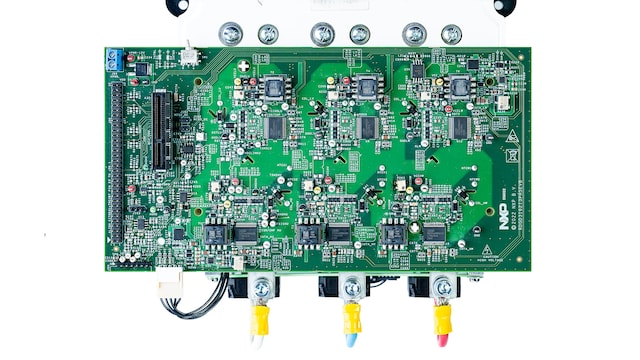

  • GD3162: 具有动态栅极强度控制的先进高压隔离栅极驱动器

接口

CAN局部联网

  • TJA1465: 局部联网的CAN SIC收发器，CAN FD数据传输速率高达8Mbit/s

汽车以太网PHY

  • TJA1103: TJA1103，符合ASIL B安全标准的汽车以太网100BASE-T1 PHY收发器

电池管理

电芯控制器

  • MC33774: 18通道锂离子电池控制器IC ASIL D

电池通信IC

  • MC33665A: 通用BMS通信TPL收发器和CAN FD网关

电池传感器

Features

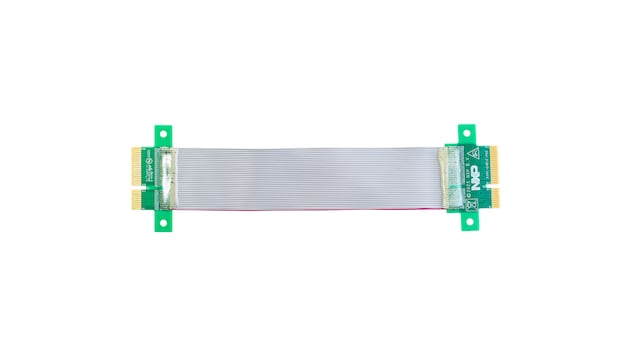

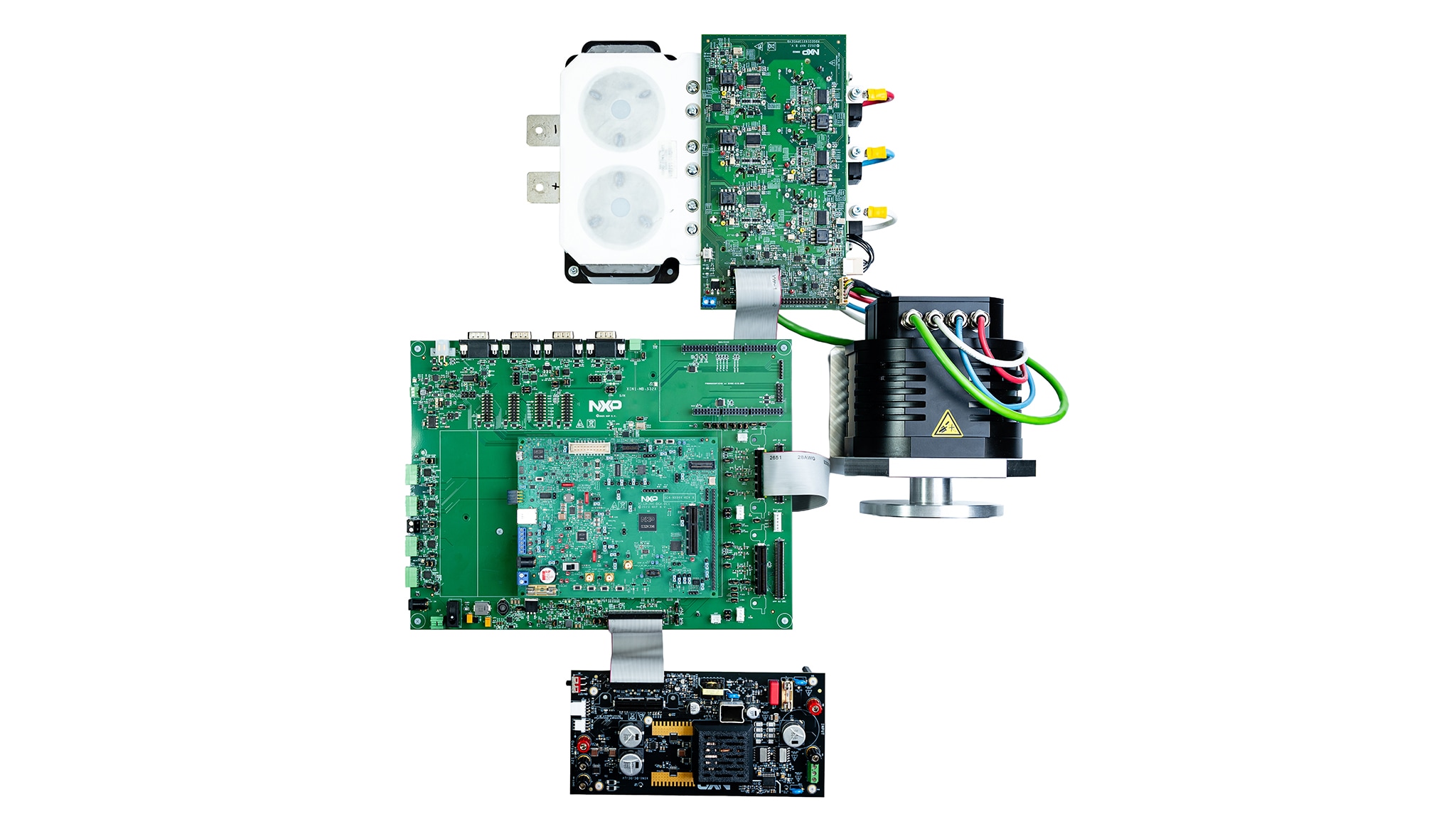

Scalable and Evolutive Hardware Modular Platform

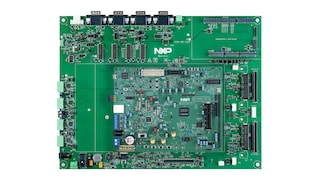

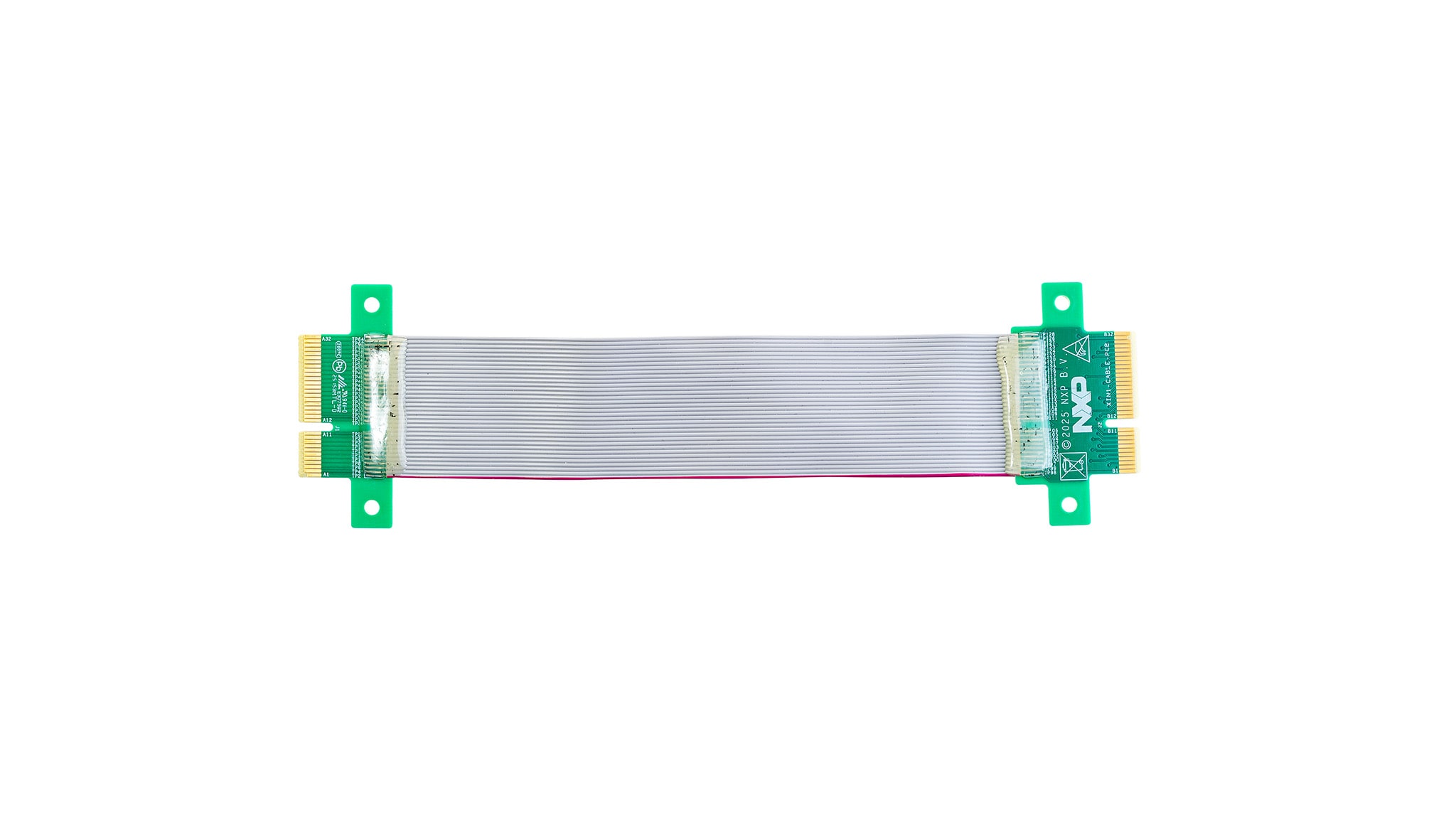

  • Motherboard options: Powered by NXP S32K39 or S32K5 MCU families, with associated SBC, enabling seamless software integration and consolidation

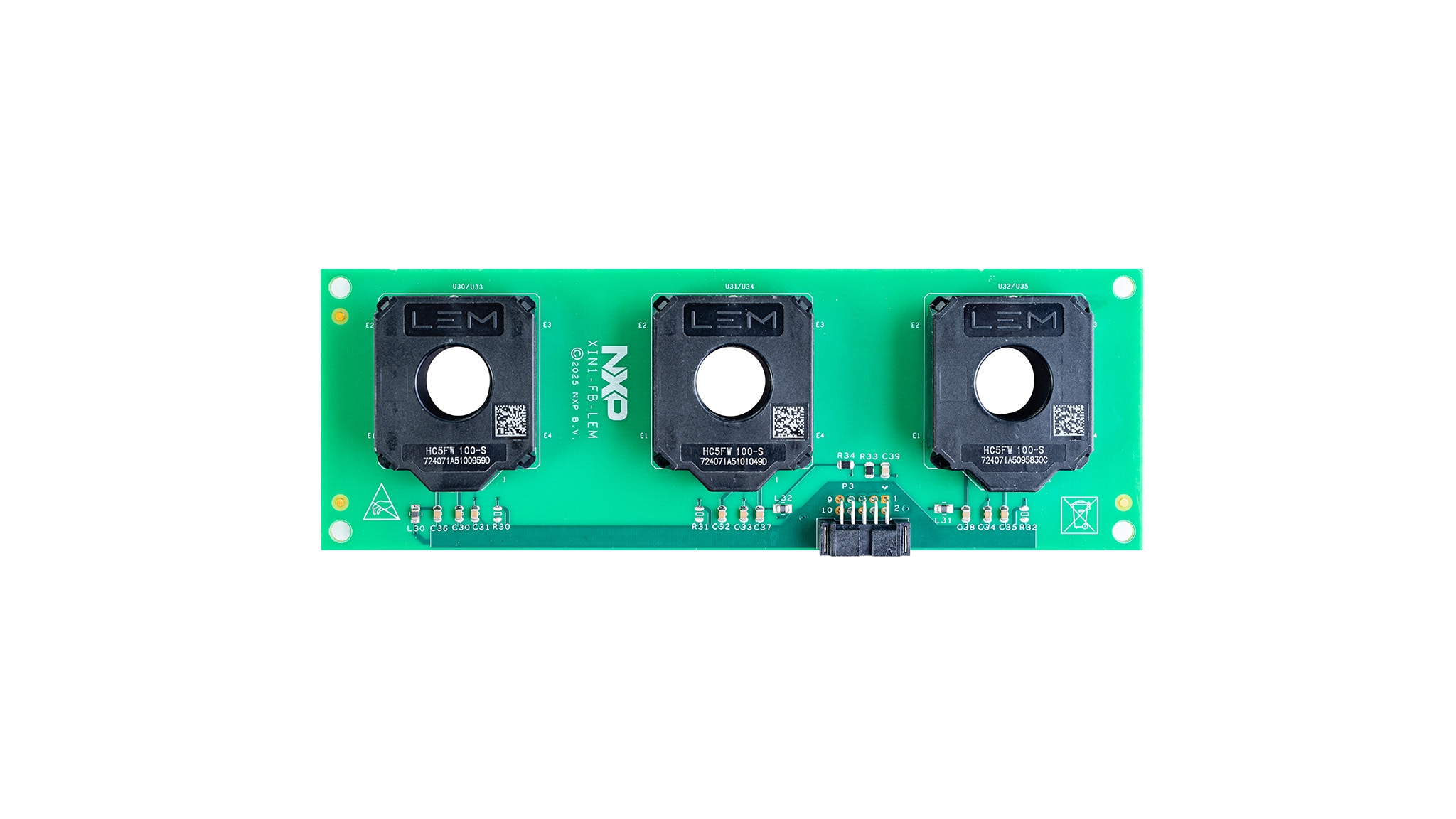

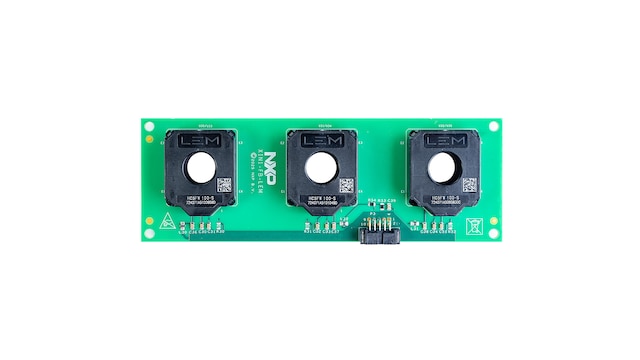

  • Application-specific boards: Designed for a wide range of EV functions, integrating analog and digital components for actuation in systems such as inverter, DC-DC converter, on-board charger (OBC), electric vehicle communication controller (EVCC), battery management system (BMS) and vehicle control unit (VCU)

Software Enablement

  • Flexfoundation software example: A robust orchestration layer ensuring safe and efficient coordination across multiple applications, with built-in system management capabilities
  • Application software (demo level): Pre-integrated demos for key EV functions, such as field-oriented control (FoC) for inverters, BMS application software and fast control loop algorithms for DC-DC converters and OBC
  • Flexfoundation tool (under development): A configuration assistant for resource partitioning and multi-application orchestration, streamlining system setup and integration

Extended Documentation

  • X-in-1 functional safety concept and application note illustrated on a real 3-in-1 use case: ASIL B OBC + ASIL C DC-DC + ASIL D traction inverter
  • Application note covering safe processing and isolation of multiple applications concept.
