S32K396 Evaluation Motherboard for X-IN-1 Applications
- 本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系恩智浦 支持服务或恩智浦当地销售人员。

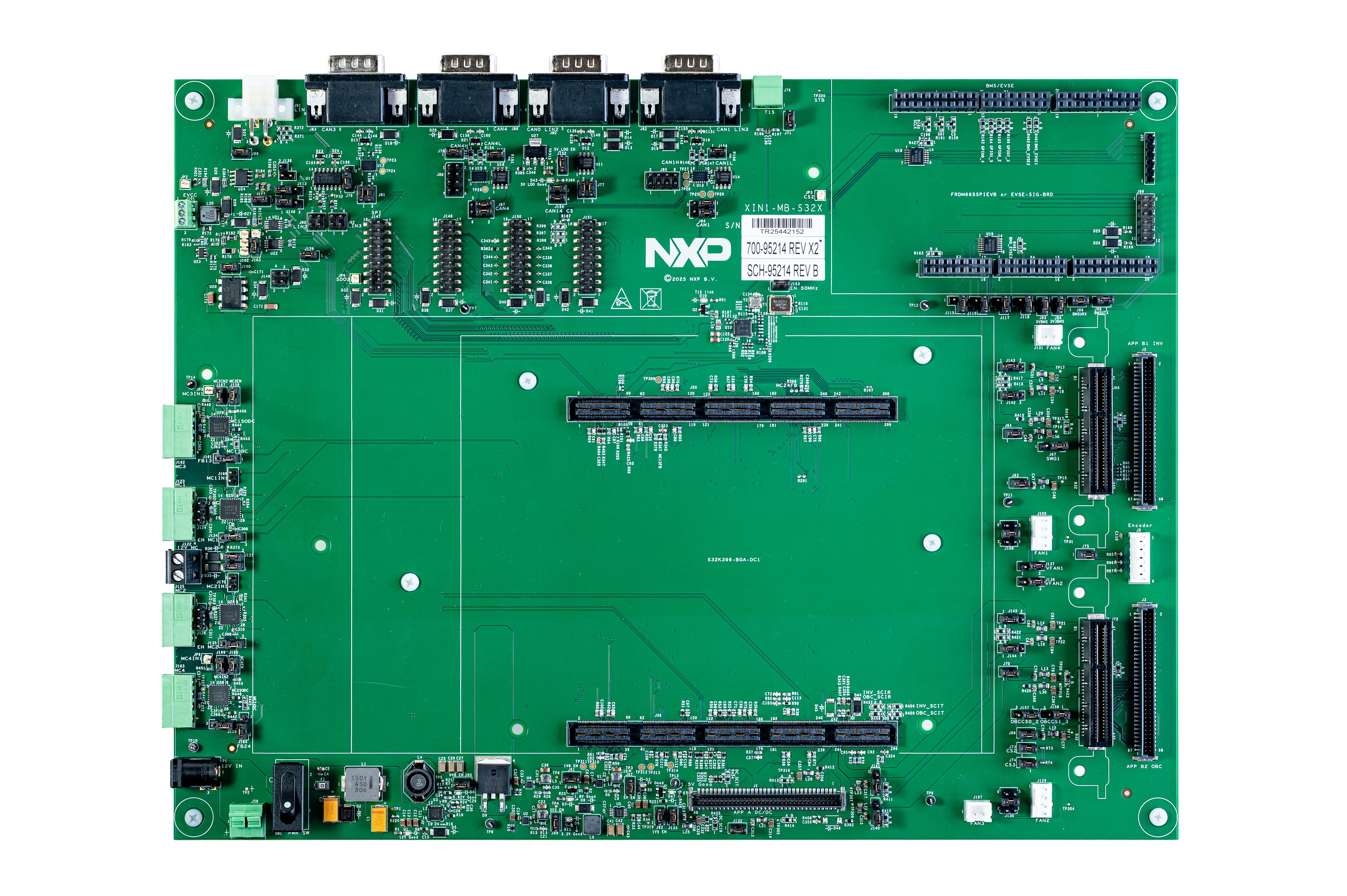

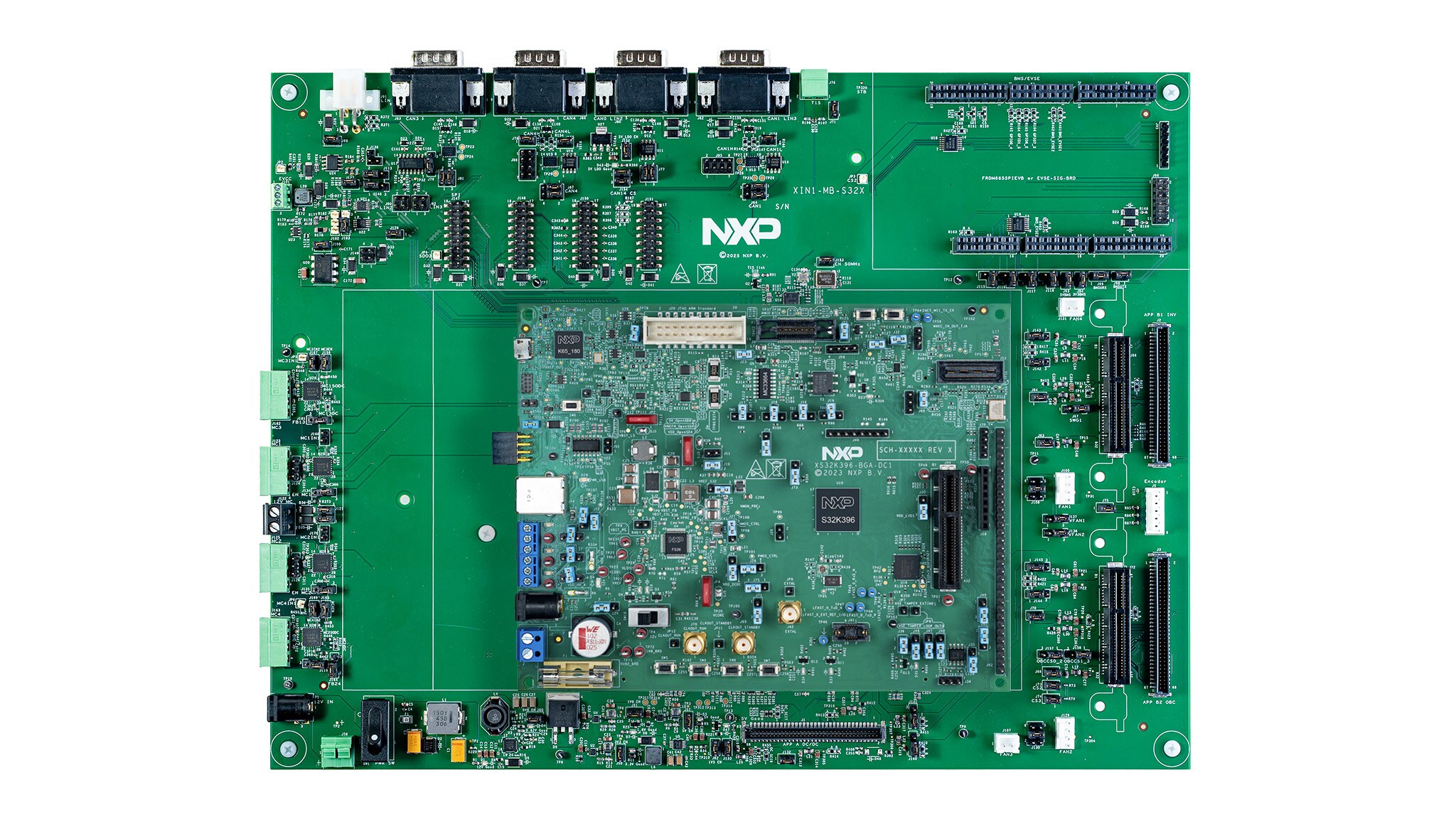

The XIN1-MB-S32Kx is the interfacing board between the MCU used in the XIN1 system and the various applications. This board acts as a motherboard (MB) for the MCU daughtercard (DC). This MB is mainly designed toward the S32K396-BGA-DC1 DC. This DC has the S32K396 MCU on board. The S32E2 and S32Z2 based MCU EVB boards will fit mechanically as well on this motherboard: S32E288-975EVB, S32Z280-594EVB and S32Z280-400EVB.
The XIN1-S32X-MB is a versatile main board designed to interface the S32K396 MCU with a wide range of analog actuation and application boards. This modular approach enables fast prototyping and evaluation of multiple X-IN-1 automotive use cases across powertrain, charging and energy-management domains.
产品详情
Features
General Features
- The XIN1-S32X-MB also integrates all essential peripherals required to design and connect an On-Board Charger (OBC) subsystem. Vehicle Control Unit (VCU) Connectivity With its rich communication interface—featuring 10BASE-T1S Ethernet, 4x CAN, and 2x LIN—the board provides the connectivity needed to serve as a Vehicle Control Unit (VCU) in multi-domain architectures.
DC-DC Converter Applications
- DC/DC LV Evaluation Board for X-IN-1 Electrification Applications Compatible with converter applications
Traction Inverter Applications
- 3 Phase Inverter Reference Design Using the GD3162 with HybridPACK Drive and LEM Sensor board for X-IN-1 Electrification Applications compatible with traction inverter applications
