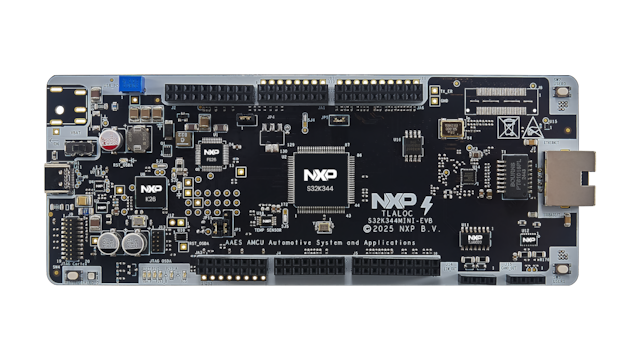

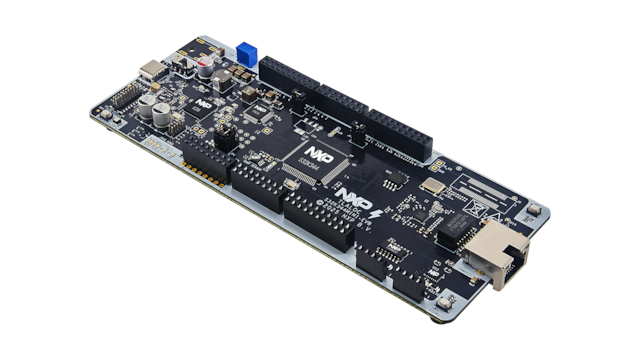

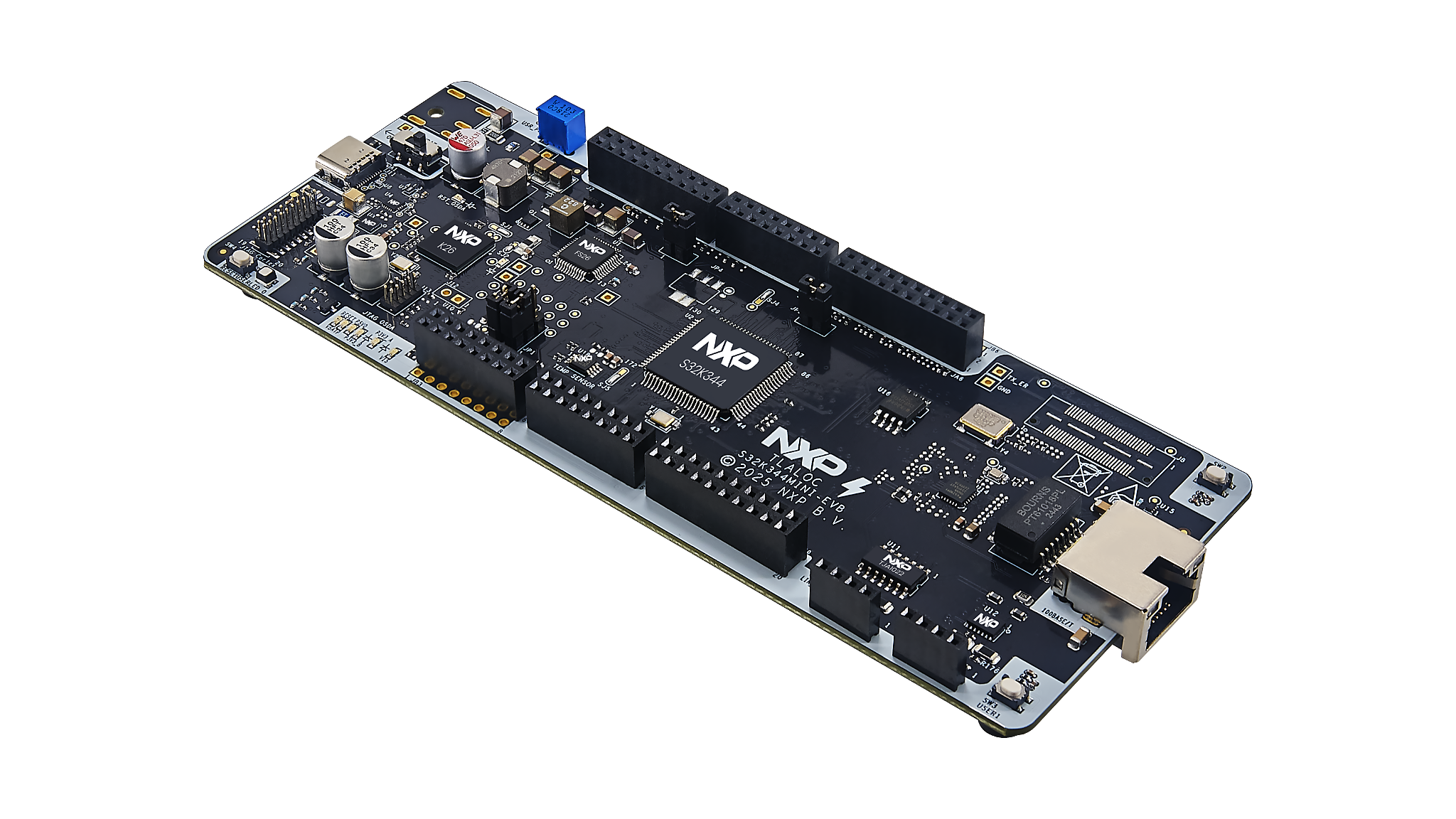

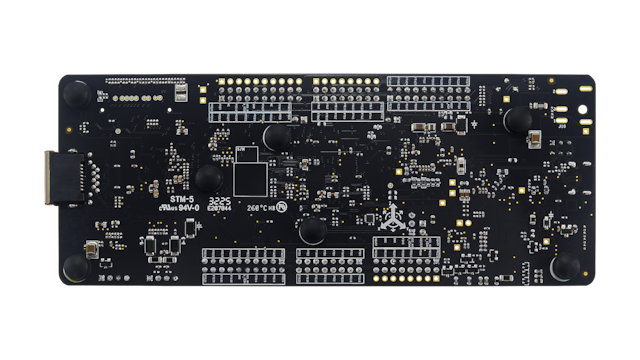

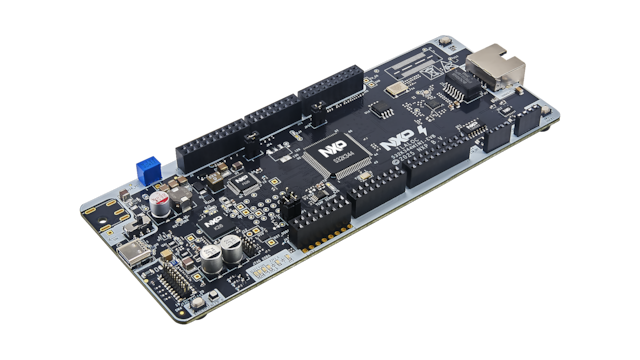

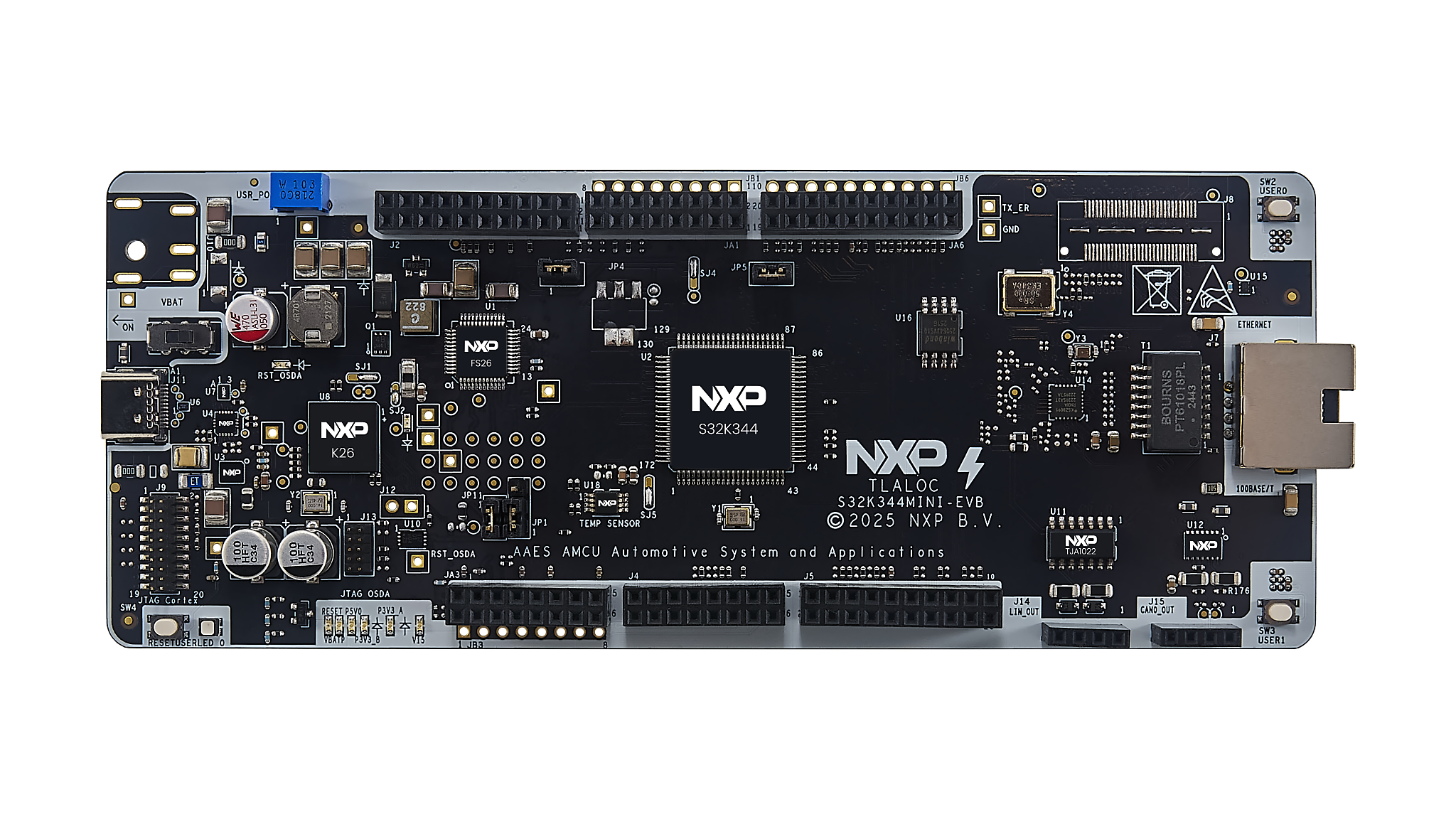

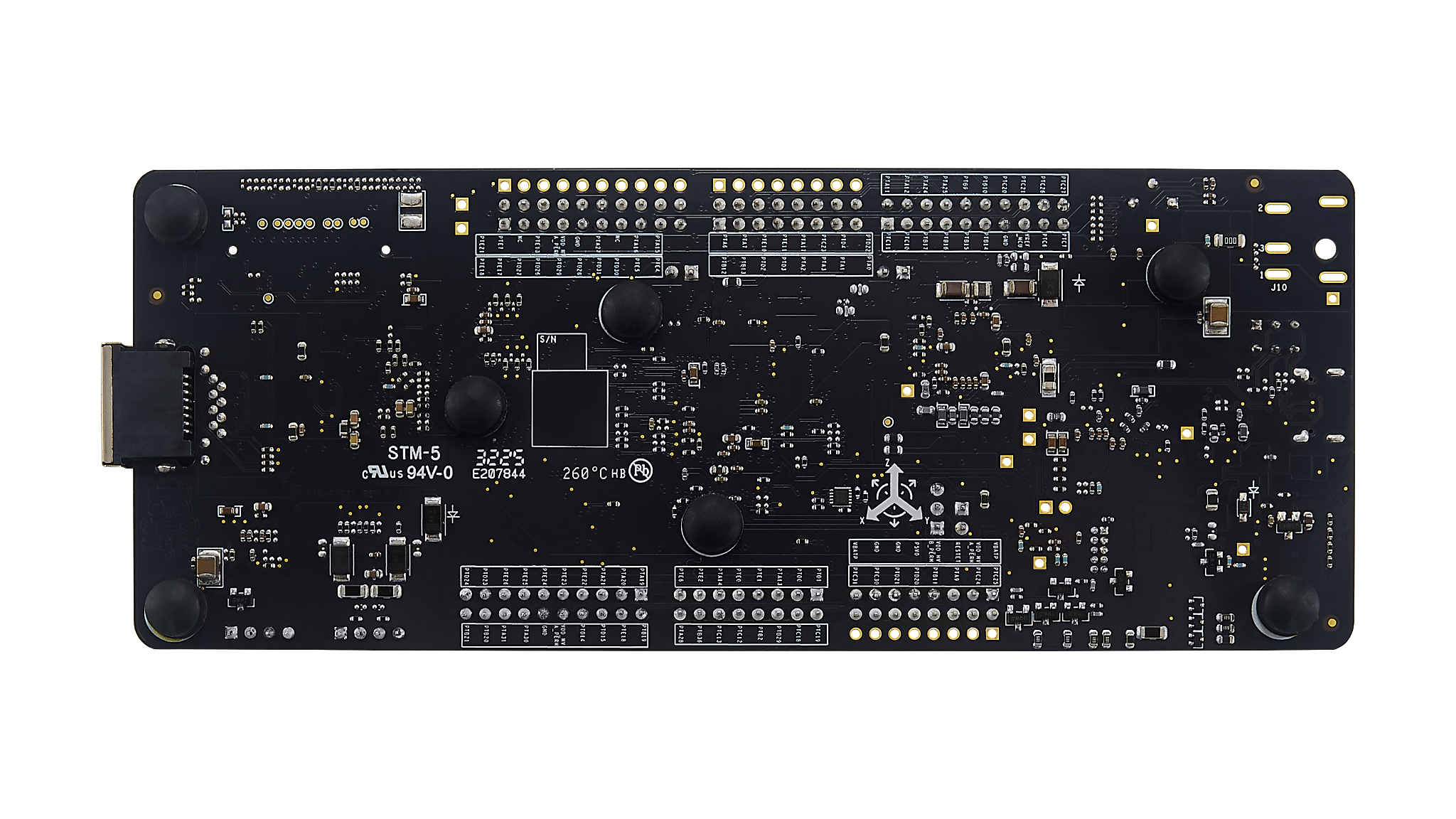

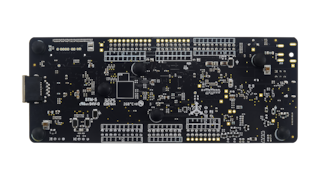

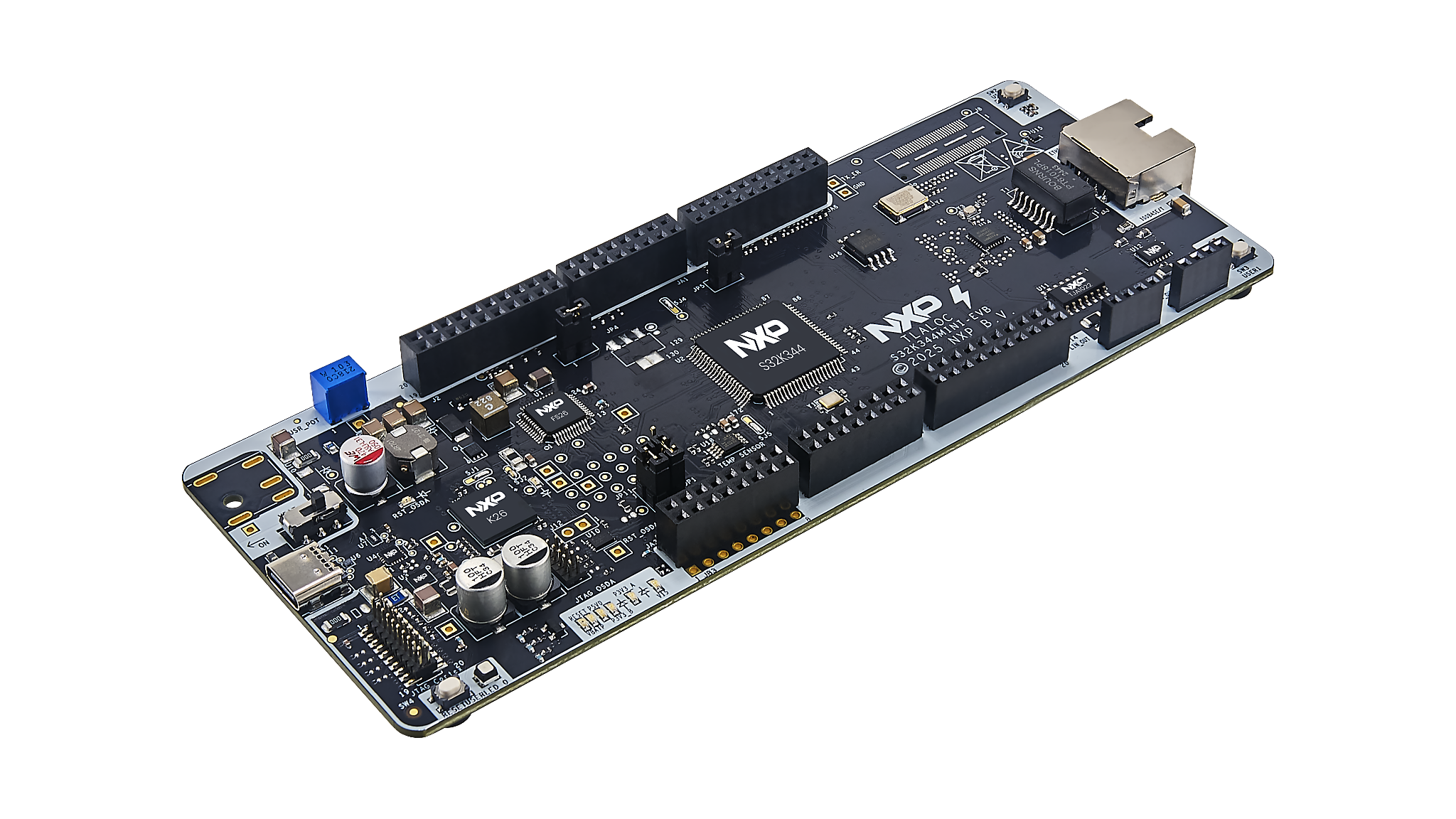

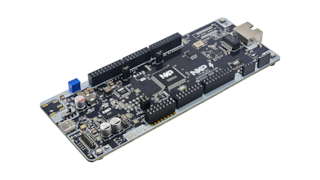

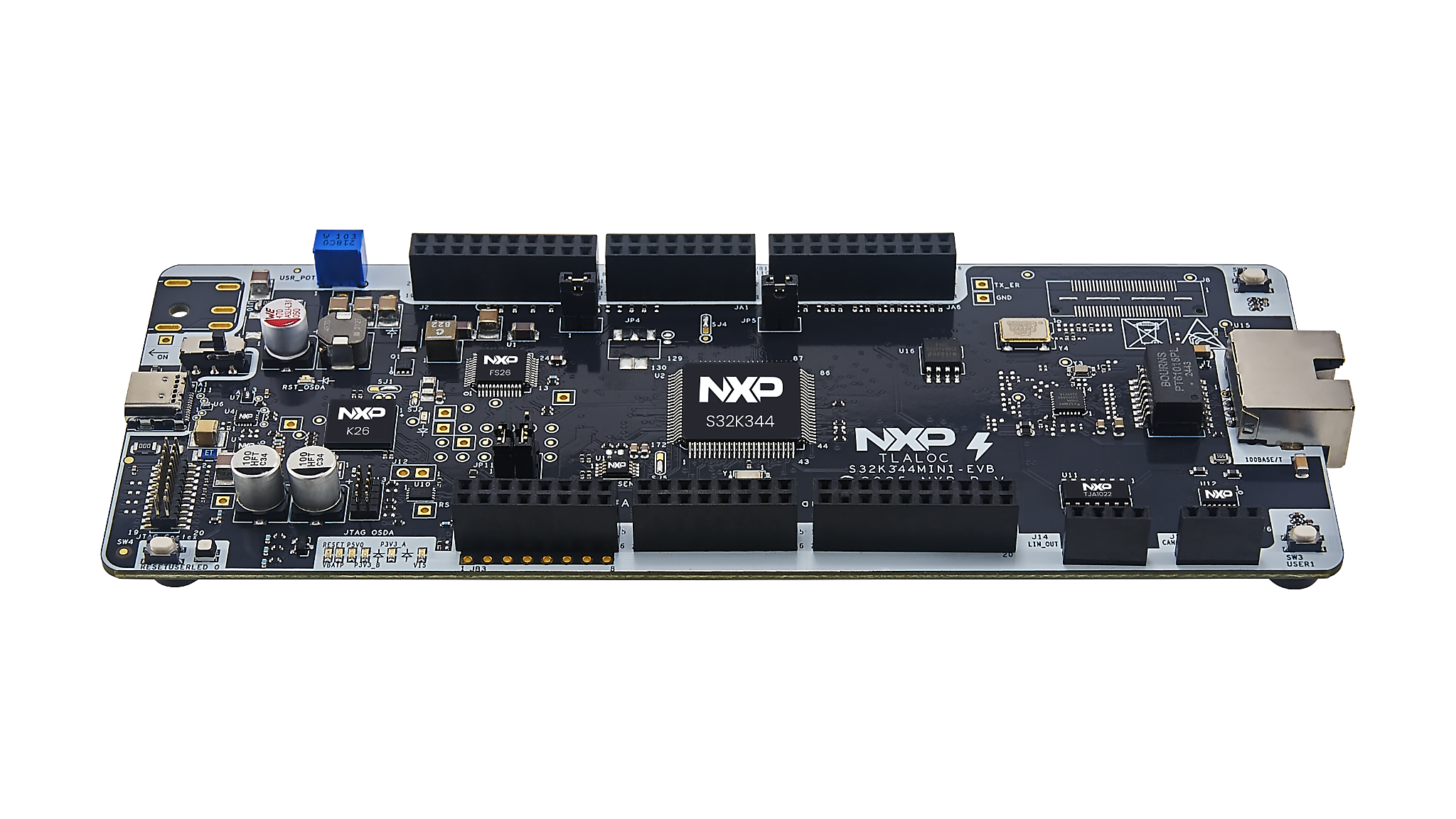

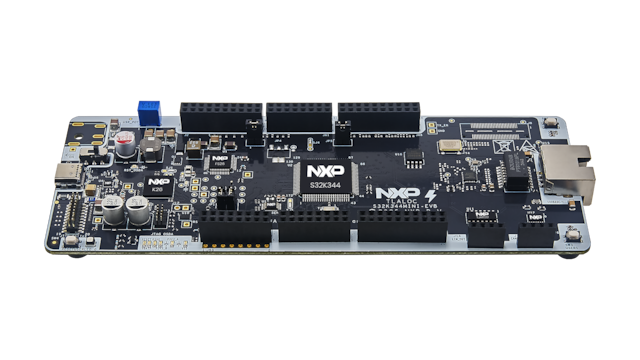

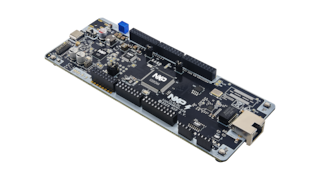

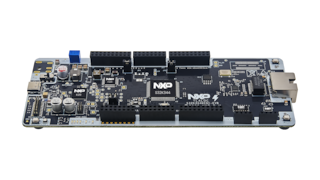

The S32K344MINI-EVB is an evaluation board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm® Cortex®-M7 S32K3 microcontroller unit (MCU) in a 172 High Density Quad Flat Package (HDQFP) package, the S32K344MINI-EVB offers two cores in lockstep mode, Hardware Security Engine (HSE), advanced connectivity and low-power.

The S32K344MINI-EVB offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

设计文件

软件

产品详情

框图

S32K344MINI-EVB

获取框图PDF

支持的器件

接口

3.3V/5V IO CAN收发器

TJA1043: 具备待机和睡眠模式的高速CAN收发器

汽车LIN解决方案

TJA1022: 双LIN 2.2/SAE J2602收发器

USB接口

PTN5110: USB PD TCPC PHY IC

电源管理

安全SBC

FS26: 功能安全系统基础芯片，低功耗，面向ASIL D系统

数据保护

NX20P0407: USB Type-C CC和SBU保护IC

VBUS保护

NX20P3483UK: USB PD和Type-C高压灌/拉电流组合开关，带保护装置

处理器和微控制器

S32K汽车通用MCU

S32K3: S32K3汽车通用微控制器

K2x / KS2x USB

K26_180: Kinetis^® K26-180 MHz，双高速和全速USB，2MB闪存微控制器(MCU)，基于ARM® Cortex®-M4内核

传感器

I3C/I²C数字温度传感器

P3T1750DP: I3C/I²C总线、精度为±1°C的数字温度传感器

运动传感器

FXLS8964AF: ±2g/±4g/±8g/±16g、低功耗12位数字加速度传感器

Features

Hardware Features

Power supply switch
MCU voltage measurement
User red-green-blue (RGB) LED
2x user push-buttons

Software Features

Free-of-charge real-time drivers for AUTomotive Open System ARchitecture (AUTOSAR®) and non-AUTOSAR use and ASIL D-compliant
Configuration tools for both AUTOSAR® and non-AUTOSAR users
Free-of-charge security firmware: Secure Hardware Extension (SHE)+ compliant, NXP-supplied, designed for International Organization for Standardization (ISO) 21434
S32 Safety Software Framework (SAF): Six fault-detection and reaction libraries
Free-of-charge Safety Peripheral Drivers (SPD)
Structural Core Self-Test (SCST)
Free-of-charge Inter-Platform Communication Framework (IPCF): Middleware for multicore, multi-OS communication in single- and multichip systems
Free-of-charge Model-Based Design Toolbox for MATLAB®: NXP-supplied plug-in for Simulink® environment

Compatibility

Arduino UNO pinout compatible with expansion "shield" support
Expansion options using the DEVKIT-MOTORGD and DEVKIT-COMM boards.

Interfaces

On-board Controller Area Network Flexible Data-rate (CAN FD)
On-board LIN
Serial Wire Debug/Joint Test Action Group (SWD/JTAG) debug interface for S32K3 debugger

Enablement

Free-of-charge S32 Design Studio Integrated Development Environment (IDE) (Eclipse, GNU Compiler Collection (GCC) and debugger) and S32 Config Tool (Pins, Clocks and Peripherals) with third-party compilers and debuggers

购买选项

点击展开

S32K344MINI-EVB
正常供应

S32K344MINI-EVB Evaluation Board for Automotive General Purpose.

套件包含

S32K344MINI-EVB Evaluation board
