Name: FRDM Automotive S32K312 Development Board for General Purpose
Price: 49.00 USD
Availability: InStock

点击播放视频

S32K312MINI‑EVB Renamed to FRDM‑A‑S32K312: Now part of the FRDM Automotive Ecosystem under its new name, the board keeps the same hardware and adds full ecosystem compatibility for flexible, scalable development.

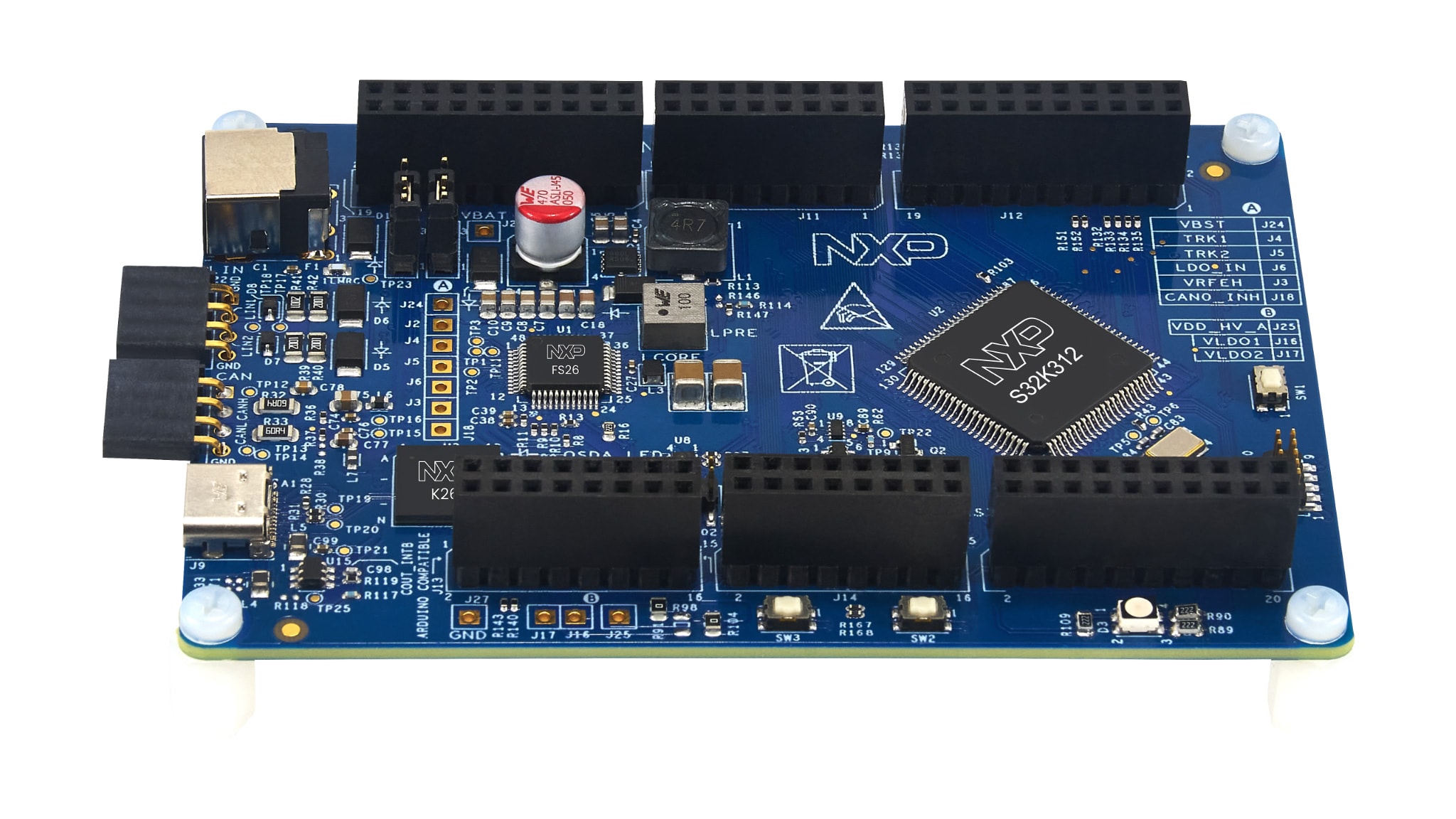

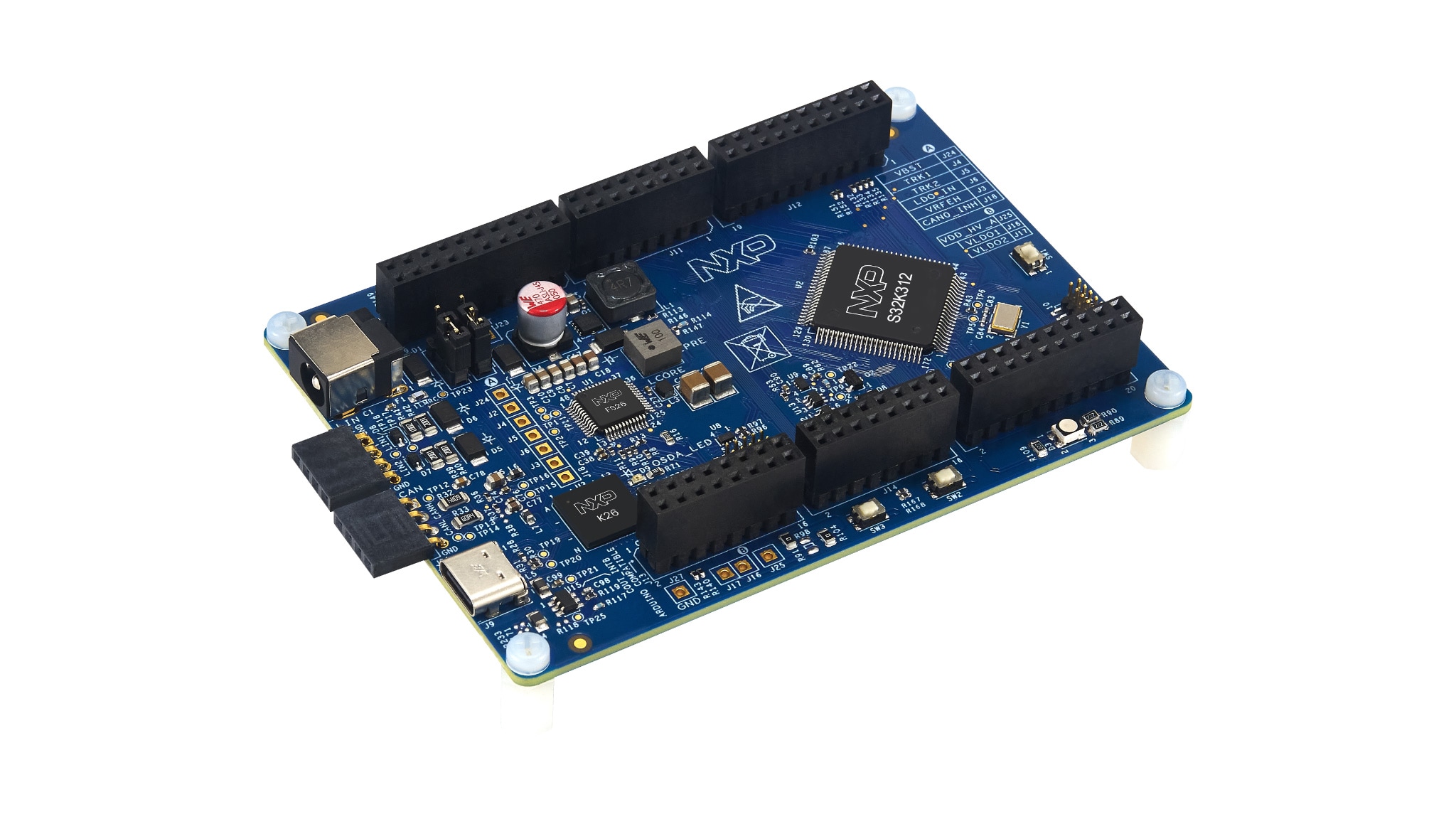

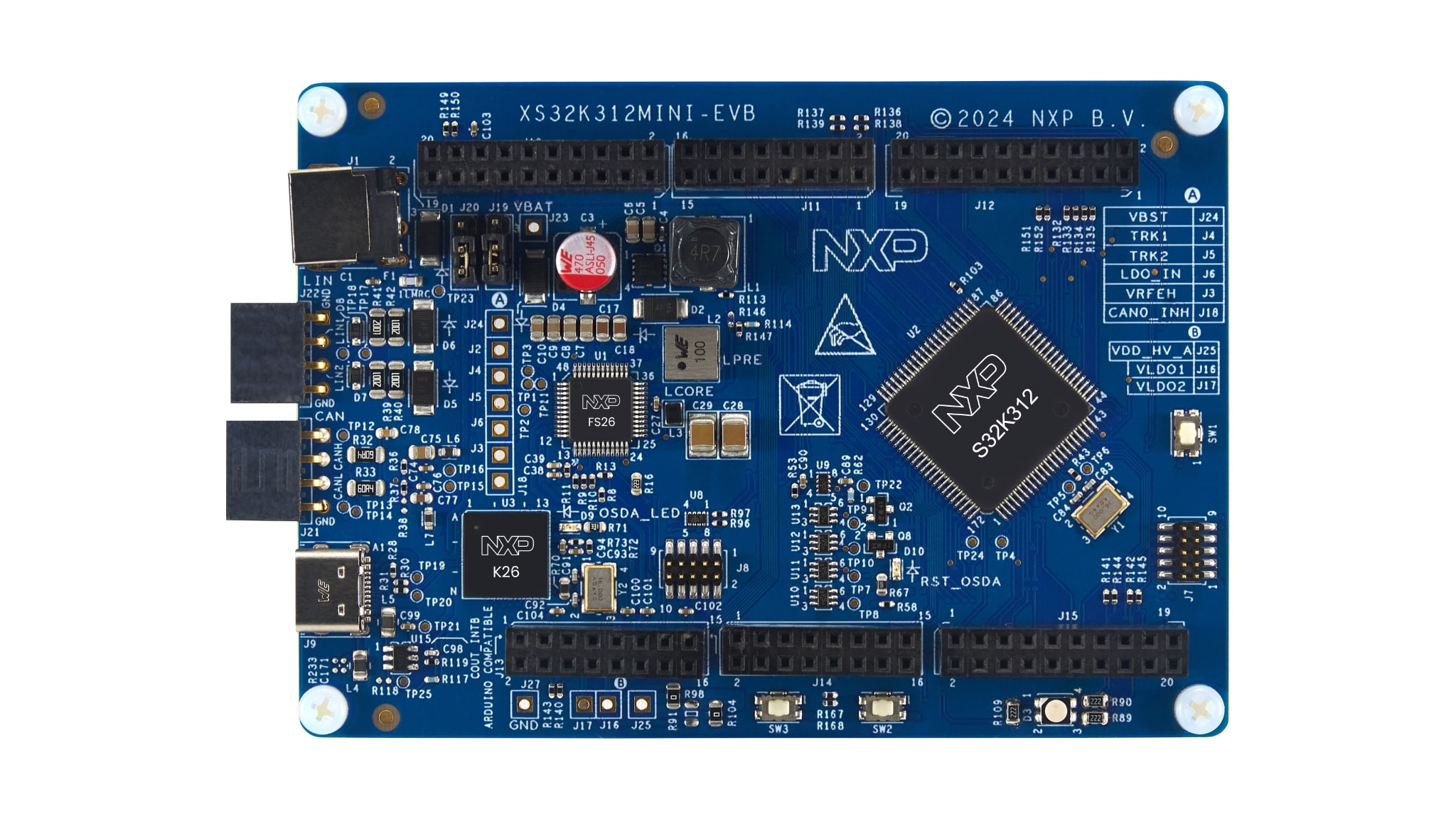

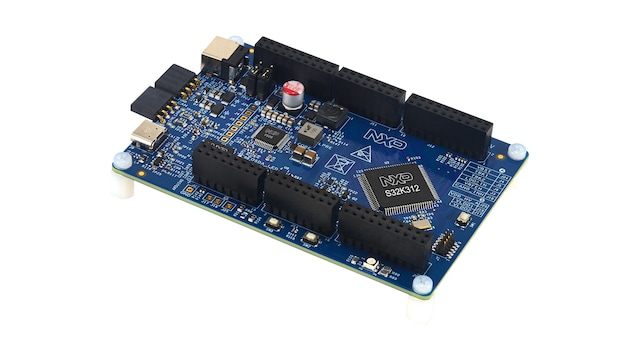

The FRDM-A-S32K312 is a development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm® Cortex®-M7 S32K3 microcontroller unit (MCU) in a 172 High Density Quad Flat Package (HDQFP) package, the FRDM-A-S32K312 offers a single-core mode, Hardware Security Engine (HSE), over-the-air (OTA) support, advanced connectivity and low-power.

The FRDM-A-S32K312 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

设计文件

软件

产品详情

框图

选择框图:

FRDM-A-S32K312 Development Board
S32K3 Family

FRDM-A-S32K312 Development Board

S32K3 Family

支持的器件

接口

3.3V/5V IO CAN收发器

TJA1043: 具备待机和睡眠模式的高速CAN收发器

汽车LIN解决方案

TJA1022: 双LIN 2.2/SAE J2602收发器

电源管理

12V/24V/48V SBC解决方案

FS26: 功能安全系统基础芯片，低功耗，面向ASIL D系统

处理器和微控制器

S32K汽车通用MCU

S32K3: S32K3汽车通用微控制器

K2x / KS2x USB

K26_180: Kinetis^® K26-180 MHz，双高速和全速USB，2MB闪存微控制器(MCU)，基于ARM® Cortex®-M4内核

Features

Hardware Features

Power supply switch
MCU voltage measurement
User red-green-blue (RGB) LED
2x user push-buttons

Software Features

Free-of-charge real-time drivers for AUTomotive Open System ARchitecture (AUTOSAR®) and non-AUTOSAR use and ASIL D-compliant
Configuration tools for both AUTOSAR® and non-AUTOSAR users
Free-of-charge security firmware: Secure Hardware Extension (SHE)+ compliant, NXP-supplied, designed for International Organization for Standardization (ISO) 21434
S32 Safety Software Framework (SAF): Six fault-detection and reaction libraries
Free-of-charge Safety Peripheral Drivers (SPD)
Structural Core Self-Test (SCST)
Free-of-charge Inter-Platform Communication Framework (IPCF): Middleware for multicore, multi-OS communication in single- and multichip systems
Free-of-charge Model-Based Design Toolbox for MATLAB®: NXP-supplied plug-in for Simulink® environment

Compatibility

Arduino UNO pinout compatible with expansion "shield" support
Expansion options using the DEVKIT-MOTORGD and DEVKIT-COMM boards.

Interfaces

On-board Controller Area Network Flexible Data-rate (CAN FD)
On-board LIN
Serial Wire Debug/Joint Test Action Group (SWD/JTAG) debug interface for S32K3 debugger

Enablement

Free-of-charge S32 Design Studio Integrated Development Environment (IDE) (Eclipse, GNU Compiler Collection (GCC) and debugger) and S32 Config Tool (Pins, Clocks and Peripherals) with third-party compilers and debuggers

购买选项

点击展开

S32K312MINI-EVB
正常供应

FRDM Automotive S32K312 Development Board for General Purpose.

套件包含

Note: S32K312MINI-EVB is now FRDM-A-S32K312, joining the FRDM ecosystem.

处理: Arm® Cortex®-M7

$49.00 USD

现货 :89

正常情况下 1-2个工作日内发货

加入购物车

从分销商处购买

代理商	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

文档

快速参考恩智浦文档类别

3 文件

紧凑列表

Getting Started with S32K3 using S32DS at the hello world project Training Presentation[TP-GETTING-STARTED-S32K3]

PDFSep 14, 2022版本更新 O

FRDM-A-S32K312 Development Board Hardware User Manual[FRDM-A-S32K312-HWUM]

PDFMay 20, 2025版本更新 1.0

Getting Started with the FRDM Automotive S32K312 Development Board for General Purpose[GS-FRDM-A-S32K312]

HTMLJul 7, 2025
