Localization Board for MCX W72 Bluetooth Channel Sounding MCU

MCXW72-LOC 全新

滚动图片以放大

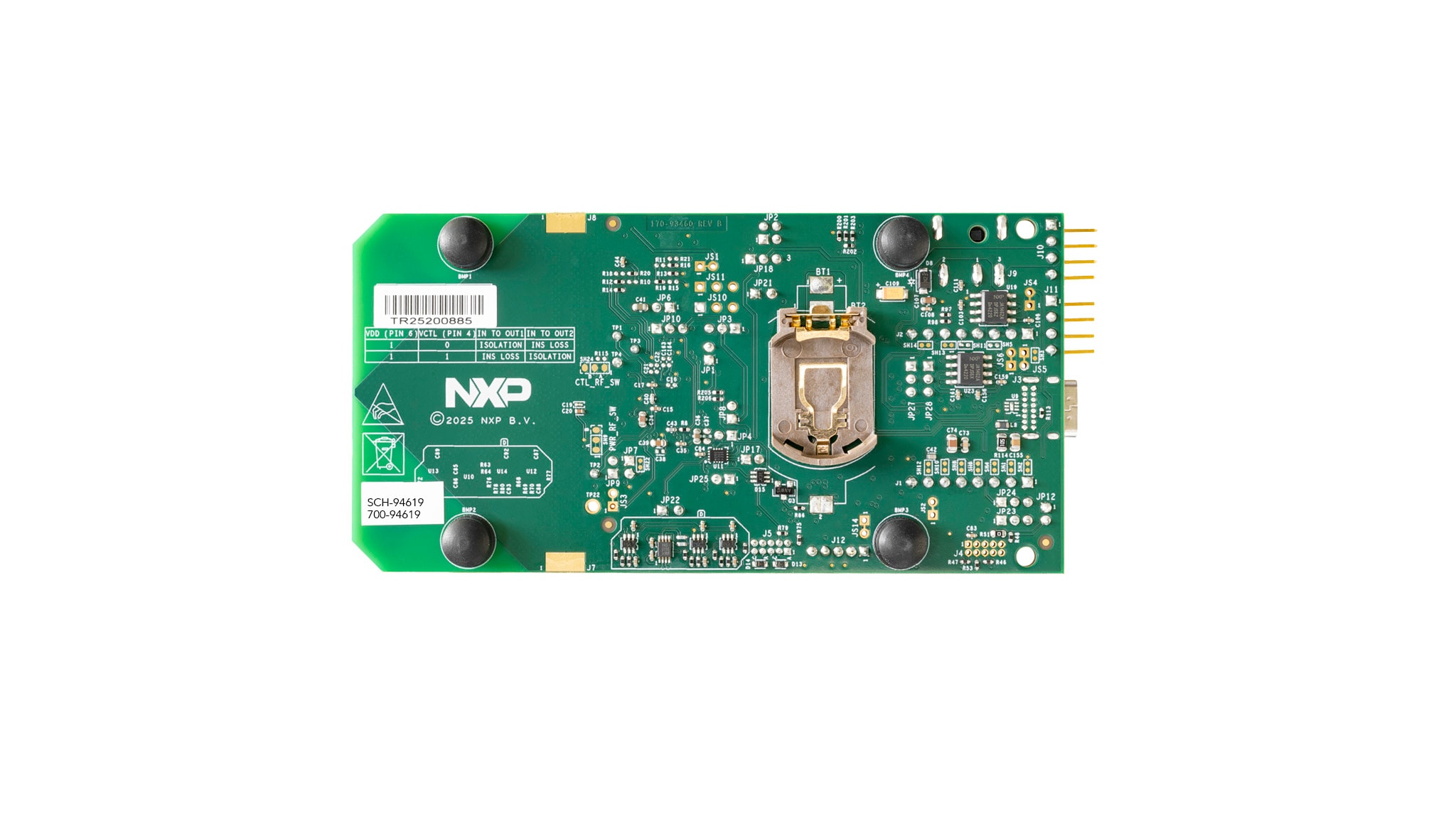

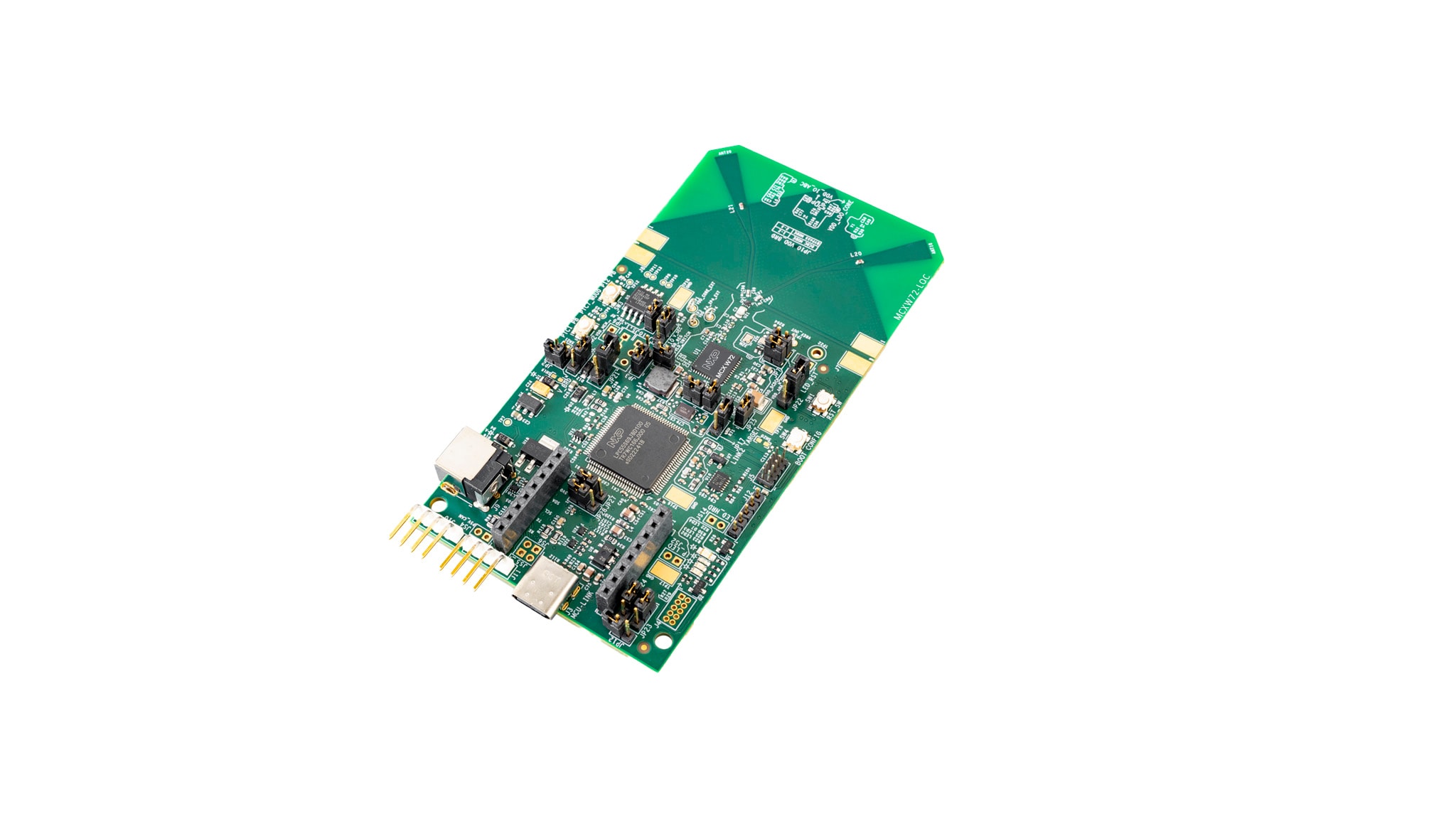

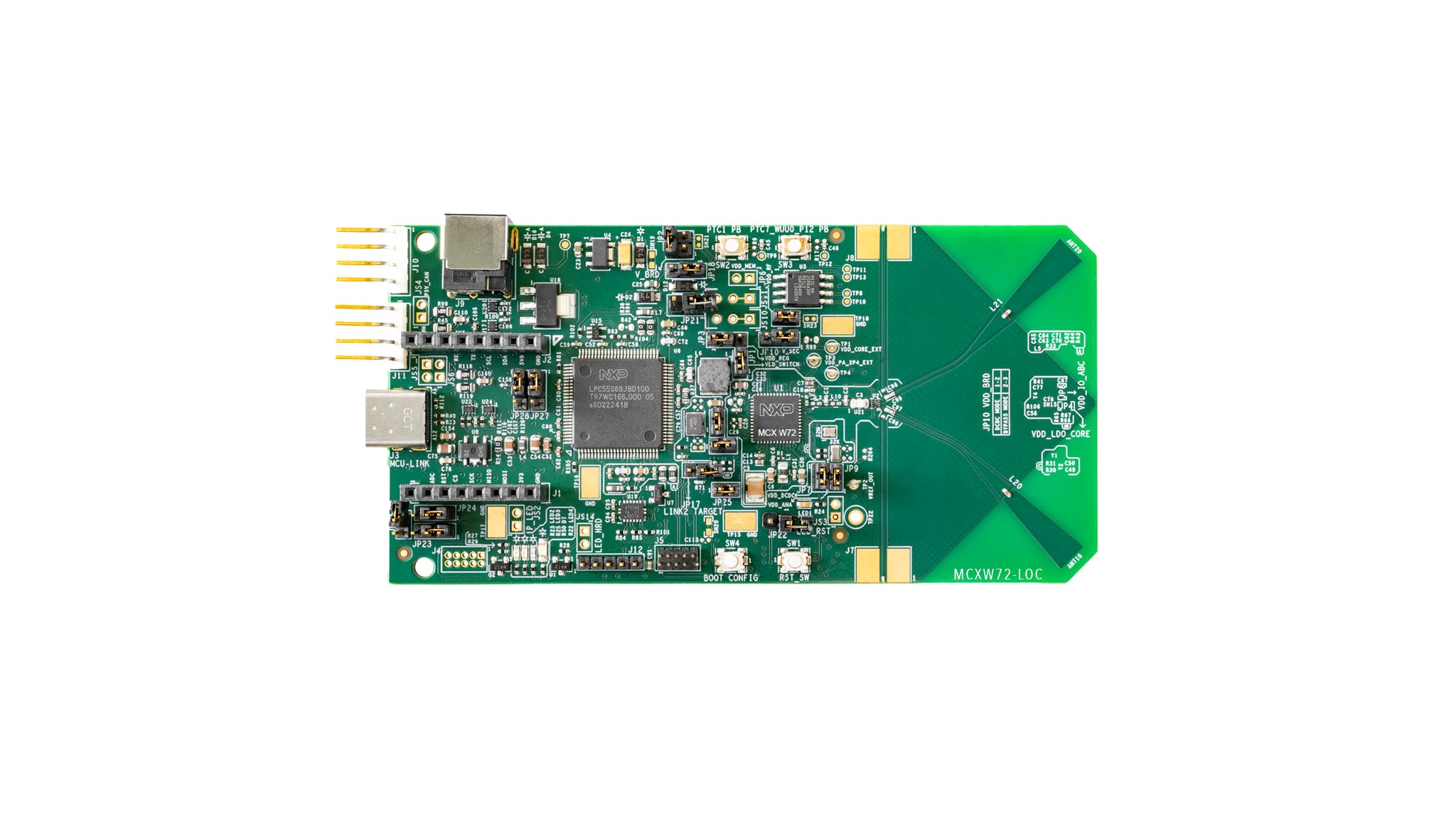

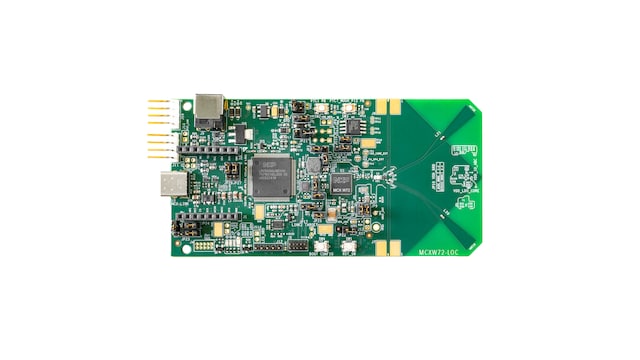

The Localization Board with MCX W72 is an evaluation kit for demonstrating Bluetooth® Channel Sounding for IoT applications. This board consists of two monopole on-board PCB antennas and an RF switch supporting antenna diversity, an integrated programmer/debugger and a mikroBUS™ header to easily add expansion boards. It provides the most suitable development and evaluation platform for the Bluetooth LE Channel Sounding feature, as it supports Antenna Switching by default.

This Localization Board is based on the MCX W72 IoT multiprotocol MCU, and is ready for production channel sounding designs. The MCX W72 MCU is qualified against the Bluetooth Core 6.0 specification.

框图

MCX W72 Localization Board

MCXW72-LOC Block Diagram
获取框图PDF

支持的器件

处理器和微控制器

MCX W系列微控制器

  • MCX-W72: MCX W72x安全的超低功耗MCU，适用于Matter、Thread、Zigbee和BLE协议

Features

Processor

  • MCXW72-LOC evaluation board includes MCX W72 consisting of a 96 MHz Arm Cortex-M33 CPU
  • Radio controller based on Arm Cortex-M33 called Narrow Band Unit (NBU)
  • Radio transceiver operates in the 2.4 GHz frequency band
  • Supporting GFSK modulations for Bluetooth Low Energy (LE) 6.0
  • Bluetooth LE controller stack
  • Transceiver

Connectivity

  • CAN connectivity support
  • LIN connectivity support
  • Arduino shield socket
  • mikroBUS socket

Debug

  • JTAG with SWD

Power Management

  • Supports all DC-DC configurations

Wireless

  • 2.4 GHz Antenna SMT 5.0 X 2.0 X 1.1 (2450AT42A100)

购买选项

MCXW72-LOC-Image

点击展开

MCXW72-LOC
正常供应

Localization Board for MCX W72 Bluetooth Channel Sounding MCU.

    $150.00 USD
    现货 :14

    正常情况下 1-2个工作日内发货

    加入购物车
