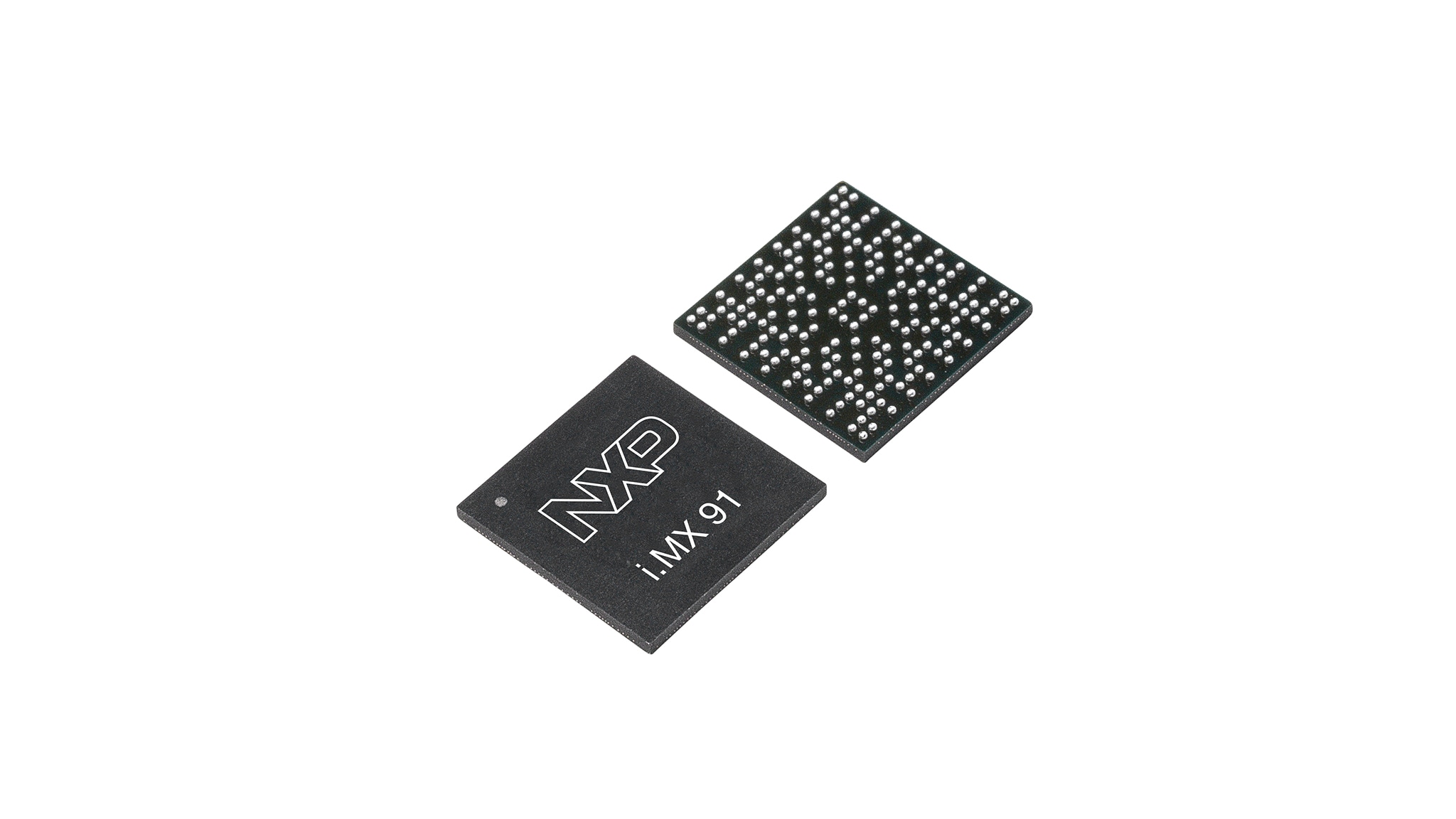

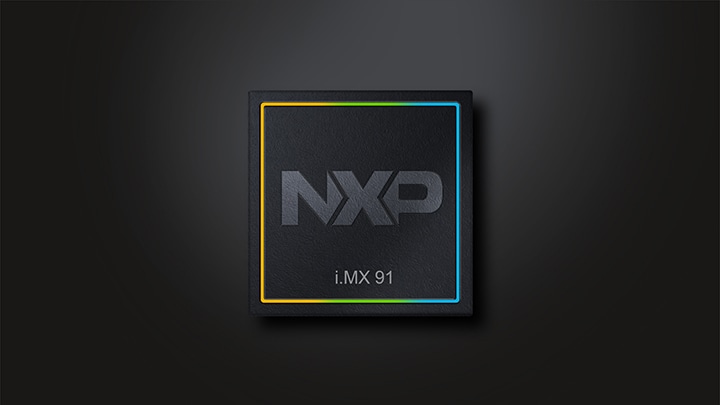

基于i.MX 91系列应用处理器，采用Linux^®的新型边缘设备能够快速被创建，如智能家居控制器、联网家电、家庭娱乐系统、工业和医疗平台。新发布的协议，如面向智能家居的Matter^™或面向电动汽车(EV)充电器的ISO 15118-20标准，改变了物联网和工业市场的新产品类别的方向。

搭载i.MX 91 SoC的新一代基于Linux的设备将是经济且安全的高性能解决方案，且能够根据出台的新协议或新标准进行调整适配。i.MX 91 SoC集成的EdgeLock^®安全区域提供的安全功能包括生命周期管理、防篡改检测、安全启动和简化的认证路径。

i.MX 91系列采用了可扩展的Arm^® Cortex^®-A55内核，其主频高达1.4GHz，支持新一代LPDDR4内存以延长平台寿命，支持双千兆以太网和双USB端口，以及面向医疗、工业和消费物联网市场细分领域的丰富外设。

i.MX 91系列作为EdgeVerse^™智能边缘解决方案组合的一部分，将会提供消费类和工业级产品选项，并得到恩智浦产品长期供货计划的支持。

产品详情

框图

i.MX 91应用处理器系列

i.MX 91

获取框图PDF

特性

连接

两个USB 2.0 Type C接口，带PHY
两个千兆以太网接口：AVB和IEEE 1588用于同步模式，EEE用于低功耗模式。1个支持TSN
两个CAN-FD
8个UART/USART/Profibus，8个I²C，8个SPI，两个I³C
1个8通道12位ADC
两个32引脚FlexIO接口（摄像头、总线或串行I/O）

外部存储器

高达2.4GT/s x16 LPDDR4（带内联ECC）
3个SD 3.0/ SDIO3.0/ eMMC5.1
1个8通道SPI，支持SPI NOR和SPI NAND存储器

显示接口

每像素24位的并行RGB

摄像头接口

8位并行YUV/RGB

音频

3个SAI（1个2通道，2个单通道）/4个I²S TDM
8通道PDM麦克风输入
MQS：中等质量声音输出（Σ-Δ调制器）

操作系统

Linux^®操作系统
Green Hills
QNX

工艺

16纳米FinFET

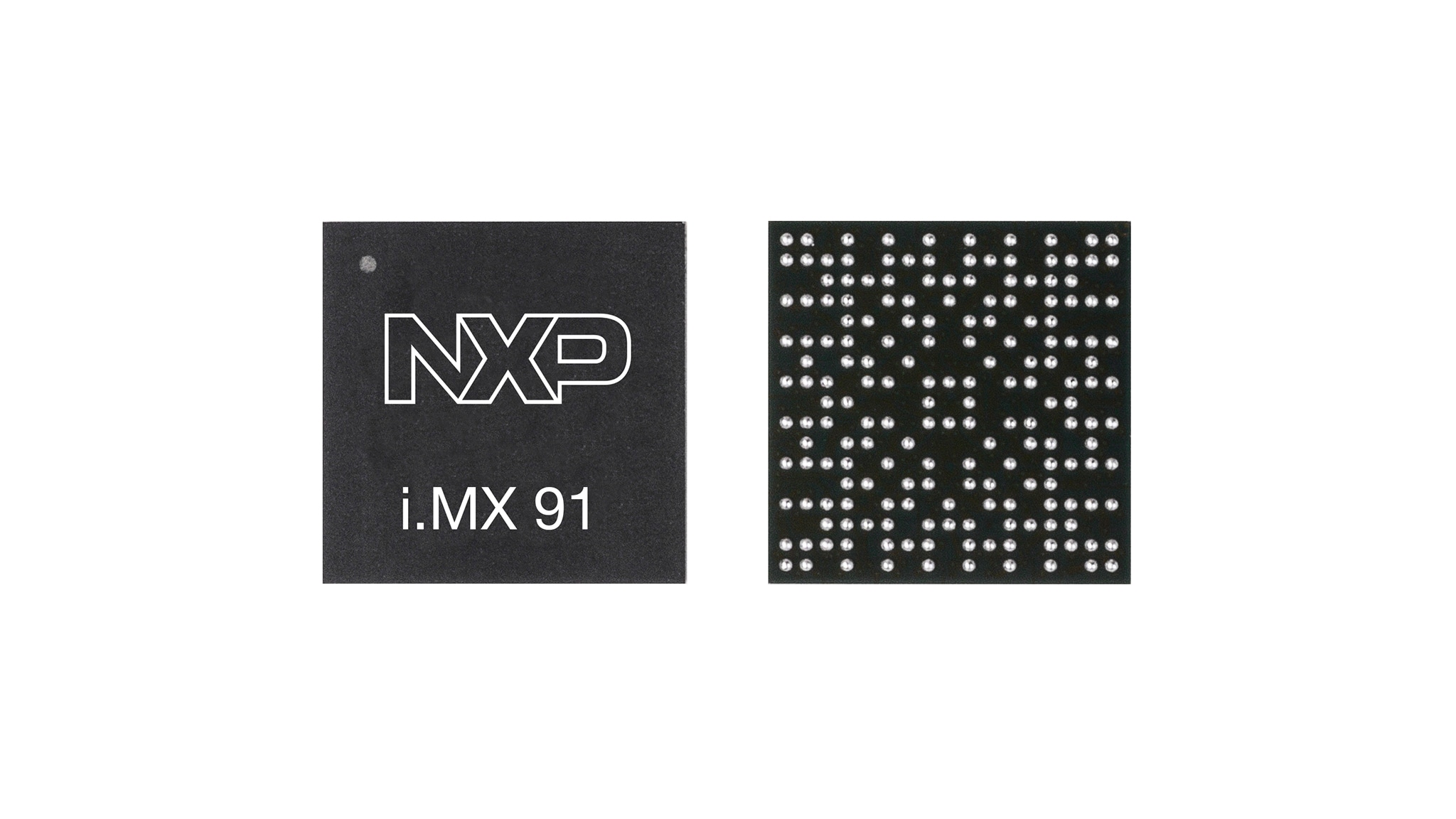

封装

11x11mm2、0.5mm间距，9x9mm2、0.5mm间距

温度范围

（结点温度）：-40C至105C

文档

快速参考文档类别.

1 文件

^简介
i.MX 91应用处理器系列

PDF版本 0Jun 5, 2023265.2 KBIMX91FAMFS中文, 英语, 日本語

设计资源

硬件

1-5 / 24 硬件

^{嵌入式板解决方案}

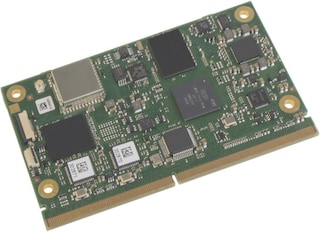

MSC SM2S-IMX91

The MSC SM2S-IMX91 SMARC 2.1.1 module family is highly efficient and equipped with i.MX 91 Applications Processors manufactured by NXP.

By Avnet Embedded Platinum 合作伙伴
^{嵌入式板解决方案}
TQMa91xxCA

Embedded Cortex®-A55 module based on i.MX 91xx with High-speed communication via 2x Gbit Ethernet, 2x USB 2.0 interface and 2x CAN FD

By TQ-Systems GmbH Platinum 合作伙伴
^{嵌入式板解决方案}

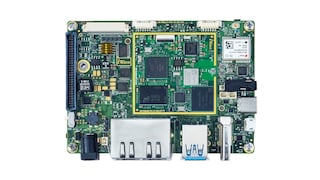

i.MX 91 Pico ITX SBC

i.MX 91 CPU with 64-bit ARM v8.2-A Architecture IEEE 802.11b/g/n/ac/ax Wi-Fi & Bluetooth 5.2 Supports 1 x Cortex-A55 core Supports 2 × 1Gbps Ethernet Controllers (1 with...

By iWave Systems Gold 合作伙伴
^{嵌入式板解决方案}

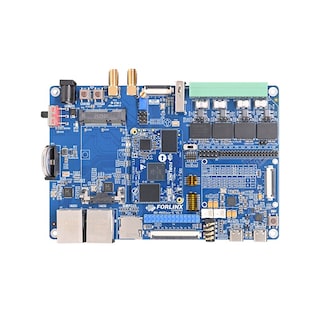

Single board computer OK-MX91xx-C

The upcoming OK-MX91xx-C SBC/ development board is with FET-MX91xx-C SoM mounted on carrier board via ultra thin connector, and it will be pin compatible with OK-MX9352-C...

By Forlinx Embedded Technology Co., Ltd Gold 合作伙伴
^{嵌入式板解决方案}

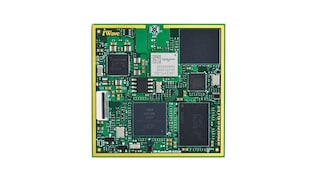

i.MX 91 OSM-LF LGA System on Module

i.MX 91 CPU with 64-bit ARM v8.2-A Architecture Wi-Fi 6, Bluetooth 5.3 & IEEE802.15.4 connectivity Supports 1 x Cortex-A55 core Supports 2 × 1Gbps Ethernet Controllers (1...

By iWave Systems Gold 合作伙伴
^{嵌入式板解决方案}

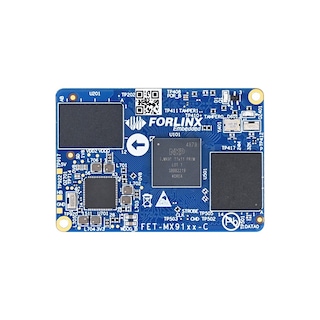

System on module FET-MX91xx-C

FET-MX91xx-C SoM is based on i.MX91xx Cortex-A55 featuring single core processor running at speed up to 1.4GHz. 8x UART, 2x Ethernet, 2x USB2.0, 2x CAN-FD are all availab...

By Forlinx Embedded Technology Co., Ltd Gold 合作伙伴
^{嵌入式板解决方案}
SECO SOM-SMARC-MX93

SMARC® Rel. 2.1.1 Computer on Module (CoM) with NXP i.MX 9 Applications Processors.

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
AURA SOM - i.MX93x

AURA SOM is our solutions based on NXP i.MX93 and i.MX91. Our solutions is in particular focused on AMP approach with Linux and RTOS with indipendent power domains betwee...

By DAVE Embedded Systems Gold 合作伙伴
^{嵌入式板解决方案}
i.MX 91 SODIMM SOM

i.MX 91 CPU with 64-bit ARM v8.2-A Architecture Wi-Fi 6, Bluetooth 5.3 & IEEE802.15.4 connectivity Supports 1 x Cortex-A55 cores Supports 1 × 1Gbps Ethernet

By iWave Systems Gold 合作伙伴
^{嵌入式板解决方案}
Atlas Scalable Edge Inference Platform

Atlas is a scalable edge inference platform that uses i.MX 8M Plus + optional GPU to support up to 23.3 TOPS of inference performance. ML/vision software, support/solutio...

By Arcturus Gold 合作伙伴
^{嵌入式板解决方案}

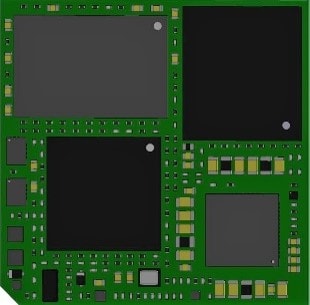

MSC OSM-SF-IMX91

The MSC OSM-SF-IMX91 is based on the new OSM 1.1 standard (Size-S) “Small” and equipped with i.MX 91 Applications Processors manufactured by NXP.

By Avnet Embedded Platinum 合作伙伴
^{嵌入式板解决方案}
TQMa91xxLA

Embedded Cortex®-A55 module based on i.MX 91xx with High-speed communication via 2x Gbit Ethernet, 2x USB 2.0 interface and 2x CAN FD

By TQ-Systems GmbH Platinum 合作伙伴
^{嵌入式板解决方案}

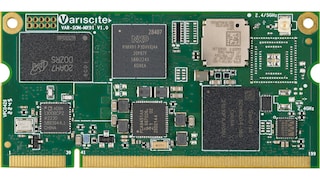

VAR-SOM-MX91 System on Module

Runs on a 1.4GHz Cortex™-A55 NXP iMX91, the VAR-SOM-MX91 is ideal for low-cost designs. This pin-compatible SoM offers industrial temp. grade, dual CAN-FD, dual GbE, dual...

By Variscite Platinum 合作伙伴
^{嵌入式板解决方案}
phyCORE-i.MX 91/93

Pin compatible with phyCORE-i.MX 6UL to develop scalable applications; high computing performance with low power consumption for powerful, cost- and energy-efficient ML a...

By PHYTEC Platinum 合作伙伴
^{嵌入式板解决方案}
i.MX 91 SMARC SOM

i.MX 91 CPU with 64-bit ARM v8.2-A Architecture IEEE 802.11b/g/n/ac/ax Wi-Fi & Bluetooth 5.3 Supports Cortex-A55 cores

By iWave Systems Gold 合作伙伴
^模块
TEVS-AR0145新

1MP Global Shutter AR0145 1 MP Monochrome MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR0234

2MP Global Shutter AR0234 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR0144

1MP Global Shutter AR0144 1 MP MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR0821

8MP rolling shutter AR0821 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR0521

5MP rolling shutter AR0521 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR1335

13MP Rolling Shutter MIPI-CSI2 AR1335 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR0522

5MP rolling shutter with NIR (Near Infrared) enhancement AR0522 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR0822

8MP rolling shutter with NIR (Near Infrared) enhancement AR0822 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
PIXI-IW416

NXP IW416 Wi-Fi 4 and Bluetooth 5.2 M2. 1216 Module

By TechNexion Ltd Gold 合作伙伴

1-5 / 24 硬件

^{嵌入式板解决方案}
MSC SM2S-IMX91

The MSC SM2S-IMX91 SMARC 2.1.1 module family is highly efficient and equipped with i.MX 91 Applications Processors manufactured by NXP.

By Avnet Embedded Platinum 合作伙伴
^{嵌入式板解决方案}
TQMa91xxCA

Embedded Cortex®-A55 module based on i.MX 91xx with High-speed communication via 2x Gbit Ethernet, 2x USB 2.0 interface and 2x CAN FD

By TQ-Systems GmbH Platinum 合作伙伴
^{嵌入式板解决方案}
i.MX 91 Pico ITX SBC

i.MX 91 CPU with 64-bit ARM v8.2-A Architecture IEEE 802.11b/g/n/ac/ax Wi-Fi & Bluetooth 5.2 Supports 1 x Cortex-A55 core Supports 2 × 1Gbps Ethernet Controllers (1 with...

By iWave Systems Gold 合作伙伴
^{嵌入式板解决方案}
Single board computer OK-MX91xx-C

The upcoming OK-MX91xx-C SBC/ development board is with FET-MX91xx-C SoM mounted on carrier board via ultra thin connector, and it will be pin compatible with OK-MX9352-C...

By Forlinx Embedded Technology Co., Ltd Gold 合作伙伴
^{嵌入式板解决方案}
i.MX 91 OSM-LF LGA System on Module

i.MX 91 CPU with 64-bit ARM v8.2-A Architecture Wi-Fi 6, Bluetooth 5.3 & IEEE802.15.4 connectivity Supports 1 x Cortex-A55 core Supports 2 × 1Gbps Ethernet Controllers (1...

By iWave Systems Gold 合作伙伴
^{嵌入式板解决方案}
System on module FET-MX91xx-C

FET-MX91xx-C SoM is based on i.MX91xx Cortex-A55 featuring single core processor running at speed up to 1.4GHz. 8x UART, 2x Ethernet, 2x USB2.0, 2x CAN-FD are all availab...

By Forlinx Embedded Technology Co., Ltd Gold 合作伙伴
^{嵌入式板解决方案}
SECO SOM-SMARC-MX93

SMARC® Rel. 2.1.1 Computer on Module (CoM) with NXP i.MX 9 Applications Processors.

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
AURA SOM - i.MX93x

AURA SOM is our solutions based on NXP i.MX93 and i.MX91. Our solutions is in particular focused on AMP approach with Linux and RTOS with indipendent power domains betwee...

By DAVE Embedded Systems Gold 合作伙伴
^{嵌入式板解决方案}
i.MX 91 SODIMM SOM

i.MX 91 CPU with 64-bit ARM v8.2-A Architecture Wi-Fi 6, Bluetooth 5.3 & IEEE802.15.4 connectivity Supports 1 x Cortex-A55 cores Supports 1 × 1Gbps Ethernet

By iWave Systems Gold 合作伙伴
^{嵌入式板解决方案}
Atlas Scalable Edge Inference Platform

Atlas is a scalable edge inference platform that uses i.MX 8M Plus + optional GPU to support up to 23.3 TOPS of inference performance. ML/vision software, support/solutio...

By Arcturus Gold 合作伙伴
^{嵌入式板解决方案}
MSC OSM-SF-IMX91

The MSC OSM-SF-IMX91 is based on the new OSM 1.1 standard (Size-S) “Small” and equipped with i.MX 91 Applications Processors manufactured by NXP.

By Avnet Embedded Platinum 合作伙伴
^{嵌入式板解决方案}
TQMa91xxLA

Embedded Cortex®-A55 module based on i.MX 91xx with High-speed communication via 2x Gbit Ethernet, 2x USB 2.0 interface and 2x CAN FD

By TQ-Systems GmbH Platinum 合作伙伴
^{嵌入式板解决方案}
VAR-SOM-MX91 System on Module

Runs on a 1.4GHz Cortex™-A55 NXP iMX91, the VAR-SOM-MX91 is ideal for low-cost designs. This pin-compatible SoM offers industrial temp. grade, dual CAN-FD, dual GbE, dual...

By Variscite Platinum 合作伙伴
^{嵌入式板解决方案}
phyCORE-i.MX 91/93

Pin compatible with phyCORE-i.MX 6UL to develop scalable applications; high computing performance with low power consumption for powerful, cost- and energy-efficient ML a...

By PHYTEC Platinum 合作伙伴
^{嵌入式板解决方案}
i.MX 91 SMARC SOM

i.MX 91 CPU with 64-bit ARM v8.2-A Architecture IEEE 802.11b/g/n/ac/ax Wi-Fi & Bluetooth 5.3 Supports Cortex-A55 cores

By iWave Systems Gold 合作伙伴
^模块
TEVS-AR0145新

1MP Global Shutter AR0145 1 MP Monochrome MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR0234

2MP Global Shutter AR0234 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR0144

1MP Global Shutter AR0144 1 MP MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR0821

8MP rolling shutter AR0821 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR0521

5MP rolling shutter AR0521 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR1335

13MP Rolling Shutter MIPI-CSI2 AR1335 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR0522

5MP rolling shutter with NIR (Near Infrared) enhancement AR0522 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
TEVS-AR0822

8MP rolling shutter with NIR (Near Infrared) enhancement AR0822 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold 合作伙伴
^模块
PIXI-IW416

NXP IW416 Wi-Fi 4 and Bluetooth 5.2 M2. 1216 Module

By TechNexion Ltd Gold 合作伙伴

查找支持此产品的所有合作伙伴，请参阅合作伙伴市场.

工程服务

如需恩智浦直接支持，请参阅工程服务.
