i.MX 6SoloX应用处理器_Arm® Cortex®-A9, Cortex-M4_NXP 半导体

点击播放视频

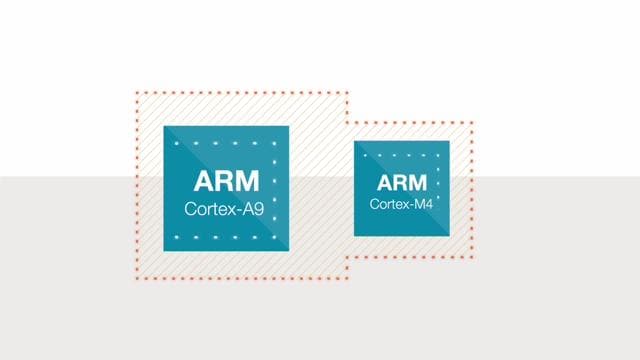

i.MX 6SoloX应用处理器作为首款采用Arm^® Cortex^®-A9和Cortex-M4内核的器件，可提供高度集成的多市场解决方案。

确保物联网所涉及的智能家庭和智能车辆的安全和连接
具备安全和稳定的部署优点，支持同时运行多个软件环境
可用于构建实时响应的应用丰富型系统
分配存储器和外设等系统资源时，可保证最大的有效性和安全性
以强大的支持工具生态合作体系为后盾，为客户提供更好的解决方案，并加快产品上市时间

i.MX 6SoloX由与之配套的电源管理集成电路(PMIC) MMPF0100和MMPF0200提供支持。

产品详情

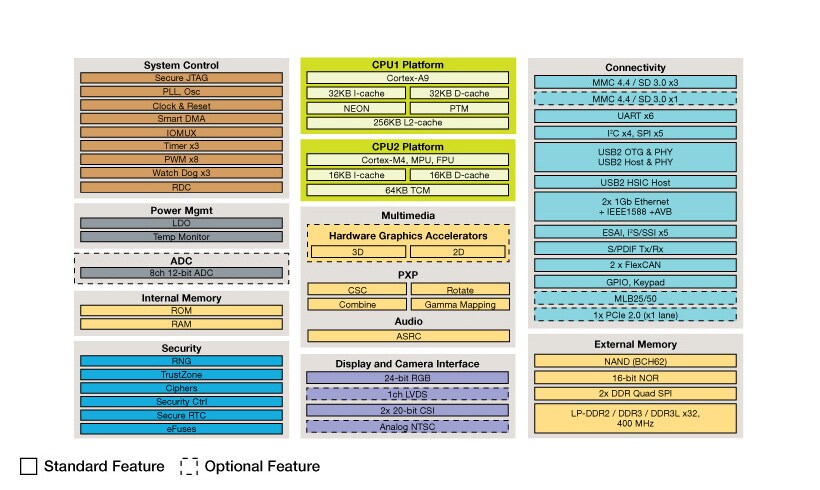

框图

i.MX 6SoloX Applications Processor Block diagram

i.MX 6SoloX Applications Processor Block diagram

获取框图PDF

特征

CPU复合器件

1个Cortex-A9，运行频率高达1 GHz
- 256 KB L2缓存
- 32 KB指令和数据缓存
- NEON SIMD媒体加速器
1个Cortex-M4，运行频率高达200 MHz
- 16 KB指令和数据缓存
- 64 KB TCM
- MPU和FPU

多媒体

GPU 2D/3D
- Vivante GC400T
- 17Mtri/s 133Mpxl/s Open GL ES 2.0
摄像头接口
- 24位并行CMOS传感器接口
- NTSC/PAL模拟视频输入接口
PiXel处理管道(PXP)
- 图像拉伸、旋转、重叠和CSC

存储器

DDR
- 16/32位DDR3-800和DDR3L-800
- 16/32位LPDDR2-800
NAND
- SLC/MLC，62位ECC，ONFI2.2
- NOR
- 2x DDR Quad SPI
- 16/32位NOR闪存

数据连接

2x 10/100/1000以太网
- 用于流量调整和增强数据包优先级的硬件AVB
- 支持IEEE^{^®}1588
PCIe 2.0 (单通道)
2x 8通道12位ADC
3x USB 2.0端口
- 2x HS OTG + PHY
- 1x HS主机HSIC
4x SD/MMC 4.5
5x SPI, 6x UART, 4x I²C, 5x I²S/SSI
FlexCAN
MLB 25/50

显示

并行RGB
LVDS

高级电源管理

部分PMU集成
恩智浦PF0200 PMIC

安全性

包含多核单元，用于多核隔离和共享
资源域控制器(RDC)
安全消息单元(MU)
硬件信号量
高可靠引导，加密引擎，随机数生成器和篡改检测

封装和温度

19 x 19 mm 0.8 mm BGA
17 x 17 mm 0.8 mm BGA (两种球栅选项)
14 x 14 mm 0.65 mm BGA
扩展的商用环境(-20C至+105C)
工业控制(-40C至+105C)
汽车(-40C至+125C)，AEC-Q100

设计文件

3 设计文件

清除全部

^模型
BSDL file for i.MX 6SoloX

ZIP版本 1Oct 28, 201531.2 KBIMX6SX_BSDL
请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
^模型
i.MX 6SoloX IBIS Model files

ZIP版本 20160113Jan 11, 2017129239 KBIMX6SX_IBIS
请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
^{印刷电路板与电路图}
i.MX6SX_400_Footprint_OrCard_symbol

ZIP版本 0Jul 7, 201536.5 KBI.MX6SX-400-FOOTPRINT-ORCAD
请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队

硬件

1-5 / 9 硬件

清除全部

^{评估/开发板与系统}

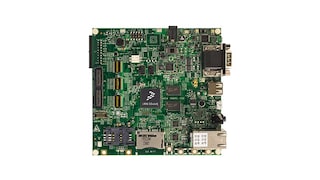

面向智能设备，基于i.MX 6SoloX应用处理器的SABRE板亮点

RD-IMX6SX-SABRE
^{仿真器、探测器和编程器}
IMX6_L4.1.15_1.0.0_MFG_TOOL

IMX6_L4.1.15_1.0.0_MFG_TOOL
请登录
^{仿真器、探测器和编程器}
IMX6_L3.14.28_MFG_TOOL

IMX6_L3.14.28_MFG_TOOL
请登录
其他可用硬件. 查看我们的精选合作伙伴解决方案.
^{仿真器、探测器和编程器}
IMX6_L4.1.15_2.0.0_MFG_TOOL

IMX6_L4-1-15_2-0-0_MFG-TOOL
请登录
^{仿真器、探测器和编程器}
IMX6_L3.10.53_MFG_TOOL

IMX6_L3.10.53_MFG_TOOL
请登录
^{仿真器、探测器和编程器}
IMX6_L5.1.1_2.1.0_MFG_TOOL

IMX6_L5.1_2.1.0_MFG_TOOL
请登录
^{仿真器、探测器和编程器}
IMX_KK4.4.3_MFG_TOOL

IMX_KK4.4.3_MFG_TOOL
请登录
^{仿真器、探测器和编程器}
IMX6_L3.14.52_MFG_TOOL

IMX6_L3.14.52_MFG_TOOL
请登录
^{仿真器、探测器和编程器}
IMX-L5.0.0-MFG-TOOL

IMX-L5.0.0-MFG-TOOL
请登录

1-5 / 42 硬件

清除全部

^{评估/开发板与系统}
conga-QKIT/ARM

This complete kit provides the ability to start evaluating Qseven® ARM modules immediately -Qseven Starter Kit for ARM -All accessories out of the box -Immediate evalu...

By congatec Gold 合作伙伴
^{评估/开发板与系统}

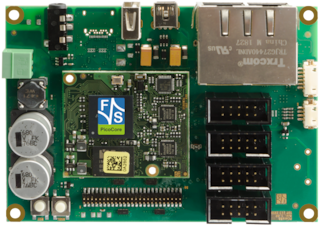

Starterkit PicoCore™MX6SX Linux

Extensive Starterkit with tiny Computer On Module (35x40mm) with 2x Gigabit Ethernet based on NXP i.MX6SoloX (PicoCoreMX6SX) module incl. Linux, base board, cable kit, d...

By F&S Elektronik Systeme GmbH Gold 合作伙伴
^{评估/开发板与系统}

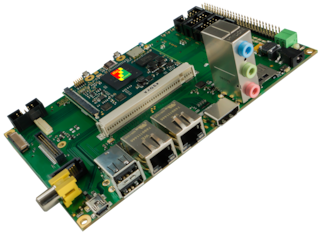

Starterkit efus™A9X Linux

Extensive Starterkit (efusA9X) incl. Windows Embedded Compact 2013 or Linux, base board, cable kit, 7“ WVGA TFT with RGB interface and touch panel, access data to documen...

By F&S Elektronik Systeme GmbH Gold 合作伙伴
^{评估/开发板与系统}

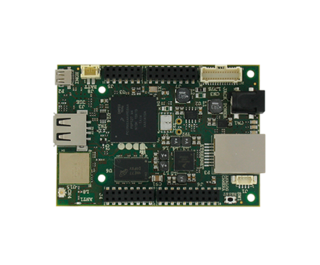

UDOO Neo

UDOO NEO is an open hardware low-cost computer equipped with a NXP i.MX 6SoloX applications processor which embeds an ARM® Cortex-M4 microcontroller for Android and Linux...

By SECO Gold 合作伙伴
^{评估/开发板与系统}
iMX6 SoloX Developer's Kit

Embedded Artists' iMX6 SoloX Developer's Kit lets you get up-and-running quickly with the EA iMX6 SoloX COM Board.

By Embedded Artists AB Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link PLUS

JTAG/SWD debug probe with USB interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in t...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Arm ULINKpro

The ULINKpro debug and trace unit connects your PC's USB port to your target system and allows you to program, debug, and analyze your applications using its unique strea...

By Arm Platinum 合作伙伴
^{硬件测试配件和调试器}
J-Link EDU

The J-Link EDU emulator is our standard J-Link emulator wrapped in a new educational marked housing. It is intended for educational use and the home hobbyist. Support for...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link BASE

Supercharge your IDE with the worlds fastest debug probe. The J-Link Flash download technology achieves a performance very close to the maximum speed possible. No other ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher Compact

Flasher Compact is the compact twin to the Flasher PRO, primarily designed for installation into production rigs or automated test equipment (ATE) where production space ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher ARM

In-Circuit-Flash-Programmer based on the J-Link family for production and in-field-service. Offers fastest flash algorithms available, multiple integration options (RS232...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
TRACE32 JTAG/SWD Debugger for A

Lauterbach has experience in making world class microprocessor development tools since 1979. TRACE32 supports technologies like JTAG, SWD, NEXUS or ETM with embedded debu...

By Lauterbach Gold 合作伙伴
^{硬件测试配件和调试器}
I-jet

I-jet is a high-performing in-circuit debugging probe for ARM. It is capable of delivering power to the target board and measuring target power consumption. I-jet is full...

By IAR Systems Platinum 合作伙伴
^{硬件测试配件和调试器}
J-Link PRO

J-Link PRO is an enhanced version of the SEGGER J-Link. This emulator supports ARM/Cortex devices. This has an Ethernet interface in addition to the USB interface. This ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
SuperTrace Probe

Gather trace data from NXP ARM, Power Architecture and ColdFire.

By Green Hills Software Platinum 合作伙伴
^{硬件测试配件和调试器}
J-Link ULTRA+

Builds atop the J-Link to further enhance the debug experience. The J-Link ULTRA+ is three times faster than the industry standard J-Link, at a 3 MBytes/s download speed ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Trace PRO Cortex

J-Trace PRO Cortex provides support for Cortex-A/R/M based microcontrollers. The SuperSpeed USB 3.0 interface of J-Trace PRO Cortex enables continuous streaming trace via...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link WiFi

JTAG/SWD debug probe with WiFi interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher PRO

Flasher PRO is SEGGER’s “almost-anything” flash programmer for microcontrollers, SoCs, and (Q)SPI flashes.

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum 合作伙伴
^{硅设备/组件}
PIXI-9377

PIXI-9377 is a fully certified (FCC, TELEC, IC, CE, RCM) dual-band Wi-Fi 802.11a/b/g/n/ac with Bluetooth 5 SDIO module optimized for cost, size and performance. It is bas...

By TechNexion Ltd Gold 合作伙伴
^{硅设备/组件}
uSD-M.2 Adapter: Interconnect f

uSD-M.2 adapter board provides out-of-box experience for NXP i.MX with Murata’s M.2 Module Family enabled by Embedded Artists; interfacing WLAN/BT-signals including WLAN-...

By Murata Manufacturing Co., Ltd. Gold 合作伙伴
^{硅设备/组件}
Type 1XA: 802.11a/b/g/n/ac 2x2

Type 1XA is a 2.4GHz & 5GHz module based on Infineon CYW54591 combo chipset which supports Wi-Fi 802.11a/b/g/n/ac 2x2 MIMO RSDB + BT 5.2 BR/EDR/LE up to 866 Mbps PHY data...

By Murata Manufacturing Co., Ltd. Gold 合作伙伴
^{硅设备/组件}
Type 1DX: 802.11b/g/n Wi-Fi + B

Type 1DX is high performance module based on Infineon CYW4343W combo chipset which supports Wi-Fi 802.11b/g/n + Bluetooth 5.1 BR/EDR/LE up to PHY data rate of 65Mbps on W...

By Murata Manufacturing Co., Ltd. Gold 合作伙伴
^{嵌入式板子解决方案}
Trizeps VII SX by Keith & Koep

SODIMM-200 CPU-Module with NXP i.MX 6SoloX Application Processor

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}
SBC-C23

SBC featuring a 32-bit DDR3L memory soldered on-board, up to 1 GB. When it comes to interfaces the board is plentiful: networking interfaces - such as 2x Fast Ethernet RJ...

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}

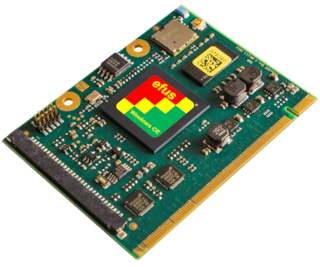

efus™A9X

Secure HMP Computer On Module with WLAN/BT based on NXP i.MX 6SoloX (efusA9X)

By F&S Elektronik Systeme GmbH Gold 合作伙伴
^{嵌入式板子解决方案}
MicroGEA MX6ULL

The MicroGEA Module is the smallest module on the market based on i.MX 6ULL; everything is included in a very amazing size of 25 x 25 mm , with a height of 3.5 mm.

By Engicam Gold 合作伙伴
^{嵌入式板子解决方案}

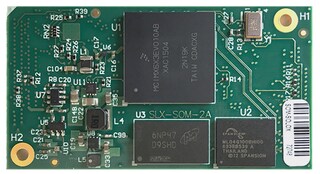

I.MX 6SOLOX SYSTEM-ON-MODULE

Mezzanine module that combines the i.MX 6SoloX dual-core MPU with 512MB DDR3, 512MB NAND Flash and 1Gb Ethernet PHY.

By Emcraft Systems LLC Gold 合作伙伴
^{嵌入式板子解决方案}
Cubox-i

Put your laptop away. At 2” X 2” X 2”, the CuBox-i is the world’s smallest computer EVER. With its sleek and elegant design, the CuBox-i easily blends into your home or o...

By SolidRun Ltd Gold 合作伙伴
^{嵌入式板子解决方案}
SBC-B08

New-generation all-equipped computer with a NXP i.MX 6SoloX applications processor. A revolutionary product in terms of connectivity, interactivity with the real world an...

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}
i.MX 6 Android and Linux Platfo

It is a generic i.MX 6/8 Android/Linux platform supporting WiFi, BT, 3G, Zibee, NFC, Camera, G-sensor, Light-sensor, Fast Ethernet, HDMI and all generic connectivities.

By Shenzhen Huameishi Tech Co., Ltd. Gold 合作伙伴
^{嵌入式板子解决方案}
MY-IMX6-CB200

CPU：i.MX6QP/Q/U/S: Compatible with the automotive, industrial, commercial expansion grade Memory: DDR3 1GB, up to 2GB Storage: SPI NorFlash/4GB EMMC, Up to 64 GB EMMC...

By Zhuhai MYZR Technology Co., Ltd Gold 合作伙伴
^{嵌入式板子解决方案}
i.Core MX6SX

EDIMM SOM based on NXP™ i.MX 6SoloX processor.

By Engicam Gold 合作伙伴
^{嵌入式板子解决方案}

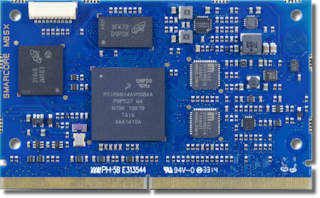

SMARCORE MX6SX

SMARC form factor SOM based on NXP i.MX 6SoloX processor.

By Engicam Gold 合作伙伴
^{嵌入式板子解决方案}
PicoCore™MX6SX

tiny (35x40mm), secure HMP Computer On Module with 2x Gigabit Ethernet based on NXP i.MX6 SoloX (PicoCoreMX6SX)

By F&S Elektronik Systeme GmbH Gold 合作伙伴
^{嵌入式板子解决方案}
SYS-B08-7

SYS-B08-7 is an Embedded Panel with 7” LCD display based on the NXP i.MX 6SoloX Processor. This smart, compact, industrial touch system features a 7” capacitive full-flat...

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}

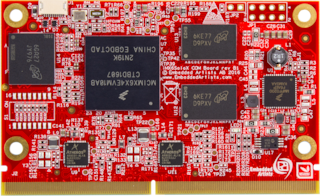

iMX6 SoloX COM Board
