i.MX 6SLL应用处理器_Single Arm® Cortex®-A9@ 800M/1GHz

i.MX 6SLL处理器代表了恩智浦在集成多媒体处理器领域的最新成就，该产品扩充了我们的多媒体产品系列，能够以极低的功耗提供较高的处理性能。

该处理器配备恩智浦的先进单核Arm^® Cortex^®-A9实施，运行速率高达1GHz。该处理器提供32位DDR接口，支持LPDDR2和LPDDR3。此外，该产品还提供一系列其他用于连接外设的接口，例如：WLAN，Bluetooth^™，GPS，硬盘，显示屏和摄像头传感器。

数据手册

参考手册

产品详情

框图

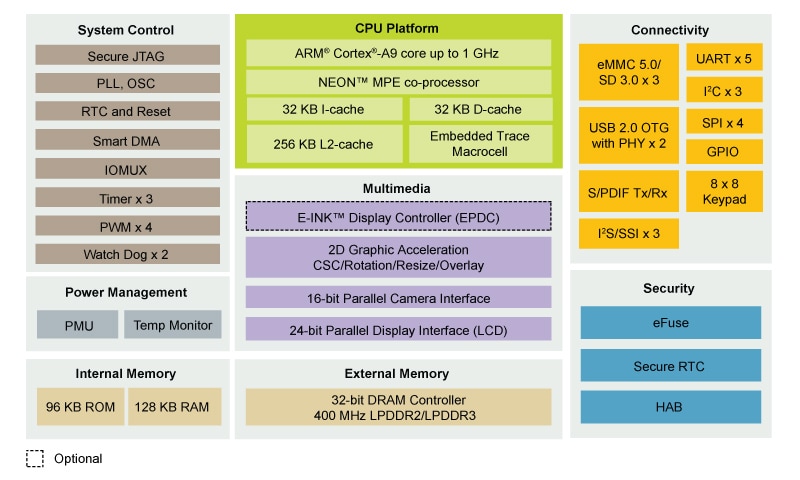

i.MX 6SLL Multimedia Applications Processor Block Diagram

获取框图PDF

特征

处理器

1x Arm^{^®} Cortex^®-A9，运行频率高达1 GHz (TrustZone)
32 KByte L1指令缓存
32 KByte L1数据缓存
私有定时器和看门口
Cortex-A9 NEON MPE (媒体处理引擎)协处理器

存储器

32位LPDDR2
32位LPDDR3

数据连接

2 x USB 2.0 OTG，带PHY
3 x eMMC 5.0/SD 3.0
3 x I²S/SSI
4x SPI，5x UART，3x I²C
S/PDIF Tx/Rx

显示

EPDC，彩色和单色E-INK，高达2332x1650分辨率和5位灰度，支持Gen-II (REAGL/-D)处理
单引擎
24位并行LCD显示屏2D图形处理器PXP，支持CSC，抖动，旋转，调整大小和重叠

封装和温度

13 x 13 mm，0.5 mm BGA
14 x 14 mm，0.65 mm BGA
消费电子(0° to +95°)，高达1 GHz
工业控制(-40° to 105°)，高达800 MHz

文档

快速参考文档类别.

1-5 / 17 文件

^数据手册
i.MX 6SLL Applications Processors for Industrial Products
PDF版本 1Jan 30, 20191.6 MBIMX6SLLIEC英语
适用产品
^数据手册
i.MX 6SLL Applications Processors for Consumer Products
PDF版本 1Jan 30, 20191.6 MBIMX6SLLCEC英语
适用产品
^参考手册
i.MX 6SLL Applications Processor Reference Manual

PDF版本 0Jun 19, 201722.9 MBIMX6SLLRM英语
请登录
^应用笔记
i.MX ROMs Log Events

PDF版本 1Sep 21, 2023162.1 KBAN12853英语
请登录
^应用笔记
Secure Over-the-Air Prototype for Linux Using CAAM and Mender

PDF版本 1Nov 18, 20202.3 MBAN12900英语
请登录
^应用笔记
Google Cast Authentication Aspects Implementation on i.MX

PDF版本 0Jul 15, 2020244.3 KBAN12921英语
请登录
^应用笔记
Secure Debug in i.MX 6/7/8M Family of Applications Processors

PDF版本 2Jul 7, 2020594.9 KBAN4686英语
请登录
^应用笔记
HABv4 RVT Guidelines and Recommendations

PDF版本 1Jun 30, 2020145.7 KBAN12263英语
请登录
^应用笔记
Using Code-Signing Tool with Hardware Security Module

PDF版本 0Jun 8, 2020182.0 KBAN12812英语
请登录
^应用笔记
i.MX 6SLL Power Consumption Measurement

PDF版本 0Jul 3, 2017200.9 KBAN12001英语
^应用笔记
i.MX 6SLL Product Lifetime Usage Estimates

PDF版本 0Jun 20, 2017245.0 KBAN11987英语
^应用笔记
i.MX 6SLL Migration Guide

PDF版本 0Jun 5, 2017114.7 KBAN11988英语
^用户指南
i.MX 6SLL EVK Board Hardware User's Guide

PDF版本 0Mar 21, 20191.7 MBIMX6SLLEVKHUG英语
请登录
^勘误表
Chip Errata for the i.MX 6SLL

PDF版本 1Aug 11, 2020444.9 KBIMX6SLLCE英语
^简介
i.MX 6SLL Applications Processors Fact Sheet

PDF版本 0Apr 20, 20173.4 MBIMX6SLLFAMA4FS英语
^简介
i.MX 6系列应用处理器 - 简介

PDF版本 5314.9 KBIMX6SRSFS中文, 英语
^支持信息
L4.1.15_2.1.0_LINUX_DOCS

GZ版本 L4.1.15_2.1.0Jun 14, 20178.8 MBL4.1.15_2.1.0_LINUX_DOCS英语
请登录

展开

设计资源

设计文件

1 设计文件

^模型
i.MX 6SLL IBIS Model files

ZIP版本 1.0Jan 11, 2017 00:00:0015.3 MBIMX6SLL_IBIS
请登录

下载

硬件

2 硬件

^{仿真器、探测器和编程器}
IMX_L4.1.15_2.1.0_MFG_TOOL

IMX_L4.1.15_2.1.0_MFG_TOOL
请登录
^{评估/开发板与系统}

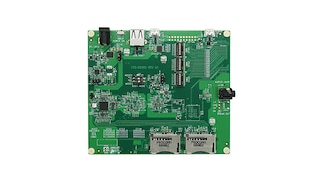

面向i.MX 6SLL应用处理器的评估套件
