i.MX 6Dual应用处理器_双Arm® Cortex®-A9，主频为1.2GHz | NXP 半导体

点击播放视频

i.MX 6系列的应用处理器将可扩展平台与广泛的集成和高能效处理功能相结合，尤其适合多媒体应用。i.MX 6Dual处理器具备以下功能：

通过满足操作系统和游戏的MIPS需求，提高了高层便携应用的性能
多级存储器系统
智能加速技术，使设计人员能够开发功能丰富的产品，而所需的功率级别远远低于业界预期
动态电压频率调节
强大的图形加速功能
接口灵活性
整个器件内置电源管理功能
先进的基于硬件的安全特性

i.MX 6Dual由与之配套的恩智浦电源管理集成电路(PMIC)MMPF0100提供支持。

产品详情

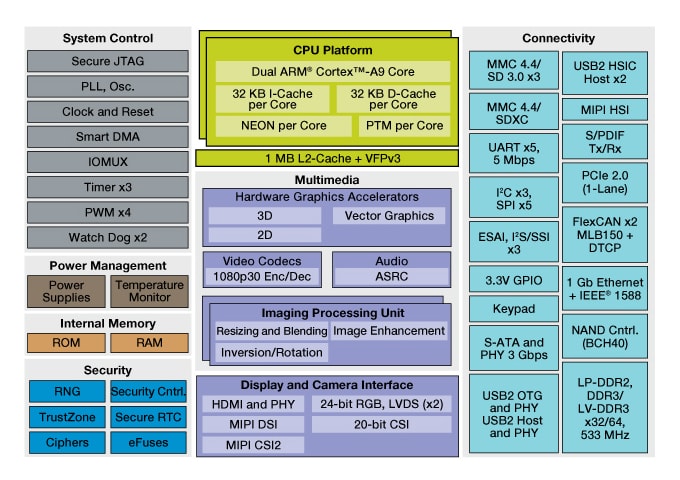

框图

i.MX 6Dual Multimedia Applications Processor Block Diagram

i.MX 6Dual Multimedia Applications Processor Block Diagram

获取框图PDF

特征

CPU复合器件

2个Arm^{^®} Cortex^®-A9，运行频率高达1.2 GHz
1 MB L2缓存
32 KB指令和数据缓存
NEON SIMD媒体加速器

多媒体

GPU 3D
- Vivante GC2000
- 200Mtri/s 1000Mpxl/s, OpenGL^{^®} ES 3.0 & Halti, CL EP
GPU 2D (矢量图形)
- Vivante GC355
- 300Mpxl/s，OpenVG 1.1
GPU 2D (复合)
- Vivante GC320
- 600Mpxl/s，BLIT
视频解码
- 1080p 60 h.264
视频编码
- 1080p30 H.264 BP/双720p编码
摄像头接口
- 类型：1个20位并行, MIPI-CSI2 (4通道)，三路同时输入

存储器

DDR
- 2个32 LP-DDR2，1个64 DDR3 / LV-DDR3
NAND
- SLC/MLC，40位ECC，ONFI2.2，DDR

数据连接

4个USB2.0
- 1个HS OTG + PHY
- 1个Host + PHY
- 2个Host USB HSIC
以太网
- 1 Gbps + IEEE^{^®}1588
扩展端口
- 3个SD/MMC 4.4，1个SDXC
- 5个SPI, 5个UART, 3个IÂ²C
- MIPI-HSI
- PCIe 2.0 (单通道)

显示

2个4XGA (2048x1536)或2个[1080p + WXGA (1280x720)]
EPDC，LVDS，并行，MIPI-DSI

先进的电源管理

PMU集成
恩智浦PF100电源管理单元

安全性

先进的安全功能支持：

高可靠性的启动
密码加密引擎
随机数生成器
篡改检测

封装和温度

21 x 21mm，0.8 mm BGA
消费电子(-20C至+105C)，高达1.2 GHz
工业控制(-40C至+105C)，高达800 MHz
汽车(-40C至+125C)，AEC-Q100，高达1 GHz

设计资源

设计文件

1-5 / 7 设计文件

^模型
i.MX 6Dual PoP package BSDL File

ZIP版本 0Mar 28, 2016 00:00:0070.7 KBIMX6D_PoP_BSDL
请登录

下载
^模型
i.MX 6Quad and i.MX 6Dual BSDL File

ZIP版本 2Jan 15, 2013 00:00:0065.5 KBIMX6_DQ_BSDL
请登录

下载
^模型
i.MX 6Quad and i.MX 6Dual IBIS Model File

ZIP版本 1.4Jan 11, 2017 00:00:0017035 KBIMX6_DQ_IBIS
请登录

下载
^{印刷电路板与电路图}
Design files, including hardware schematics, Gerbers, and OrCAD files for i.MX 6Quad (i.MX 6Dual emulation)

ZIP版本 C6Oct 4, 2018 11:59:0010.7 MBiMX6Q-SABRE-SDB-DESIGNFILES
请登录

下载
^{印刷电路板与电路图}
Design files, including hardware schematics, Gerbers, and OrCAD files.

ZIP版本 C5Oct 15, 2014 00:00:0012.0 MBi.MX6_SABRE_SDP_DESIGNFILES
请登录

下载
^{印刷电路板与电路图}
Design files, including hardware schematics, Gerbers, and OrCAD files for i.MX 6QuadPlus (i.MX 6DualPlus emulation)

ZIP版本 BOct 4, 2017 00:00:0021789 KBiMX6QP_SABRE_SDB_DESIGNFILES
请登录

下载
^{印刷电路板与电路图}
Design files for i.MX 6Quad and i.MX 6DualLite CPU1 Cards

ZIP版本 1.0.2May 19, 2014 00:00:0033.7 MBi.MX6_SABRE_AI_CPU1_DESIGNFILES
请登录

下载

硬件

1-5 / 13 硬件

^{评估/开发板与系统}

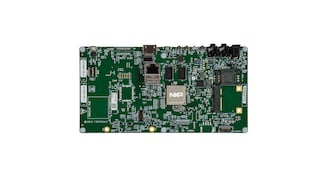

面向智能设备，基于i.MX 6Quad应用处理器的SABRE板亮点

RD-IMX6Q-SABRE
^{仿真器、探测器和编程器}
Source Code for the i.MX manufacturing tool used for downloading OS images to the i.MX 6 Processors

IMX_MFG_TOOL_V2_SOURCE
请登录
^{仿真器、探测器和编程器}
N7.1.2_2.1.0_ANDROID_TOOL_8MQ_ALPHA

N7.1.2_2.1.0_ANDROID_TOOL_8MQ_ALPHA
请登录
其他可用硬件. 查看我们的精选合作伙伴解决方案.
^{仿真器、探测器和编程器}
IMX6_L4.1.15_1.0.0_MFG_TOOL

IMX6_L4.1.15_1.0.0_MFG_TOOL
请登录
^{仿真器、探测器和编程器}
Tool and documentation for downloading OS images to the i.MX 6Quad and i.MX6Dual

IMX_6DQ_MFG_TOOL
请登录
^{仿真器、探测器和编程器}
i.MX 6Family Manufacturing Toolkit for L3.10.17

IMX_6_MFG_L3.10.17_1.0.0_TOOL
请登录
^{仿真器、探测器和编程器}
IMX6_L3.14.28_MFG_TOOL

IMX6_L3.14.28_MFG_TOOL
请登录
^{仿真器、探测器和编程器}
IMX6_L4.1.15_2.0.0_MFG_TOOL

IMX6_L4-1-15_2-0-0_MFG-TOOL
请登录
^{仿真器、探测器和编程器}
IMX6_L3.10.53_MFG_TOOL

IMX6_L3.10.53_MFG_TOOL
请登录
^{仿真器、探测器和编程器}
IMX6_L5.1.1_2.1.0_MFG_TOOL

IMX6_L5.1_2.1.0_MFG_TOOL
请登录
^{仿真器、探测器和编程器}
IMX_KK4.4.3_MFG_TOOL

IMX_KK4.4.3_MFG_TOOL
请登录
^{仿真器、探测器和编程器}
IMX6_L3.14.52_MFG_TOOL

IMX6_L3.14.52_MFG_TOOL
请登录
^{仿真器、探测器和编程器}
IMX-L5.0.0-MFG-TOOL

IMX-L5.0.0-MFG-TOOL
请登录

1-5 / 82 硬件

^{评估/开发板与系统}
EVK-JODY-W2

Evaluation Kit for JODY-W263

By u-blox AG Gold 合作伙伴
^{评估/开发板与系统}
STKa6x

Embedded Cortex®-A9 Evaluation Board based on i.MX6 with scalable computing and graphics performance

By TQ-Systems GmbH Gold 合作伙伴
^{评估/开发板与系统}
EVK-LILY-W-131-00

Evaluation Kit for LILY-W131

By u-blox AG Gold 合作伙伴
^{评估/开发板与系统}
iMX6 Quad Developer's Kit

Embedded Artists' iMX6 Quad Developer's Kit lets you get up-and-running quickly with the EA iMX6 Quad COM Board.

By Embedded Artists AB Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link PLUS

JTAG/SWD debug probe with USB interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in t...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher Compact

Flasher Compact is the compact twin to the Flasher PRO, primarily designed for installation into production rigs or automated test equipment (ATE) where production space ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
I-jet

I-jet is a high-performing in-circuit debugging probe for ARM. It is capable of delivering power to the target board and measuring target power consumption. I-jet is full...

By IAR Platinum 合作伙伴
^{硬件测试配件和调试器}
J-Link PRO

J-Link PRO is an enhanced version of the SEGGER J-Link. This emulator supports ARM/Cortex devices. This has an Ethernet interface in addition to the USB interface. This ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link ULTRA+

Builds atop the J-Link to further enhance the debug experience. The J-Link ULTRA+ is three times faster than the industry standard J-Link, at a 3 MBytes/s download speed ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Trace PRO Cortex

J-Trace PRO Cortex provides support for Cortex-A/R/M based microcontrollers. The SuperSpeed USB 3.0 interface of J-Trace PRO Cortex enables continuous streaming trace via...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link EDU Mini已更新

The J-Link EDU Mini is a stripped-down, budget-friendly model of the J-Link debug probe created for educational use. Even with its reduced size, it maintains most J-Link ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher PRO

Flasher PRO is SEGGER’s “almost-anything” flash programmer for microcontrollers, SoCs, and (Q)SPI flashes.

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
TRACE32® Debug and Trace tools for Arm®-based NXP MPUs/MCUs

TRACE32® provides a complete suite of tools for all NXP's Arm®-based microprocessors. All of these provide unparalleled levels of debug capabilities to get the best out o...

By Lauterbach GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
TRACE32® PowerDebug System for NXP Microcontrollers/Microprocessors

PowerDebug is Lauterbach's powerful, modular, flexible debug system. It provides the broadest coverage of supported chips and core architectures in the embedded industry ...

By Lauterbach GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link BASE

Supercharge your IDE with the worlds fastest debug probe. The J-Link Flash download technology achieves a performance very close to the maximum speed possible. No other ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher ARM

In-Circuit-Flash-Programmer based on the J-Link family for production and in-field-service. Offers fastest flash algorithms available, multiple integration options (RS232...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
TRACE32® PowerTrace System for NXP Microcontrollers/Microprocessors

PowerTrace system provides full insights of what an embedded system is doing without impacting its real-time performance. It ensures bringing designs to market faster and...

By Lauterbach GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link PRO PoE

J-Link PRO PoE is SEGGER's specialized programming / debug probe for creating test farms. It can draw power via Ethernet and supplies power to the target either via debug...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher Portable PLUS

Flasher Portable PLUS is an extremely portable flash programmer, specifically designed to meet the needs of production-grade flash programming in the field.

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link WiFi

JTAG/SWD debug probe with WiFi interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum 合作伙伴
^{硅设备/组件}
Multichip Packages

Micron's MCP product line offers a variety of devices, configurations, and package options, and we help you select the just-right combination of low power, high reliabili...

By Micron Gold 合作伙伴
^{硅设备/组件}
NOR Flash

Micron manufactures a wide range of NOR Flash products, including Serial and quad SPI, Industry standard Parallel NOR flash and high performance parallel NOR Flash suppor...

By Micron Gold 合作伙伴
^{硅设备/组件}
DRAM Modules

We build our modules from start to finish—designing, manufacturing, and testing all of the DRAM ourselves before assembling the modules and testing again. So, from high-p...

By Micron Gold 合作伙伴
^{硅设备/组件}
Managed NAND (eMMC, eUSB)

Micron manufactures a wide range of managed NAND products such as the embedded Multi Media Card (eMMC) and the embedded USB (eUSB). Densities range from a few gigabytes ...

By Micron Gold 合作伙伴
^{硅设备/组件}
PIXI-9377

PIXI-9377 is a fully certified (FCC, TELEC, IC, CE, RCM) dual-band Wi-Fi 802.11a/b/g/n/ac with Bluetooth 5 SDIO module optimized for cost, size and performance. It is bas...

By TechNexion Ltd Gold 合作伙伴
^{硅设备/组件}
Low Power DRAM

Low Power DRAM's include LPDDR, LPDDR2, LPDDR3 and LPDDR4 products

By Micron Gold 合作伙伴
^{硅设备/组件}
uSD-M.2 Adapter: Interconnect for NXP i.MX RT/6/7/8

uSD-M.2 adapter board provides out-of-box experience for NXP i.MX with Murata’s M.2 Module Family enabled by Embedded Artists; interfacing WLAN/BT-signals including WLAN-...

By Murata Manufacturing Co., Ltd. Gold 合作伙伴
^{硅设备/组件}
NOVSOM®iMX6

The NOVSOM®iMX6 provides you access to all the i.MX6 features and the modules provide you a quick way to design i.MX6 solutions. Design a four to six layer base board wit...

By NovTech Inc. Gold 合作伙伴
^模块
MAYA-W271-00B

Compact Wi-Fi 6 + Bluetooth 5.2 + 802.15.4 host-based multiradio modules low-power, secure tri-radio 2 antenna pins - Wi-Fi 2.4/5GHz and BT/BLE+802.15.4 MAYA family dime...

By u-blox AG Gold 合作伙伴
^模块
LILY-W132-00B

Wi-Fi module base on NXP Wi-Fi chip 88W8801

By u-blox AG Gold 合作伙伴
^模块
LILY-W131-00B

Wi-Fi module base on NXP Wi-Fi chip 88W8801

By u-blox AG Gold 合作伙伴
^模块
MAYA-W166-01B

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 1 antenna pin - Wi-Fi 2.4/5GHz and BT/BLE MAYA family dimensions and pin-out

By u-blox AG Gold 合作伙伴
^模块
MAYA-W166-00B

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 1 embedded PCB antenna - Wi-Fi 2.4/5GHz and BT/BLE MAYA family dimensions and pin-out

By u-blox AG Gold 合作伙伴
^{嵌入式板子解决方案}
RBZ imx6 module

This module based on the imx6 is available with a set of standard configurations, but we offer the possibility to add any configuration requested and even a licensing mod...

By RBZ Embedded Logics Gold 合作伙伴
^{嵌入式板子解决方案}
SECO Santaro Vision 10.1 FM MX6

10.1 inch Flush Mount HMI based on NXP i.MX6 processor.

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}
phyBOARD-Nunki i.MX 6

phyBOARD-Nunki is designed especially for image processing applications-a further development of our proven phyBOARD-Mira. It makes optimal use of the two Image Processin...

By PHYTEC Platinum 合作伙伴
^{嵌入式板子解决方案}
HMX636

i.MX6 Mother Board for Industrial or handheld devices, Utilize it as simple as MCU, Small size 62 x 34.5 x 3.5mm ,low cost and high reliability stamps hole mount, for OD...

By Shenzhen Honmax Technology Ltd Gold 合作伙伴
^{嵌入式板子解决方案}
SideKick-i.MX6-MXM SOM

SideKick is based on Our i.MX6 and is a MXM compatible CPU module for fast multimedia focused applications. The i.MX6 module has on-board memory expandable to 4GB DDR3 RA...

By Firstview Consultants Gold 合作伙伴
^{嵌入式板子解决方案}
SECO SBC-SANTARO-MX6

Single Board Computer (SBC) based on NXP i.MX6 processor.

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}

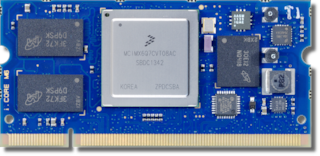

i.Core 1.5 MX6

i.MX6 based EDIMM version with eMMC and MIPI-CSI

By Engicam Gold 合作伙伴
^{嵌入式板子解决方案}
MicroGEA MX6ULL

The MicroGEA Module is the smallest module on the market based on i.MX 6ULL; everything is included in a very amazing size of 25 x 25 mm , with a height of 3.5 mm.

By Engicam Gold 合作伙伴
^{嵌入式板子解决方案}
MSC NANORISC-IMX6

Module is based on the NXP® Cortex™ A9 CPU offering high performance, lowest power consumption and a high degree of functional integration for high level embedded applica...

By Avnet Embedded Gold 合作伙伴
^{嵌入式板子解决方案}
MSC Q7-IMX6PLUS

The design of the MSC Q7-IMX6PLUS module was optimized to provide an especially economic platform for NXP’s i.MX6 and i.MX6Plus CPUs offering quad-core, dual-core and sin...

By Avnet Embedded Gold 合作伙伴
^{嵌入式板子解决方案}
SECO Santaro Vision 7 RM MX6

7.0 inch Outdoor Rear Mount HMI based on NXP i.MX6 processor.

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}
iMX6 Quad COM Board

The EA iMX6 Quad COM Board provides a quick and easy solution for implementing a high-performance ARM quad-core Cortex-A9 based design.

By Embedded Artists AB Gold 合作伙伴
^{嵌入式板子解决方案}

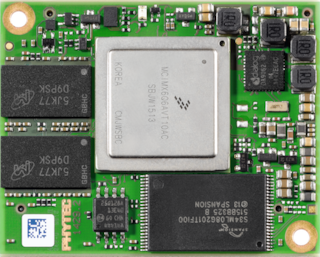

phyCORE-i.MX 6

The phyCORE-i.MX6 SOM is the smallest industrial i.MX 6 design on the market. It is highly scalable supporting NXP i.MX 6Solo, Dual, or Quad processor variants and with c...

By PHYTEC Platinum 合作伙伴
^{嵌入式板子解决方案}
LEC-i.MX6

SMARC ( Smart Mobility Architecture ) computer on module based on ultra-low power i.MX6 family.

By ADLINK Technology, Inc. Gold 合作伙伴
^{嵌入式板子解决方案}
HummingBoard CBi

HummingBoard CBi merges the powerful HummingBoard platform with the CAN bus and RS-485 connectors – tailor-made for industrial and production floor applications.

By SolidRun Ltd Gold 合作伙伴
^{嵌入式板子解决方案}

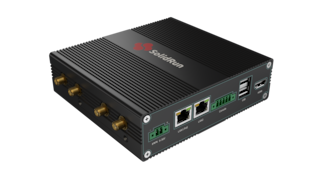

SolidSense N6 Industrial Gateway

SolidSense N6 Industrial Edge Gateway is a powerful and ruggedized gateway, offering unique connectivity options designed for a variety of harsh and demanding industrial ...

By SolidRun Ltd Gold 合作伙伴
^{嵌入式板子解决方案}
SECO SOM-Trizeps-VII-MX6

SODIMM-200 CPU Computer on Module (CoM) with NXP i.MX6 Applications Processors.

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}
VAR-SOLOCustomBoard

The VAR-SOLOCustomBoard Single Board Computer (SBC) can serve both as a development platform and as an end product. in conjunction with the VAR-SOM-SOLO/DUAL and the VAR-...

By Variscite Platinum 合作伙伴
^{嵌入式板子解决方案}
i.MX6 customizable embedded design

Latest addition to our product portfolio is NXP i.MX6 based processing platform design. It is customizable and we can adapt it to your needs. It supports networking and m...

By Borea Gold 合作伙伴
^{嵌入式板子解决方案}
IMX6 SODIMM Module

Supporting the i.mx6 Solo /DL /DualQuad /Singe core ARM Coretex A9, CPU VERA allows designers to use a single System modeule in a board range of applications to achieve s...

By Firstview Consultants Gold 合作伙伴
^{嵌入式板子解决方案}
SMARC-sAMX6i

NXP i.MX 6 Single, Dual and Quad Core ARM Cortex-A9 • SoC scalable from Solo Core up to Quad Core • x86-alike interface configuration • Design Services for application ...

By Kontron Europe GmbH Gold 合作伙伴
^{嵌入式板子解决方案}
SECO SOM-Q7-MX6

Qseven® Computer on Module (CoM) with NXP i.MX 6 Processor.

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}
HummingBoard Edge

HummingBoard Edge is the ideal M2M platform, it was developed to meet the B2B market demand for high performance, reliable and innovative device

By SolidRun Ltd Gold 合作伙伴
^{嵌入式板子解决方案}
i.MX 6 Series ARM Cortex-A9 System on Module (SOM)

The SOM is an embedded single board module designed to be reliable, rugged, and low cost. The board is designed to be paired with a custom carrier board to fit specific a...

By Firstview Consultants Gold 合作伙伴
^{嵌入式板子解决方案}
360(AVM) ADAS APA

It provides Surround View Monitor,ADAS and automatic parking solutions.The surround-view ADAS systems offered integrate multiple ADAS functions such as LDW, BSD, and MOD ...

By Shenzhen Tamsong Technology Co.,LTD Gold 合作伙伴
^{嵌入式板子解决方案}
i.Core MX6D/Q

EDIMM SOM based on NXP™ i.MX 6Dual or i.MX 6Quad processor.

By Engicam Gold 合作伙伴
^{嵌入式板子解决方案}
SECO SOM-uQ7-MX6

μQseven® Computer on Module (CoM) with NXP i.MX 6 Processor.

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}
ConnectCore 6N

ConnectCore 6 is an i.MX6 SMT multi-chip module. Features include integrated Wi-Fi, Bluetooth, PMIC and Kinetis Microcontroller. 400 pin LGA for reliable connection an...

By Digi International Gold 合作伙伴
^{嵌入式板子解决方案}
TQMa6x

- Graphic - Extended temperature range - eMMC Flash - Low power consumption (typ. 4 W) - Long-term availability - IEEE 1588 Support - Security functions

By TQ-Systems GmbH Gold 合作伙伴
^{嵌入式板子解决方案}

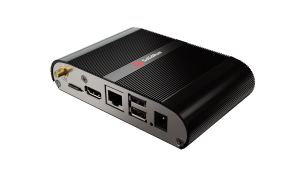

SolidSense N6 Indoor Gateway

SolidSense N6 Edge Gateway is an enterprise Internet of Things gateway designed for servicing a local network of IoT devices with a range of solutions and business applic...

By SolidRun Ltd Gold 合作伙伴
^{嵌入式板子解决方案}

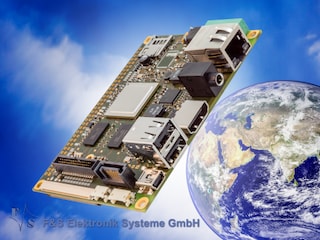

armStone™A9

SBC with Gigabit Ethernet and Dual-Channel LVDS based on NXP i.MX 6 (armStoneA9 - PicoITX)

By F&S Elektronik Systeme GmbH Gold 合作伙伴
^{嵌入式板子解决方案}
System on Module Carrier Board

The FirstView SOM Carrier Board is a companion board to the FirstView SOM designed to speed up development of hardware and software. The carrier allows the developer to t...

By Firstview Consultants Gold 合作伙伴
^{嵌入式板子解决方案}

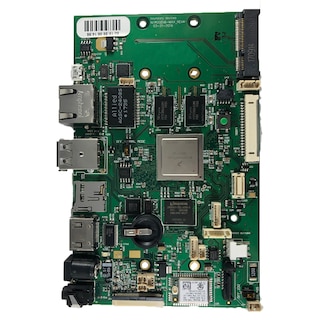

Nitrogen6 MAX SBC

The Nitrogen6_MAX is a turbo-charged version of our popular Nitrogen6X platform. Nitrogen6_MAX is a single board computer that features the same Quad-Core i.MX6 processor...

By Boundary Devices a Laird Connectivity Company Gold 合作伙伴
^{嵌入式板子解决方案}
Apalis iMX6D

This module has peak frequency of 1GHz and RAM size up to 1GB. Key benefits include industrial temperature support, long-term availability (until 2028), and a host of hig...

By Toradex® Platinum 合作伙伴
^{嵌入式板子解决方案}
SECO SBC-SANTVEND-MX6

Single Board Computer (SBC) based on NXP i.MX6 processor.

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}
VAR-SOM-MX6 System on Module

Embedding the i.MX6 QuadPlus/Quad/Dual/DualLite/Single core ARM CA9, the VAR-SOM-MX6 allows designers to use a single System on Module in a broad range of applications to...

By Variscite Platinum 合作伙伴
^{嵌入式板子解决方案}

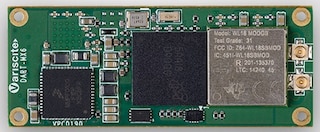

DART-MX6 System on Module

Measuring only 20x50 mm, the DART-MX6 is the smallest System-on-Module (SoM) supporting NXP i.MX6 quad and dual core Cortex-A9™ processor. The DART-MX6 offers impressive ...

By Variscite Platinum 合作伙伴
^{嵌入式板子解决方案}
SECO Santoka Vision 10.1 PM MX6

10.1 inch Panel Mount HMI based on NXP i.MX6 processor.

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}
SBC IMX6

The single board computer NOVA which has an expansion board to carry the VERA i.MX6 is one of our design of the base plate. The flexible design allows the fast and easy w...

By Firstview Consultants Gold 合作伙伴
^{嵌入式板子解决方案}
i.MX 6 Android and Linux Platform

It is a generic i.MX6 Android/Linux SBC supporting WiFi, BT, 4G, Camera, Ethernet, HDMI, LVDS, CAN, USB, RS232/485, -40~85℃ industrial design.

By Shenzhen Huameishi Tech Co., Ltd. Gold 合作伙伴
^{嵌入式板子解决方案}
SECO SBC-SANTOKA-MX6

Single Board Computer (SBC) based on NXP i.MX6 processor.

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}
SECO Santoka Vision 10.1 FM MX6

10.1 inch Flush Mount HMI based on NXP i.MX6 processor.

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}
conga-QMX6 Qseven Computer-On-Module

Qseven module with ultra low power NXP ARM® Cortex™ A9 processor, up to 2GB onboard DDR3L memory, up to 16GB onboard eMMC. Commercial and industrial temperature range

By congatec Gold 合作伙伴
^{嵌入式板子解决方案}
SECO Santaro Vision 10.1 PM MX6

10.1 inch Panel Mount HMI based on NXP i.MX6 processor.

By SECO Gold 合作伙伴
^{嵌入式板子解决方案}
M636D1

i.MX6 All-in-one, Easy Express Connect EXT module. 71x99mm

By Shenzhen Honmax Technology Ltd Gold 合作伙伴
^{嵌入式板子解决方案}

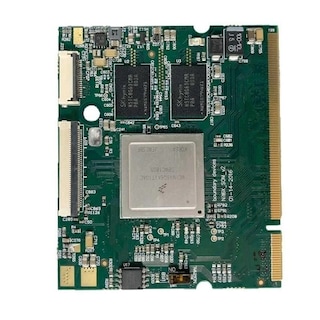

Nitrogen6 SOM V2

The Nitrogen6X SOM V2 is a highly integrated System-on-Module (SOM) based on the NXP i.MX 6 family of applications processors.

By Boundary Devices a Laird Connectivity Company Gold 合作伙伴
^{嵌入式板子解决方案}
LEC-iMX6R2

LEC-iMX6R2 is a re spin of original LEC-iMX6 that complies with new SMARC 2.0 specification that adds a secondary LAN, increases LVDS bandwidth and provides optional DSI ...

By ADLINK Technology, Inc. Gold 合作伙伴
^{嵌入式板子解决方案}
i.Core MX6 uQseven RQS

uQseven SOM based on i.MX 6 Solo, Dual Lite, Dual, Quad processor

By Engicam Gold 合作伙伴

查找支持此产品的所有合作伙伴，请参阅合作伙伴市场.

支持

您需要什么帮助?

推荐社区

i.MX Processors

推荐链接

i.MX Yocto项目：常见问题解答
