i.MX 6Solo Applications Processors应用处理器_Arm® Cortex®-A9单核，主频为1GHz_NXP 半导体

点击播放视频

i.MX 6系列的应用处理器将可扩展平台与广泛的集成和高能效处理功能相结合，尤其适合多媒体应用。i.MX 6Solo处理器具备以下功能：

满足操作系统和游戏的MIPS需求，增强高层便携式应用的功能
多级存储器系统
智能加速技术，使设计人员能够开发功能丰富的产品，而所需的功率级别远远低于业界预期
动态电压频率调节
强大的图形加速功能
接口灵活性
整个器件内置电源管理功能
先进的支持硬件的安全性

i.MX 6Solo由与之配套的电源管理集成电路(PMIC) MMPF0100、MMPF0200和PF3001提供支持。

产品详情

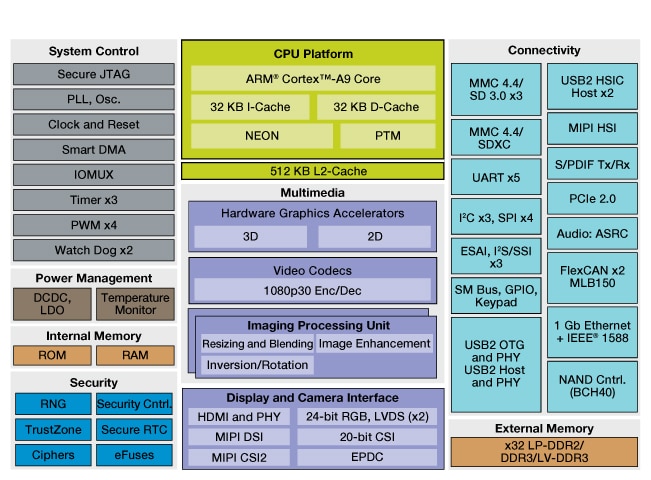

框图

i.MX 6Solo Multimedia Applications Processor Block Diagram

i.MX 6Solo Multimedia Applications Processor Block Diagram

获取框图PDF

特征

CPU复合器件

1个Arm^{^®} Cortex^®-A9，运行频率高达1 GHz
512 KB L2缓存
32 KB指令和数据缓存
NEON SIMD媒体加速器

多媒体

GPU 3D
- Vivante GC880
- 35Mtri/s 266Mpxl/s Open GL ES 2.0
GPU 2D (矢量图形)
- GPU 3D仿真
GPU 2D (复合)
- Vivante GC320
- 600Mpxl/s，BLIT
视频解码
- 1080p30 + D1
视频编码
- 1080p30 H.264 BP/双720p编码
摄像头接口
- 类型：1个20位并行，MIPI-CSI2 (两通道)

存储器

DDR
- 32位LP-DDR3/LV-DDR3
NAND
- SLC/MLC，40位ECC，ONFI2.2，DDR

数据连接

汽车电子
- FlexCAN
- MLB
4个USB2.0
- 1个HS OTG + PHY
- 1个Host + PHY
- 2个Host USB HSIC
以太网
- 1 Gbps + IEEE^{^®}1588
扩展端口
- 3个SD/MMC 4.4，1个SDXC
- 4个SPI，5个UART，3个I²C
- MIPI-HSI
- PCIe 2.0 (单通道)

显示

2个WXGA (1366x786)
EPDC，LVDS，并行，MIPI-DSI

先进的电源管理

PMU集成
恩智浦PF100电源管理单元

安全性

先进的安全功能支持：

高可靠性的启动
密码加密引擎
随机数生成器
篡改检测

封装和温度

21 x 21 mm，0.8 mm BGA
消费电子(0C至+95C)，高达1 GHz
工业控制(-40C至+105C)，高达800 MHz
汽车(-40C至+125C)，AEC-Q100，高达800 MHz

设计资源

设计文件

3 设计文件

^模型
i.MX 6DualLIte and i.MX 6Solo IBIS Model File

ZIP版本 1.4.Jan 11, 2017 00:00:0015626 KBIMX6_DL_S_IBIS
请登录

下载
^模型
i.MX 6DualLite and i.MX 6Solo BSDL File

ZIP版本 1.1Oct 24, 2018 00:00:0021 KBIMX6_DL_S_BSDL
请登录

下载
^{印刷电路板与原理图}
Design files for i.MX 6Quad and i.MX 6DualLite CPU1 Cards

ZIP版本 1.0.2May 19, 2014 00:00:0033.7 MBi.MX6_SABRE_AI_CPU1_DESIGNFILES
请登录

下载

硬件

1-5 / 14 硬件

^{仿真器、调试器和编程器}
Source Code for the i.MX manufacturing tool used for downloading OS images to the i.MX 6 Processors

IMX_MFG_TOOL_V2_SOURCE
请登录
^{仿真器、调试器和编程器}
N7.1.2_2.1.0_ANDROID_TOOL_8MQ_ALPHA

N7.1.2_2.1.0_ANDROID_TOOL_8MQ_ALPHA
请登录
^{仿真器、调试器和编程器}
IMX6_L4.1.15_1.0.0_MFG_TOOL

IMX6_L4.1.15_1.0.0_MFG_TOOL
请登录
其他可用硬件. 查看我们的精选合作伙伴解决方案.
^{仿真器、调试器和编程器}
i.MX 6Family Manufacturing Toolkit for L3.10.17

IMX_6_MFG_L3.10.17_1.0.0_TOOL
请登录
^{仿真器、调试器和编程器}
Tool and documentation for downloading OS images to the i.MX 6DualLite and i.MX6Solo

IMX_6DL_6S_MFG_TOOL
请登录
^{仿真器、调试器和编程器}
IMX6_L3.14.28_MFG_TOOL

IMX6_L3.14.28_MFG_TOOL
请登录
^{仿真器、调试器和编程器}
IMX6_L4.1.15_2.0.0_MFG_TOOL

IMX6_L4-1-15_2-0-0_MFG-TOOL
请登录
^{仿真器、调试器和编程器}
IMX6_L3.10.53_MFG_TOOL

IMX6_L3.10.53_MFG_TOOL
请登录
^{仿真器、调试器和编程器}
IMX6_L5.1.1_2.1.0_MFG_TOOL

IMX6_L5.1_2.1.0_MFG_TOOL
请登录
^{仿真器、调试器和编程器}
IMX_KK4.4.3_MFG_TOOL

IMX_KK4.4.3_MFG_TOOL
请登录
^{仿真器、调试器和编程器}
IMX6_L3.14.52_MFG_TOOL

IMX6_L3.14.52_MFG_TOOL
请登录
^{仿真器、调试器和编程器}
IMX-L5.0.0-MFG-TOOL

IMX-L5.0.0-MFG-TOOL
请登录
^{评估板与开发板}
面向智能设备，基于i.MX 6QuadPlus应用处理器的SABRE板

RD-IMX6QP-SABRE
^{评估板与开发板}
Laird 60 Wi-Fi^® Bluetooth^® M.2 EvalKit USB SDIO PCIE UART

LAIRD-60-SIP

1-5 / 110 硬件

^{评估板与开发板}
conga-QKIT/ARM

This complete kit provides the ability to start evaluating Qseven® ARM modules immediately -Qseven Starter Kit for ARM -All accessories out of the box -Immediate evalu...

By congatec Gold 合作伙伴
^{评估板与开发板}
IMX6 Industry Development Toolkit (IAC-IMX6-Kit)

High Reliable Boot, Encryption Engine, Random Number Generator, and Tamper Detection; Integrated 1x Industrial Gigabyte Ethernet MAC(10/100/1000MHz); Integrated 2x CAN, u...

By Zhejiang Qiyang Intelligent Technology Co., Ltd. Gold 合作伙伴
^{评估板与开发板}
iMX6 DualLite Developer's Kit

Embedded Artists' iMX6 DualLite Developer's Kit lets you get up-and-running quickly with the EA iMX6 DualLite COM Board.

By Embedded Artists AB Gold 合作伙伴
^{评估板与开发板}
EVK-JODY-W2

Evaluation Kit for JODY-W263

By u-blox AG Gold 合作伙伴
^{评估板与开发板}
STKa6x

Embedded Cortex®-A9 Evaluation Board based on i.MX6 with scalable computing and graphics performance

By TQ-Systems GmbH Gold 合作伙伴
^{评估板与开发板}
i.MX6 Solo SODIMM Development kit

i.MX6S SODIMM Development Platform incorporates i.MX6S SODIMM SOM & compatible Carrier Card. Development Kit is highly packed with all necessary on board connectors (HDM...

By iWave Systems Gold 合作伙伴
^{评估板与开发板}
Ka-Ro TX Mainboard 7 Development Kit

Development system for Ka-Ro TX standard modules: TX25, TX27, TX28, TX28S, TX51, TX53, TX6Q, TXDL, TXS and the new TXUL based on the i.MX 6 Ultra Lite processor

By Ka-Ro electronics GmbH Gold 合作伙伴
^{评估板与开发板}
i.MX6 Solo Qseven Development Kit

i.MX6S Development Platform incorporates i.MX6S Qseven SOM & Qseven compatible Carrier Card. The board is highly packed with all necessary on board connectors (MIPI Camer...

By iWave Systems Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link PLUS

JTAG/SWD debug probe with USB interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in t...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Arm ULINKpro

The ULINKpro debug and trace unit connects your PC's USB port to your target system and allows you to program, debug, and analyze your applications using its unique strea...

By Arm Platinum 合作伙伴
^{硬件测试配件和调试器}
Flasher Compact

Flasher Compact is the compact twin to the Flasher PRO, primarily designed for installation into production rigs or automated test equipment (ATE) where production space ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
I-jet

I-jet is a high-performing in-circuit debugging probe for ARM. It is capable of delivering power to the target board and measuring target power consumption. I-jet is full...

By IAR Platinum 合作伙伴
^{硬件测试配件和调试器}
J-Link ULTRA+

Builds atop the J-Link to further enhance the debug experience. The J-Link ULTRA+ is three times faster than the industry standard J-Link, at a 3 MBytes/s download speed ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Trace PRO Cortex

J-Trace PRO Cortex provides support for Cortex-A/R/M based microcontrollers. The SuperSpeed USB 3.0 interface of J-Trace PRO Cortex enables continuous streaming trace via...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link BASE

Supercharge your IDE with the worlds fastest debug probe. The J-Link Flash download technology achieves a performance very close to the maximum speed possible. No other ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Universal Access Device 3+ (UAD3+)

The UAD3+, equipped with up to 4 GB of trace memory and powerful interfaces to target and host, is the right solution for trace, multicore debugging, profiling and code c...

By PLS Development Tools Gold 合作伙伴
^{硬件测试配件和调试器}
Arm DSTREAM

The Arm DSTREAM family of high performance debug and trace probes enable Arm Development Studio to debug all Arm-based devices through a variety of interfaces.

By Arm Platinum 合作伙伴
^{硬件测试配件和调试器}
J-Link EDU

The J-Link EDU emulator is our standard J-Link emulator wrapped in a new educational marked housing. It is intended for educational use and the home hobbyist. Support for...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
TRACE32 JTAG/SWD Debugger for ARM

Lauterbach is making world class microprocessor development tools since 1979. TRACE32 debug and real-time trace solutions support the whole range of NXP processors.

By Lauterbach Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link PRO

J-Link PRO is an enhanced version of the SEGGER J-Link. This emulator supports ARM/Cortex devices. This has an Ethernet interface in addition to the USB interface. This ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Universal Access Device 2next (UAD2next

The (UAD2next) combines the state-of-the-art debugging features and CAN with trace capabilities. It can be extended by plugin trace modules supporting e.g. ARM CoreSight ...

By PLS Development Tools Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher PRO

Flasher PRO is SEGGER’s “almost-anything” flash programmer for microcontrollers, SoCs, and (Q)SPI flashes.

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Universal Access Device 2pro (UAD2pro)

The UAD2pro offers fast and flexible communication between Universal Debug Engine on the Host PC and the microcontroller target. Host interface is USB 2.0. Target interfa...

By PLS Development Tools Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher ARM

In-Circuit-Flash-Programmer based on the J-Link family for production and in-field-service. Offers fastest flash algorithms available, multiple integration options (RS232...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link WiFi

JTAG/SWD debug probe with WiFi interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum 合作伙伴
^{补充芯片器件/组件}
NOR Flash

Micron manufactures a wide range of NOR Flash products, including Serial and quad SPI, Industry standard Parallel NOR flash and high performance parallel NOR Flash suppor...

By Micron Gold 合作伙伴
^{补充芯片器件/组件}
Managed NAND (eMMC, eUSB)

Micron manufactures a wide range of managed NAND products such as the embedded Multi Media Card (eMMC) and the embedded USB (eUSB). Densities range from a few gigabytes ...

By Micron Gold 合作伙伴
^{补充芯片器件/组件}
PIXI-9377

PIXI-9377 is a fully certified (FCC, TELEC, IC, CE, RCM) dual-band Wi-Fi 802.11a/b/g/n/ac with Bluetooth 5 SDIO module optimized for cost, size and performance. It is bas...

By TechNexion Ltd Gold 合作伙伴
^{补充芯片器件/组件}
Low Power DRAM

Low Power DRAM's include LPDDR, LPDDR2, LPDDR3 and LPDDR4 products

By Micron Gold 合作伙伴
^{补充芯片器件/组件}
uSD-M.2 Adapter: Interconnect for NXP i.MX RT/6/7/8

uSD-M.2 adapter board provides out-of-box experience for NXP i.MX with Murata’s M.2 Module Family enabled by Embedded Artists; interfacing WLAN/BT-signals including WLAN-...

By Murata Manufacturing Co., Ltd. Gold 合作伙伴
^{补充芯片器件/组件}
Multichip Packages

Micron's MCP product line offers a variety of devices, configurations, and package options, and we help you select the just-right combination of low power, high reliabili...

By Micron Gold 合作伙伴
^{补充芯片器件/组件}
DRAM Modules

We build our modules from start to finish—designing, manufacturing, and testing all of the DRAM ourselves before assembling the modules and testing again. So, from high-p...

By Micron Gold 合作伙伴
^模块
LILY-W131-00B

Wi-Fi module base on NXP Wi-Fi chip 88W8801

By u-blox AG Gold 合作伙伴
^模块
MAYA-W166-01B

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 1 antenna pin - Wi-Fi 2.4/5GHz and BT/BLE MAYA family dimensions and pin-out

By u-blox AG Gold 合作伙伴
^模块
MAYA-W166-00B

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 1 embedded PCB antenna - Wi-Fi 2.4/5GHz and BT/BLE MAYA family dimensions and pin-out

By u-blox AG Gold 合作伙伴
^模块
MAYA-W271-00B

Compact Wi-Fi 6 + Bluetooth 5.2 + 802.15.4 host-based multiradio modules low-power, secure tri-radio 2 antenna pins - Wi-Fi 2.4/5GHz and BT/BLE+802.15.4 MAYA family dime...

By u-blox AG Gold 合作伙伴
^模块
Wi-Fi 5 + BT 5.2 Radio Module - PAN9028

The PAN9028 is a dual band 2.4/5 GHz 802.11 a/b/g/n Wi-Fi radio module with integrated Bluetooth® BR/EDR/LE, specifically designed for integrated applications where highe...

By Panasonic Industrial Devices Europe GmbH Gold 合作伙伴
^模块
LILY-W132-00B

Wi-Fi module base on NXP Wi-Fi chip 88W8801

By u-blox AG Gold 合作伙伴
^模块
MAYA-W160-00B

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 2 u.fl antenna connectors - Wi-Fi 2.4/5GHz and BT/BLE MAYA family dimensions and pin-out

By u-blox AG Gold 合作伙伴
^{嵌入式板解决方案}
RBZ imx6 module

This module based on the imx6 is available with a set of standard configurations, but we offer the possibility to add any configuration requested and even a licensing mod...

By RBZ Embedded Logics Gold 合作伙伴
^{嵌入式板解决方案}
HMX636

i.MX6 Mother Board for Industrial or handheld devices, Utilize it as simple as MCU, Small size 62 x 34.5 x 3.5mm ,low cost and high reliability stamps hole mount, for OD...

By Shenzhen Honmax Technology Ltd Gold 合作伙伴
^{嵌入式板解决方案}
DIMM-MX6Q

DIMM-MX6x for your embedded control solutions and multimedia devices. Board Support Package (BSP: -Linux (Debian 8.0) -Linux (Yocto 1.5.1) -Mainline Linux with_RT P...

By emtrion GmbH Gold 合作伙伴
^{嵌入式板解决方案}
MicroGEA MX6ULL

The MicroGEA Module is the smallest module on the market based on i.MX 6ULL; everything is included in a very amazing size of 25 x 25 mm , with a height of 3.5 mm.

By Engicam Gold 合作伙伴
^{嵌入式板解决方案}
VAR-SOM-MX6

Embedding the i.MX6 QuadPlus/Quad/Dual/DualLite/Single core ARM CA9, the VAR-SOM-MX6 allows designers to use a single System on Module in a broad range of applications to...

By Variscite Platinum 合作伙伴
^{嵌入式板解决方案}
i.MX6 Solo Pico ITX SBC (Single Board Computer)

i.MX6 Solo core based Pico-ITX SBC, ARM cortex A9 CPU @800MHz, HD 1080p encode & decode, HD video playback in 2D/3D GPU. Highly integrated platform for increased perfor...

By iWave Systems Gold 合作伙伴
^{嵌入式板解决方案}
MSC NANORISC-IMX6

Module is based on the NXP® Cortex™ A9 CPU offering high performance, lowest power consumption and a high degree of functional integration for high level embedded applica...

By Avnet Embedded (formerly MSC) Gold 合作伙伴
^{嵌入式板解决方案}
SANTINO LT 5.0 SG

5.0 inch Flush Mount HMI based on NXP i.MX6 processor

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
MSC Q7-IMX6PLUS

The design of the MSC Q7-IMX6PLUS module was optimized to provide an especially economic platform for NXP’s i.MX6 and i.MX6Plus CPUs offering quad-core, dual-core and sin...

By Avnet Embedded (formerly MSC) Gold 合作伙伴
^{嵌入式板解决方案}
Cubox-i

Put your laptop away. At 2” X 2” X 2”, the CuBox-i is the world’s smallest computer EVER. With its sleek and elegant design, the CuBox-i easily blends into your home or o...

By SolidRun Ltd Gold 合作伙伴
^{嵌入式板解决方案}
EMB-3500

-NXP Cortex™-A9 i.MX6 CPU - On board 1GB DDR3 Memory，On board 4GB iNAND flash - Supports 13*RS232 ports - Supports HDMI、LVDS、VGA display， - Supports On board WiFi、2*1...

By NORCO Gold 合作伙伴
^{嵌入式板解决方案}
Ka-Ro TX6S i.MX 6 Solo Computer-on-Module

TX6 Solo include the i.MX 6 Solo Cortex A9 processor at 800 MHz 256-512MB RAM, NAND or eMMC flash and PMIC. Industrial temperature is standard on most modules. All K...

By Ka-Ro electronics GmbH Gold 合作伙伴
^{嵌入式板解决方案}
NEMBUS

Compliant Module with the NXP i.MX6 Processor features all the processor and integrated native I/O capabilities of the SoC, in compliance with the Qseven standard. Suppli...

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
HummingBoard CBi

HummingBoard CBi merges the powerful HummingBoard platform with the CAN bus and RS-485 connectors – tailor-made for industrial and production floor applications.

By SolidRun Ltd Gold 合作伙伴
^{嵌入式板解决方案}
IMX6 SODIMM Module

Supporting the i.mx6 Solo /DL /DualQuad /Singe core ARM Coretex A9, CPU VERA allows designers to use a single System modeule in a board range of applications to achieve s...

By Firstview Consultants Gold 合作伙伴
^{嵌入式板解决方案}
i.MX6 customizable embedded design

Latest addition to our product portfolio is NXP i.MX6 based processing platform design. It is customizable and we can adapt it to your needs. It supports networking and m...

By Borea Gold 合作伙伴
^{嵌入式板解决方案}
360(AVM) ADAS APA

It provides Surround View Monitor,ADAS and automatic parking solutions.The surround-view ADAS systems offered integrate multiple ADAS functions such as LDW, BSD, and MOD ...

By Shenzhen Tamsong Technology Co.,LTD Gold 合作伙伴
^{嵌入式板解决方案}
SYS-A62-10

The SYS-A62-10 is a 10.1” Panel PC based on the Multicore NXP i.MX6 SoC family. It features a long-endurance display (30K hours) with 1280 (RGB) X 800 resolution, along w...

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
TQMa6x

- Graphic - Extended temperature range - eMMC Flash - Low power consumption (typ. 4 W) - Long-term availability - IEEE 1588 Support - Security functions

By TQ-Systems GmbH Gold 合作伙伴
^{嵌入式板解决方案}
System on Module Carrier Board

The FirstView SOM Carrier Board is a companion board to the FirstView SOM designed to speed up development of hardware and software. The carrier allows the developer to t...

By Firstview Consultants Gold 合作伙伴
^{嵌入式板解决方案}
armStone™A9

SBC with Gigabit Ethernet and Dual-Channel LVDS based on NXP i.MX 6 (armStoneA9 - PicoITX)

By F&S Elektronik Systeme GmbH Gold 合作伙伴
^{嵌入式板解决方案}
SES-MX6S/D/Q

Ultra-Low power SOM, based on the i.MX6 application processor with single/dual or quad core ARM® Cortex™-A9 architecture. Built on the SMARC form-factor,-40 to +85°C,up-t...

By Sintecs BV Gold 合作伙伴
^{嵌入式板解决方案}
TEP-1560-IMX6

TEP-1560-IMX6 is a modular, scalable, fanless 15.6 inch HMI based on a single/dual/quad core ARM Cortex-A9 NXP i.MX6 applications processor. Compatible with TechNexion e...

By TechNexion Ltd Gold 合作伙伴
^{嵌入式板解决方案}
SANTINO core

Single Board Computer (SBC) based on NXP i.MX6 processor

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
SANTINO 7.0 OF PCT

7.0 inch Rear Mount HMI based on NXP i.MX6 processor

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
SBC IMX6

The single board computer NOVA which has an expansion board to carry the VERA i.MX6 is one of our design of the base plate. The flexible design allows the fast and easy w...

By Firstview Consultants Gold 合作伙伴
^{嵌入式板解决方案}
Colibri iMX6S

SODIMM sized module with peak frequency up to 1GHz and RAM size of 256MB. Key benefits include long-term availability (until 2028), industrial temperature support, and a ...

By Toradex® Platinum 合作伙伴
^{嵌入式板解决方案}
i.CORE 1.5 MX6

i.MX6 based EDIMM version with eMMC and MIPI-CSI

By Engicam Gold 合作伙伴
^{嵌入式板解决方案}
efus™A9

Secure Computer On Module with GB Ethernet and MIPI-CSI camera based on NXP i.MX 6 (efusA9)

By F&S Elektronik Systeme GmbH Gold 合作伙伴
^{嵌入式板解决方案}
SANTINO 7.0 BX PCT

7.0 inch Panel Mount HMI based on NXP i.MX6 processor

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
CM-FX6

CM-FX6 is an i.MX6-based miniature computer-on-module board designed to serve as a building block in embedded applications.

By CompuLab Gold 合作伙伴
^{嵌入式板解决方案}
LIBERTAS

μQ7-962 is a Qseven® Rel. 2.0 Compliant Module designed by SECO that offers top computational and graphical performances given by low-power consuming ARM architecture. T...

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
ConnectCore 6

ConnectCore 6 is an i.MX6 SMT multi-chip module. Features include integrated Wi-Fi, Bluetooth, PMIC and Kinetis Microcontroller. 400 pin LGA for reliable connection an...

By Digi International Gold 合作伙伴
^{嵌入式板解决方案}
i.MX6 Solo SODIMM SOM (System On Module)

i.MX6 Solo core based SODIMM SOM, ARM Cortex A9 CPU @800MHz, HD 1080p encode & decode, 2D/3D Hardware Graphics Acceleration, Integrates all standard interfaces with ultra...

By iWave Systems Gold 合作伙伴
^{嵌入式板解决方案}
iMX6 DualLite COM Board

The EA i.MX6 DualLite COM Board provides a quick and easy solution for implementing a high-performance ARM dual-core Cortex-A9 based design.

By Embedded Artists AB Gold 合作伙伴
^{嵌入式板解决方案}
M636D1

i.MX6 All-in-one, Easy Express Connect EXT module. 71x99mm

By Shenzhen Honmax Technology Ltd Gold 合作伙伴
^{嵌入式板解决方案}
DORIS

Low-end Single Board Computer with NXP i.MX6 Processor, that exploits the potential of a 30-pin configurable expansion connector to fully meet the configuration flexibili...

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
Nitrogen6_MAX

The Nitrogen6_MAX is a turbo-charged version of our popular Nitrogen6X platform. Nitrogen6_MAX is a single board computer that features the same Quad-Core i.MX6 processor...

By Boundary Devices a Laird Connectivity Company Gold 合作伙伴
^{嵌入式板解决方案}
phyFLEX-i.MX6-Solo

phyFLEX-i.MX 6Solo: i.MX6S single core @ 1 GHz; 60x70 mm SOM; to 4 GB DDR3, 16 GB Nand-Flash, 16 MB SPI-Flash; 1Gbit Ethernet; 2x USB; CAN; SATA; PCI; -40/+85 C temp ra...

By PHYTEC Platinum 合作伙伴
^{嵌入式板解决方案}
i.Core MX6 uQseven RQS

uQseven SOM based on i.MX 6 Solo, Dual Lite, Dual, Quad processor

By Engicam Gold 合作伙伴
^{嵌入式板解决方案}
SANTARO 7.0 SG IPS

7.0 inch Flush Mount HMI based on NXP i.MX6 processor

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
phyBOARD-Nunki i.MX 6

phyBOARD-Nunki is designed especially for image processing applications-a further development of our proven phyBOARD-Mira. It makes optimal use of the two Image Processin...

By PHYTEC Platinum 合作伙伴
^{嵌入式板解决方案}
System on module IAC-IMX6-CM

IAC-IMX6-CM Core Board adopts NXP Cortex-A9 processor.It adopts 8-layer PCB in gold immersion technology. Stable and reliable quality enable the final product to market s...

By Zhejiang Qiyang Intelligent Technology Co., Ltd. Gold 合作伙伴
^{嵌入式板解决方案}
SideKick-i.MX6-MXM SOM

SideKick is based on Our i.MX6 and is a MXM compatible CPU module for fast multimedia focused applications. The i.MX6 module has on-board memory expandable to 4GB DDR3 RA...

By Firstview Consultants Gold 合作伙伴
^{嵌入式板解决方案}
TEP-1010-IMX6

TEP-1010-IMX6 is a modular, scalable, fanless 10.1 inch HMI based on a single/dual/quad core ARM Cortex-A9 NXP i.MX6 applications processor. Compatible with TechNexion e...

By TechNexion Ltd Gold 合作伙伴
^{嵌入式板解决方案}
armStone™A9r2

Single Board Computer in PicoITX form factor with GB Ethernet, WLAN/BT an MIPI-CSI camera based on NXP i.MX6 (armStoneA9r2)

By F&S Elektronik Systeme GmbH Gold 合作伙伴
^{嵌入式板解决方案}
EDM1-IMX6

EDM1-IMX6 based on NXP i.MX6 scalable single/dual/quad core applications processor is targeting multimedia applications with LVDS, TTL, HDMI, S/PDIF, I²S, MIPI Camera and...

By TechNexion Ltd Gold 合作伙伴
^{嵌入式板解决方案}
ALKES

Qseven® Rel. 2.0 Compliant Module with an ARM architecture and integrated i.MX6 Multimedia Applications platform from NXP, a multimedia processor integrating a multicore ...

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
VIKTORIA

Single Board Computer based on i.MX6 Multimedia Applications platform from NXP, a multimedia processor integrating a multicore Cortex™ A9 ARM Core (up to Quad Core proce...

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
phyCORE-i.MX 6

The phyCORE-i.MX6 SOM is the smallest industrial i.MX 6 design on the market. It is highly scalable supporting NXP i.MX 6Solo, Dual, or Quad processor variants and with c...

By PHYTEC Platinum 合作伙伴
^{嵌入式板解决方案}
LEC-i.MX6

SMARC ( Smart Mobility Architecture ) computer on module based on ultra-low power i.MX6 family.

By ADLINK Technology, Inc. Gold 合作伙伴
^{嵌入式板解决方案}
VAR-SOLOCustomBoard

The VAR-SOLOCustomBoard Single Board Computer (SBC) can serve both as a development platform and as an end product. in conjunction with the VAR-SOM-SOLO/DUAL and the VAR-...

By Variscite Platinum 合作伙伴
^{嵌入式板解决方案}
SMARC-sAMX6i

NXP i.MX 6 Single, Dual and Quad Core ARM Cortex-A9 • SoC scalable from Solo Core up to Quad Core • x86-alike interface configuration • Design Services for application ...

By Kontron Europe GmbH Gold 合作伙伴
^{嵌入式板解决方案}
HummingBoard Edge

HummingBoard Edge is the ideal M2M platform, it was developed to meet the B2B market demand for high performance, reliable and innovative device

By SolidRun Ltd Gold 合作伙伴
^{嵌入式板解决方案}
i.MX 6 Series ARM Cortex-A9 System on Module (SOM)

The SOM is an embedded single board module designed to be reliable, rugged, and low cost. The board is designed to be paired with a custom carrier board to fit specific a...

By Firstview Consultants Gold 合作伙伴
^{嵌入式板解决方案}

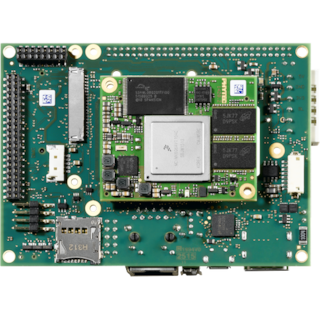

phyBOARD-Mira i.MX 6

Evaluation platform or off-the-shelf industrial grade Single Board Computer (SBC) solution supporting the phyCORE-i.MX 6 SOM.

By PHYTEC Platinum 合作伙伴
^{嵌入式板解决方案}
Trizeps VII

SODIMM-200 CPU-Module with NXP i.MX6 Applications Processors

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
SANTINO LT 5.0 BX PCT

5.0 inch Panel Mount HMI based on NXP i.MX6 processor

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
i.Core MX6S/DL

EDIMM SOM based on NXP™ i.MX 6Solo or i.MX 6DualLite processor.

By Engicam Gold 合作伙伴
^{嵌入式板解决方案}
i.MX6 Solo Qseven SOM (System on Module)

i.MX 6 Solo core ARM cortex A9 @800MHz Qseven compatible SoM with on-board 512MB DDR3, eMMC flash and micro SD slot. It supports industry latest high performance interfa...

By iWave Systems Gold 合作伙伴
^{嵌入式板解决方案}
Hummingboard Pro

The Pro version of the HummingBoard carrier offers a valuable development platform with advanced capabilities (including multiple storage methods) in an embedded device.

By SolidRun Ltd Gold 合作伙伴
^{嵌入式板解决方案}
VAR-SOM-SOLO/DUAL

Pin2pin to the VAR-SOM-MX6, the VAR-SOM-SOLO/DUAL from Variscite carries much smaller dimensions and a slim lined price-point. Features include NXP i.MX6 single/dual 1GH...

By Variscite Platinum 合作伙伴
^{嵌入式板解决方案}
conga-QMX6 Qseven Computer-On-Module

Qseven module with ultra low power NXP ARM® Cortex™ A9 processor, up to 2GB onboard DDR3L memory, up to 16GB onboard eMMC. Commercial and industrial temperature range

By congatec Gold 合作伙伴
^{嵌入式板解决方案}
SANTINO LT 5.0 OF PCT

5.0 inch Rear Mount HMI based on NXP i.MX6 processor

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
SANTINO LT core

Single Board Computer (SBC) based on NXP i.MX6 processor

By SECO Gold 合作伙伴
^{嵌入式板解决方案}
TEK3-IMX6

TEK3-IMX6 is a scalable, high-performance fanless box PC based on a single/dual/quad core ARM Cortex-A9 NXP i.MX6 series processor. Compatible with TechNexion expansion b...

By TechNexion Ltd Gold 合作伙伴
^{嵌入式板解决方案}
PICO-IMX6

The PICO-IMX6 SoM based on the NXP i.MX6 multimedia processor is a feature and performance scalable hardware platform equipped with a wide array of high-speed connectivit...

By TechNexion Ltd Gold 合作伙伴
^{嵌入式板解决方案}
EMB-2500

-NXP Cortex™-A9 i.MX6 CPU -On board 1GB DDR3 Memory，On board 4GB iNAND flash -Supports HDMI、LVDS、VGA display -Supports On board WiFi、1000M LAN、1*RS232 -Supports Andro...

By NORCO Gold 合作伙伴
^{嵌入式板解决方案}
i.MX536 Module

A System on Module is an ideal alternative to fully own electronics development. With our SoM approach, the benefits of purchasing a complete off-the-shelf Single Board C...

By Sintecs BV Gold 合作伙伴
^{嵌入式板解决方案}
LEC-iMX6R2

LEC-iMX6R2 is a re spin of original LEC-iMX6 that complies with new SMARC 2.0 specification that adds a secondary LAN, increases LVDS bandwidth and provides optional DSI ...

By ADLINK Technology, Inc. Gold 合作伙伴

查找支持此产品的所有合作伙伴，请参阅合作伙伴市场.

支持

您需要什么帮助?

推荐社区

i.MX Processors

推荐链接

i.MX Yocto项目：常见问题解答
