Kinetis^® KV4x系列MCU是一种高性能解决方案，为电机和电源控制领域要求严格的部分应用提供优异的精度、感应和控制能力。它采用Arm^® Cortex^®-M4内核，运行频率为168MHz，带DSP和浮点单元，具有先进的高速、高精度外设，例如312皮秒高分辨率脉宽调制(PWM)，双12位模数转换器(ADC)，采样频率每秒4.1兆样本(MSPS)，共有30个PWM通道，支持多电机系统和双FlexCAN模块。采用128位宽的闪存接口，全面提高执行性能。Kinetis KV4x系列MCU由来自恩智浦及第三方资源的全面支持套件提供支持，包括参考设计、软件库和电机配置工具。

产品详情

框图

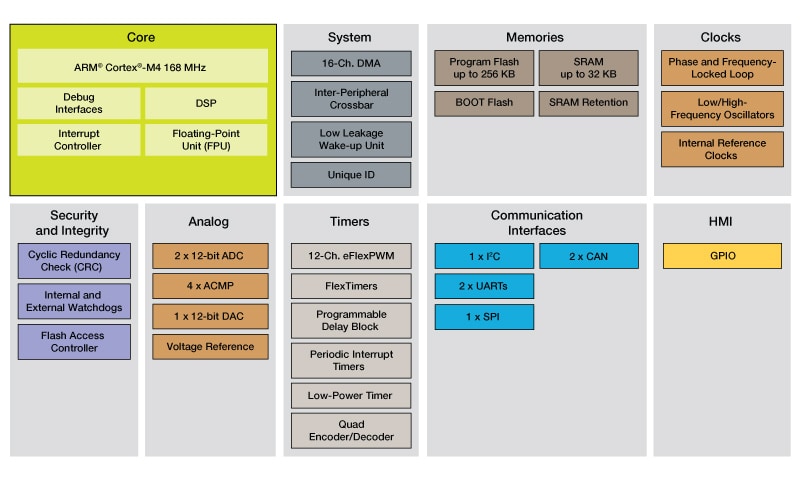

Kinetis V Series KV4x MCUs Block Diagram

Kinetis<sup>®</sup> KV4x MCU Family Block Diagram

获取框图PDF

特征

168 MHz Cortex-M4内核，带DSP和浮点运算单元 - 能够显著提升计算密集型应用的性能，例如，无传感器磁场定向控制(FOC)算法的处理
128位宽闪存与缓存连接，尽可能减少等待状态的数量，同时执行快速控制回路
两个12位、16通道ADC，带PGA - 4.1 MSPS，非常适合数字功率变换或电机控制应用
多达12通道的eFlexPWM - 高达312ps的分辨率，适用于要求严格的数字功率变换应用
两个8通道和1个双通道可编程FlexTimer - 高度准确的PWM生成，带集成功率因数校正或速度传感器解码器(增量解码器/霍尔传感器)
正交编码器/解码器
多达两个FlexCAN模块 - 高速度、高可靠性的工业通信
广泛且可扩展的产品系列，提供出色的硬件和软件兼容性 - 支持轻松迁移，以便利用Kinetis^® V系列设备更加强大的性能、存储器和功能

MCUXpresso软件与工具

Kinetis Designs - 参考设计库

该参考设计库包含采用Kinetis MCU的资源和参考设计，能够帮助您快速启动下一个嵌入式项目。

3相PMSM电机控制
3相无刷DC电机控制

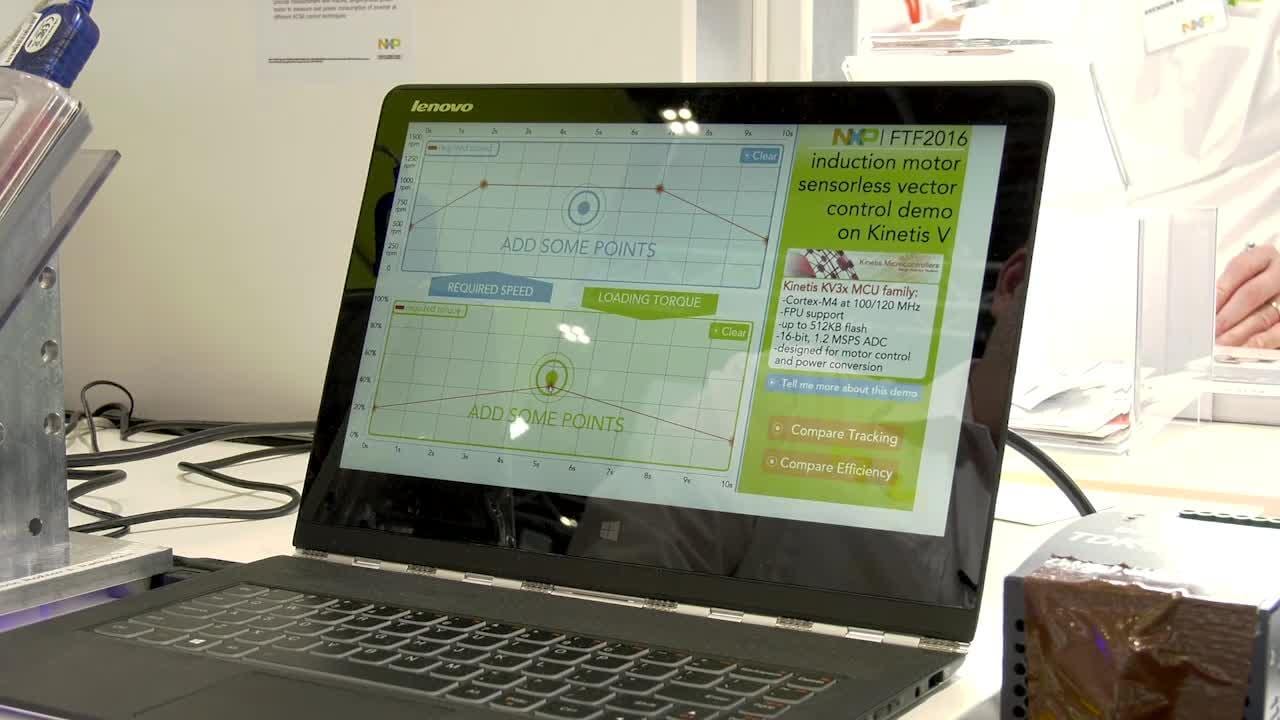

3相AC感应电机控制

设计资源

设计文件

5 设计文件

^模型
BSDL Model Files for KV4x 100QFP

BSDL版本 0Oct 27, 2021 10:43:00KV4X_100QFP_BSDL

下载
^模型
IBIS Model file for KV4X 100QFP

IBS版本 0Oct 20, 2021 16:19:00KV4X_100QFP

下载
^模型
BSDL Model Files for KV4x 64QFP

BSDL版本 0Oct 27, 2021 10:43:00KV4X_100QFP_BSDL

下载
^模型
IBIS Model file for KV4X 64QFP

IBS版本 0Oct 20, 2021 16:19:00KV4X_64QFP

下载
^{符号和尺寸}
Kinetis^® Symbols, Footprints and Models

INTERNAL版本 1.0Nov 27, 2017 11:23:001 KBCAD-SYMBOLFOOTPRINTS

下载

硬件

1-5 / 17 硬件

^{评估/开发板与系统}
高压开发平台亮点

HVP-MC3PH
^{评估/开发板与系统}
低电压、3相电机控制塔式系统模块亮点

TWR-MC-LV3PH
^{评估/开发板与系统}

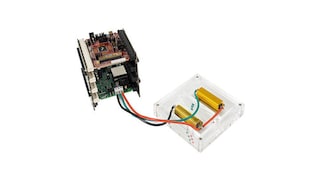

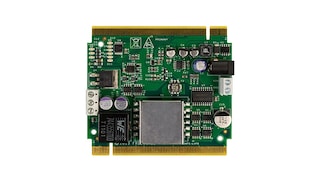

Low-Voltage, Full-Bridge DC-DC Switch Mode Power Supply Tower System Module亮点

TWR-SMPS-LVFB
其他可用硬件. 查看我们的精选合作伙伴解决方案.
^{评估/开发板与系统}
Kinetis KV4x系列塔式系统模块亮点

TWR-KV46F150M
^{仿真器、探测器和编程器}
Universal Multilink开发接口

UMultilink
^{仿真器、探测器和编程器}
JTAG/SWD硬件调试器

MCU-LINK
^{仿真器、探测器和编程器}
LPC-Link2

OM13054
^{仿真器、探测器和编程器}
Universal Multilink FX高速开发接口

U-MULTILINK-FX
^{仿真器、探测器和编程器}
MCU-Link Pro硬件调试器

MCU-LINK-PRO
^{评估/开发板与系统}
Digital LLC converter development board

HVP-LLC
^{评估/开发板与系统}
NXP^® Freedom Development Platform for Low-Voltage, 3-Phase BLDC Motor Control

FRDM-MC-LVBLDC
^{完整解决方案}
K60 3相PMSM无传感器矢量控制参考设计

RD3PHASEPMSMSVCK60
^参考设计

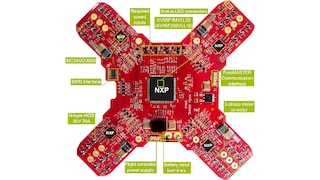

KV系列四核电机控制

KINETIS-DRONE-REFERENCE-DESIGN
^参考设计
KV Series Full-Bridge DC-DC Switch Mode Power Supply (SMPS)

FULL-BRIDGE-SMPS
^参考设计

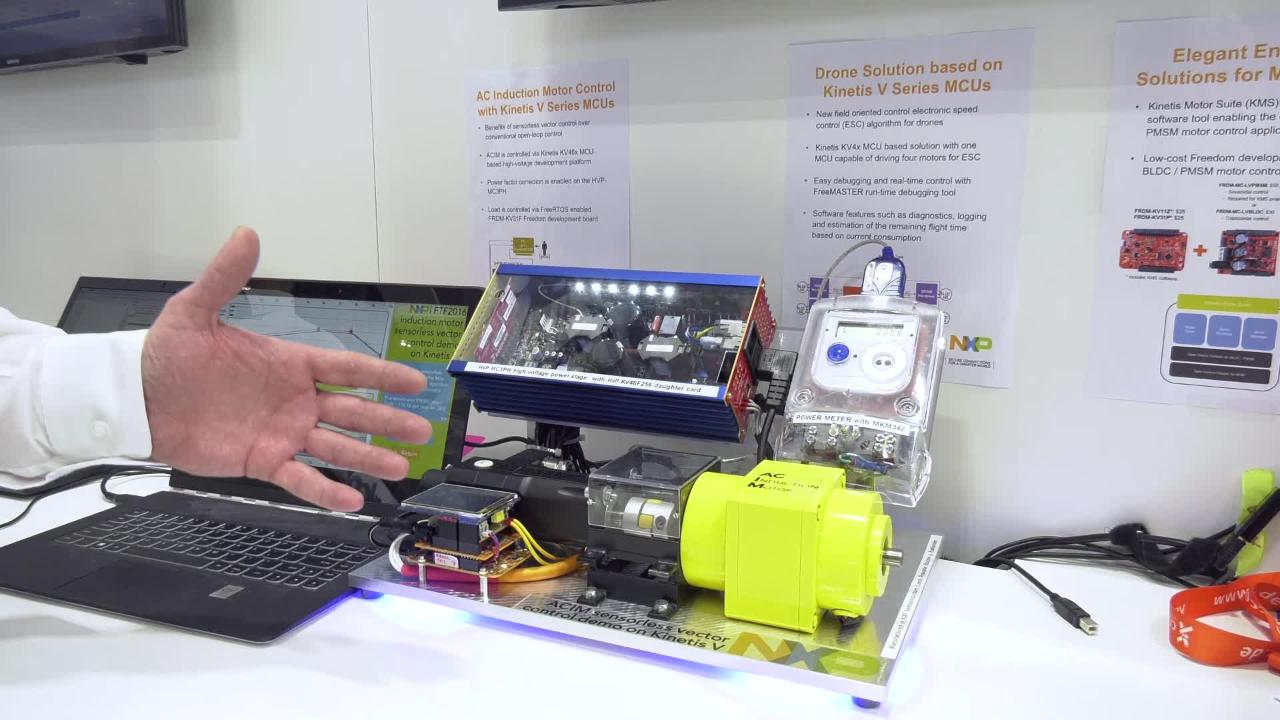

KV Series 3-Phase AC Induction Motor Control

THREE-PHASE-AC-INDUCTION
^参考设计
KV46 Digital LLC Converter Reference Design

LLC-RESONANT-CONVERTER
^参考设计
3相PMSM控制

PERMANENT-MAGNET-MOTOR

1-5 / 28 硬件

^{评估/开发板与系统}

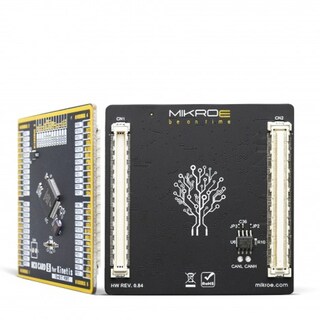

MCU CARD 5 for Kinetis MKV42F64VLH16
