KV46 Digital LLC Converter Reference Design

LLC-RESONANT-CONVERTER

滚动图片以放大

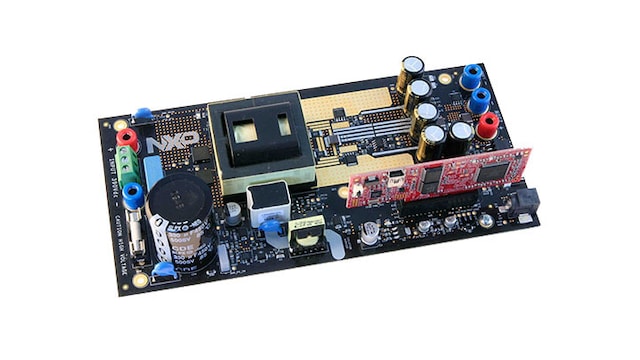

This provides a fully digital design of an LLC resonant converter based on HVP-LLC. The HVP-LLC development board is an integral part of NXP® high-voltage platform.

In combination with HVP-KV46F150 controller card, it provides a ready-made software development platform for 250 watt power supply with input voltage 390 V DC and 12 V/21 A output.

框图

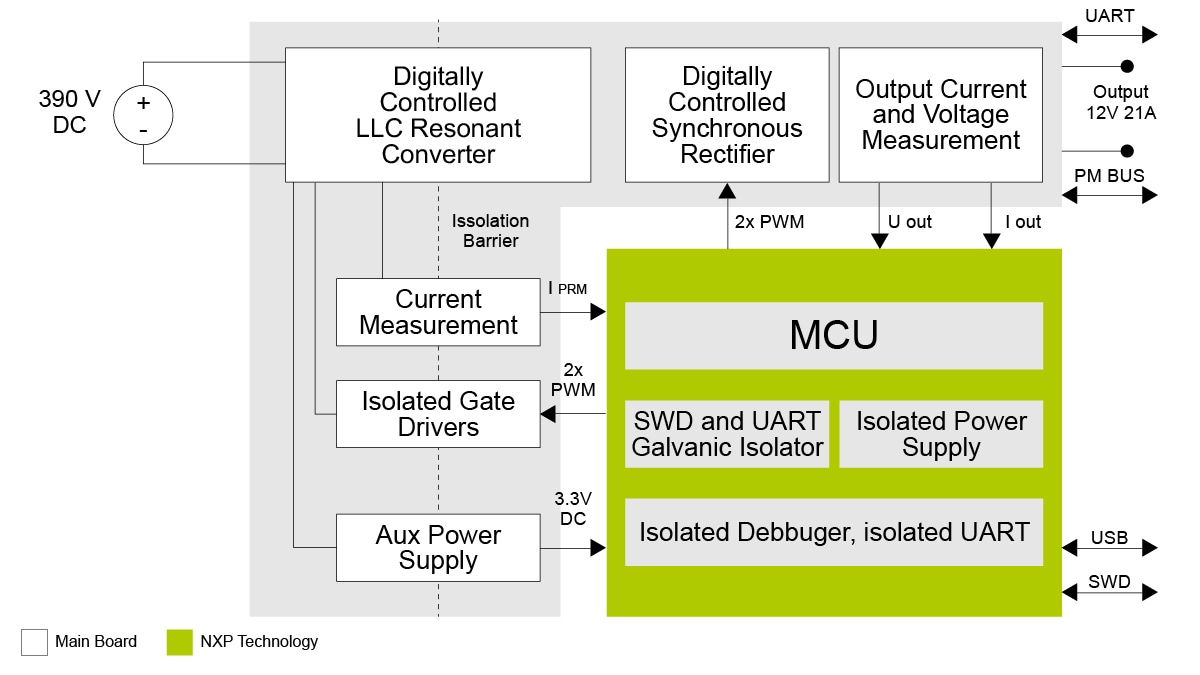

Digital LLC Converter Block Diagram

Digital LLC Converter - Block Diagram

支持的器件

处理器和微控制器

KV系列Cortex-M4/M0+/M7

  • KV4x: Kinetis KV4x-168 MHz，高性能电机 / 功率变换微控制器(MCU)，基于Arm® Cortex®-M4内核

Features

Security

  • Input overcurrent protection
  • Output overcurrent protection

Interface

  • Serial interface for communication

Sensor

  • Analog sensing (resonant tank current, output voltage, output current)

Other

  • Synchronous rectifier
  • GaN power FETs

购买选项

HVP-KV46F150M-Image

点击展开

HVP-KV46F150M
正常供应

High-Voltage Development Platform Controller Card, Kinetis V MCU, KV46, 150 MHz.

  • 扩展板: Yes
$57.50 USD
现货 :1

正常情况下 1-2个工作日内发货

加入购物车
从分销商处购买
