EdgeLock® Assurance
The i.MX 8M Plus applications processor, part of the EdgeLock Assurance program, is designed to meet industry standards and follows NXP's security-by-design approach.
i.MX 8M Plus – Arm® Cortex®-A53, Machine Learning, Vision, Multimedia and Industrial IoT
The i.MX 8M Plus family focuses on machine learning and vision, advanced multimedia, and industrial automation with high reliability. It is built to meet the needs of Smart Home, Building, City and Industry 4.0 applications.
- Powerful quad or dual Arm® Cortex®-A53 processor with a Neural Processing Unit (NPU) operating at up to 2.3 TOPS.
- Dual image signal processors (ISP) and two camera inputs for an effective advanced vision system.
- The multimedia capabilities include video encode (including h.265) and decode, 3D/2D graphic acceleration, and multiple audio and voice functionalities.
- Real-time control with Cortex-M7. Robust control networks supported by dual CAN FD and dual Gigabit Ethernet with Time Sensitive Networking (TSN).
- High industrial reliability with DRAM inline ECC.
i.MX 8 applications processors are part of NXP's EdgeVerse™ edge computing platform.
产品详情
Features
Multicore Processing and Memory Interfaces
- 4x or 2x Cortex-A53 up to 1.8 GHz
- Cortex-M7 up to 800 MHz
- 32-bit DDR4 and LPDDR4 up to 4.0GT/s
Machine Learning and Vision
- Neural Processing Unit (NPU): Delivers up to 2.3 TOPS
- Dual Image Signal Processor (ISPs): Resolution up to 12MP and input rate up to 375MPixels/s
- Camera Interface: 2x MIPI CSI
Advanced Multimedia and Display
- Video Decode: 1080p60, h.265/4, VP9, VP8
- Video Encode: 1080p60, h.265/4
- GPU: 16 GFLOPS (high-precision) OpenGL® ES 3.1/3.0, Vulkan®, Open CL™ 1.2 FP, OpenVG™ 1.1
- Audio: 18x I2S TDM, DSD512, S/PDIF Tx + Rx, 8-ch PDM Mic input, eARC, ASRC
- Low power voice accelerator: Cadence® Tensilica® HiFi 4 DSP @ 800 MHz
- Display: MIPI-DSI, HDMI 2.0a Tx, LVDS (4/8-lane) Tx
High Speed Interfaces
- 2x Gigabit Ethernet with AVB, IEEE 1588, EEE and 1x w/ TSN
- 2x USB 3.0/2.0 Dual-Role with PHY type C
- PCIe Gen 3
- 3x SDIO 3.0
- 2x CAN FD
Industrial Reliability
- DDR Inline ECC for LPDDR4 and DDR4
- 14 FinFET process with low soft error rate (SER)
Operating Systems
- Linux®, Android®, Windows 10 IoT Enterprise, FreeRTOS
Package and Temperature
- FCBGA, 15x15 0.5 mm pitch
- Consumer (0 °C to 95 °C Tj)
- Industrial (-40 °C to 105 °C Tj)
Reduce Total Cost of Ownership by getting SoC Platform Development Assistance with NXP Professional Support
Are you working with NXP processors or microcontrollers?
Don’t spend your money solving issues that NXP has already solved.
With NXP’s Premium Support, you’re getting expert help and a contractually obligated agreement for high-quality technical assistance. Enjoy guaranteed response times and direct access to NXP engineers who have likely already solved the issues you are facing.
Benefits include:- Fast, personalized responses
- Single point of contact
- Eliminate spending time/energy/money on “solved problems”
- Direct support from NXP engineers with rapid routing to subject matter experts if required
- Guaranteed response time – with easy and effective escalation path if needed.
- Peace of mind with contract-backed technical support
- Tell your customers that you have a support agreement with NXP
Click here to discover how Premium Support can optimize your next design.
Product Programs
Spotlight on Mobile Robotics

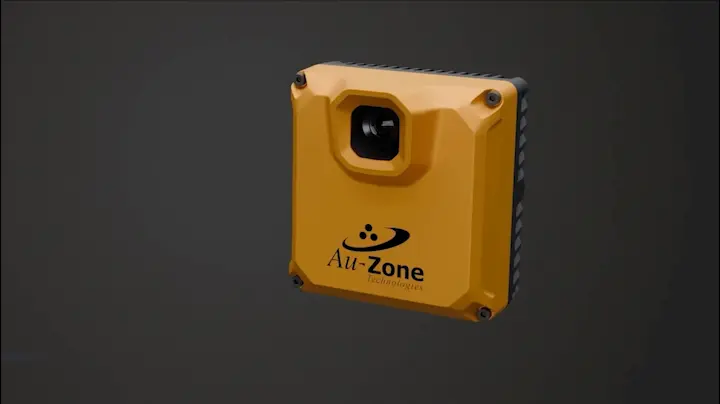

Enabling Autonomous Machines: Advancing 3D Sensor Fusion with Au-Zone
Together with Au-Zone technologies, we developed a 3D perception system using the i.MX 8M Plus for AI inference, vison-based classification, segmentation and scene understanding.
相关产品
i.MX 8M Mini/Nano/Plus的电源管理IC(PMIC)
i.MX 8M Nano系列 - Arm® Cortex®-A53、Cortex-M7
i.MX 8M系列 - Arm® Cortex®-A53、Cortex-M4、音频、语音、视频
i.MX 8M Mini - Arm® Cortex®-A53, Cortex-M4, 音频, 语音, 视频
购买/参数
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
文档
快速参考恩智浦 文档类别
1-10 / 72 文件
紧凑列表
勘误表 (1)
-
i.MX 8M Plus Mask Set Errata for Mask 1P33A[IMX8MP_1P33A]
参考手册 (2)
应用笔记 (48)
-
i.MX Camera Software Pack[AN14376]
-
恩智浦i.MX 6/7/8M系列应用处理器的安全调试[AN4686]
-
i.MX的Voice Seeker和VoiceSpot[AN14276]
-

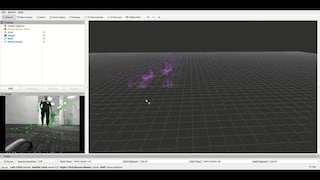

i.MX 8MP AI Robot的vSLAM自动化导航定位系统[AN14240]
-
i.MX 8MP和i.MX 93处理器的以太网控制器配置 第1[AN14149]
-
8MP ISP新摄像头移植[AN13713]
-
i.MX ROMs Log Events[AN12853]
-
使用i.MX 8M Plus进行TSN 802.1Qbv演示[AN13995]
-
i.MX 8M Plus Nominal Drive Mode[AN13747]
-
i.MX 8M Series MIPI Capture System[AN13857]
-
8MP ISP OS08A20传感器[AN13712]
-
使用ONNX，将PyTorch模型部署到恩智浦支持的推理引擎[AN13769]
-
i.MX 8M Plus机器学习推理加速网关[AN13650]
-
i.MX 的生产保护功能[AN13222]
-
i.MX 8系列上的ECC[AN13566]
-
Machine Inspection Demo[AN13588]
-
i.MX 8/RT MIPI DSI/CSI-2[AN13573]
-
i.MX 8M Plus Product Lifetime Usage[AN13214]
-
iMX8MP PCIe Bandwith Analysis[AN13164]
-
i.MX 8M Plus NPU Warmup Time[AN12964]
应用笔记软件 (5)
-
Application note software for AN13991[AN13991SW]
-
Application note software for AN13336[AN13336SW]
-
Application note software for AN13210[AN13210SW]
-
Application note software for AN12964[AN12964SW]
手册 (1)
-
i.MX 8 Series Applications Processors Brochure[IMX8SERAPPBR]
数据手册 (2)
用户指南 (6)
-
i.MX Audio Board Hardware User Guide[IMXABHUG]
-
i.MX 8M Plus ISP Independent Sensor Interface API Documentation[IMX8MPISPISIAPI]
-
i.MX 8M Plus ISP Using V4L2 Interface User Guide[IMX8MPISPUV4L2IUG]
-
i.MX 8M Plus Camera Sensor Porting User Guide[IMX8MPCSPUG]
-
i.MX 8M Plus 硬件开发人员指南[IMX8MPHDG]
-
i.MX 8M Plus LPDDR4评估套件硬件用户指南[IMX8MPEVKHUG]
白皮书 (4)
-
Secure by Design[SECURE-DESIGN-WP]
-
Advantech and NXP: Pioneering Secure and Scalable Embedded Solutions[WHITEPAPER_OSM_NXP_EN]
-
NXP Brings AI to the Edge with i.MX 8M Plus - White Paper[AI-TO-THE-EDGE-WP]
简介 (3)
-
PMIC PCA9450C for i.MX 8M PLUS[IMXPCA9450CA4FS]
-
i.MX 8M PLUS系列应用处理器[IMX8MPLUSFS]
设计资源
硬件
快速参考恩智浦
板类型.
1-5 / 13 硬件
-

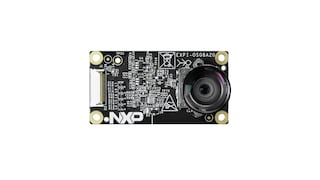

评估板和开发板i.MX 8M Plus应用处理器的4K MIPI摄像头亮点
-
