S12GC汽车和工业微控制器(MCU)

S12GC
正常供应

MC9S12GC128 MCU是一款16位器件，由顶级片上外设组成，适用于汽车设计。

此外，基于片上带隙的稳压器(Vreg)将2.97V到5.5V的外部工作电压转换成相应的内部数字电源电压(VDD)。

MC9S12GC128具有完整的16位数据吞吐通路。

由于包含PLL电路，因此可以根据运行要求调整功耗和性能。

80引脚封装版本的产品可提供总计50个I/O端口引脚和两个输入引脚。提供12个I/O端口位，具有从停止或等待模式唤醒的功能

产品详情

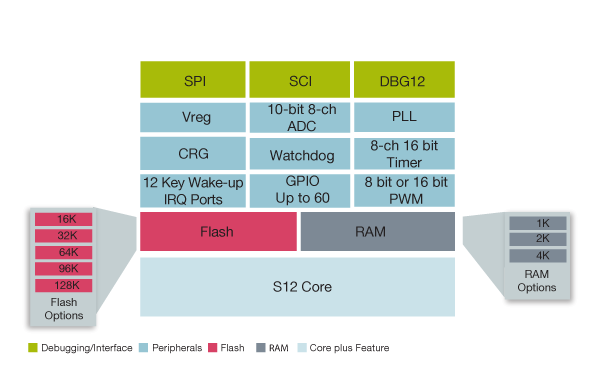

框图

S12GC Microcontroller Block Diagram

S12GC Microcontroller Block Diagram
获取框图PDF

特征

  • 16位HCS12 CPU
  • 异步串行通信接口(SCI)
  • 串行外设接口(SPI)
  • 多路复用外部总线
  • 128 KB闪存EEPROM
  • 4 KB RAM
  • 8通道ADC，10位分辨率
  • 8通道16位TIM
  • 6通道8位PWM

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
