产品详情

框图

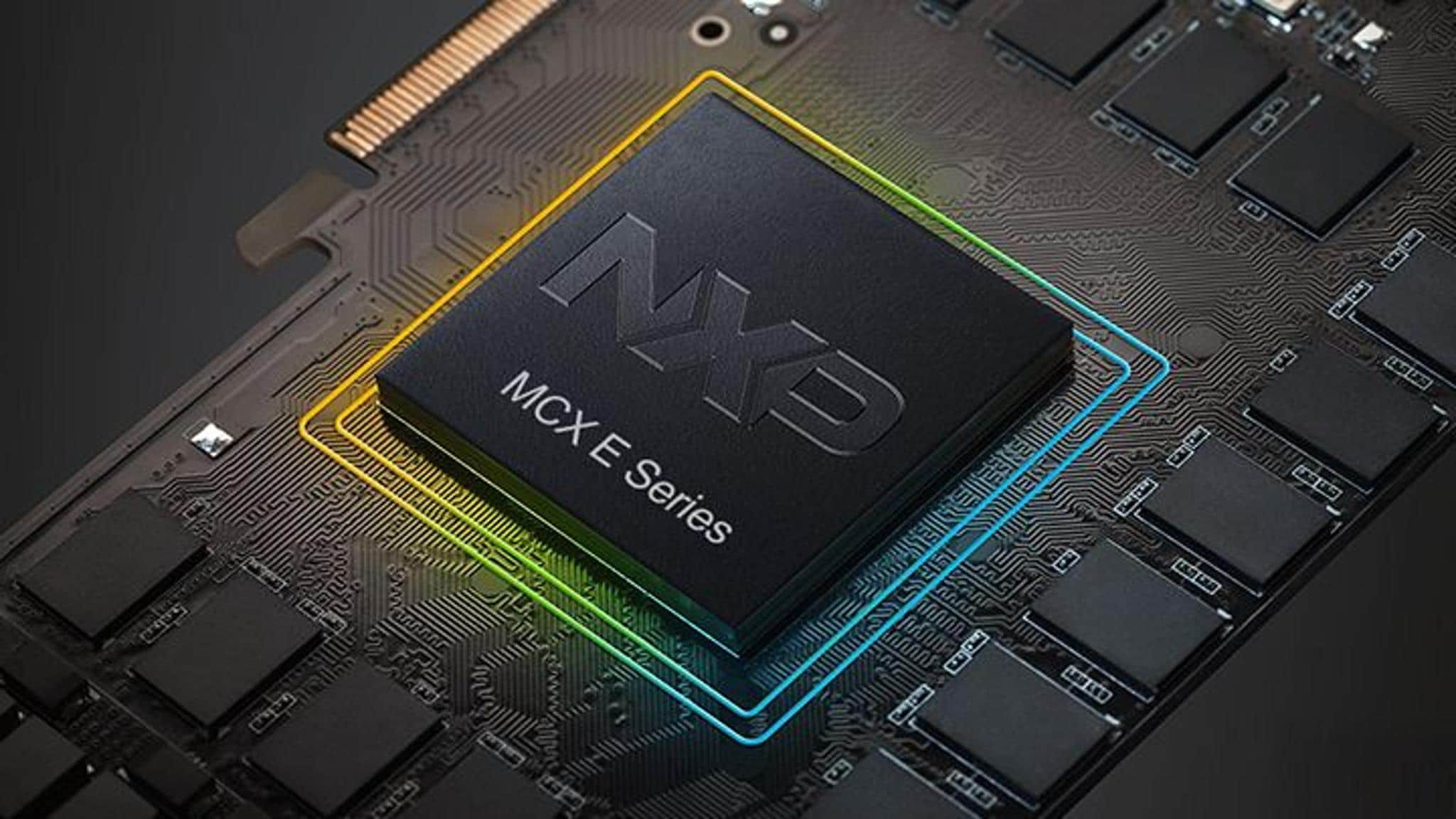

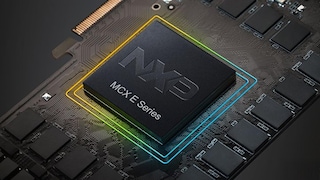

MCX E31 MCU

获取框图PDF

特性

工作特性

电压范围：2.7V至5.5V
环境温度范围：所有电源模式下为-40°C至135°C

内核平台

Arm™ Cortex-M7内核，32位CPU：

M7支持160MHz的频率
基于Armv7E-M的Arm内核，带有DSP扩展和Thumb®-2 ISA
可配置的嵌套矢量中断控制器(NVIC)
单精度浮点运算单元(FPU)

存储器与存储器接口

高达4MB Program闪存，带ECC
高达128kB的灵活的Program或Data闪存
512kB带ECC的SRAM，其中包括96KB的TCM RAM，可确保在执行快速控制环路时实现较高的CPU性能和低延迟。
每个内核均配备数据缓存和指令缓存，以最大限度地降低存储器访问延迟对性能的影响。
支持QuadSPI

混合信号模拟

多达3个12位模数转换器(ADC)，每个模块支持24个模拟输入通道
一个温度传感器(TempSense)
3个模拟比较器(CMP)，每个比较器都有1个内置8位DAC。

人机接口(HMI)

多达145个GPIO引脚
不可屏蔽中断(NMI)
59个引脚，具有唤醒功能
32个引脚，支持中断

电源管理

低功耗Arm Cortex-M7内核，具有出色的能效表现，同时兼具高性能特点
电源管理控制器(PMC)，具有简化模式管理功能(RUN和STANDBY)
支持针对外设的时钟门控功能。只有特定的外设可在低功耗模式下运行

通信接口

16个串行通信接口(LPUART)模块，支持LIN、UART和DMA
6个低功耗串行外设接口(LPSPI)模块，支持DMA
两个低功耗集成电路(LPI2C)模块，支持DMA
6个FlexCAN模块(可选支持CAN FD)
用于灵活和高性能串行接口的FlexIO模块
1个以太网模块
两个同步音频接口(SAI)模块

可靠性、功能安全和信息安全

带有EdgeLock®安全区域的平台安全功能，高级配置文件
两个内部软件看门狗定时器(SWT)
所有存储器都有纠错码(ECC)
数据通路上的错误检测码(EDC)
循环冗余校验(CRC)模块
120位唯一识别(ID)号
扩展跨域域控制器(XRDC)，为中央内核访问权限提供保护
虚拟化封装器(VIRT_WRAPPER)，提供I/O保护

封装

LQFP48、HDQFP100、HDQFP172

MCUXpresso Developer Experience (MCUXpresso开发人员体验)

MCUXpresso生态合作体系支持
选择IDE选项
引脚、时钟、外设、安全和存储器配置工具
安全编程和配置工具
软件开发套件(SDK)
支持Zephyr实时操作系统(RTOS)

购买/参数

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

文档

快速参考恩智浦文档类别

1-10 / 11 文件

紧凑列表

MCXE315_MCXE316_0P98C Mask Set Errata[MCXE315_MCXE316_0P98C]

PDFAug 20, 2025版本更新 1.1
MCXE317_0P09C Mask Set Errata[MCXE317_0P09C]

PDFAug 20, 2025版本更新 1.1
MCXE31B_1P55A Mask Set Errata[MCXE31B_1P55A]

PDFAug 20, 2025版本更新 1.2

MCXE31x Reference Manual[MCXE31XRM]

PDFAug 5, 2025版本更新 2.0

MCX E31x Estimated Power-on Hours[AN14886]

HTML | PDFNov 25, 2025版本更新 1.0
S32K31x to MCX E31x Migration Guidelines[AN14792]

HTML | PDFNov 7, 2025版本更新 1.1
MCU8080 LCD Interface Implemented by FlexIO on MCXE31B[AN14776]

HTML | PDFSep 22, 2025版本更新 1.0
3-Phase PMSM Field-Oriented Control Solution using MCX E31B[AN14797]

HTML | PDFSep 18, 2025版本更新 1.0

MCXE315/316/317/31B Data Sheet[MCXEP172M160FB0]

PDFAug 5, 2025版本更新 2.0

MCX E31x Hardware Design Guide[UG10327]

HTML | PDFOct 9, 2025版本更新 1.0

MCX E31 Microcontrollers Factsheet[MCXE31FS]

PDFOct 23, 2025版本更新 1.0

设计资源

设计文件

收到完整的详细信息。 请参阅产品足迹及更多信息电子CAD文件.

硬件

快速参考恩智浦板类型.

1 硬件产品

评估板和开发板
MCX E31 MCU FRDM开发板

FRDM-MCXE31B
