使用ETPL的800V电池管理系统(BMS)参考设计

RD-HVBMSCT800BUN

滚动图片以放大

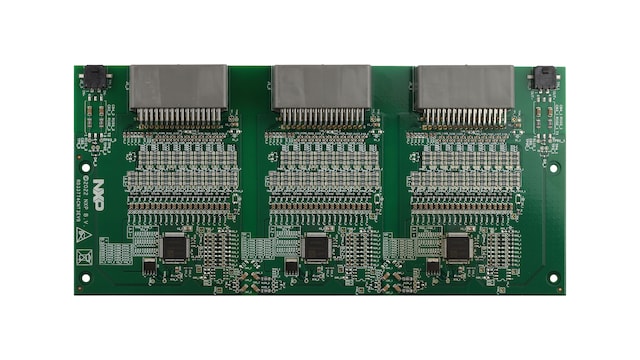

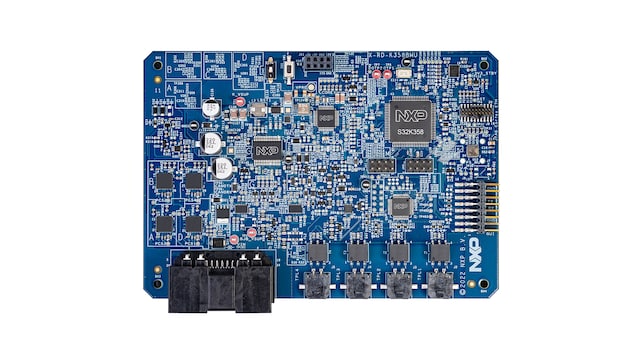

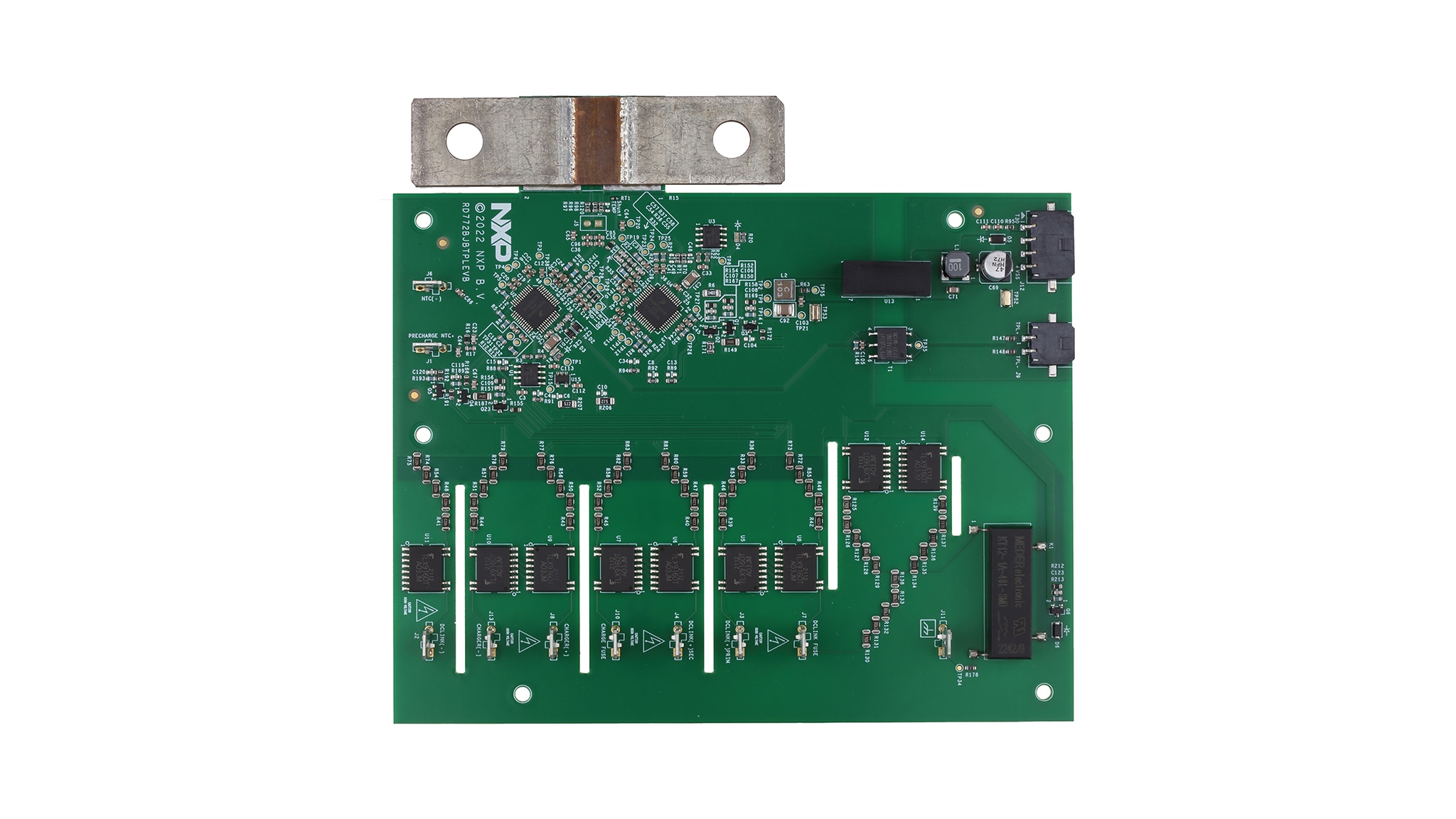

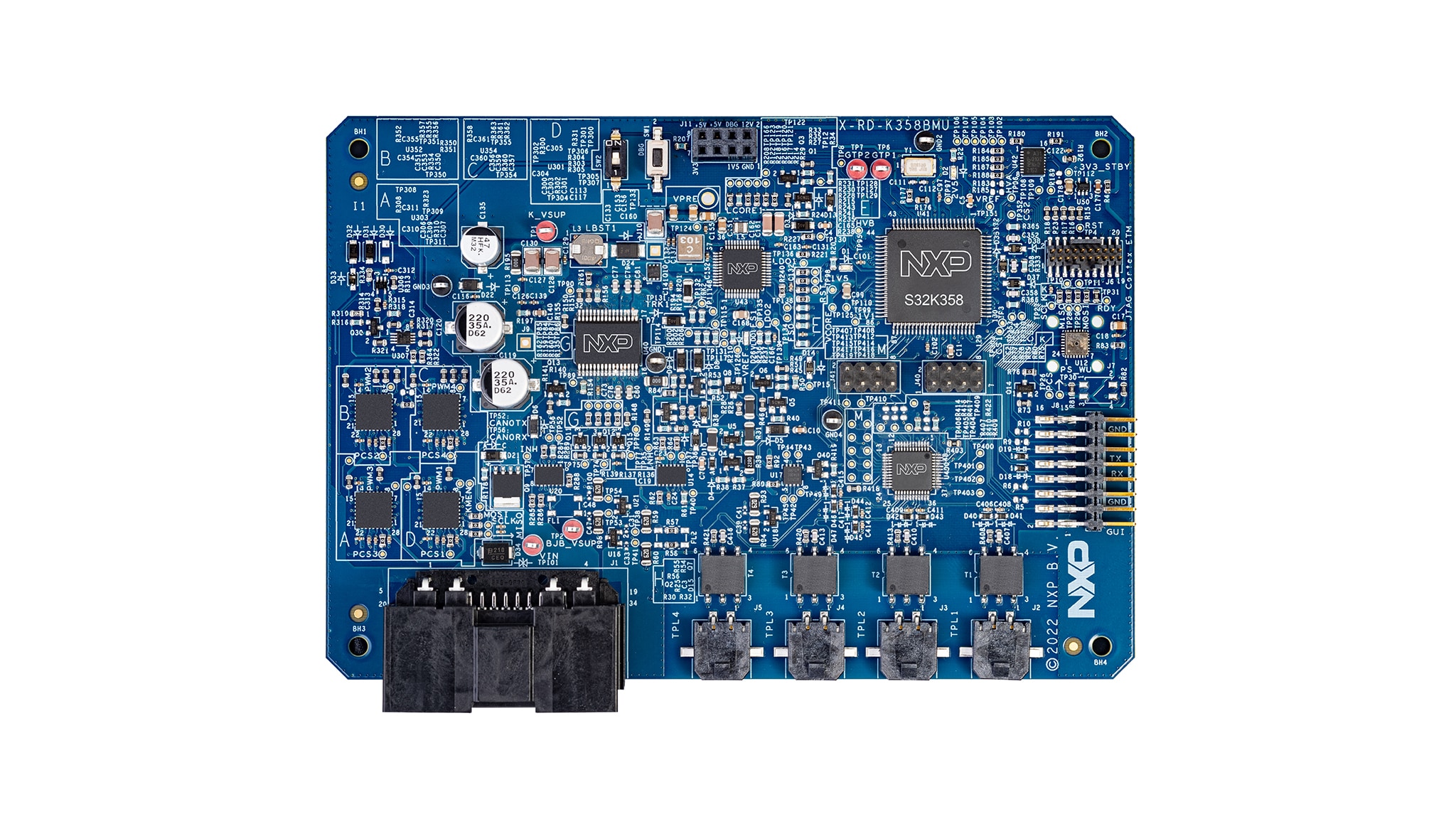

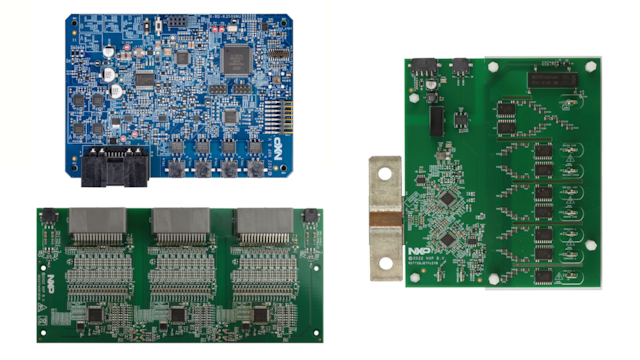

RD-HVBMSCT800BUN是800V高压电池管理系统(HVBMS)的参考设计套件。它提供了完整的硬件解决方案，包括RD-K358BMU电池管理单元(BMU)、RD33774CNT3EVB电芯监测单元(CMU)和RD772BJBTPL8EVB电池接线盒(BJB)、软件驱动程序和可扩展的功能安全文档集。

汽车制造商、供应商和软件生态体系合作伙伴可以使用此包来开发、测试和展示新的电池架构和创新。

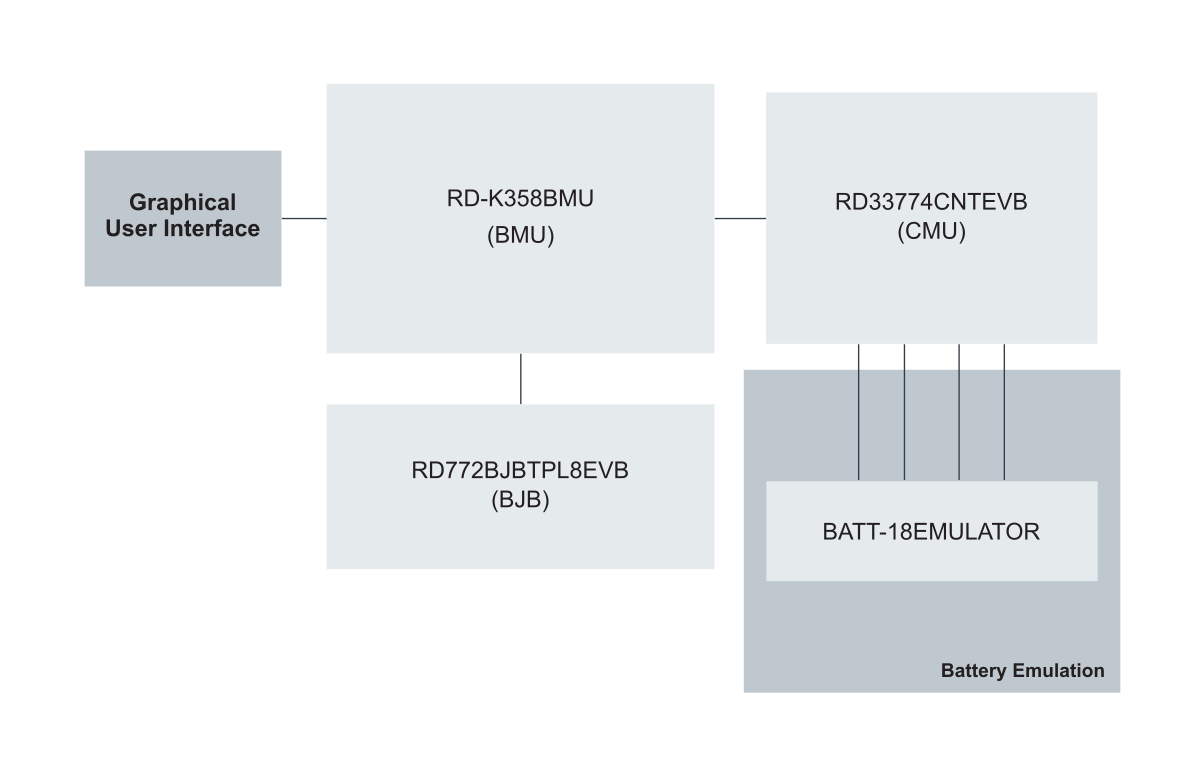

框图

采用ETPL的HVBMS参考设计包，适用于800V应用

HVBMS Reference Design Bundle Using ETPL for 800 V Applications
获取框图PDF

支持的器件

传感器

电池压力监测传感器(BPMS)

  • NBP8-9x: 高度集成的电池压力监测传感器

电源管理

电芯控制器

  • MC33772C: 6通道锂离子电池控制器IC
  • MC33774: 18通道锂离子电池控制器IC ASIL D

电池通信IC

  • MC33665A: 通用BMS通信TPL收发器和CAN FD网关

高边开关

  • MC12XS6: 外部汽车照明多通道eXtreme开关

安全SBC

  • FS26: 功能安全系统基础芯片，低功耗，面向ASIL D系统

BLDC，H桥，步进电机

  • HB2000: SPI可编程10 A H桥有刷直流电机驱动器

处理器和微控制器

S32K汽车通用MCU

  • S32K3: S32K3汽车通用微控制器

接口

3.3V/5V IO CAN收发器

  • TJA1057: High-Speed CAN Transceiver - Mantis Family

具有灵活数据传输速率的CAN

  • TJA144x: 汽车CAN FD收发器系列

CAN局部联网

  • TJA1145A: 局部联网的高速CAN收发器, CAN FD数据传输速率高达5 Mbit/s

模拟及混合信号

实时时钟

  • PCA2131: 面向汽车应用的纳米功率高精度实时时钟，带集成石英晶体

特性

可扩展性

  • 适用于各种应用的高压BMS芯片组解决方案，可降低开发成本并加快上市进程。

安全

  • 较高系统安全级别，确保电池始终正常运行，保护乘客。

精确测量

  • 精确和同步测量能够充分利用电池的潜力，从而最大限度地提高续航里程。

使能工具

  • 对于使能套件中包含的每个板，可从恩智浦网站下载硬件原理图、PCB布板和Gerber文件(需要签署保密协议)。
  • 软件开发套件

购买选项

RD-HVBMSCT800BUN-Image

点击展开

  • $2299.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 10
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
BATT-TPLCABLE20-Image

点击展开

  • BATT-TPLCABLE20
    正常供应

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

  • $14.38 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 20
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
BATT-TPLCABLE50-Image

点击展开

  • BATT-TPLCABLE50
    正常供应

  • Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

  • $14.38 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 20
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
POLYBNDLSTRV1-Image

点击展开

  • POLYBNDLSTRV1
    正常供应

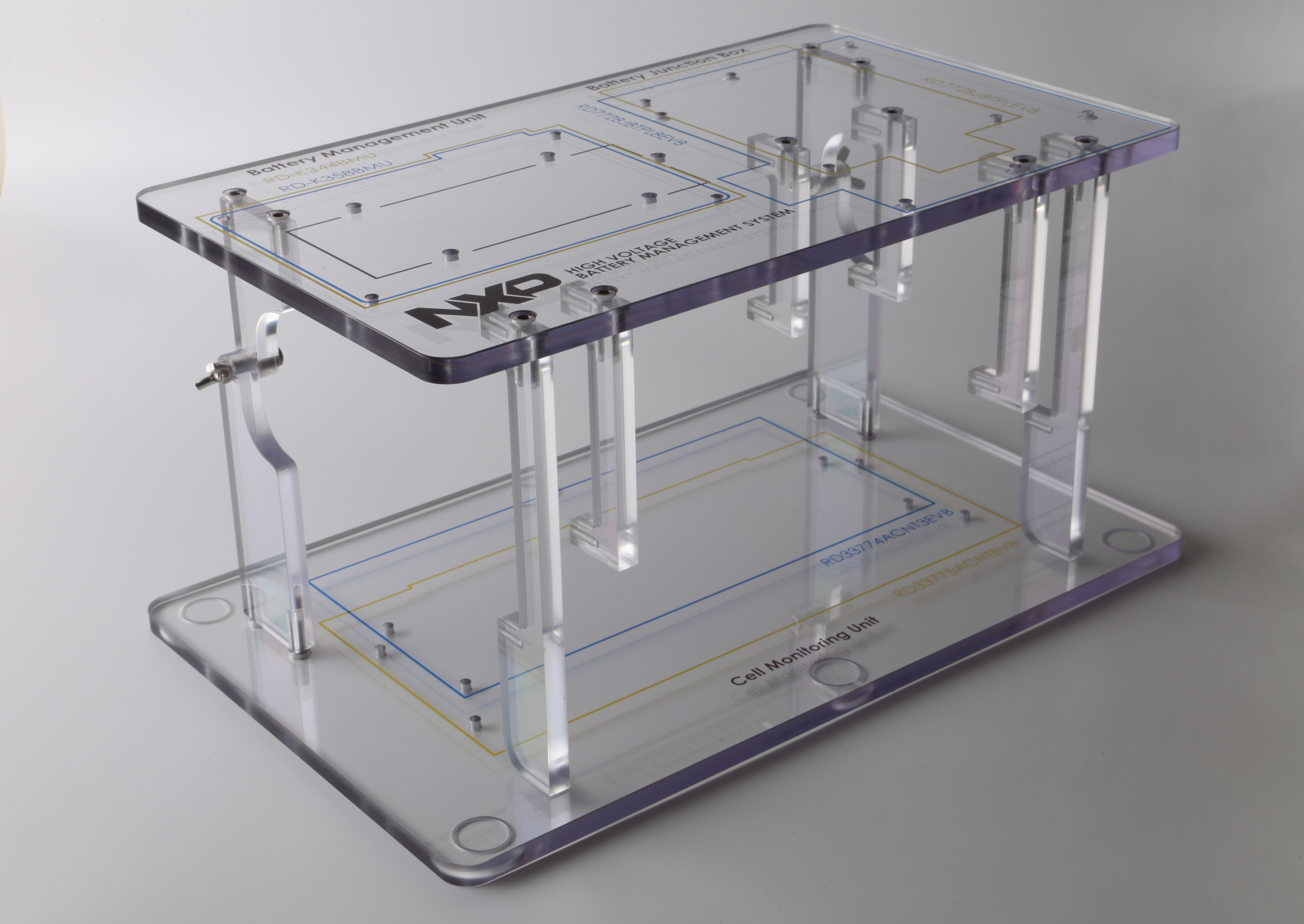

  • Polycarbonate structure to mount the RD-HVBMSCT800BUN or RD-HVBMSCTBUN.

  • 套件包含：

    • 聚碳酸酯结构
  • $330.63 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 9
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买

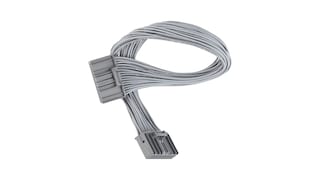

BATT-18CTCABLE30-Image

点击展开

  • $25.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 20
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
