SPI2TPL Evaluation Board for BMA6X02 with SPI interface and TPL Communication

KIT6X02AS2T1 全新
试生产
  • 本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系恩智浦 支持服务或恩智浦当地销售人员。

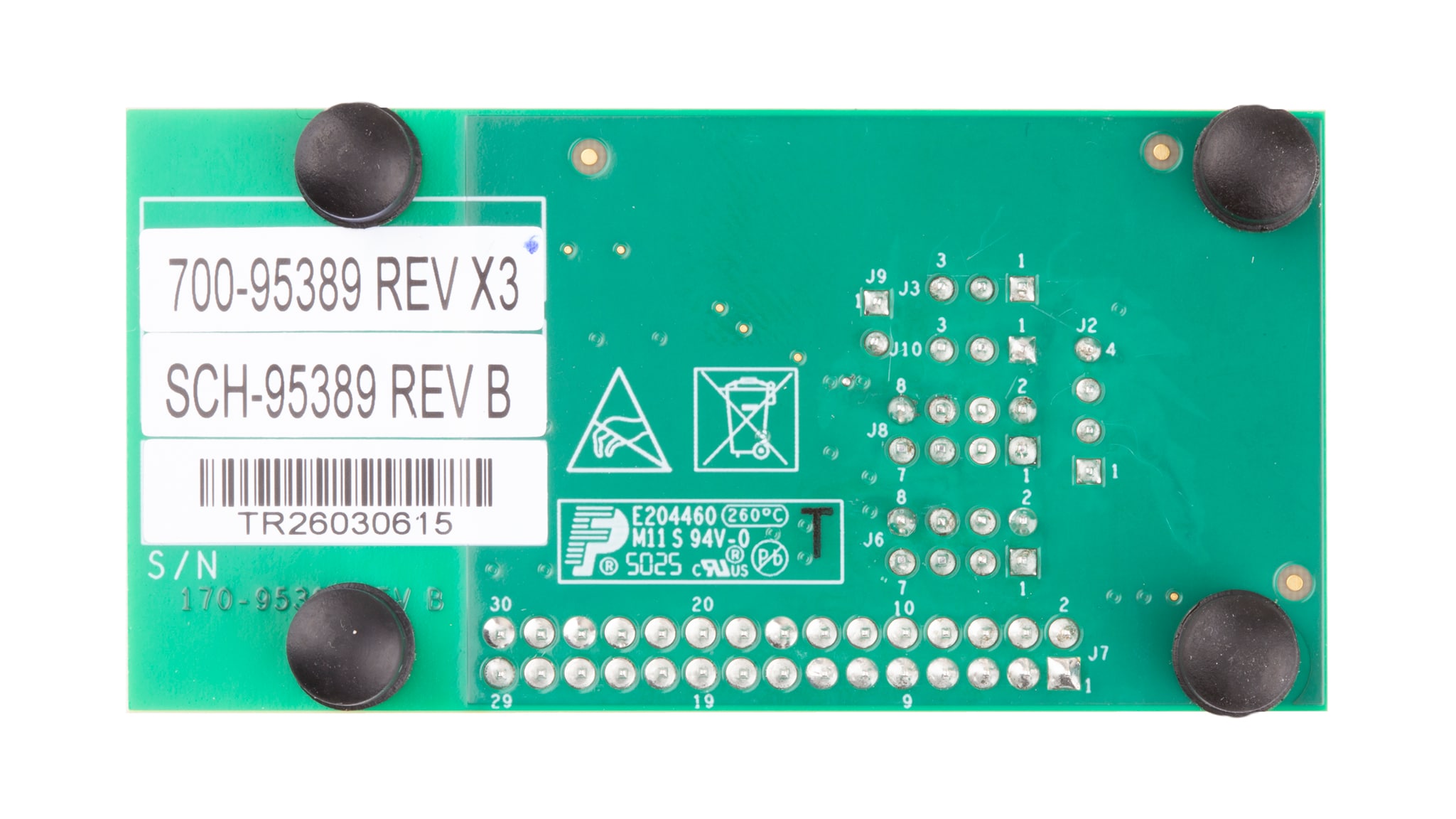

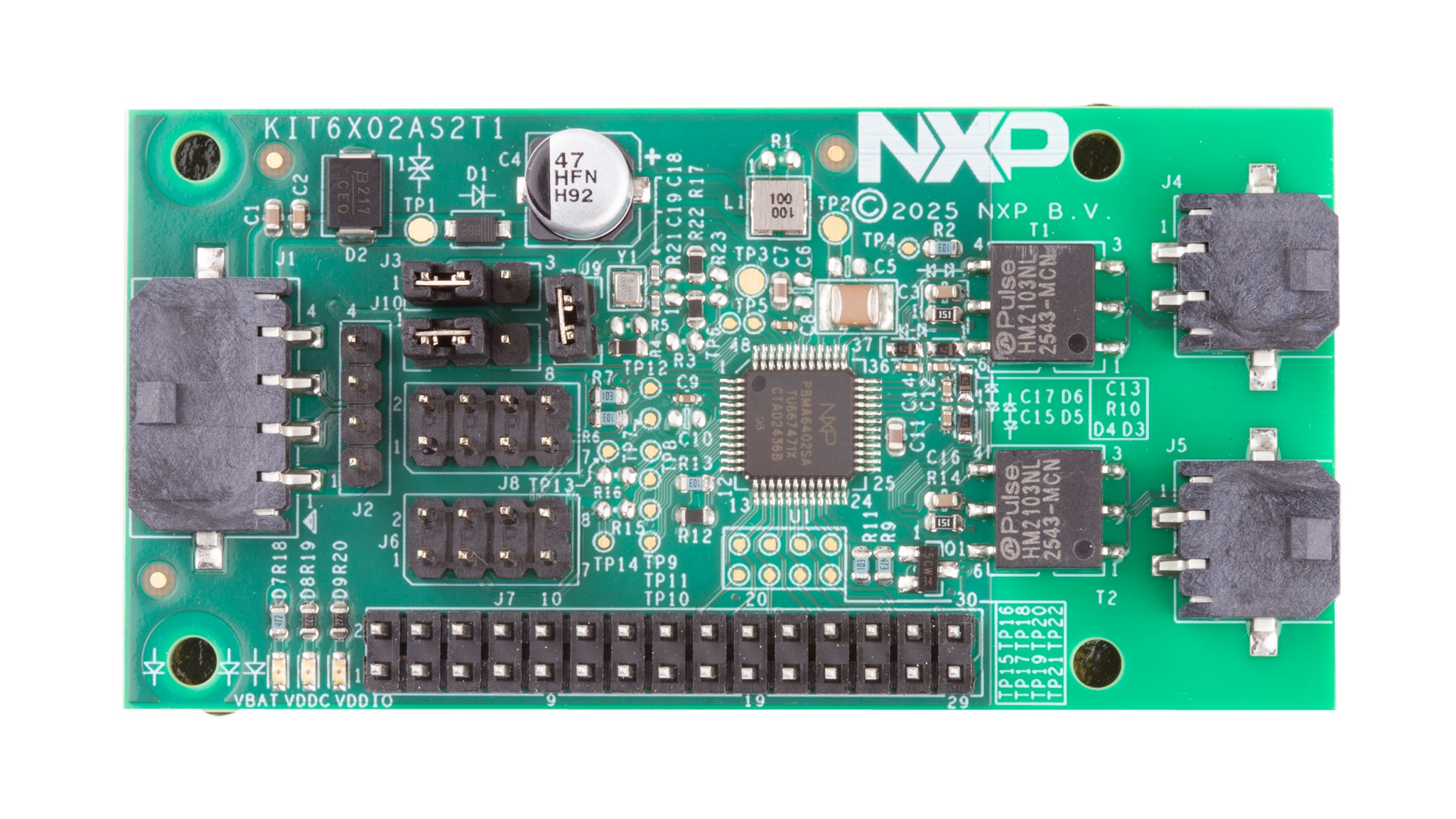

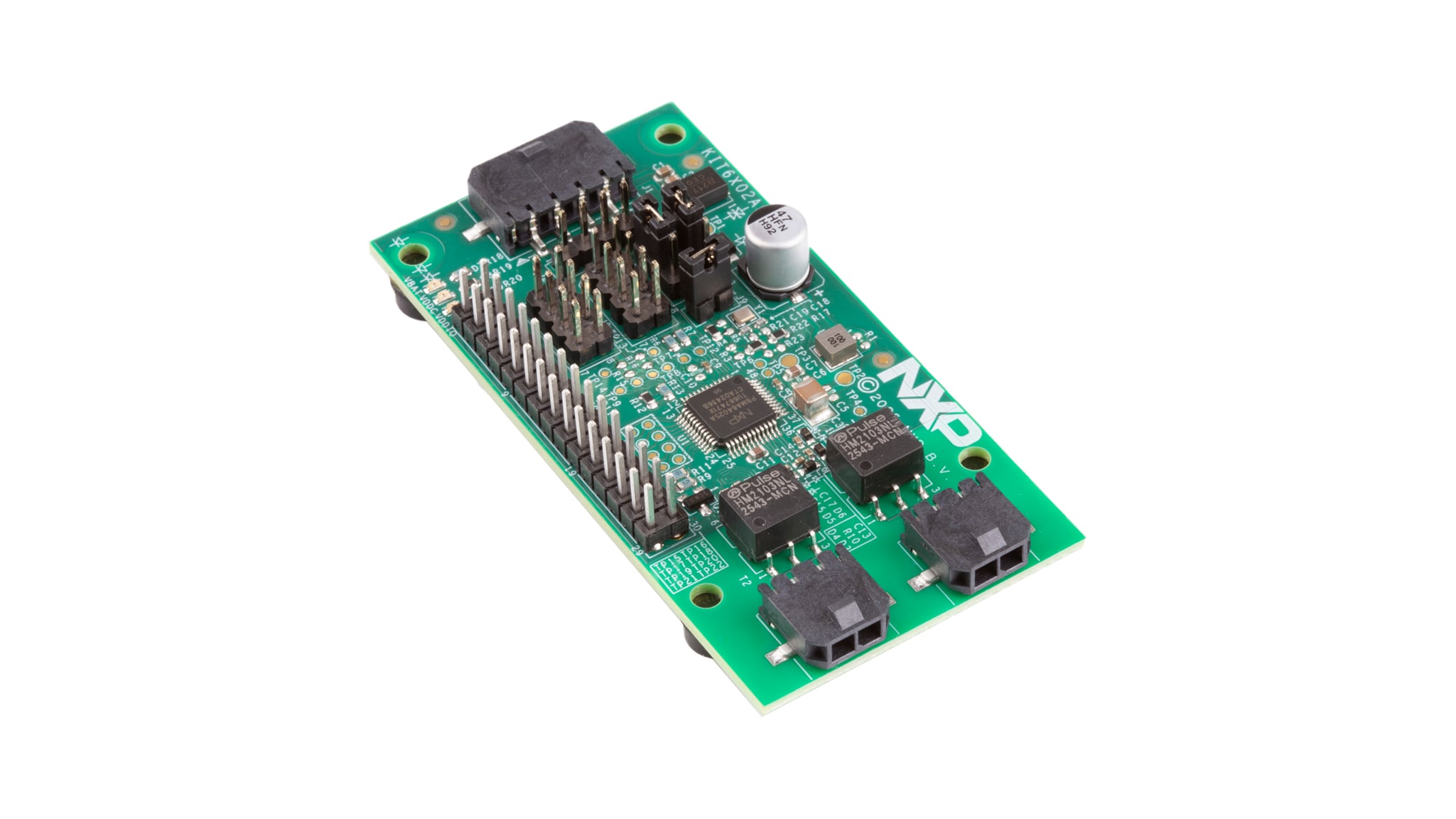

The KIT6X02AS2T1 serves as a hardware evaluation tool in support of the BMA6X02. The BMA6X02 is a gateway router that can route TPL messages from the microcontroller (MCU) to two different TPL ports. It is designed for use in both automotive and industrial applications. The KIT6X02AS2T1 is an ideal board for rapid prototyping of the BMA6X02 for SPI interfaces, hence its nickname SPI2TPL.

框图

KIT6X02AS2T1

KIT6X02AS2T1 Block Diagram
获取框图PDF

支持的器件

电池管理

电池通信IC

  • BMX6X02: 通用BMS通信网关与EIS同步控制器

Features

BMS Turn-Key Solution

  • Flexible BMS evaluation solution using an SPI interface
  • Easy integration with battery cell controller (BCC) boards and battery junction box (BJB) boards

Interfaces

  • Two electrical transport protocol link (ETPL) interfaces
  • SPI interface

Peripherals

  • Integrated SPI host enabling the control of external devices via SPI
  • Integrated GPIO enabling the integration of different sensors

购买选项

BATT-TPLCABLE20-Image

点击展开

BATT-TPLCABLE20
正常供应

Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

    $14.38 USD
    现货 :19

    正常情况下 1-2个工作日内发货

    加入购物车
    从分销商处购买
    BATT-TPLCABLE50-Image

    点击展开

    BATT-TPLCABLE50
    正常供应

    Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

      $14.38 USD
      现货 :9

      正常情况下 1-2个工作日内发货

      加入购物车
      从分销商处购买
      KIT6X02AS2T1-Image

      点击展开

      KIT6X02AS2T1

      SPI2TPL Evaluation Board for BMA6X02 with SPI interface and TPL Communication.
