MC33777A Evaluation Board with Isolated Daisy Chain

EVBMA777T

滚动图片以放大

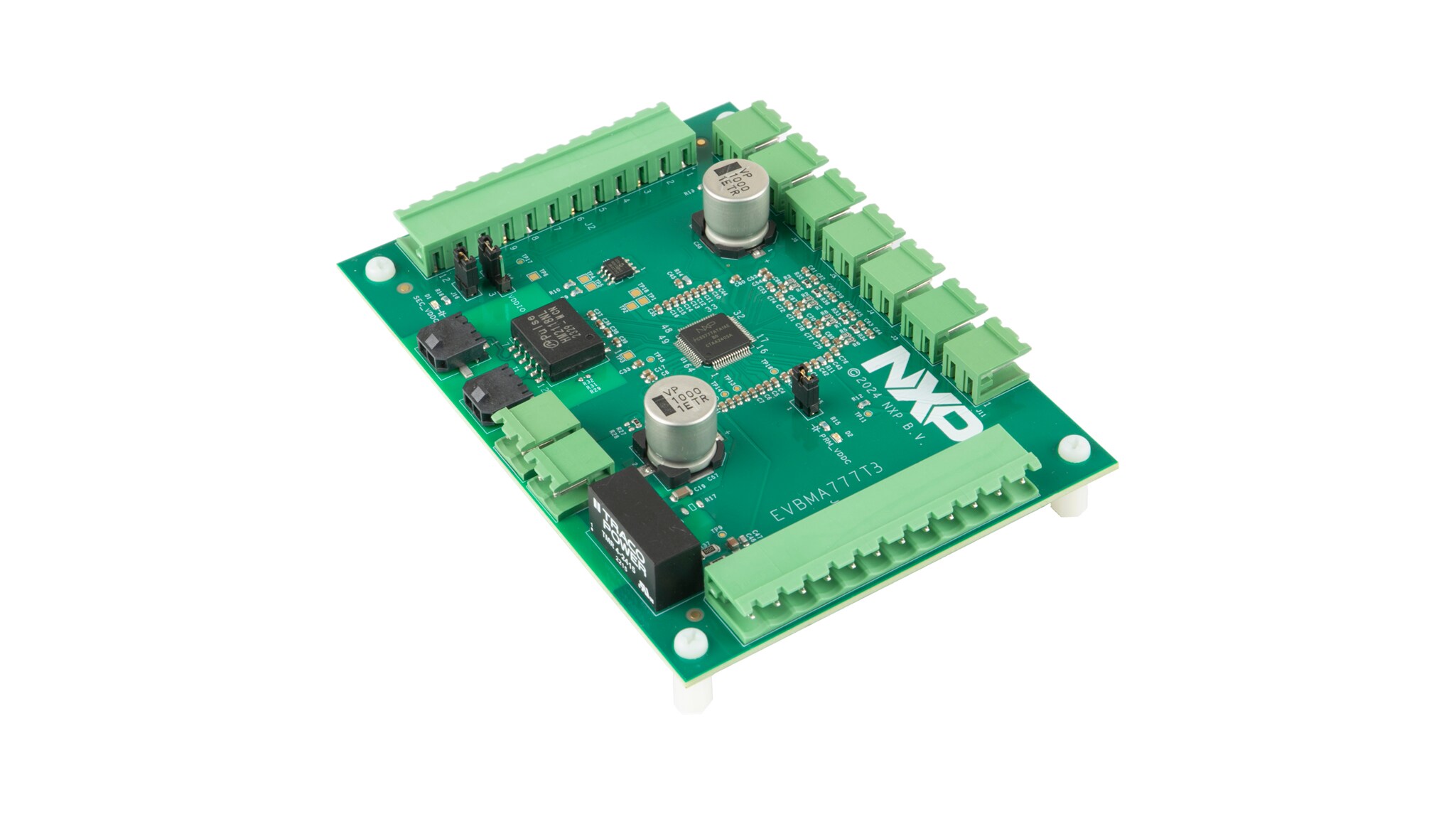

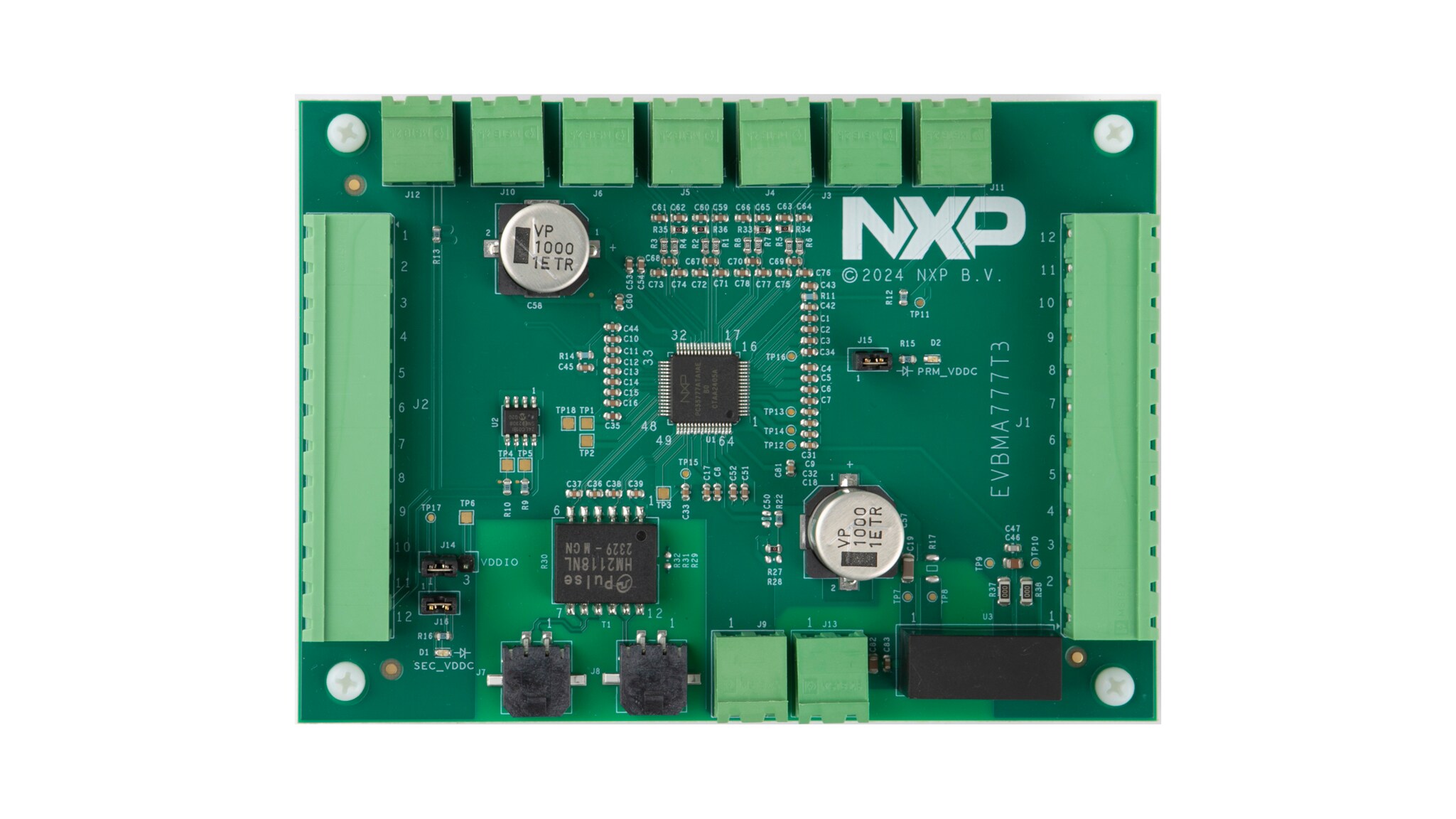

The EVBMA777T2 is a MC33777A evaluation board. It is designed to support the development of battery junction box, in automotive or industrial applications. The MC33777A supports ASIL D current measurements, voltage measurements and pyrotechnic switch control. The board is ideal to exercise all the IC features and develop the associated software. It communicates with an isolated daisy chain.

支持的器件

电池管理

电池传感器

Features

Key Features

  • Four current measurement channels (supporting two ASIL D current measurements)
  • 16 analog inputs supporting redundant measurements
  • Two independent pyrotechnic switch controllers including driver stage

Connectivity

  • TPL communication, daisy chains support
  • Isolated power supply
  • All MC33777 inputs/outputs accessible with connectors

购买选项

BATT-TPLCABLE20-Image

点击展开

BATT-TPLCABLE20
正常供应

Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

    $14.38 USD
    现货 :18

    正常情况下 1-2个工作日内发货

    加入购物车
    从分销商处购买
    BATT-TPLCABLE50-Image

    点击展开

    BATT-TPLCABLE50
    正常供应

    Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

      $14.38 USD
      现货 :18

      正常情况下 1-2个工作日内发货

      加入购物车
      从分销商处购买
      EVBMA777T2-Image

      点击展开

      EVBMA777T2
      正常供应

      MC33777A Evaluation Board with Isolated Daisy Chain.

        $154.00 USD
        现货 :8

        正常情况下 1-2个工作日内发货

        加入购物车
        从分销商处购买
        EVBMA777T3-Image

        点击展开

        EVBMA777T3
        正常供应

        MC33777A Evaluation Board with Isolated Daisy Chain.
