P4080 Development System

P4080DS
正常供应

滚动图片以放大

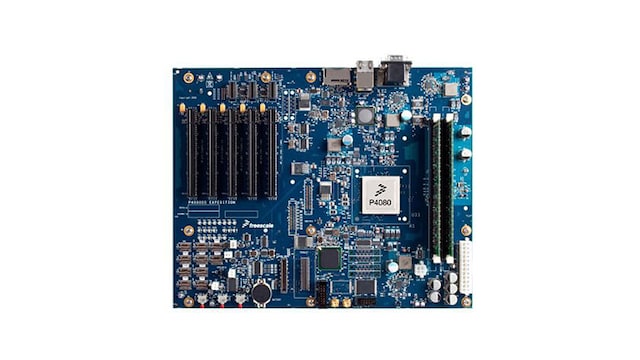

The P4080DS is a flexible development system supporting the NXP® P4080, P4040 and P4081 processors.

  • The board, with its rich I/O mix, is intended for initial target development and evaluation of P4080 and P4040 processors.
  • The P4080DS can help shorten your time to market.
  • The board, which exercises many capabilities of the device, can serve as a reference for hardware development and can also be used as a debug tool to check behaviors on the board compared to behaviors seen on customer boards.

产品详情

Features

Core Complex

  • P4080, 1.5 GHz core with 1333 MHz DDR3 data rate

Networking Elements

  • 10 GbE supported with optional XAUIRISER card

Accelerators and Memory Control

  • 4 GB unbuffered DDR3 240-pin sockets supporting standard JEDEC DIMMs
  • 128 MB NOR Flash (fast boot)
  • SPI-based 16 MB EEPROM
  • SD media card slot

Basic Peripherals and Interconnect

  • 18 lanes, dividable into many combinations
  • Five add-in slots to selectably connect to five of the 16 controllers supported by the P4080
  • Supports PCI Express®, SGMII, Nexus/Aurora debug, XAUI and Serial RapidIO®

Additional Features

  • PromJet debug port
  • Temperature sensor

Software

  • Linux® SDK for QorIQ® Processors

购买选项

SGMII-PEX-RISER-Image

点击展开

SGMII-PEX-RISER
正常供应

SGMII-PEX Riser Card for QorIQ Development Systems.

    $747.50 USD
    待定库存
    加入购物车
    从分销商处购买
    P4080DS-PC-Image

    点击展开

    P4080DS-PC
    停产

    QorIQ P4080 Development System, rev3.0 silicon.
