面向MPC8272的应用开发系统

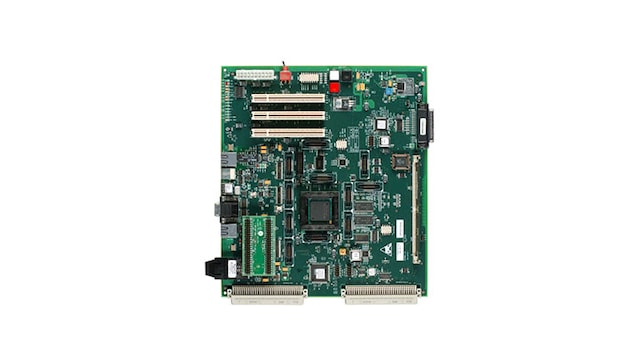

The MPC8272ADS board is designed to aid hardware and software developers of the PowerQUICC® II family by providing an evaluation platform for MPC8272/48 derivativesin the 516-pin PBGA (ZQ/VR) package. MPC8272ADS板支持MPC8247、MPC8248、MPC8271和MPC8272处理器。
The MPC8272ADS board has 64MB of SDRAM attached to the 60x bus (soldered onboard) and an 8MB Program Flash SIMM (supports up to 32MB). 板载接口包括JTAG/COP、双UART、USB 1.1、两个100/10-Base-T高速以太网接口和一个支持光纤的155 Mbps ATM UNI接口。
Using the ADS on-board resources and an associated debugger, developers are ableto download and run code, set breakpoints, display memory and registers, andconnect proprietary hardware via the expansion connectors. That code can then beincorporated into the desired system with the MPC82xx processor. The MPC8272ADSincludes on-board resources and a debugger that allows developers to download andrun code, set breakpoints, display memory registers, and display configurationregisters.
哪些人应该订购本产品：
使用采用516引脚PBGA (ZQ/VR)封装的任何PQ2衍生产品的开发人员。For PCI applications, NXP® also offers the MPC8266ADS-PCIAI as a PCI target board.
产品详情

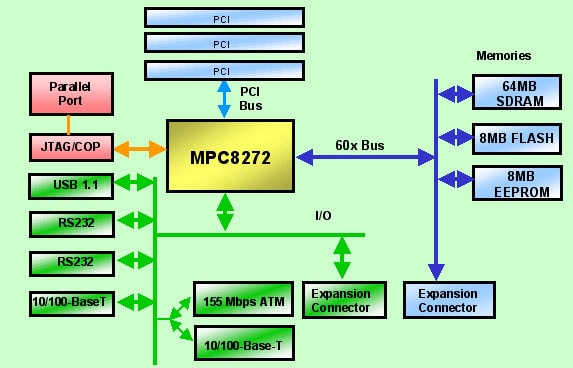

特征
数据连接
- 155 Mbit/s optical ATM port or 10/100 Base-T Ethernet port on FCC1 (switchable)
- FCC2上提供10/100 Base-T以太网端口
- Dual RS-232 serial ports
- USB 1.1兼容端口
- 逻辑分析器(调试)连接器
- 60x和I/O端口扩展连接器
- 3个3.3 V / 66 MHz PCI插槽
- 并行端口命令转换器(无需Raven/Wiretap)
支持
- 提供UTOPIA ADTECH接口，支持8位多物理层(Multi-PHY) UTOPIA 2级规范
- 60x支持奇偶校验纠错
Differences from PQ27FADS
- 引脚输出
- 64 MB SDRAM (60x bus) vs. 32 MB
- 只有两个FCC (不支持两个FE + ATM)
- 一个是8位UTOPIA，一个是8位/16位UTOPIA
- 没有本地总线功能
