面向GD3100的半桥评估套件

FRDMGD3100HB8EVM
正常供应

滚动图片以放大

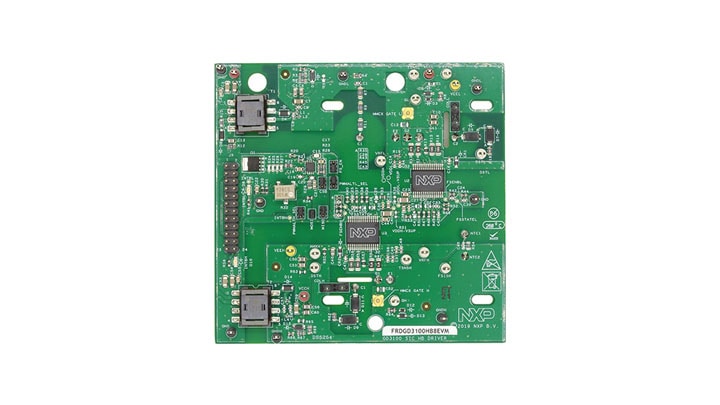

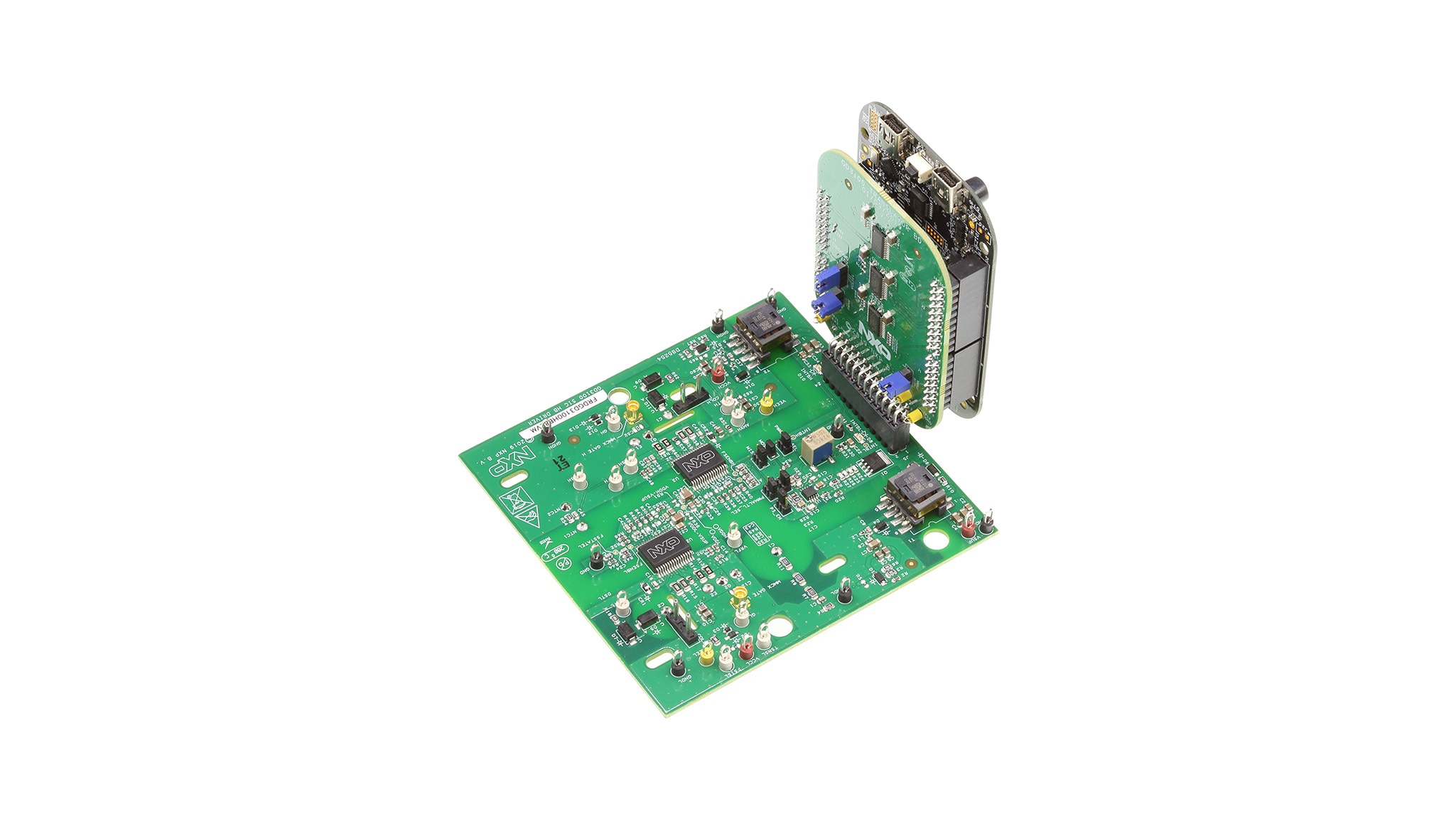

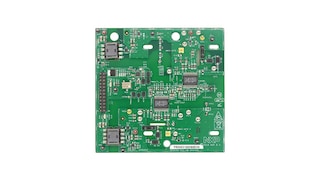

FRDMGD3100HB8EVM是一款半桥评估套件，安装了两个MC33GD3100单通道IGBT栅极驱动设备。该套件包含Freedom KL25Z微控制器硬件，用于连接安装有SPIGen软件的PC，可采用菊花链或独立配置的方式与MC33GD3100栅极驱动器上的SPI寄存器进行通信。

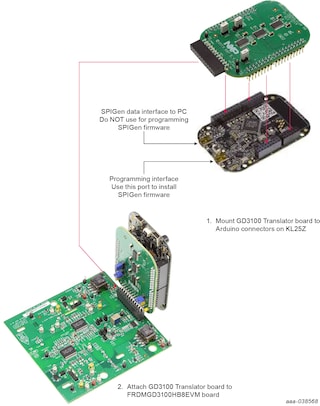

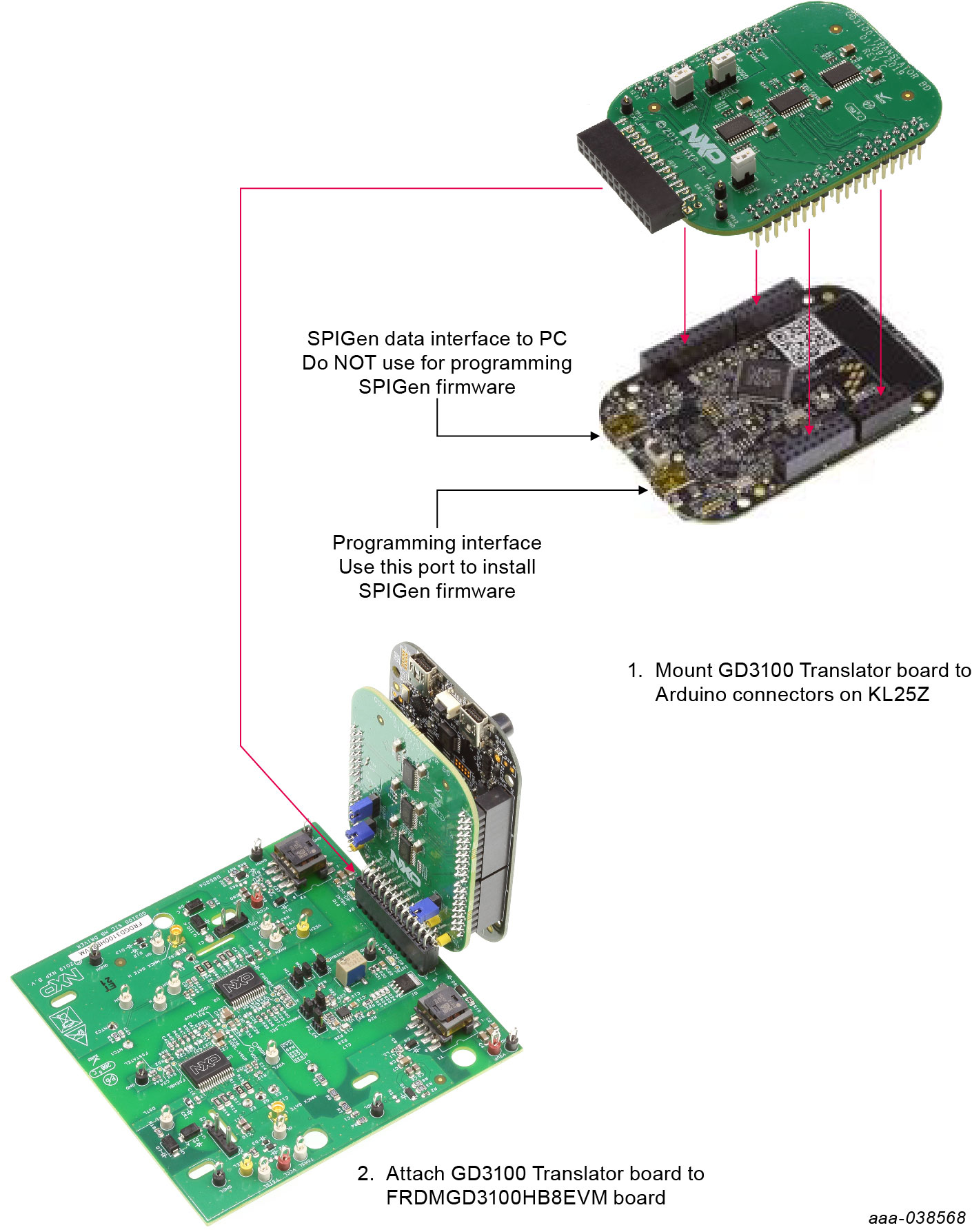

GD3100转换器板用于将3.3 V信号转换为MCU和MC33GD3100栅极驱动器之间的5.0 V信号。

产品详情

支持的器件

电源管理

动力和发动机控制

  • GD3100: 面向IGBT和SiC MOSFET的高级高压隔离栅极驱动器

特征

  • 与P6 SiC MOSFET模块兼容
  • SPIGEN图形用户接口可与该套件配套使用
  • 菊花链SPI接口可配置
  • 可轻松配置跳线选项
  • 可使用SPIGEN GUI配置SPI寄存器选项
  • 双脉冲和短路评估
  • 转换器板用于将3.3 V信号转换为MCU和MC33GD3100栅极驱动器之间的5.0 V信号。

购买选项

FRDMGD3100HB8EVM-Image

点击展开

  • FRDMGD3100HB8EVM
    正常供应

  • Half-Bridge evaluation kit featuring GD3100 gate drive devices for IGBT/SiC MOSFET.

    • FRDMGD3100HB8EVM评估套件
    • 用户指南
  • 数量为 1
从分销商处购买
