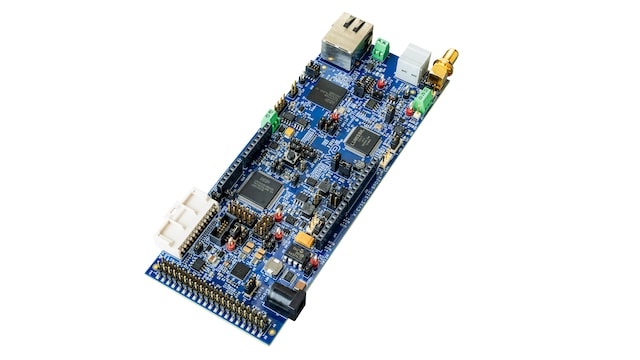

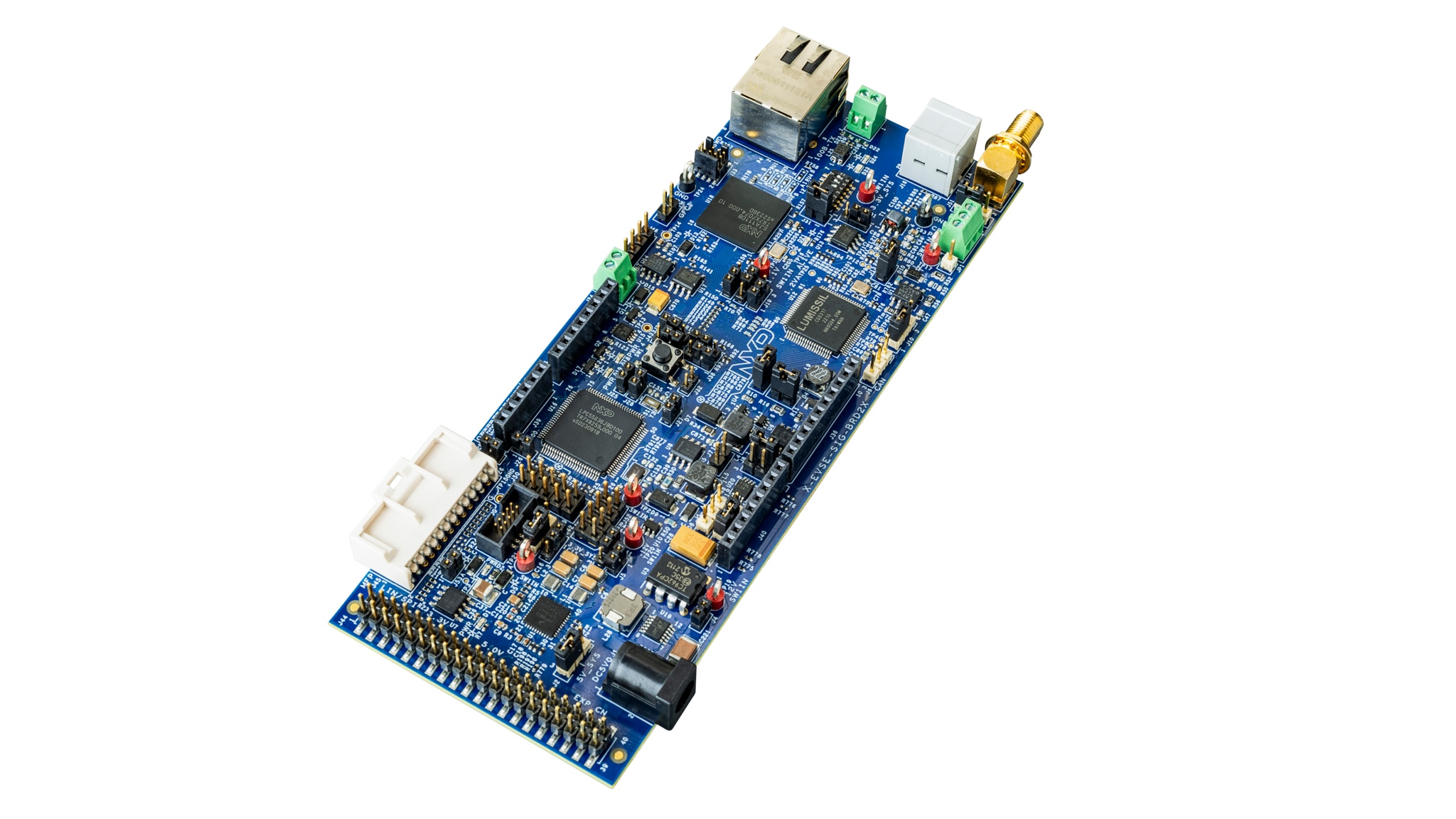

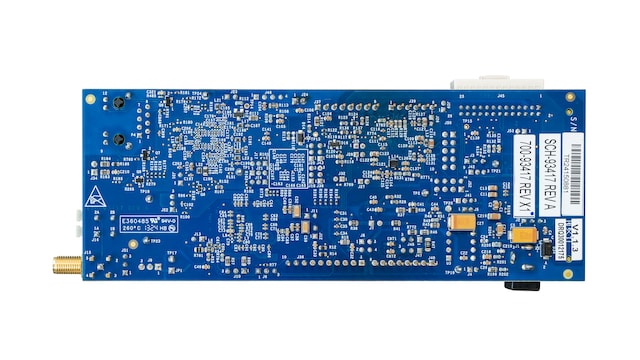

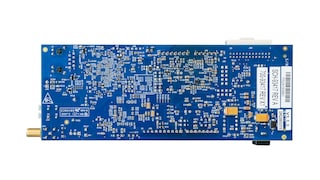

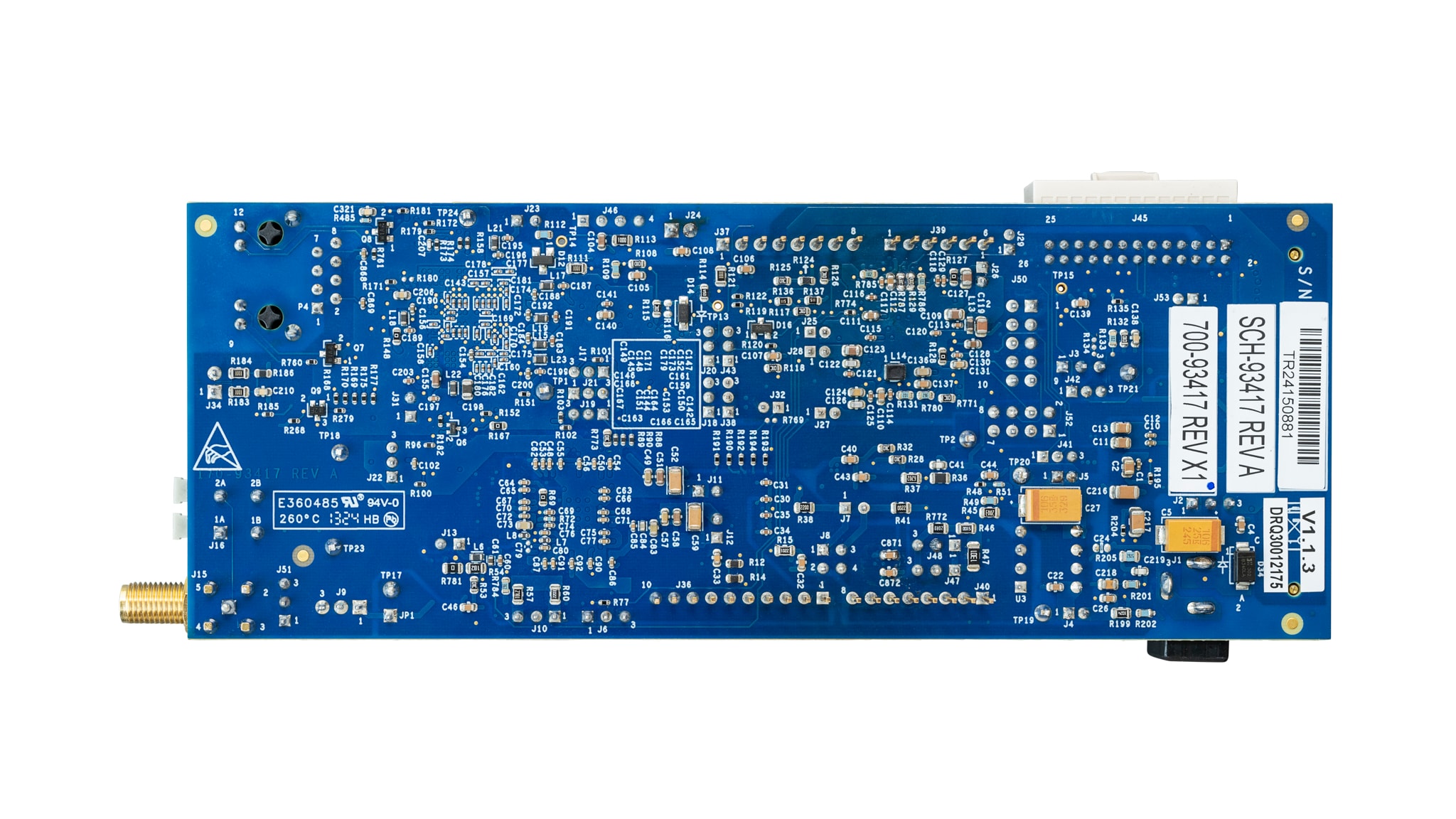

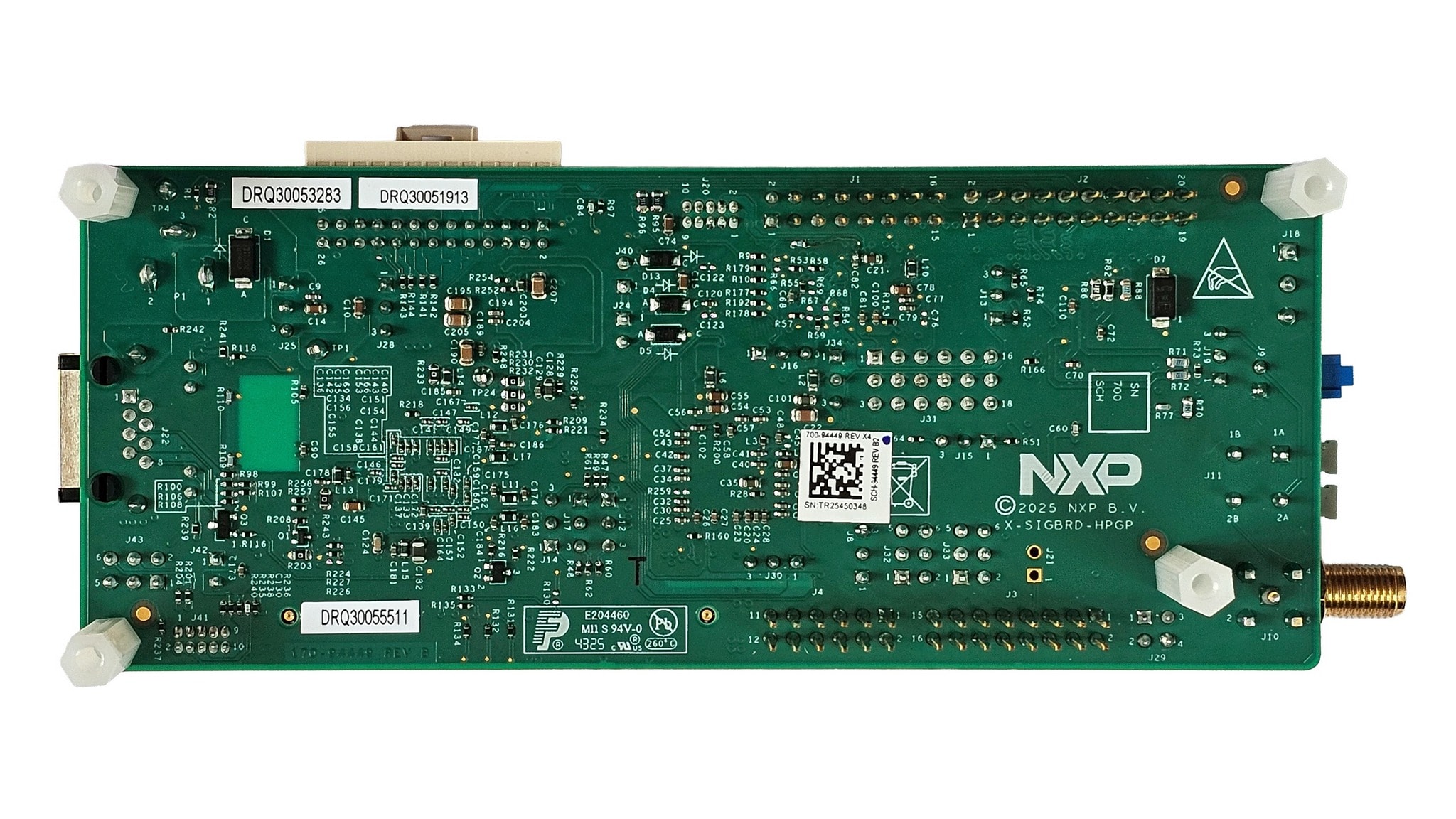

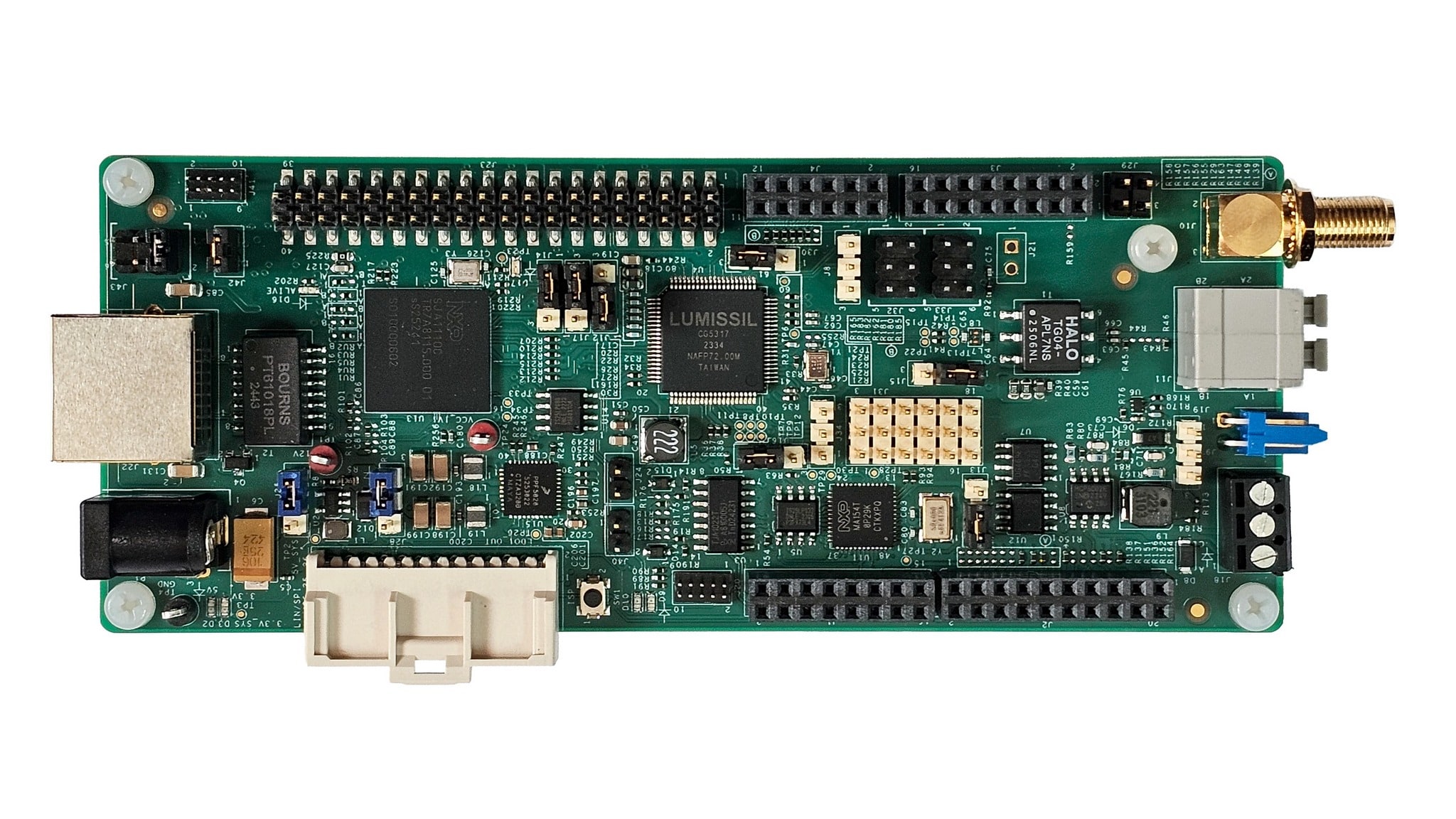

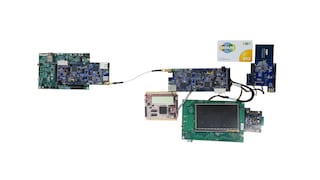

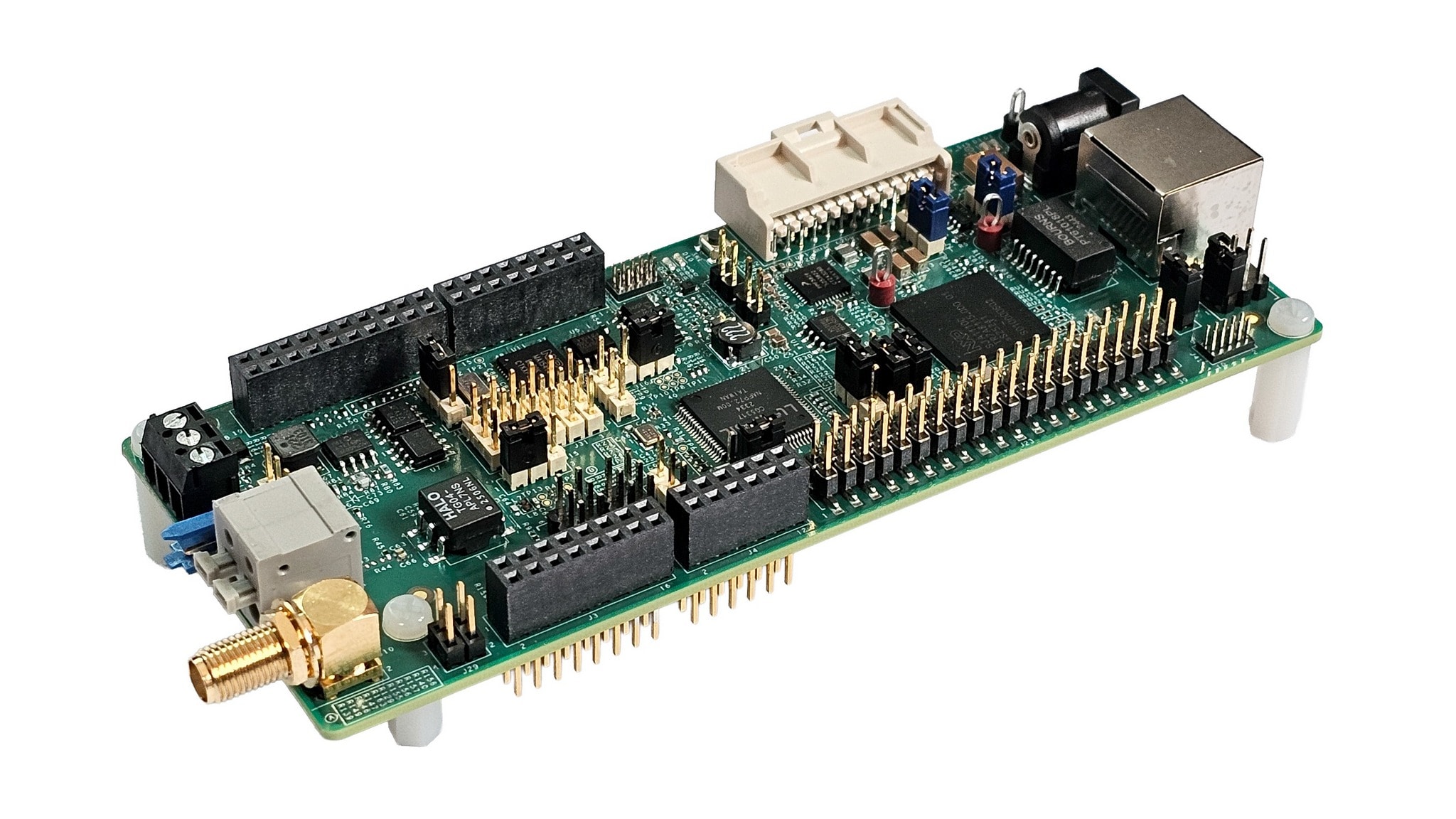

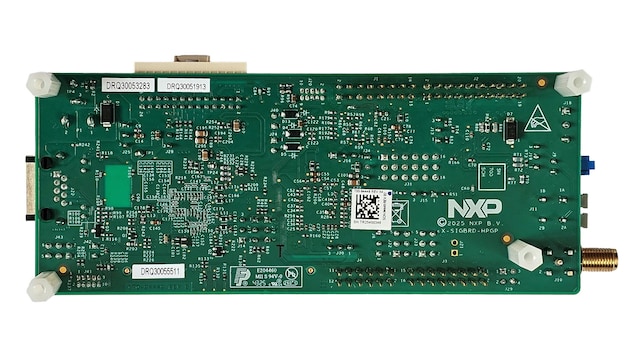

EasyEVSE EV Charging Signal Board

EVSE-SIG-BRD
正常供应

滚动图片以放大

The EVSE-SIG-BRD Signal Board is an add-on for several EV charging development platforms. It hosts an LPC55S36 MCU for the SAE J1772 control pilot, a TJA1021BT LIN transceiver for SAE J3068 and a Lumissil CG5317 HomePlug Green PHY for ISO 15118 communications. It supports the proximity pilot, GFCI, relay drive, Ethernet and CAN PHYs, and is compatible with NXP development boards for i.MX 8, 9, RT1060, RT1064 or S32G-VNP-RDB3.

框图

EasyEVSE EV Charging Signal Board block diagram

EasyEVSE EV Charging Signal Board
获取框图PDF

支持的器件

接口

汽车以太网交换机

  • SJA1110: 集成了100BASE-T1 PHY的多千兆安全TSN以太网交换机

汽车LIN解决方案

  • TJA1021: ISO17987 LIN 2.1/SAE J2602 Transceiver

3.3V/5V IO CAN收发器

  • TJA1044: High-Speed CAN Transceiver with Standby Mode - Mantis Family

处理器和微控制器

LPC5500 Arm Cortex-M33

  • LPC553x: LPC553x/S3x：基于先进模拟Arm®Cortex®-M33的MCU系列

Features

Embedded Microcontroller

  • LPC5536/LPC55S36 MCU
  • Arm Cortex-M33 with flash and RAM
  • PWMs, ADCs and DACs with on-chip comparator
  • CAN, Ethernet, UART, SPI and I2C interfaces

HomePlug Green PHY

  • Lumissil CG5317 HomePlug Green PHY Transceiver for ISO 15118 power line communication (PLC)

Control Pilot

  • J1772 (IEC 61851) PWM, ISO 15118 EVSE and EV support

Proximity Pilot

  • J1772 support

Ethernet Switch

  • SJA1110B to enable switching between several Ethernet sources

CAN Interface

  • TJA1044GT to support CAN communication

LIN Interface

  • TJA1021BT LIN transceiver for SAE J3068 to support LIN communication

Ground-Fault Circuit Interrupters (GFCI)

  • GFCI detection and relay asynchronous triggering

Relay Driver

  • Drive up to two DC coil relays at 12 V and 140 mA

External AFE Interface

  • Supports connection with an external Analog-Front-End (AFE)

Safety Check Header

  • Supports connection with an external high voltage AC and current sensor circuit

Host Connectors

  • Arduino connector for the i.MX RT crossover MCU (MIMXRT1060/1064-EVK) and S32K3 automotive MCU (S32K3X4EVB-T172) development boards
  • EXP CN header for the i.MX 9 applications processor (MCIMX93-EVK) development board
  • Multi-Function Port (MFP) for the S32G automotive processor (S32G-VNP-RDB3) development board
  • Ethernet connectors for 1 x 100BASE-TX and 1 x 100BASE-T1

Tools and OS Support

  • Linux OS
  • FreeRTOS
  • MCUXpresso

购买选项

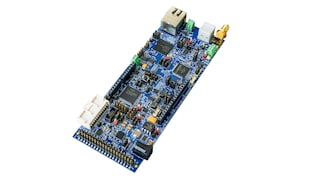

EVSE-SIG-BRD2X-Image

点击展开

EVSE-SIG-BRD2X
正常供应

EasyEVSE EV Charging Signal Board.

    $600.00 USD
    现货 :5

    正常情况下 1-2个工作日内发货

    加入购物车
    从分销商处购买
    EVSE-IMX93-CBL-Image

    点击展开

    EVSE-IMX93-CBL
    正常供应

    Cable kit to connect the EasyEVSE Development Platform (Linux OS, Wi-Fi 6).

      $700.00 USD
      现货 :4

      正常情况下 1-2个工作日内发货

      加入购物车
      从分销商处购买
      EVSE-RT106X-CBL-Image

      点击展开

      EVSE-RT106X-CBL
      正常供应

      The EVSE-RT106X-CBL is a cable kit for easier and faster connection of your EasyEVSE EV Charging Development Platform.

        $360.00 USD
        待定库存
        加入购物车
        从分销商处购买

        文档

        快速参考恩智浦 文档类别

        筛选条件

        3 文件

        紧凑列表

        设计资源

        选择区域:

        Related Hardware

        快速参考恩智浦 板类型.
        筛选条件

        4 硬件

        设计文件

        快速参考恩智浦 设计文件类型.
        筛选条件

        1 设计文件

        软件

        快速参考恩智浦 软件类型.

        筛选条件

        2 软件文件

        • BSP及设备驱动

          EVSE-SIG-BRD2X Software_EVSE

          EXTERNAL版本 1Sep 1, 2024 11:01:00EVSE-SIG-BRD2X-SOFTWARE-EVSE
          下载
        • BSP及设备驱动

          EVSE-SIG-BRD2X Software_EV

          EXTERNAL版本 1Sep 1, 2024 11:07:00EVSE-SIG-BRD2X-SOFTWARE_EV
          下载

        注意: 推荐在电脑端下载软件，体验更佳。

        培训

        筛选条件

        1 培训

        • 点播培训

          NXP EasyEVSE EV Charging Signal Board - EVSE-SIG-BRD2X

          This training provides detailed explanation of the new hardware and software features for the EasyEVSE EV Charging Signal Board EVSE-SIG-BRD2X, including test setup and results.
