2x2 Single-band (5 GHz) Concurrent Dual Wi-Fi® 6, 1x1 (2.4 GHz) Wi-Fi 6, and Bluetooth® 5.3 Combo Solution

AW692
试生产
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

滚动图片以放大

The AW692 is a highly integrated Wi-Fi 6 device enabling concurrent dual Wi-Fi (CDW) and Bluetooth® 5.3 operation. AW692 supports four modes:

  • Mode 1: CDW 2x2 Wi-Fi 6 5 GHz (802.11ax) + 1x1 Wi-Fi 6 2.4 GHz (802.11ax)
  • Mode 2: CDW 1x1 Wi-Fi 6 5 GHz (802.11ax) + 1x1 Wi-Fi 6 2.4 GHz (802.11ax)
  • Mode 3: 2x2 Wi-Fi 6 2.4 GHz (802.11ax)
  • Mode 4: 2x2 Wi-Fi 6 5 GHz (802.11ax)

The System-on-Chip (SoC) implements advanced features including multi-user multiple-input multiple-output (MU-MIMO), orthogonal frequency-division multiple access (OFDMA), Target Wake Time (TWT) and Bluetooth Low Energy (LE) Audio. The AW692 integrates 2.4 GHz and 5 GHz TX power amplifiers (PA), RX low-noise amplifiers (LNA) and Tx/Rx switches (T/R SW). It also includes a full Bluetooth radio, simplifying design. This solution also supports three-antenna design and an external front-end module (FEM).

The AW692 supports a flexible front-end design with either two or three antennas.

The AW692 implements advanced real-time Wi-Fi and Bluetooth arbitration hardware in conjunction with software algorithms to optimize coexistence performance. NXP's EdgeLock® technology is integrated. The embedded Edgelock secure subsystem (ELS) supports hardware crypto accelerated secure boot, key management, firmware authentication, secure lifecycle management, and anti-rollback protection.

The AW692 integrates dedicated CPUs and memories for both the Wi-Fi and Bluetooth subsystems for real-time, independent protocol processing. The interfaces to external host processors include peripheral component interconnect express (PCIe) for Wi-Fi and universal asynchronous receiver-transmitter (UART) for Bluetooth.

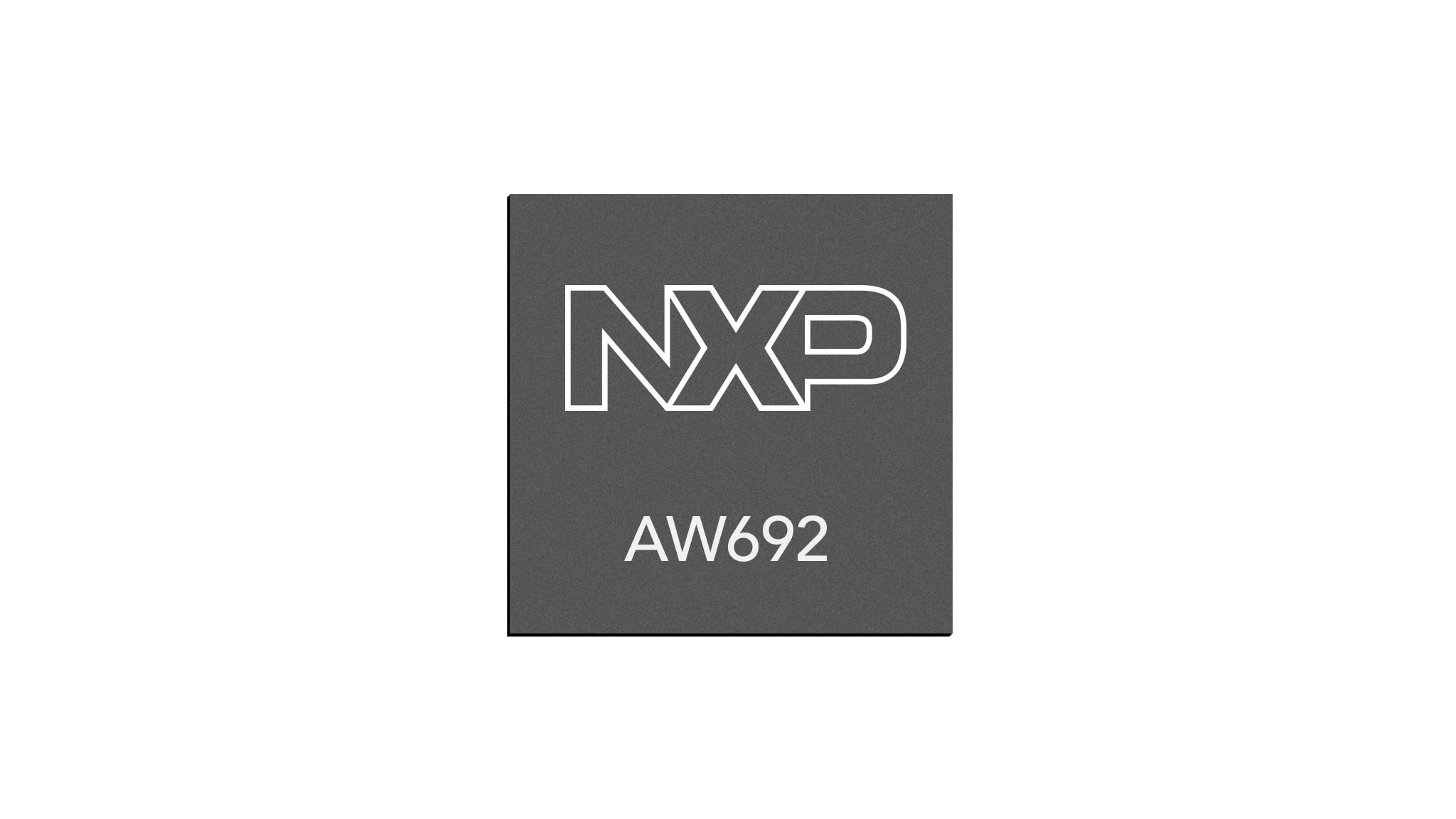

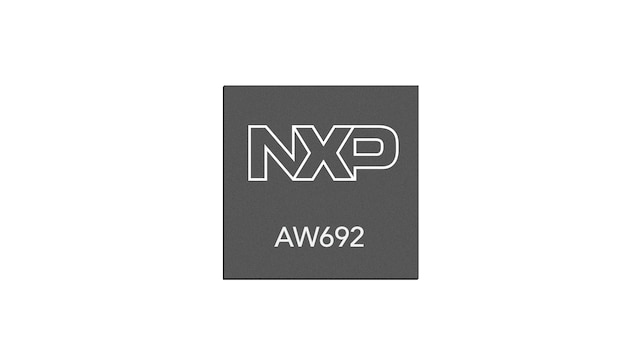

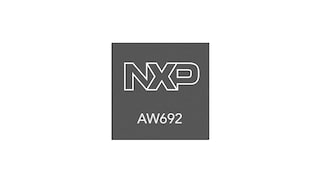

The AW692 is available in high-volume quad flat no-lead, 148 pins (HVQFN148) package, and complies with AEC-Q100 Grade 2.

Features

Wi-Fi Specifications

  • 2x2 Wi-Fi 6 and 1x1 Wi-Fi 2.4 GHz CDW mode (mode 1)
  • 2x2 radio
    • 40 MHz channel for 2.4 GHz (radio frequency, or RF paths: 2A/2B)
    • 1024 quadrature amplitude modulation (QAM) modulation and coding scheme 11 (MCS11), up to 80 MHz channel for 5 GHz (RF paths: 5A/5B)
  • 1x1 radio
    • 20 MHz channel for 2.4 GHz (RF paths: C)
    • 1024 QAM (MCS11), up to 80 MHz channel for 5 GHz (RF paths: 5 A)
  • 2x2 and 1x1 radios
    • Station (STA) and mobile access point (AP)
    • Low-latency data exchange (LLDE)
    • Wi-Fi timing synchronization function (TSF) host clock sync between AP and STA
    • Wi-Fi cross-chip TSF clock sync between AP and AP
  • PCIe host interface

Bluetooth Capabilities

  • Bluetooth 5.3
  • High-speed, long-range and advertising extensions
  • Isochronous channels supporting Bluetooth LE audio
  • Integrated PA (+13 dBm)/LNA/switch(SW)
  • UART host interface

Operating Characteristics

  • Supply voltage: 1.8 V and 3.3 V
  • Operating temperature: Automotive AEC-Q100 Grade 2: -40 °C to 105 °C
  • Storage temperature: -55 °C to 125 °C
