2.4/5GHz双频2x2 Wi-Fi® 5（802.11ac）+ Bluetooth® 5.3解决方案

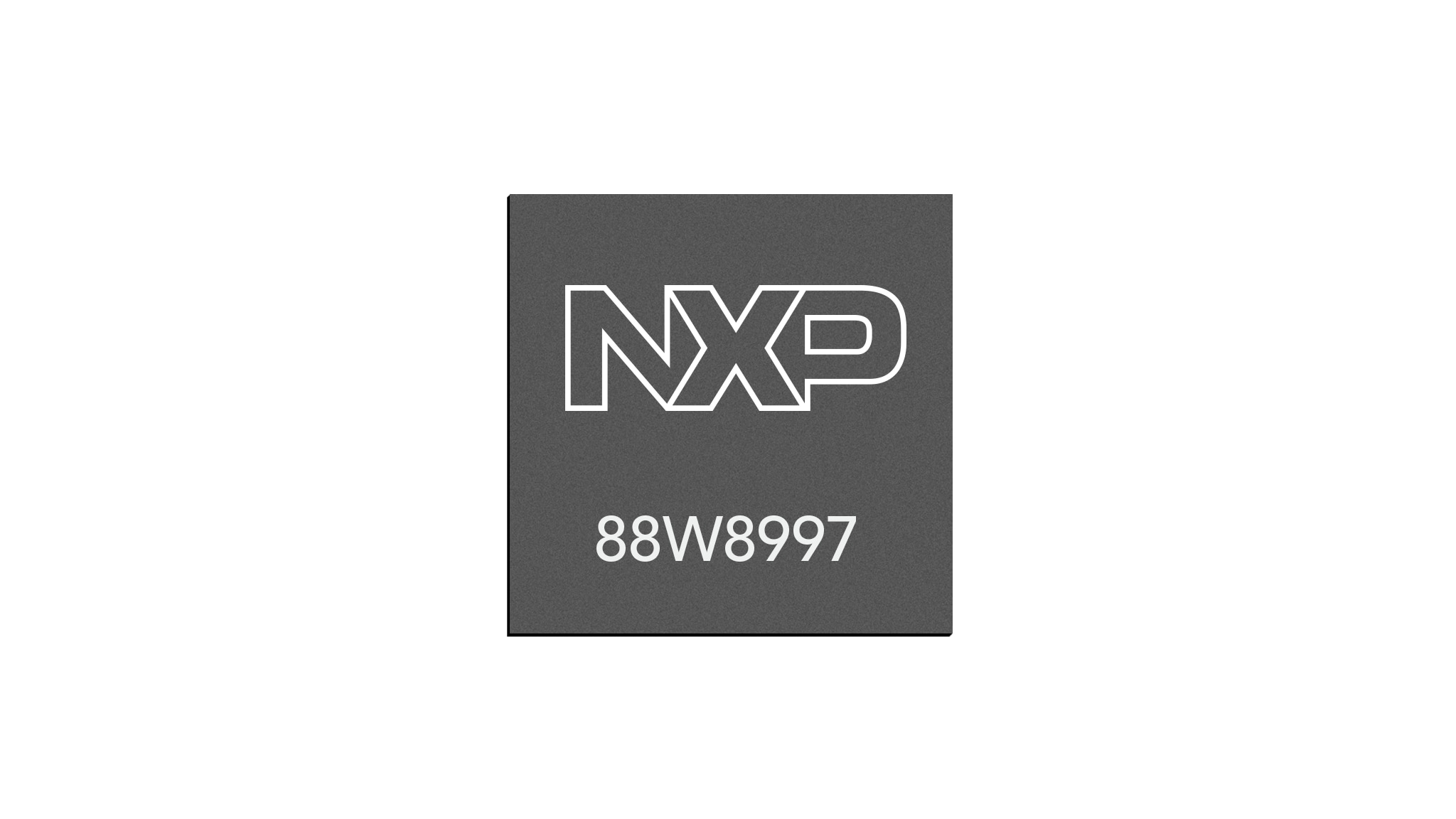

88W8997是业界首个28nm、802.11ac wave-2、2x2 MU-MIMO组合解决方案，完全支持5.3. 与现有解决方案相比，设计增强和低功耗28nm处理技术可将功耗降低多达40％。 88W8997在包括双频功率放大器（PA）、低噪声放大器（LNA）和交换机的市场上具有最高的集成度，可将板级BOM（物料清单）降至最低，从而为板卡市场简化了板上芯片和模块设计。

领先的模块制造商提供基于恩智浦88W8997的无线模块。

应用笔记

88W8997-BD1

产品详情

特性

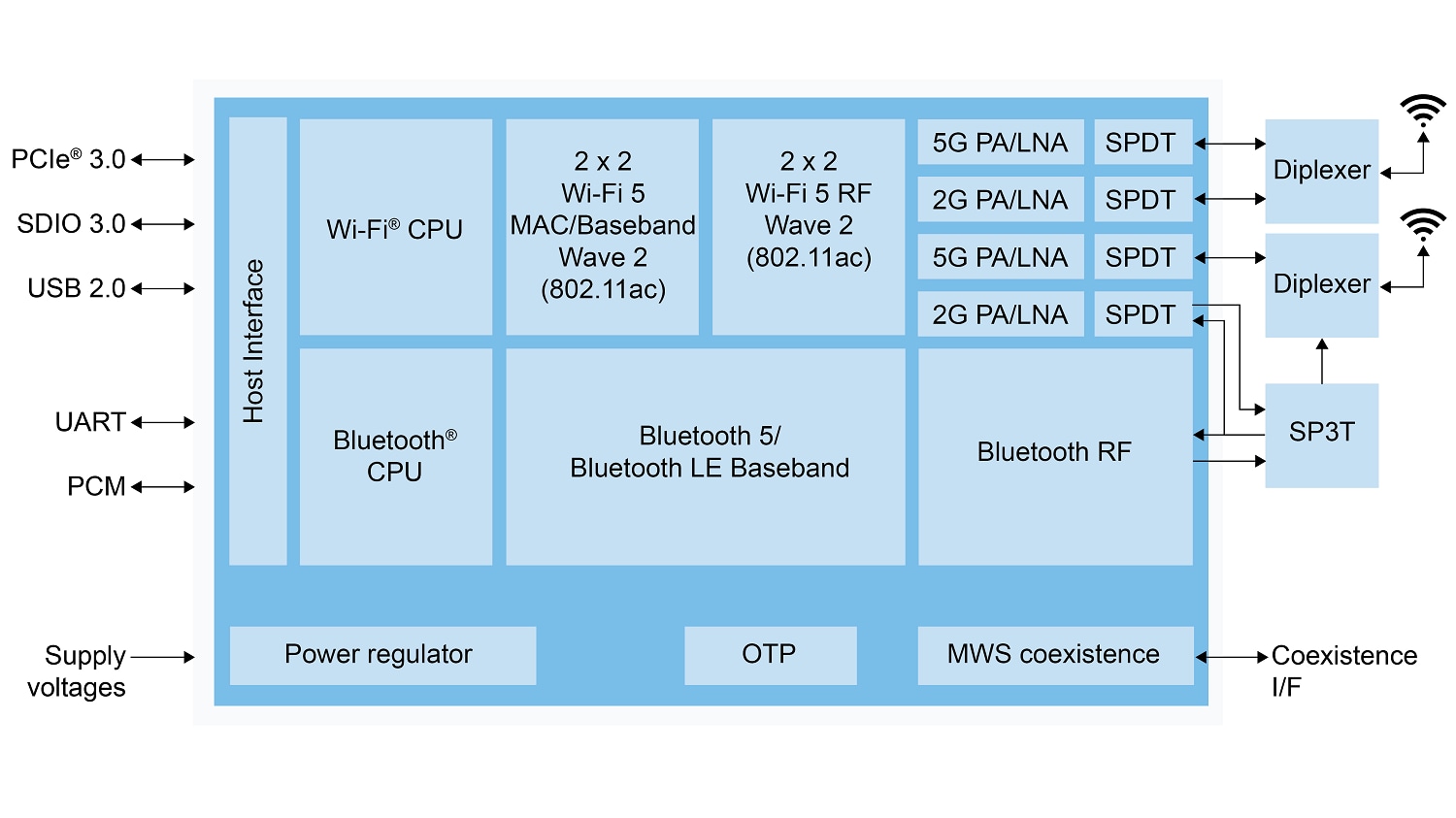

2x2, MU-MIMO组合, 采用低功耗28nm设计
Bluetooth 5.3包括对2Mbps LE和使用到达角(AOA)和离去角(AOD)进行测向等功能的支持
双频PA、LNA和交换机
并发应用支持设备具有两个独立的无线电链路，而不会降低2x2 MIMO链路性能
精确的室内定位功能，包括IEEE 802.11mc以及低功耗蓝牙测向功能

合作伙伴模块

Wi-Fi 5 (802.11a) 2.4/5GHz双频2x2 + Bluetooth^® 5.3

产品	Wi-Fi I/F	蓝牙I/F	工作温度	天线类型	天线编号	模块类型	模块大小	资格认证	推荐主机

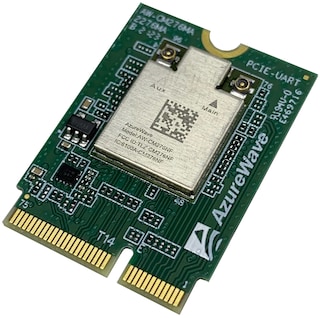

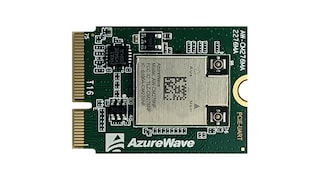

AW-CM276MA-PUR AzureWave	PCIe	UART	-30至85	U.FL接头	2	M.2 E键	30x22x2.84	CE, FCC, 日本, IC, AU/NZ, 印度, 墨西哥, NCC	i.MX

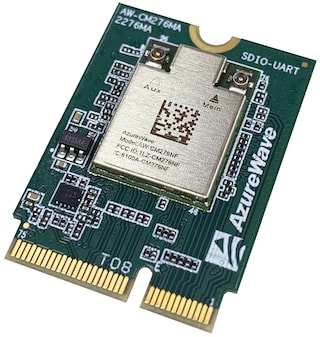

AW-CM276MA-SUR AzureWave	SDIO	UART	-30至85	U.FL接头	2	M.2 E键	30x22x2.84	CE, FCC, 日本, IC, AU/NZ, 印度, 墨西哥, NCC	i.MX

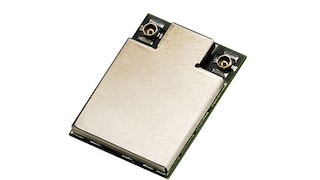

AW-CM276NF AzureWave	PCIe, SDIO	UART	-30至85	U.FL接头	2	SMD	12x16x1.85	CE, FCC, 日本, IC, AU/NZ, 印度, 墨西哥, NCC	i.MX

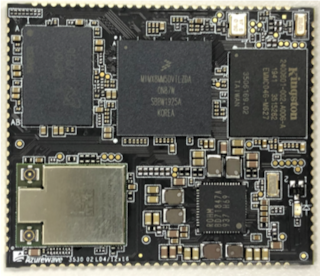

AW-PU530 AzureWave			-30至85	U.FL接头	2	SOM(语音/视频)	46x39x2.96	CE, FCC, 日本, IC, AU/NZ, 印度, 墨西哥, NCC	i.MX 8M Mini
AW-PU580 AzureWave			-30至85	U.FL接头	2	SOM（工业设施、商业设备）	82x50x5.1	CE, FCC, 日本, IC, AU/NZ, 印度, 墨西哥, NCC	i.MX 8M Plus
SPB228-D H&D-无线	PCIe, USB, SDIO	UART、PCM	-40至85	天线引脚数	2	SMD	12x16x1.7	FCC, IC, CE	i.MX

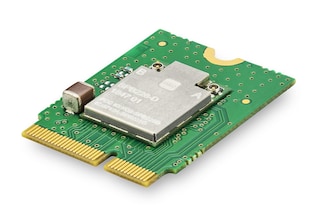

SPB432-A H&D-无线	PCIe	USB	-40至85	MHF 4	2	M.2 E键	22x30x2.5	FCC, IC, CE	i.MX
SPB432-B H&D-无线	SDIO	SDIO	-40至85	MHF 4	2	M.2 E键	22x30x2.5	FCC, IC, CE	i.MX
SPB432-C H&D-无线	PCIe	UART	-40至85	MHF 4	2	M.2 E键	22x30x2.5	FCC, IC, CE	i.MX
SPB432-D H&D-无线	USB	USB	-40至85	MHF 4	2	M.2 E键	22x30x2.5	FCC, IC, CE	i.MX
SPB432-E H&D-无线	PCIe	UART	-40至85	MHF 4	2	M.2 E键	22x30x2.5	FCC, IC, CE	i.MX
SPB432-F H&D-无线	PCIe	UART	-40至85	MHF 4	2	M.2 E键	22x30x2.5	FCC, IC, CE	i.MX

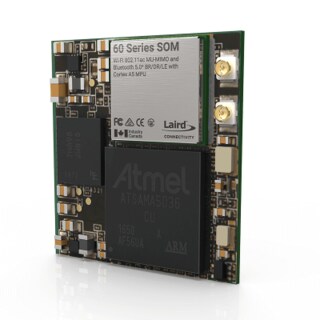

453-00003 Laird Connectivity	USB, 以太网, UART	USB, 以太网, UART	-30至85	连接器	2	SMD	30x30x2.8	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	无主机
453-00004 Laird Connectivity	USB, 以太网, UART	USB, 以太网, UART	-30至85	连接器	2	SMD	30x30x2.8	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX
453-0007X Laird Connectivity	PCIe, SDIO	UART	-30至85	连接器	2	SMD	40x47x4.6	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	无主机

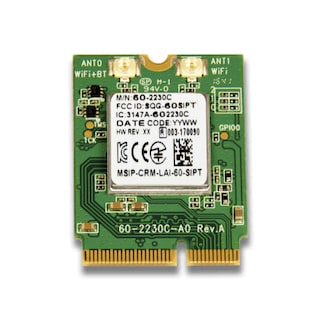

ST60-2230C, SU60-2230C Laird Connectivity	SDIO	UART	-30至85	连接器	2	M.2 E键	22x30x3.3	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX
ST60-2230C-P, SU60-2230C-P Laird Connectivity	PCIe	UART	-30至85	连接器	2	M.2 E键	22x30x3.3	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX
ST60-2230C-PU, SU60-2230C-PU Laird Connectivity	PCIe	USB	-30至85	连接器	2	M.2 E键	22x30x3.3	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX
ST60-2230C-SS, SU60-2230C-SS Laird Connectivity	SDIO	SDIO	-30至85	连接器	2	M.2 E键	22x30x3.3	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX
ST60-2230C-U, SU60-2230C-U Laird Connectivity	USB	UART	-30至85	连接器	2	M.2 E键	22x30x3.3	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX
ST60-2230C-UU, SU60-2230C-UU Laird Connectivity	USB	USB	-30至85	连接器	2	M.2 E键	22x30x3.3	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX
ST60-SIPT, SU60-SIPT Laird Connectivity	SDIO, USB, PCIe	UART、USB、SDIO	-30至85	引脚	2	SMD	13x14x1.87	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX
LBEE5XV1YM-574 Murata	PCIe, SDIO	UART	-30至85	天线引脚数	2	SMD	11.8x8.4x1.3	CE, FCC, IC MIC（日本）	i.MX
