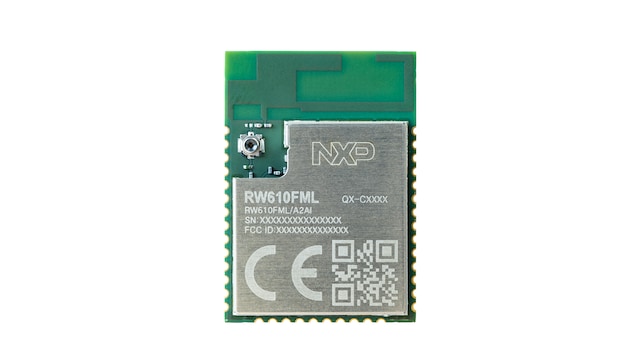

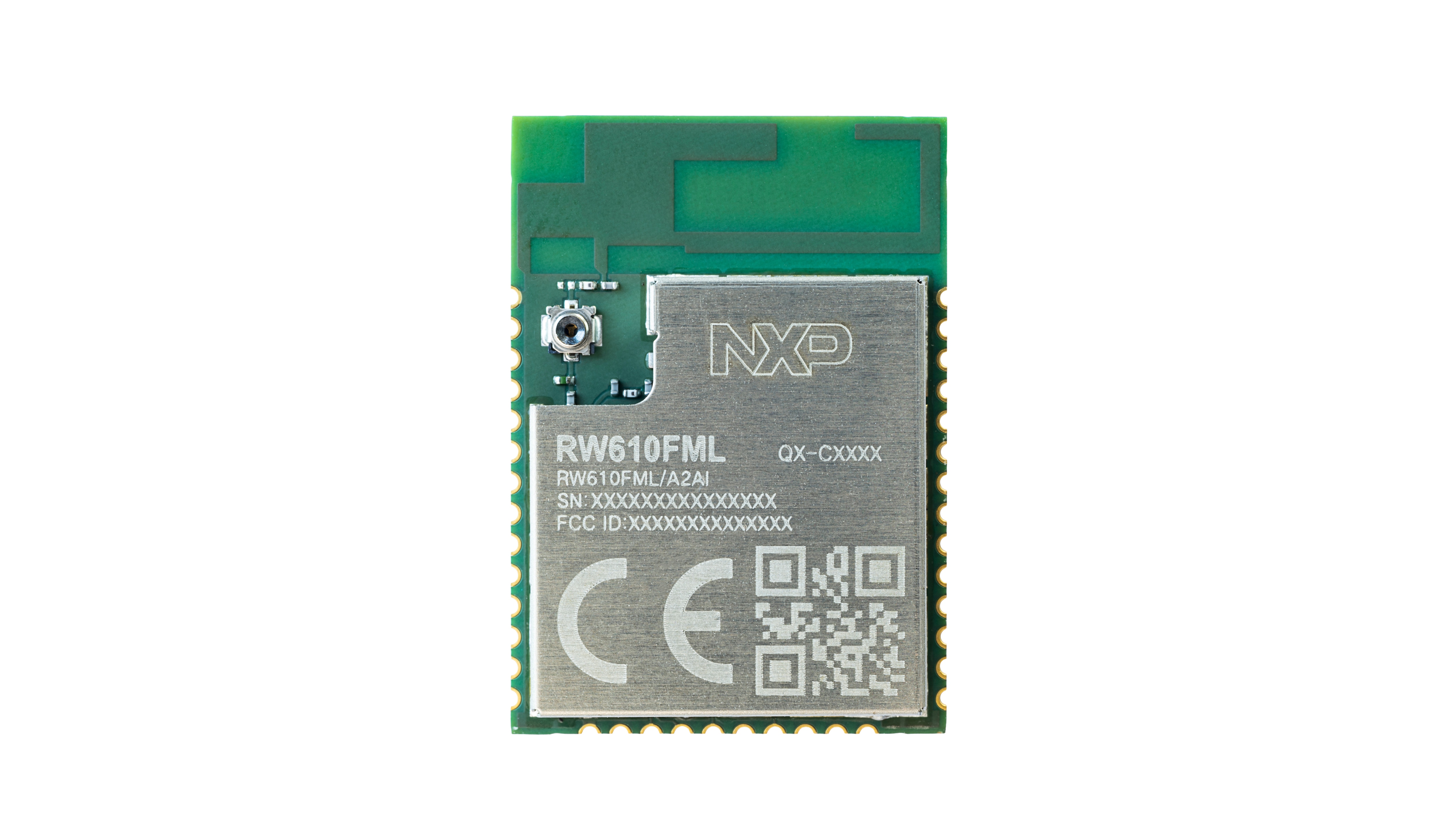

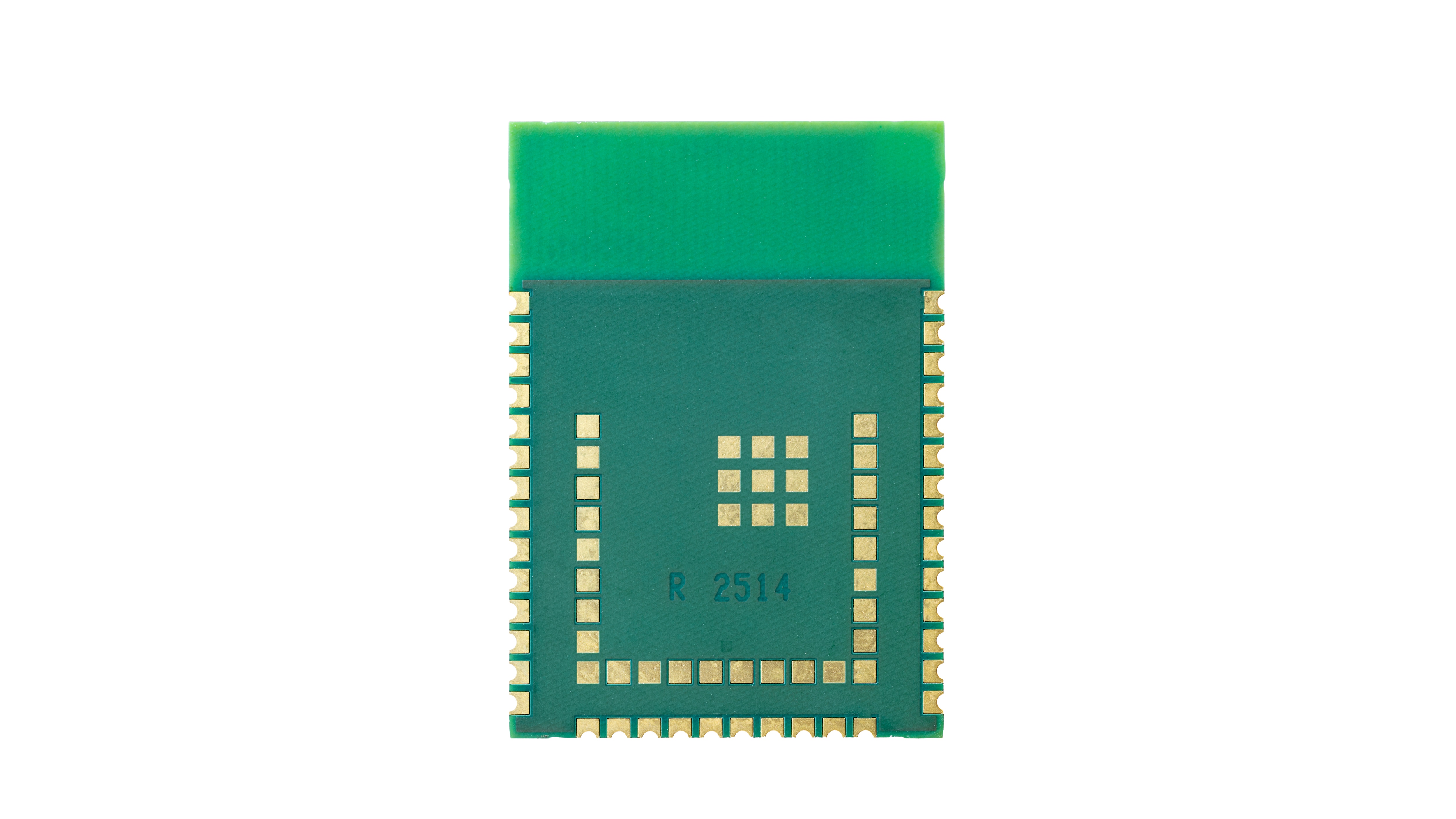

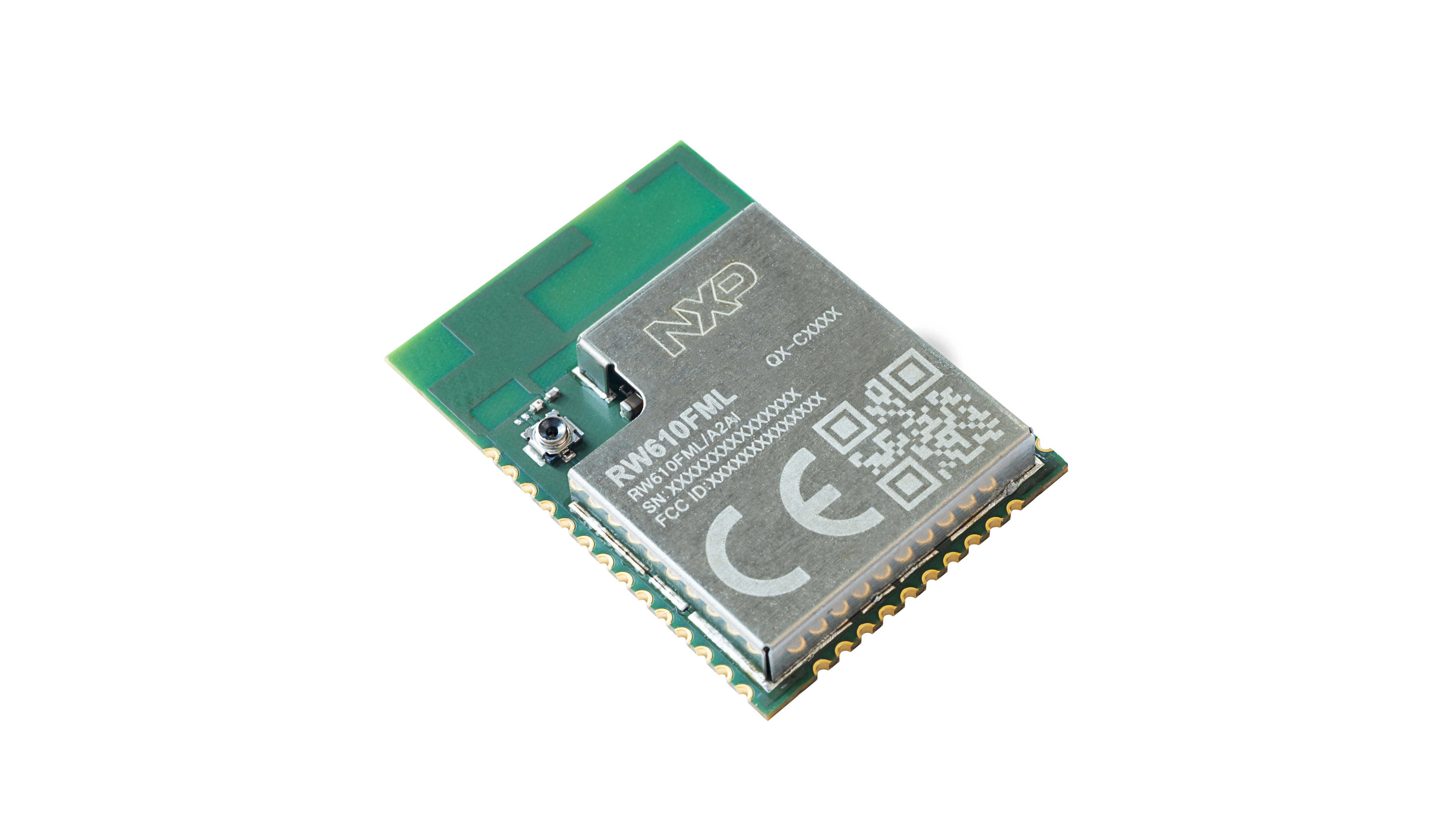

RW610FML: High-Performance Wi-Fi 6 and Bluetooth® Low Energy (LE) Combo Module with Integrated MCU
- 本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系恩智浦 支持服务或恩智浦当地销售人员。
The RW610FML is a low-power, high-performance Wi‑Fi 6 and Bluetooth combo module supporting IEEE 802.11a/b/g/n/ac/ax and Bluetooth® Low Energy (BLE) protocols. The module integrates a rich set of peripheral interfaces, enabling flexible design and broad application support across IoT, and consumer devices.
RW610FML module is based on RW610, a highly integrated, low-power wireless MCU with an integrated MCU and Wi-Fi® 6 + Bluetooth® Low Energy radios. The RW610 MCU subsystem includes a 260 MHz Arm® Cortex®-M33 core with Trustzone™-M, 1.2 MB on-chip SRAM and a high-bandwidth Quad SPI interface with an on-the-fly decryption engine for securely accessing off-chip execute-in-place (XIP) flash.
Features
Key Features
- NXP RW610 inside
- 260 MHz Arm™ Cortex™-M33
- Supports IEEE 802.11a/b/g/n/ac/ax specification: dual‑band 2.4 GHz and 5 GHz Wi-Fi 6 SISO with 20 MHz channels; Up to MCS9 (114 Mbps) peak data rates
- Supports Bluetooth LE features (2 Mbit/s high-speed mode, long range and advertising extensions)
- 8 MB Flash on module and 1.2 MB embedded SRAM on-chip
- Flexible Serial Peripheral Interface (FlexSPI) external flash interface supports eXecute-In-Place (XIP) and on-the-fly firmware encryption, decryption, and authentication
- Normal operating temperature range: -40 °C to 85 °C
- Storage temperature: -45 °C to +95 °C
- Dimensions: (25.5 ±0.2)mm × (18 ±0.2)mm × (3.16 ±0.2)mm
- Weight: approx. 1.51 g
- MSL: 3
- Surface-mount type
Supported Peripheral Interfaces
- General Purpose Input Output (GPIO)
- Secure digital input output (SDIO)
- Universal asynchronous receiver-transmitter (UART)
- Serial peripheral interface (SPI)
- Pulse code modulation (PCM)
- Inter-integrated circuit (I²C)
- Inter-IC sound (I²S)
- Pulse width modulation (PWM)
- Analog-to-digital (ADC)
- Digital-to-analog (DAC)
- USB
- Joint Test Action Group / serial wire debug (JTAG/SWD)
- LCD
- Digital microphone (DMIC)
- Analog Comparator (ACOMP)
- Mirco-tick timer (UTICK)
- Universal subscriber identity module ((U)SIM)
- Wireless coexistence interface 2nd version (WCI 2)
- Packet traffic arbitration (PTA)
Module Part Information
| Part Number | Operating Temp. | Antenna # | Antenna Type | Module Type | Module Size (mm) |
|---|---|---|---|---|---|
| RW610FML/A2AIZ | -40 °C to 85 °C | 1 | PCB | SMT | (25.5 ± 0.2) × (18 ± 0.2) × (3.16 ± 0.2) |
