QorIQ<sup>®</sup> T2080

点击播放视频

采用28 nm工艺的QorIQ T2080和T2081通信处理器是配备8个虚拟内核的中端平台，它们融合了T系列旗舰产品T4240的架构创新，如1.8 GHz双线程e6500内核，并具备更低的功耗和价格。

T2080处理器是继恩智浦成功推出P3041和P2041中端系列四核器件后的又一力作，主要用作控制平面或集成的控制和数据平面处理器。它是出色的升级产品，将内核处理能力、缓存大小、SerDes带宽和以太网连接性能提高了两倍以上，同时功耗处于相近的水平。它还为P4080用户提供了一个非常有价值工程设计机遇，因为T2080在提供同等性能的同时，价格和功耗更低。

T2081是T2080的小尺寸版本，与四核的T1042引脚兼容。这就使T1042用户能够在处理需求增加的时候轻松升级产品性能。同时，用户还可以在两种不同性能水平的产品中使用相同的电路板。

数据手册

参考手册

产品详情

框图

T2080 BD IMG

获取框图PDF

特征

内核复合体

4个双线程e6500内核，基于Power Architecture^®技术。
- 每个内核高达1.8 GHz，6.0 DMIPS/MHz
- 共享一个2 MB L2缓存
- 指令有3个等级：用户、超级用户、管理程序
- 混合32位模式，支持原有软件，并可向64位架构平稳过渡
- 高级电源管理功能具有节能模式，包括在电源门控时进行状态保持

基本外设和互连

CoreNet^{^®}平台缓存
分层互连结构
- CoreNet结构支持相干和非相干事务，在CoreNet端点之间进行优先级排序和带宽分配
附加的外设接口
- 两个高速USB 2.0控制器，带有集成PHY
- 增强型安全数字主机控制器(SD/MMC/eMMC)
- 增强型串行外设接口(eSPI)
- 4个I²C控制器
- 4个UART
- 支持NAND与NOR闪存的集成闪存控制器

加速器和存储控制器

64位DDR3L/3L SDRAM存储控制器，带有ECC支持
- 高达2.1 GT/s
- 存储器预取引擎
DPAA包含加速特性，适用于以下功能
- 数据包解析、分类和分发，高达24Gb/s (FMAN)
- 队列管理，用于调度、数据包排序和阻塞管理，高达2^24个队列(QMAN)
- 支持硬件缓冲管理，可缓冲分配和取消分配，具有64个缓冲池(BMAN)
- 集成安全加速(SEC)，高达10 Gbps
- 解压/压缩加速，高达17.5 Gbps (DCE)
- 签名检测(PME)，高达10Gb/s
- 带DPAA支持的RapidIO^®消息传递(RMAN)(仅T2080)

网络元件

SerDes
- 8通道，高达10GHz
- 8通道，高达8GHz (仅T2080)
以太网接口：8个MAC (T2081上为7个)多路复用以下选件
- 多达4个10 Gb/s MAC，支持XFI/KR、XAUI和HiGig (T2081上为两个，仅支持XFI/KR)
- 高达8个SGMII (T2080上有5个)
- 多达4个2.5Gb/s SGMII
- 多达两个RGMII
高速外设接口
- 两个PCI Express 3.0控制器(T2081上为1个)
- 两个PCI Express 2.0控制器(T2081上为3个)
- 端点SR-IOV
- 两个串行RapidIO^® 2.1控制器/端口，运行频率高达5 GHz，支持9和11类消息传递(仅T2080)
- 两个串行ATA (SATA) 2.0控制器(仅T2080)
DMA
- 两个8通道

其他特性

支持硬件虚拟化和分区执行
- 额外特权等级，用于支持管理程序
- 逻辑地址到实际地址的转换(LRAT)
- 虚拟内核感知MMU/TLB
- vMPIC (虚拟中断控制器)/支持虚拟内核的PPC内核
- vDMA (用户级DMA引擎)
- PAMUv2 (I/O MMU支持寻呼)
- DPAA (以太网MAC虚拟化，加速器虚拟化)
可信架构安全引导
- 安全引导、安全调试、篡改检测、易失性密钥存储、替代映像和密钥撤销
本产品包含在恩智浦产品长期供货计划中，自推出后至少保证10年供货

对比表

	T2080	T2081
SerDes	16	8
PCIe	2x Gen3 + 2x Gen2	1x Gen3 + 3x Gen2
SRIO	2 + RMan	无
SATA	2	无
Aurora	有	无
10Gbps MAC	多达4个，支持XFI、XAUI和HiGig	多达两个，支持XFI
1 Gbps MAC	多达8个	多达7个
封装	25 x 25 mm、896引脚、0.8mm间距	23 x 23 mm、780引脚、0.8mm间距，与T1042引脚兼容

设计资源

硬件

4 硬件

^{评估/开发板与系统}
QorIQ^® T2080参考设计板亮点

T2080RDB
^{评估/开发板与系统}
C29x PCI Express®适配器平台亮点

C29XPCIE
^{仿真器、探测器和编程器}
面向CodeWarrior^®TAP的Power Architecture^®处理器( COP)调试器接头

CWH-CTP-COP-YE
其他可用硬件. 查看我们的精选合作伙伴解决方案.
^{仿真器、探测器和编程器}
CodeWarrior^® TAP

CW_TAP

1-5 / 24 硬件

^{硬件测试配件和调试器}
TRACE32® PowerTrace System for NXP Microcontrollers/Microprocessors

PowerTrace system provides full insights of what an embedded system is doing without impacting its real-time performance. It ensures bringing designs to market faster and...

By Lauterbach GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
TRACE32® Debug and Trace tools for PowerPC-based NXP Microcontroller

TRACE32® provides a complete suite of tools for NXP's PowerPC-based Microcontrollers. They provide unparalleled levels of debug capabilities to get the best out of PowerP...

By Lauterbach GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum 合作伙伴
^{硬件测试配件和调试器}
TRACE32® PowerDebug System for NXP Microcontrollers/Microprocessors

PowerDebug is Lauterbach's powerful, modular, flexible debug system. It provides the broadest coverage of supported chips and core architectures in the embedded industry ...

By Lauterbach GmbH Gold 合作伙伴
^{硅设备/组件}
Power Supplies Non Isolated - POL

Ideal for powering the latest generation of FPGAs and DSPs, Murata’s non-isolated (PoL) DC-DC converters are DOSA and AMP compliant, and are competitive alternatives to d...

By Murata Manufacturing Co., Ltd. Gold 合作伙伴
^{硅设备/组件}
Solid State Disk (SSD)

From standard HDD replacement drives to enterprise-class storage solutions, our SSDs provide capacity, power, and performance advantages. And because we design and manufa...

By Micron Gold 合作伙伴
^{硅设备/组件}
DRAM Modules

We build our modules from start to finish—designing, manufacturing, and testing all of the DRAM ourselves before assembling the modules and testing again. So, from high-p...

By Micron Gold 合作伙伴
^{硅设备/组件}
Managed NAND (eMMC, eUSB)

Micron manufactures a wide range of managed NAND products such as the embedded Multi Media Card (eMMC) and the embedded USB (eUSB). Densities range from a few gigabytes ...

By Micron Gold 合作伙伴
^{硅设备/组件}
NAND Flash

Micron manufactures a wide range of NAND Flash products including SLC, MLC and TLC NAND.

By Micron Gold 合作伙伴
^{硅设备/组件}
NOR Flash

Micron manufactures a wide range of NOR Flash products, including Serial and quad SPI, Industry standard Parallel NOR flash and high performance parallel NOR Flash suppor...

By Micron Gold 合作伙伴
^{嵌入式板子解决方案}
VPX6-197 6U VPX T2080 SBC

The VPX6-197 6U VPX SBC combines the NXP T2080 AltiVec-enabled processor with advanced I/O needed for defense & aerospace applications.

By Curtiss-Wright Defense Solutions Gold 合作伙伴
^{嵌入式板子解决方案}
MPMC-961x 6U 1-slot Modular Computer

The MPMC-961x Mission Computer is equipped with an integrated 28 VDC power supply, a VME-196 NXP T2080 Processor SBC, and 2 PMC/XMC sites. The MPMC-961x is ideal for spac...

By Curtiss-Wright Defense Solutions Gold 合作伙伴
^{嵌入式板子解决方案}
V3-152 3U VPX DO-254 DAL A Safety-Certifiable SBC with T2080

The V3-152 3U OpenVPX SBC features NXP’s quad-core QorIQ T2080 processor & an extensive I/O complement for flexibility. The V3-152 is a safety-certifiable variant of the ...

By Curtiss-Wright Defense Solutions Gold 合作伙伴
^{嵌入式板子解决方案}
MPMC-931x Rugged 3U 1-slot Mission Computer

The MPMC-931x family of 3U VPX 1-slot systems are rugged processing systems that can be configured to meet the needs of any military or aerospace requirements, from lab t...

By Curtiss-Wright Defense Solutions Gold 合作伙伴
^{嵌入式板子解决方案}
MPMC-932x 3U VPX Modular Computer System

The MPMC-932x rugged 3U 2-slot integrated subsystem provides high functional density in a small package. Typical MPMC-932x system applications include mission computing, ...

By Curtiss-Wright Defense Solutions Gold 合作伙伴
^{嵌入式板子解决方案}
XPedite5970

The XPedite5970 is a 3U OpenVPX™ REDI single board computer based on the NXP QorIQ T2080 processor.

By Extreme Engineering Solutions (X-ES) Gold 合作伙伴
^{嵌入式板子解决方案}
XPedite6101

The XPedite6101 provides a compact rugged computing solution with excellent processing performance-per-watt, available in XMC and PrPMC form factors.

By Extreme Engineering Solutions (X-ES) Gold 合作伙伴
^{嵌入式板子解决方案}
VPX3-133 3U VPX T2080 SBC

The VPX3-133 is a rugged 3U OpenVPX single board computer (SBC) featuring the quad-core QorIQ T2080 processor at 1.5 GHz. Each core includes an AltiVec vector processin...

By Curtiss-Wright Defense Solutions Gold 合作伙伴
^{嵌入式板子解决方案}
VPX3-152 3U VPX T2080 SBC

The VPX3-152 3U VPX Single Board Computer (SBC) features an NXP T2080 quad-core processor and extensive I/O capabilities (USB, SATA,RS-232/422, GbE, XMC and LVTTL).

By Curtiss-Wright Defense Solutions Gold 合作伙伴
^{嵌入式板子解决方案}

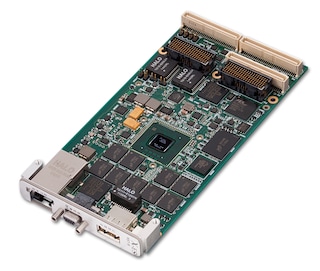

XPedite6100

The XPedite6100 is a high-performance, XMC/PrPMC, single board computer supporting an NXP QorIQ T1042 processor.

By Extreme Engineering Solutions (X-ES) Gold 合作伙伴
^{嵌入式板子解决方案}
XCalibur1931

XCalibur1931 is a high-performance, 6U VME single board computer featuring a QorIQ T2080 processor with four dual-threaded e6500 cores running at up to 1.8 GHz, each with...

By Extreme Engineering Solutions (X-ES) Gold 合作伙伴
^{嵌入式板子解决方案}

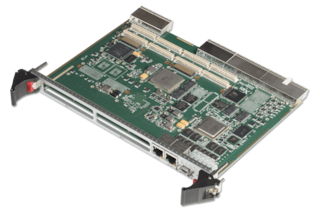

XCalibur1900
