LS1043A处理器是恩智浦推出的第一款面向嵌入式网络的四核64位Arm^®处理器。LS1023A (双核版本)和LS1043A (四核版本)可通过支持无风扇设计的灵活I/O封装，提供超过10 Gbps的性能。这款SoC是专为小规格网络、工业和汽车应用而打造的解决方案，针对经济型低端PCB优化了物料成本(BOM)，降低了电源成本，采用单时钟设计。

全新0.9V版LS1043A和LS1023A能够为无线LAN和以太网供电系统进一步降低能耗。全新的23x23封装方式，支持引脚兼容设计，可扩展至LS1046A (四核A72处理器)或LS1088A (十核A53处理器)。

LS1043A能够提升双核32位Arm 产品的性能，并且延续了QorIQ系列一贯的I/O灵活性，集成了QUICC Engine^®，继续提供对HDLC、TDM或Profibus的无缝支持。

Layerscape处理器是恩智浦EdgeVerse™边缘计算平台的一部分。

数据手册

参考手册

产品详情

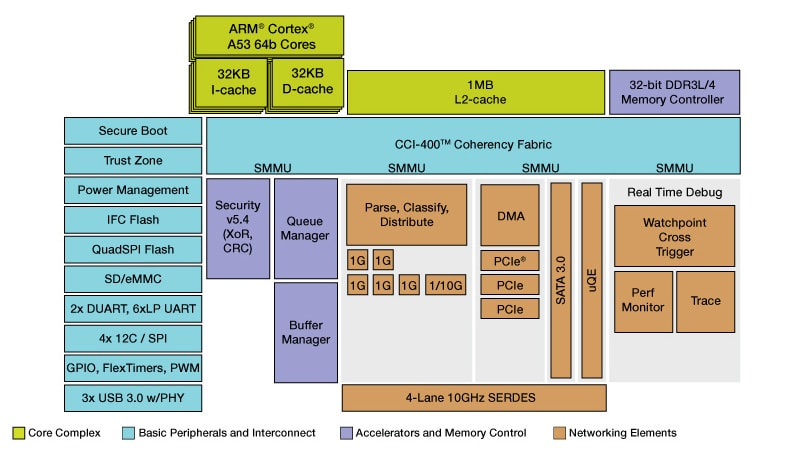

框图

LS1043A BD

获取框图PDF

特征

内核复合体

四核(LS1043A)或双核(LS1023A) Arm^{^®} Cortex^®-A53 64位内核
1 GHz至1.6 GHz
32/32 I/D缓存KB L1和1 MB L2缓存

网络元件

多达7个1x GbE或1x 10GbE和5个1x GbE
四通道SerDes，高达10 GHz，控制器间多路复用，支持：
- 3个第二代PCI Express^{^®}接口
- SATA 3.0接口
- uQUICC Engine

加速器和存储器控制

DPAA解析、分类和分发引擎
内置安全引擎
DDR 3L/4

基本外设和互连

3个带PHY的USB 3.0接口
QuadSPI
IFC闪存
四通道I²C
信任区

其他特性

QorIQ平台可信架构
面向硬件增强虚拟化的Arm SMMU
面向超低功耗设计的0.9V选项
23x23封装方式，支持引脚兼容和性能扩展

LS1043A开发工具

软件
- 应用解决方案套件
  - LS1043A多核通信处理器家用宽带路由器应用解决方案套件
- 软件开发套件
  - Layerscape软件开发套件
  - 面向QorIQ^®处理器的Linux^®SDK
- 开发软件
硬件
- 参考设计
  - LS1043A住宅网关参考设计
- 开发板
  - LS1043A参考设计板
- 仿真器/硬件调试器
  - 面向CodeWarrior TAP的QorIQ LS处理器调试器接头
  - CodeWarrior^® TAP
支持
- Professional Support for Processors and Microcontrollers
- 支持QorIQ^® LS1012A、LS1024A和LS1043A处理器

原始设计制造商合作伙伴

说明	特性	合作伙伴
Accton LS1043A企业SDWAN & AI-IoT边缘网关	四核LS1043A-1.6GHz Arm A53 DDR4高达8 GB 板载NAND闪存高达2 GB 可选eMMC闪存高达64 GB 两个1000BASE-T以太网端口
Senao LS1046/43企业安全路由器平台	L3-7防火墙和流量整形 10 G以太网/SFP+端口支持3g/44调制解调器多个上行链路端口 Web缓存冗余电源
