i.MX 95应用处理器系列：支持功能安全的高性能平台，带eIQ^® Neutron NPU

本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系恩智浦支持服务或恩智浦当地销售人员。

滚动图片以放大

i.MX 95应用处理器系列提供安全、可靠且节能的边缘计算解决方案，适用于航空航天、汽车边缘、商业物联网、工业、医疗和网络平台等领域。它结合了强大的AI加速视觉处理能力和沉浸式图形功能，并具备功能安全、高级信息安全以及高性能连接。

本页介绍的产品处于样品阶段。产品技术规格和信息如有变更，恕不另行通知。

EdgeLock®安全区域(高级配置版)具备先进的、面向未来的安全功能，能够实现后量子硬件信任根，并支持混合模式(ML-DSA、ECDSA)，适用于恩智浦签名安全区域固件。它还支持快速安全启动、安全调试和更新、实时消息签名、安全通信的身份验证和加密等。了解恩智浦后量子加密(PQC)策略的详情。

产品详情

框图

i.MX 95应用处理器

iMX95

获取框图PDF

特性

多核处理

6个Arm® Cortex-A55多核复合体
1个Arm Cortex-M7
1个Arm Cortex-M33
恩智浦eIQ® Neutron神经处理单元

存储器

片上存储器
- 1376kB SRAM (ECC)
外部存储器
- 高达6.4GT/s x32 LPDDR5/LPDDR4X (含内联ECC和内联加密)
- 3个SD/ SDIO3.0/ eMMC5.1
- 1个8线SPI，支持SPI NOR和SPI NAND存储器

连接

1个10GbE +两个Gb以太网，带TSN；AVB和IEEE 1588，用于同步；EEE
1个带PHY的USB 3.0 Type C + 1个带PHY的USB 2.0 Type C
5个CAN FD
8个UART/USART/Profibus，8个I²C，8个SPI，两个I3C
1个8通道12位ADC
两个32引脚FlexIO接口(摄像头、总线或串行I/O)
两个PCIe Gen 3，1个通道

图形

3D GPU：OpenGL® ES 3.2，Vulkan® 1.2，OpenCL™ 3.0
2D GPU

显示器接口

350MHz MIPI-DSI (4通道，2.5Gbps/通道)，支持4kp30或3840x1440p60
高达1080p60 LVDS Tx (两个4通道或1个8通道)

摄像头接口

MIPI-CSI和带PHY的ISP (两个4通道，2.5Gbps/通道) (1个带DSI的复用器)
1个4Kp60fps，两个4Kp30，4个1080p60，或8个1080p30摄像头，带MIPI虚拟通道

音频

17个I²S TDM (32位@768KHz)，SPDIF Tx/Rx
8通道PDM麦克风输入
MQS：中等质量声音输出(Σ-Δ调制器)

操作系统

Linux®操作系统
Android™操作系统
FreeRTOS
支持商业操作系统，包括Green Hills Software和QNX

工艺

16纳米FinFET

封装

19x19mm，0.7mm间距；15x15mm，0.5mm间距

温度范围

汽车/扩展工业温度范围：- 40°C环境温度至125°C结温
工业级：-40°C环境温度至105°C结温
商业级：0°C环境温度至90°C结温

基本信息

功能安全：工业IEC61508 (SIL 2)和汽车ISO26262 (ASIL B)；信息安全：EdgeLock安全区域 (高级配置版)，带EdgeLock加速器(V2X)，含后量子加密技术(PQC)

设计资源

硬件

快速参考恩智浦板类型.

1-5 / 6 硬件

评估板和开发板
Ara-2 M.2 (M-Key)模块：面向生成式AI工作负载的40 eTOPS
试生产

ARA-2-2M-MODULE
评估板和开发板
面向AI集成摄像头与嵌入式系统的Ara-1 USB模块
不推荐用于新设计

ARA-1-USB-MODULE
评估板和开发板
面向AI摄像头与嵌入式系统的Ara-1 M.2 (M-Key)模块
不推荐用于新设计

ARA-1-M2-MODULE
其他可用硬件. 查看我们的精选合作伙伴解决方案.
评估板和开发板
Ara-2 USB模块：面向生成式AI工作负载的eTOPS
试生产

ARA-2-USB-MODULE
评估板和开发板
高分辨率4K CMOS摄像头模块
正常供应

EXPI-OS08A20
参考设计
i.MX环视系统

SURROUND-VIEW-APPLICATION

1-5 / 24 硬件

嵌入式板解决方案
TRIA OSM-LF-IMX95

The TRIA OSM-LF-IMX95 is powered by the latest i.MX 95 Applications Processors that integrate up to six Arm Cortex-A55 cores, dedicated Arm Cortex-M7 and M33 Real-Time Pr...

By Tria Technologies Platinum 合作伙伴
嵌入式板解决方案
EDM-IMX95

NXP i.MX95 System on Module with opensource Linux / Yocto / Android

By TechNexion Ltd Gold 合作伙伴
嵌入式板解决方案
TQMa95xxSA

Embedded Cortex®-A55 Module based on i.MX 95 with Machine Learning Accelerator

By TQ-Systems GmbH Platinum 合作伙伴
嵌入式板解决方案
TRIA SM2S-IMX95

The TRIA SM2S-IMX95 is powered by the latest i.MX 95 Applications Processors that integrate up to six Arm Cortex-A55 cores, dedicated Arm Cortex-M7 and M33 Real-Time Proc...

By Tria Technologies Platinum 合作伙伴
嵌入式板解决方案
SECO SOM-SMARC-MX95

SMARC® Rel. 2.1.1 module with NXP i.MX 95 Applications Processors

By SECO Gold 合作伙伴
嵌入式板解决方案
phyCORE-i.MX 95

The phyCORE-i.MX 95 offers a powerful and versatile solution for industrial applications and combines camera interfaces, NPU, ISP and connectivity to cloud services to en...

By PHYTEC Platinum 合作伙伴
嵌入式板解决方案
SMARC iMX95

The SMARC iMX95 SoM features an ARM Mali GPU, delivering high-resolution, hardware-accelerated graphical performance. Toradex also provides integration with popular machi...

By Toradex® Platinum 合作伙伴
嵌入式板解决方案
i.MX 95 Verdin Evaluation Kit | NXP i.MX 95 Applications Processor

Toradex’s i.MX 95 Verdin EVK empowers developers to kickstart projects and smoothly transition from proof-of-concept to large-scale production with ease, speed, and advan...

By Toradex® Platinum 合作伙伴
嵌入式板解决方案
Verdin iMX95

Verdin iMX95 is Toradex's highest performing Verdin System on Module. Verdin iMX95 has a powerful eIQ Neutron Neural Network Processor (NPU) and up to 6x Cortex A55 for o...

By Toradex® Platinum 合作伙伴
嵌入式板解决方案

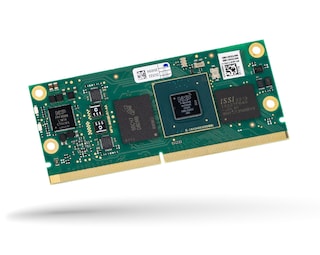

miriac® MPX-i.MX95

The miriac® MPX-iMX95 features up to six 2.0 GHz Arm® Cortex®-A55 cores plus two real-time co-processors: an 800 MHz Cortex®-M7 and a 333 MHz Cortex®-M33, combining high-...

By MicroSys Electronics GmbH Gold 合作伙伴
嵌入式板解决方案
Atlas Scalable Edge Inference Platform

Atlas is a scalable edge inference platform that uses i.MX 8M Plus + optional GPU to support up to 23.3 TOPS of inference performance. ML/vision software, support/solutio...

By Arcturus Gold 合作伙伴
嵌入式板解决方案
i.MX 95 SMARC SOM

iWave’s i.MX 95 SMARC SoM features six Cortex-A55 cores up to 1.8GHz, an NPU with 2.0 TOPS performance, optional Wi-Fi 6 & Bluetooth 5.3, SMARC v2.1.1 compliance, and...

By iWave Global Gold 合作伙伴
嵌入式板解决方案
AXON-IMX95

NXP i.MX95 System on Module with opensource Linux / Yocto / Android

By TechNexion Ltd Gold 合作伙伴
嵌入式板解决方案
Aquila iMX95

The Aquila iMX95 supports the implementation of security-critical functions and simplifies compliance with global Cybersecurity regulations, such as the upcoming EU Cyber...

By Toradex® Platinum 合作伙伴
嵌入式板解决方案
Nitrogen95 SMARC

SMARC form factor SOM powered by i.MX 95, NXP PF09 PMIC and PF53 Regulators, our Sona NX611 Wi-Fi 6 and Bluetooth 5.4 (based on NXP&#39;s IW611), LPDDR4 RAM, and ...

By Ezurio Gold 合作伙伴
嵌入式板解决方案
TQMa95xxLA

Embedded Cortex®-A55 Module based on i.MX 95 with Machine Learning Accelerator

By TQ-Systems GmbH Platinum 合作伙伴
嵌入式板解决方案

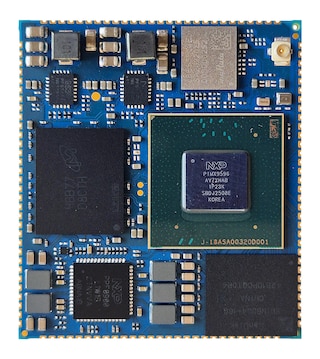

ConnectCore 95

Digi ConnectCore® 95 is a high-performance wireless SOM with cloud, security, and AI/ML. It powers smarter medical, industrial, and retail solutions. With built-in connec...

By Digi International Gold 合作伙伴
评估板和开发板
STKa95xxLA

Evaluation kit based on the minimodule TQMa95xxLA, which is based on the i.MX 95 processor an Arm® Cortex®-A55 from NXP.

By TQ-Systems GmbH Platinum 合作伙伴
评估板和开发板

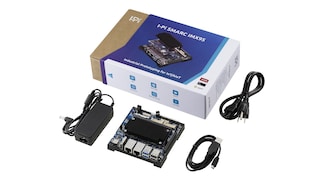

I-Pi SMARC IMX95
