8位通用GB MCU

S08GB

滚动图片以放大

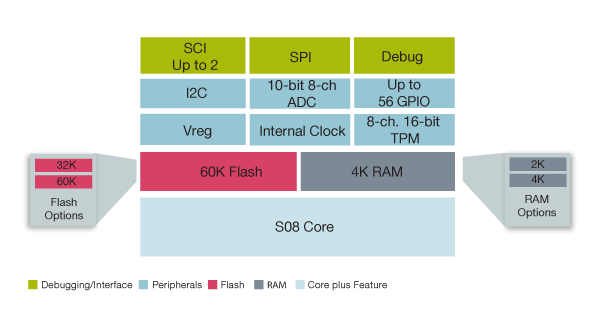

MC9S08GB系列是低成本、高性能S08系列通用8位微控制器(MCU)的成员。该系列中的所有MCU都采用增强型S08内核，并提供各种模块、存储器大小、存储器和封装类型。

S08系列是HC08系列的扩展，电池使用时间更长，性能较高时的工作电压低至1.8V，闪存达到高性能水平并提供创新开发支持。
