8位低功耗QA MCU

S08QA 正常供应

MC9S08QA4系列是经济高效的、高性能S08系列8位微控制器单元的成员，工作电压为1.8 - 3.3V，具有片上存储器、两个超低功率模式和带复位或中断的低压检测功能。S08内核可提供40 MHz内核速度和20 MHz总线速度。

产品详情

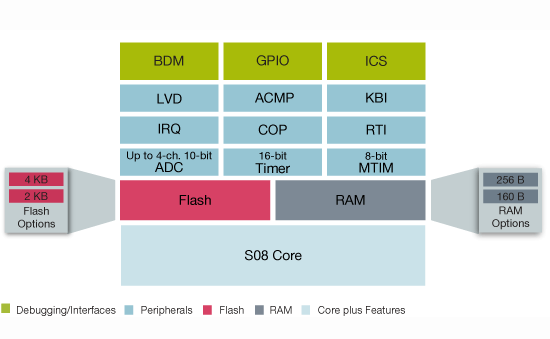

框图

Freescale S08QA Microcontroller Block Diagram

Freescale S08QA Microcontroller Block Diagram
获取框图PDF

特征

8位HCS08中央处理器(CPU)

  • HCS08 CPU频率高达20 MHz (10 MHz总线频率)，最小指令执行周期为100 ns
  • 附加了后台指令(BGND)的HC08指令集
  • 支持高达32个中断/复位源

集成第三代闪存和RAM

  • 嵌入式闪存，带单个电源，可在整个工作电压和温度范围内在应用中重新编程
  • 字节可写入的快速编程；速度为20 µs/字节
  • 在典型的电压和温度条件下，高达100,000次写入/擦除操作(最低10K写入/擦除操作)
  • 数据一般可以保存100年(最少15年)

灵活的可选时钟源

  • 内部时钟源(ICS)模块，包含由内部或外部参考源控制的锁频环(FLL)
  • 精确微调内部参考，分辨率一般可达0.1％，在工作温度和电压范围内会有0.5％​-1％的偏差。
  • 内部参考电压在31.25 kHz到39.065 kHz范围内可调，支持8 MHz至10 MHz的FLL输出

输入/输出(I/O)线路

  • 4条双向输入/输出(I/O)线
  • 一个仅输入线，一个仅输出线
  • 输出：每个10 mA；封装的最大输出电流为60 mA
  • 作为输入时，可通过软件选择端口的上拉电阻
    • 复位和中断请求具有上拉电阻
    • 中断请求(IRQ)引脚
  • 作为输出时，通过软件可选择端口的压摆率控制和驱动强度
  • 4引脚键盘中断模块，通过软件可选择边沿或边沿/电平模式极性

集成式外设

  • 4通道10位模数转换器(ADC)
  • 自动比较功能，软件可根据大于、等于或小于条件编程
  • 异步时钟源
  • 温度传感器
  • 内部带隙参考通道
  • 可采用实时中断计数器实现硬件触发
  • 有低功耗和高速可选

模拟比较器(ACMP)

  • 可选择比较内部参考源
  • 可选择将比较器输出直接输出到引脚
  • 可以选择将输出作为输入捕捉触发器接到TPM

两个定时器模块

  • 可编程的16位定时器/PWM模块(TPM)
  • 带8位预分频器的8位模数定时器模块(MTIM)

系统保护

  • 计算机正常运行(COP)看门狗模块复位，可选择采用专用的1 kHz内部时钟源或总线时钟来运行
  • 带复位或中断功能的低电压检测
  • 带复位功能的非法操作码检测
  • 灵活的闪存块保护
  • 闪存和RAM的安全功能
  • 始终开启的上电复位电路
