RDK01DB1561：TEA2016AAT开发编程板和样品

TEA2016DB1561

滚动图片以放大

TEA2016是一款数字化可配置LLC和PFC组合控制器，用于高效谐振电源。它包括LLC控制器功能和PFC控制器，均以DCM和QR模式运行。TEA2016AAT采用小型窄条SO16封装。

TEA2016AAT数字架构基于高速可配置硬件状态机，确保可靠性、实时性。在电源开发过程中，LLC和PFC控制器的多种操作和保护设置都可以通过向设备加载新设置来进行调整，以满足特定的应用要求。

支持的器件

电源管理

带集成PFC的AC-DC控制器

  • TEA2016: 用于谐振电源的数字化LLC+PFC组合控制器

特征

TEA2016 features

  • Several parameters can easily be configured, like:
    • Operating frequencies to be outside the audible area at all operating modes
    • Soft start and soft stop in burst mode, reducing the audible noise
    • Accurate transition levels between operation modes (high-power mode/low-power mode/burst mode)
  • Independently configurable levels and timers
  • All protections can independently be set to latch, safe restart, or latched after several attempts to restart (Patent 82096505US01)

RDK01DB1561 content

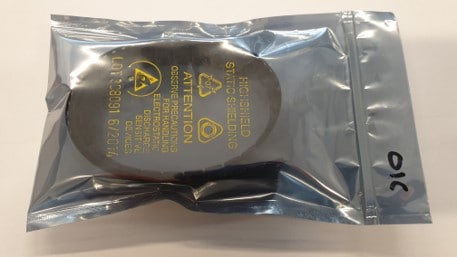

  • 50 pieces TEA2016AATdev IC samples
  • 1 TEA2016 programming board

TEA2016AAT dev

  • The RDK01DB1561 kit contains the special development version of the TEA2016AAT IC

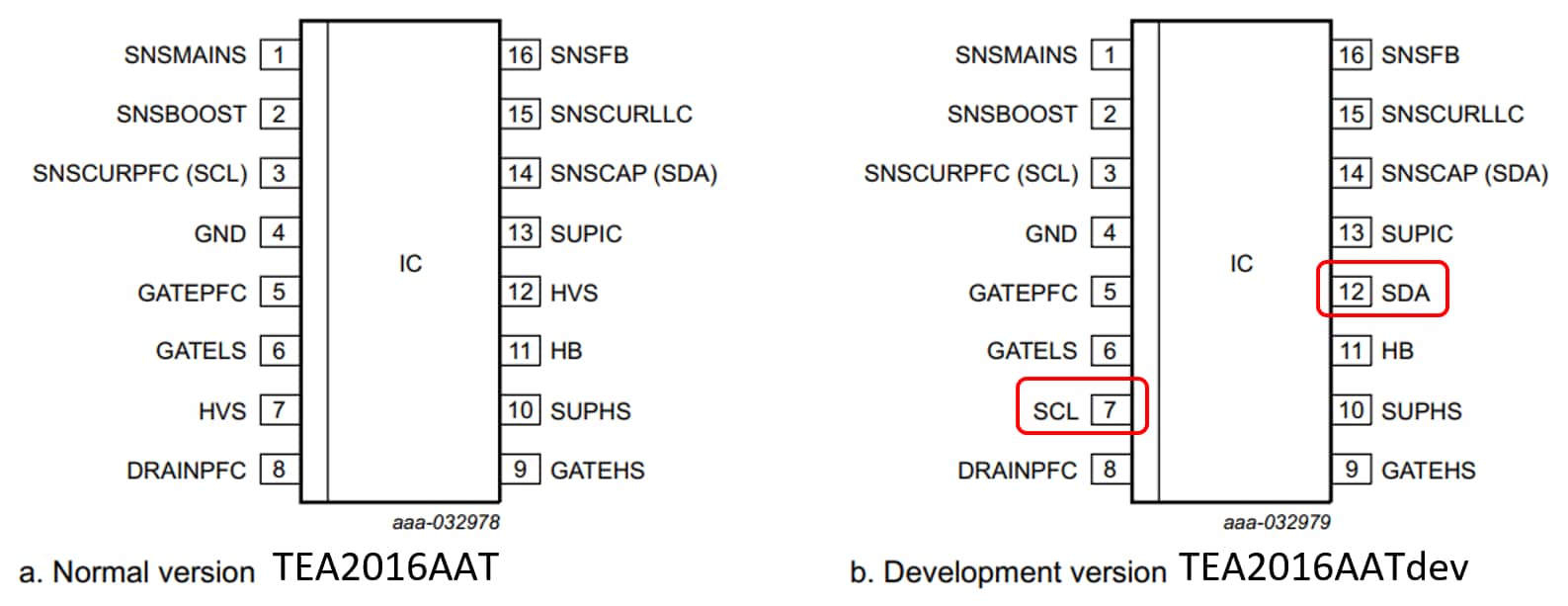

  • Connections to the IC’s second I2C interface are provided on the high-voltage spacer pins 7 and 12, which are normally not connected (High Voltage Spacer pin)
  • This enables easy modification of parameter settings while the IC is operating: operation can be changed “on the fly”

TEA2016DB1561 programming board

  • This board can be used to get familiar with programming TEA2016AATdev samples. A sample can be soldered to the board for this purpose
  • Adding an IC socket (not included) will make the TEA2016DB1561 programming board suitable for programming small series of ICs

购买选项

  • TEA2016DB1561

  • TEA2016AAT Development Programming Board and Samples.

  • 编程板

    RDK01DB1561-Image

    点击展开

    • RDK01DB1561

    • TEA2016AAT Development Programming Board and Samples.

    • CNY412.99
    • 数量为 1
      • 供货情况: 有货
      • 库存: 27
      • 运单: 正常情况下 1-2个工作日内发货
    从恩智浦处购买从分销商处购买

    文档

    快速参考 文档类别.

    筛选

    1-5 / 7 文件

    展开

    设计资源

    软件

    筛选

    4 软件文件

    • BSP及设备驱动

      Ringo v135 TEA2016ATT x86 for 32-Bit Windows OS

      ZIP版本 1Jan 17, 2020 19:06:00358000 KBRINGO-V135-TEA2016AAT-X86
      请登录
      下载
    • BSP及设备驱动

      Ringo v141 TEA2016ATT x86 for 32-Bit Windows OS

      ZIP版本 1Apr 29, 2022 11:03:00350000 KBRINGO-V141-TEA2016AAT-X86
      请登录
      下载
    • BSP及设备驱动

      Ringo v135 TEA2016ATT x64 for 64-Bit Windows OS

      ZIP版本 1Jan 17, 2020 19:01:00360000 KBRINGO-V135-TEA2016AAT-X64
      请登录
      下载
    • BSP及设备驱动

      Ringo v141 TEA2016ATT x64 for 64-Bit Windows OS

      ZIP版本 1Apr 29, 2022 11:24:00350000 KBRINGO-V141-TEA2016AAT-X64
      请登录
      下载
