带有I²C总线/SPI接口、64字节发送和接收FIFO以及IrDA SIR内置式支持的双通道UART

SC16IS752_SC16IS762 正常供应

点击播放视频

SC16IS752/SC16IS762是一个连接双通道高性能UART的I²C总线/SPI总线接口，提供最大5Mbit/s的数据速率、低工作和睡眠电流；还为应用提供8个额外可编程I/O引脚。该器件采用极小的HVQFN32和TSSOP28封装，非常适合手持、电池供电应用。此芯片能够从I²C总线/SPI至RS-232/RS-485进行无缝协议转换，并且完全可以双向进行。

SC16IS762与SC16IS752的不同之处在于，后者仅支持4Mbit/s的SPI时钟速度，而SC16IS762支持最大15Mbit/s的SPI时钟速度，以及最大1.152Mbit/s的IrDA SIR。在所有其他方面，SC16IS762的功能和电气性质与SC16IS752相同。

SC16IS752/SC16IS762的内部寄存器组向后兼容广泛使用且流行的16C450。允许从其他平台轻松写入或导入软件。

SC16IS752/SC16IS762还提供额外的高级功能，如自动硬件和软件流控制、自动RS-485支持和软件复位。因此，软件不受硬件复位信号的影响，在任何时候都能复位UART。

产品详情

框图

选择框图:

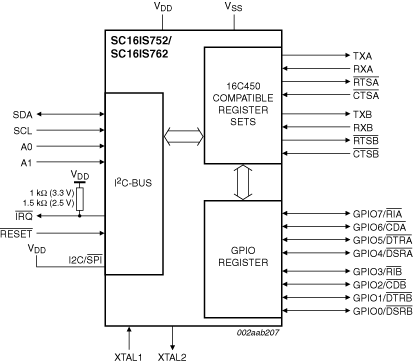

SC16IS752IBS、SC16IS752IPW、SC16IS762IBS、SC16IS762IPW框图

SC16IS752IBS, SC16IS752IPW, SC16IS762IBS, SC16IS762IPW Block Diagram

框图：SC16IS752IBS、SC16IS752IPW、SC16IS762IBS、SC16IS762IPW

获取框图PDF

特性

一般特性

  • 双通道全双工UART
  • 可选I²C总线或SPI接口
  • 工作电压：3.3V或2.5V
  • 工业温度范围：-40°C至+95°C
  • 64字节FIFO（发射器和接收器）
  • 完全兼容行业标准16C450及同等标准
  • 波特率高达5Mbit/s，16个时钟模式
  • 使用RTS/CTS实现的硬件流自动控制
  • 使用可编程Xon/Xoff字符进行自动软件流控制
  • 单个或两个Xon/Xoff字符
  • 支持自动RS-485（自动从地址检测）
  • 最多8个可编程I/O引脚
  • 通过RTS信号实现的RS-485驱动器方向控制
  • RS-485驱动器方向控制反转
  • 内置IrDA编码器和解码器支持速度高达115.2kbit/s的IrDA SIR
  • SC16IS762支持速度高达1.152kbit/s的IrDA SIR
  • 软件复位
  • 可相互独立启用/禁用发射器和接收器
  • 接收和发送FIFO电平
  • 可编程特殊字符检测
  • 完全可编程的字符格式
    • 5位、6位、7位或8位字符
    • 偶、奇或无奇偶校验
    • 1、1½或2停止位
  • 线中止的产生和检测
  • 内部环回模式
  • 3.3V时的睡眠电流低于30μA
  • 工业和商用温度范围
  • 5V容限的输入
  • 提供HVQFN32和TSSOP28封装

I²C总线特性

  • SCL/SDA输入端提供噪音滤波器
  • 400kbit/s（最快）
  • 兼容I²C总线快速模式
  • 仅限目标模式

SPI特性

  • SC16IS752支持最快4Mbit/s的SPI时钟速度
  • SC16IS762支持最快15Mbit/s的SPI时钟速度
  • 仅限从器件模式
  • SPI模式0

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
