产品规格

技术和功能规格

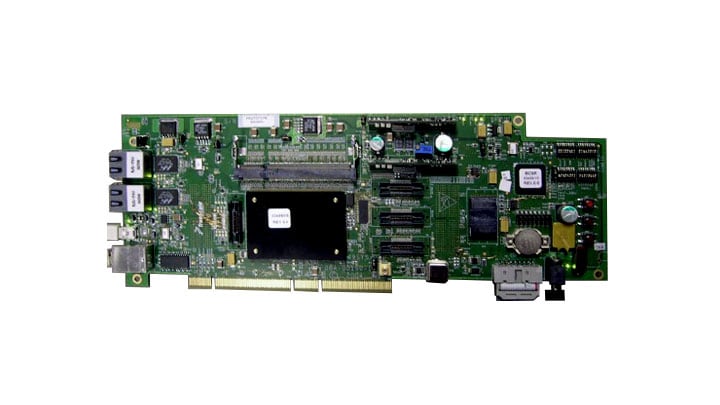

	MPC8349处理器板可用作独立开发板，支持以下特性：
微控制器	MPC8349E processor @533 MHz
存储器	MB DDR-1 333 MHz (supports optional ECC memory)
数据连接	64-Bit PCI Edge Connector (3.3 V and 5 V) 两个RJ-45千兆以太网端口 USB 2.0高速设备/主设备/OTG端口两个RS232端口连接平台I/O板的侧板连接器
	本地总线接口，带有： 8MB闪存(可扩展) 采用FBGA封装的电路板控制和状态寄存器(BCSR)
调试	JTAG调试端口
	PCI add-in standard card form factor (321x106 mm² )
	MPC8349E MDS平台I/O板采用AdvancedTCA规格，带4个PMC插槽。该平台I/O板加上扩展模块可以提高开发能力。例如： PCI Host mode (3.3 V 32 and 64-bit bus) with single agent (w/ PCI PMC card and PIB) 访问第二个USB端口(带USB PMC卡和PIB) 更多的USB PHY (UTMI、ULPI和串行OTG) PCI Host mode (3.3 V 32 and 64-bit bus) with multiple agents (w/PCI expansion card and PIB)
MPC8349E-MDS套件包括	MPC8349E-MDS-PB - 面向MPC8349E系列的处理器板 AC-DC 5 V/5 A universal power supply kit RS-232 9针标准串行线缆恩智浦适配器线缆(带RJ45和RS-232连接器) Mini-USB适配器 USB线缆(带standardA和miniB连接器) Ethernet cable (RJ45-8 pin connector) (qty 2) Plastic spacer sets Qty 4 PCI Panel for MPC8349E-MDS-PB Board SW CodeWarrior^®套件(包括JTAG连接单元) HW Getting Started Guide CD: User Information MPC8349E-MDS-PB板的勘误表文档 PQ-MDS-PIB - Platform I/O Board for the 83xx Family AdvancedTCA规格，带4个PMC插槽 Allows user to expand the functionality of the MPC8349E-MDS-PB when used along with the module cards PQ-MDS-PIB板套件带开关的电源延长线缆 25针IEEE 1284并行线缆 Serial cable 10 cm D25M to IDC10 Parallel cable 10 cm D25M to IDC26F RJ45转IDC8F线缆(两根) LC环回62.5/125光纤线缆(两根) USB Cable StndA Plug to MiniB 1 Meter USB Cable MiniA Plug to StndB 1.5 Meter 1 PMC电路板组件隔板(16个) AC-DC Power Supply 48 V/2.7 A PQ-MDS-PIB快速入门指南 PQ-MDS-PIB板勘误表 PQ-MDS-PIB文档CD PQ-MDS-PMCPCI - 面向83xx系列的PMC转PCI模块卡适配器可以插入一块PCI卡 Supports 3.3 V 32 and 64-bit PCI Bus PQ-MDS-USB - 面向83xx系列的USB扩展模块(单独购买) 访问第二个USB端口更多的USB PHY (UTMI、ULPI、串行OTG)

支持的器件

处理器和微控制器

PowerQUICC II Pro (MPC83xx)

MPC8347E : PowerQUICC^® II Pro处理器带DDR2、PCI、1 GB以太网、双USB、安全性
MPC8349E : PowerQUICC^® II Pro处理器带DDR2、双PCI、1 GB以太网、双USB及安全性

更多收起

文档与软件

设计资源 ( 4 )

设计工具和文件 ( 4 )
- 印刷电路板与电路图 ( 4 )

文件

用户指南 ( 11 )

PowerQUICC^® Modular Development System Platform I/O Board Hardware Getting Started Guide ^{(REV
0.4
)}
- PDF
- 3.7 MB
- 01 Jan 2006
- PQMDSPIBUMAD
- [ English ]
PowerQUICC^® Modular Development System Quad OC3 Module Hardware Getting Started Guide ^{(REV
A
)}

This document shows how to connect the PQ-MDS-QOC3 and verify its basic operation, in a step by step format. Settings for switches and jumpers are shown, including configuring the PQ-MDS-QOC3 for multi-PHY support. This document describes Ver. PROTO-1 of the PQ-MDS-QOC31.0.
- PDF
- 1.3 MB
- 01 Jul 2006
- PQMDSQOC3UMAD
- [ English ]
MPC8349EA MDS Processor Board Hardware Getting Started Guide^{(REV
A
)}

This document shows how to connect the MPC8349EA MDS processor board and verify its basic operation, in a step by step format. Settings for switches and jumpers are shown, as well as instructions for connecting peripheral devices. In addition, instructions for connecting the MPC8349EA MDS processor board to an Integrated Development Environment (IDE), such as NXP’s CodeWarrior are included, but instructions for working with the IDE are beyond the scope of this document. This version of the board
- PDF
- 978.6 kB
- 30 Nov 2006
- MPC8349EAMDSPBUMAD
- [ English ]
PowerQUICC^® Modular Development System PCI Expansion Adaptor Board User's Manual^{(REV
1.1
)}

This document details technical specification of the PCI Expansion Adapter Board (PQ-MDS-PCIEXP) targeted to be used with 83xx I/O board to provide standard PCI slot’s data interface to Host CPU and power supply to inserted PCI cards.
- PDF
- 151.0 kB
- 31 Oct 2005
- PQMDSPCIEXPUM
- [ English ]
MPC8349EA MDS Processor Board User Manual^{(REV
A
)}

This document describes the MPC8349EA MDS Processor Board, in its stand-alone operating mode, in addition to its operating mode via a PCI slot in a PC, or its operating mode on the “PowerQUICC^® MDS Platform I/O Board (PIB)”.
- PDF
- 3.5 MB
- 30 Dec 2006
- MPC8349EAMDSPBUM
- [ English ]
PowerQUICC^® Modular Development System Hardware Getting Started Guide ^{(REV
0.3
)}

This document shows how to connect the PQ-MDS-T1 and verify its basic operation, in a step by step format. The PQ-MDS-T1 works only with the Platform I/O Board (PQ-MDS-PIB), which in turn, has an MPC83xx MDS inserted as a host device.
- PDF
- 814.7 kB
- 01 Apr 2006
- PQMDST1UMAD
- [ English ]
MPC8349E MDS Processor Board^{(REV
1.6
)}
- PDF
- 3.6 MB
- 05 Dec 2005
- MPC8349EMDSUM
- [ English ]
MPC8349E MDS PB Getting Started Guide^{(REV
8
)}
- PDF
- 552.7 kB
- 05 Dec 2005
- MPC8349EMDSUMAD
- [ English ]
PowerQUICC^® Modular Development System Platform I/O Board User's Manual^{(REV
A
)}

This document describes the PowerQUICC^® MDS Platform I/O Board (PIB). The PowerQUICC MDS Platform I/O Board, together with the MPC8349E MDS Processor Board, form the MPC8349E Modular Development System (MDS). The MDS enables software programmers to develop software for the 8Xxx architecture.
- PDF
- 3.0 MB
- 08 Sep 2005
- PQMDSPIBUM
- [ English ]
PowerQUICC^® Modular Development System PCI Expansion Adaptor Hardware Getting Started Guide^{(REV
0.5
)}
- PDF
- 1.2 MB
- 01 Dec 2005
- PQMDSPCIEXPUMAD
- [ English ]
PowerQUICC^® Modular Development System PMC T1/Subscriber Line Interface Controller/Subscriber Line Access Controller Add-in Module User’s Manual ^{(REV
1.1
)}

The PQ-MDS-T1 - T1/E1/DS3/T3/SLIC-SLAC (Subscriber Line Interface Controller/Subscriber Line Access Controller) module serves as a platform for S/W and H/W development around the 83xx host device.
- PDF
- 1.4 MB
- 09 Feb 2006
- PQMDST1UM
- [ English ]

支持信息 ( 4 )

MPC8349E MDS Processor Board Packing List^{(REV
A
)}
- PDF
- 10.8 kB
- 16 Dec 2005
- MPC8349EMDSPBPL
- [ English ]
MPC8349E-MDS Packing List^{(REV
A
)}
- PDF
- 10.1 kB
- 16 Dec 2005
- MPC8349EMDSPL
- [ English ]
MPC8349EA MDS Processor Board Packing List^{(REV
1
)}
- PDF
- 25.1 kB
- 12 Jan 2007
- MPC8349EAMDSPBPL
- [ English ]
PQ-MDS-PIB Packing List^{(REV
A
)}
- PDF
- 11.3 kB
- 16 Dec 2005
- PQMDPIBPL
- [ English ]

设计资源

Design Tools & Files ( 4 )

印刷电路板与电路图 ( 4 )

MPC8349EAMDS Processor Board Schematics ^{(REV
2
)}
- PDF
- 873.0 kB
- 2006-05-11 00:00:00
- MPC8349EAMDSPBSCH
下载Toggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue
MPC8349MDS Schematics - OrCAD file ^{(REV
A
)}
- ZIP
- 494.1 kB
- 2005-12-16 00:00:00
- MPC8349MDSORCSYM
下载Toggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue
PowerQUICC Modular Development System Platform IO Board Schematics ^{(REV
0
)}
- PDF
- 1.0 MB
- 2005-06-30 00:00:00
- PQMDSPIBSSCH
下载Toggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue
MPC8349MDS Board Schematics MPC8349/47SYS - TBGA ^{(REV
A
)}
- ZIP
- 755.1 kB
- 2005-06-22 00:00:00
- MPC8349EMDSSCH
下载Toggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue

软件

Embedded Software ( 1 )

BSP、驱动程序和中间件 ( 1 )

Wind River Linux

Wind River® Linux is the leader for building outstanding open source embedded products, ensuring customers work with the latest code from the most important open source efforts and most recent technologies.
